Front Passenger's Weight Sensor (KA, Kc Models) (2016 2017 2018 2019 2020 2021 2022): Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Passenger's Seat Rail/Front Passenger's Weight Sensors - Install

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

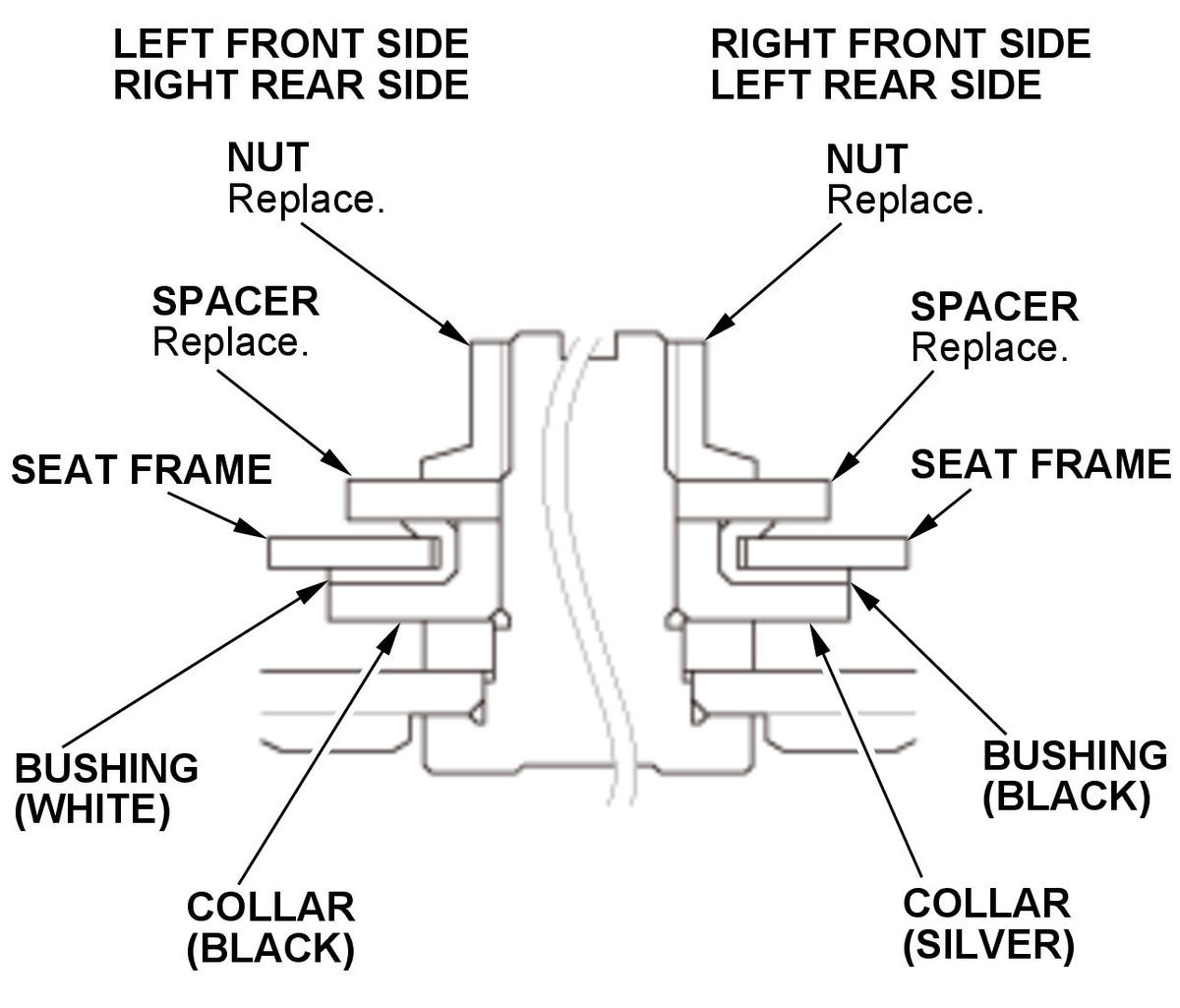

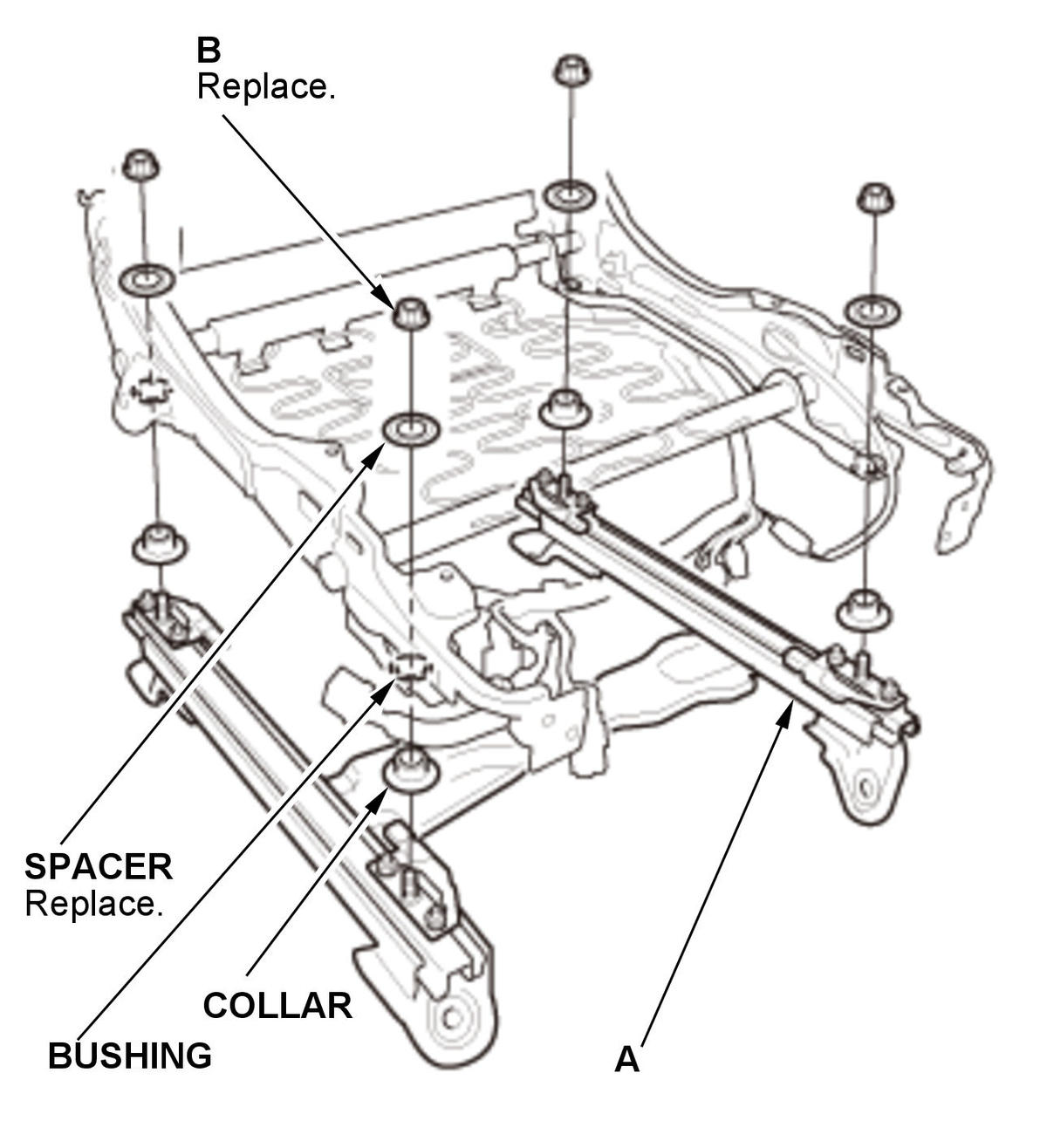

   1. Install the front passenger's seat rail/front passenger's weight sensors as an assembly (A) to the seat frame as shown, and loosely tighten the new nuts (B). NOTE: The bushings and collars can be identified by their color. Make sure to install the bushings and collars as shown.

   Fig 1: Front Passenger's Seat Rail/Front Passenger's Weight Sensors Assembly With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

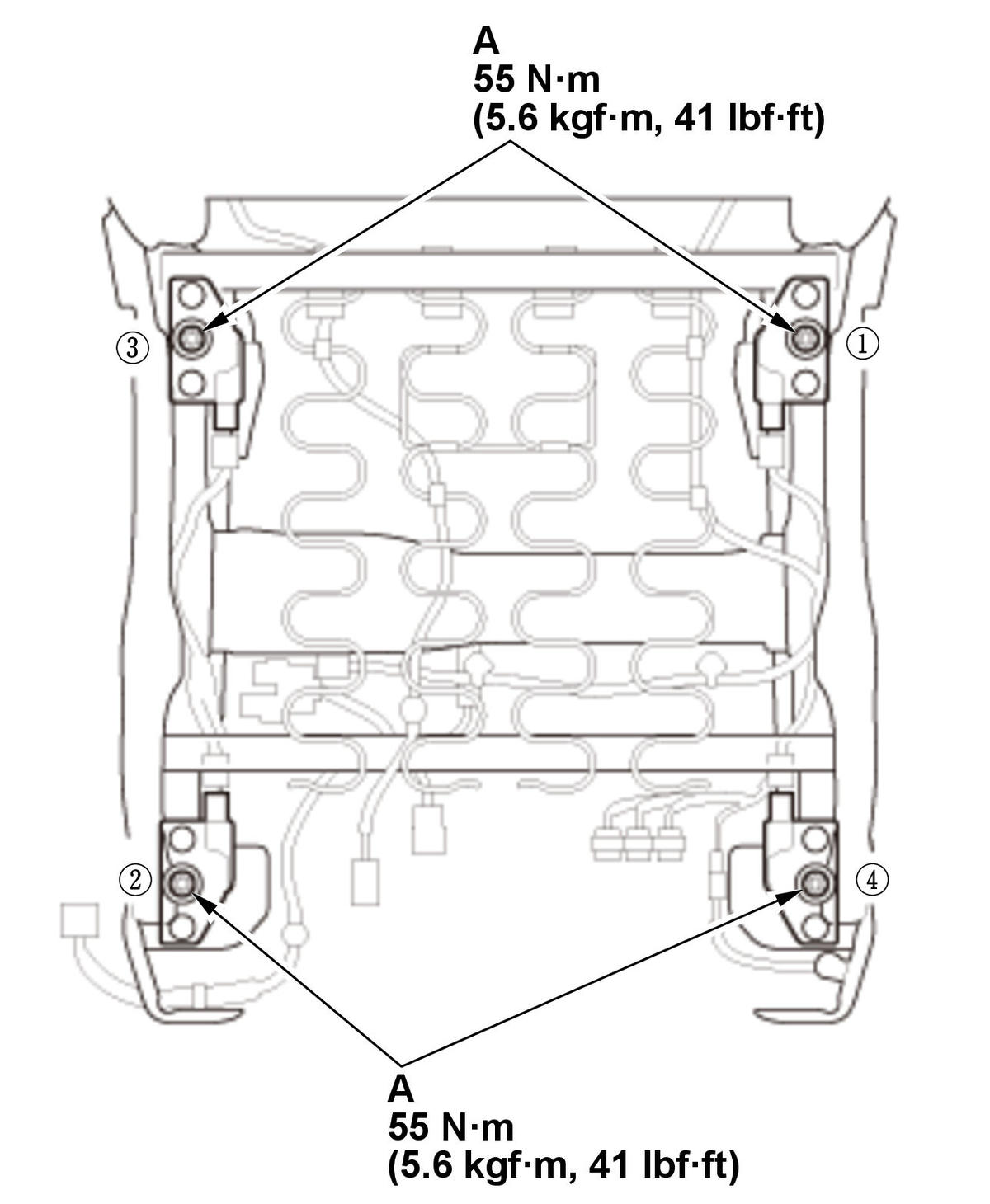

   2. Tighten the nuts (A) to the specified torque. NOTE: Tighten the nuts in the numbered sequence shown.

   Courtesy of HONDA, U.S.A., INC.

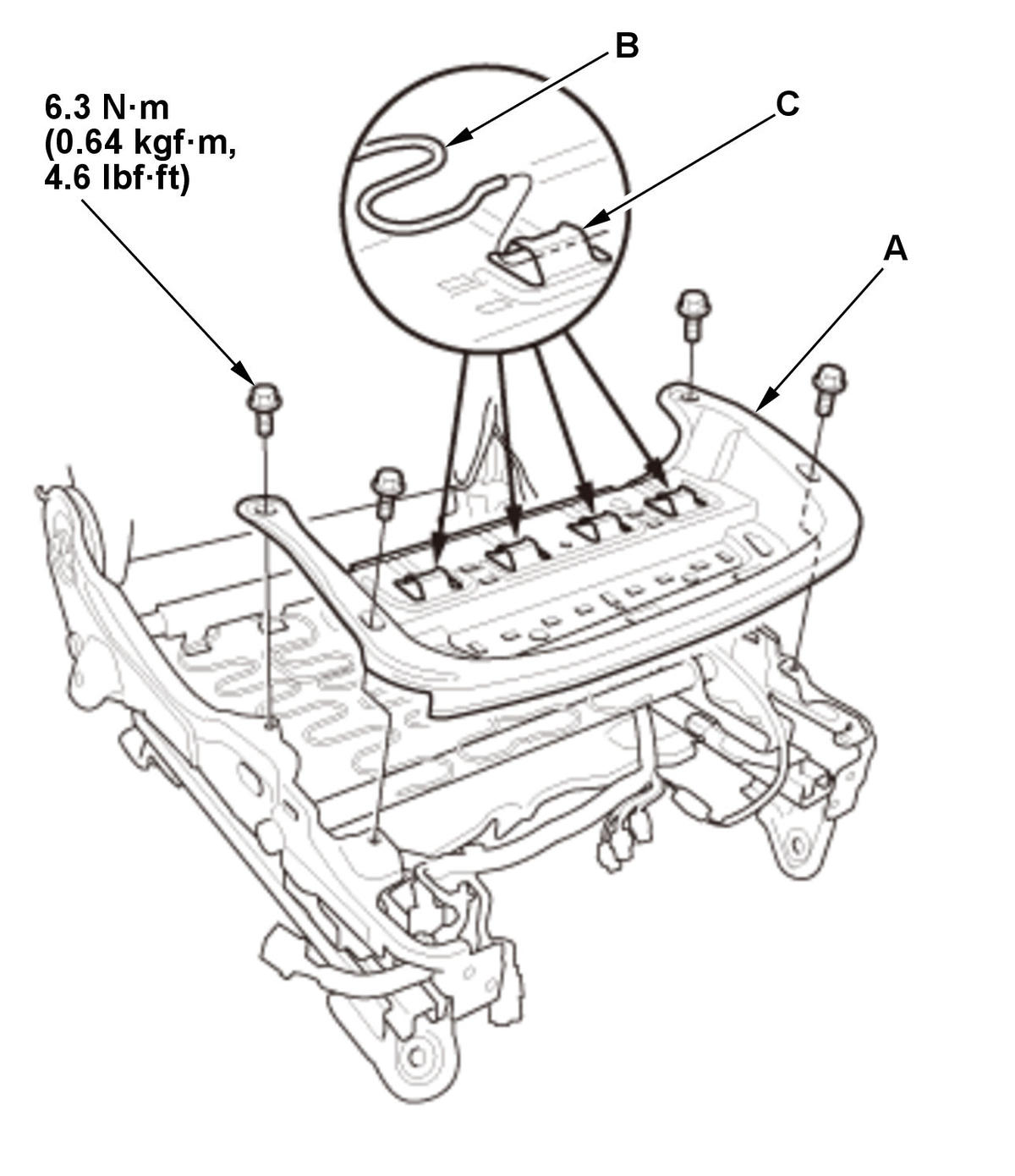

   3. Install the seat cushion frame (A), and install the seat cushion springs (B) to the hooks (C).

   Without Power Seat  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. With Power Seat  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

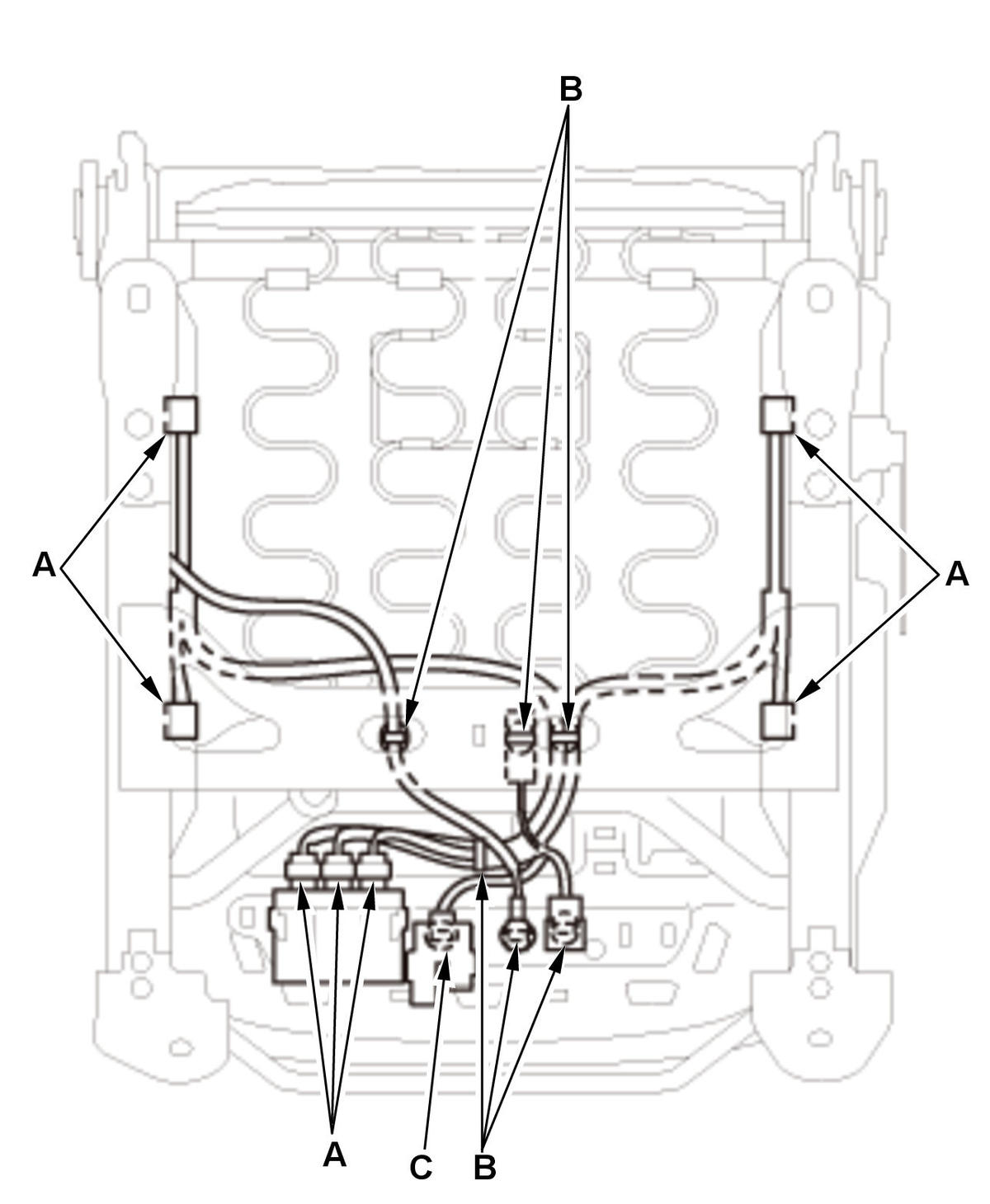

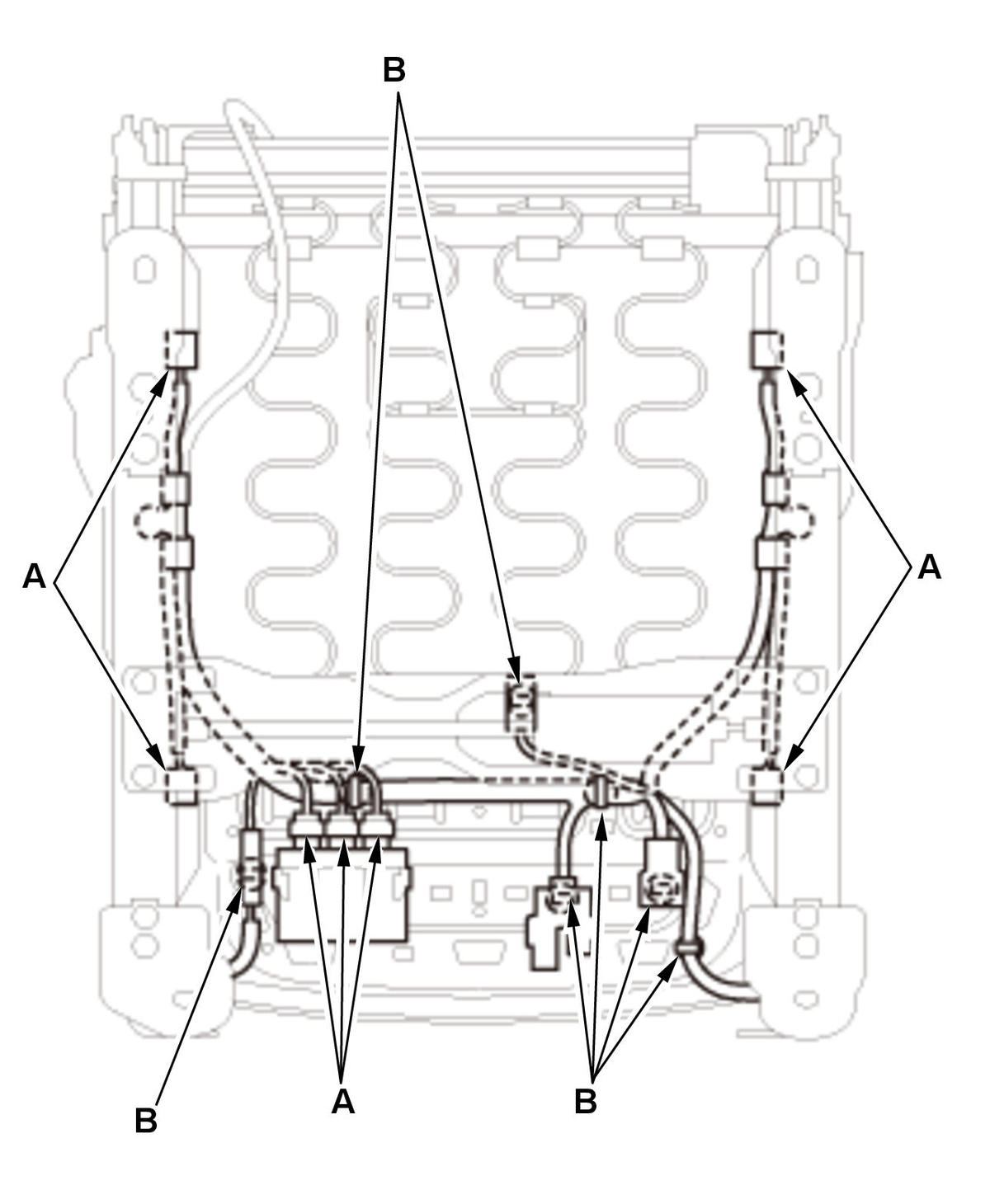

   4. Connect the connectors (A). 5. Install the clips (B). 6. Without power seat and with seat heater: Connect the connector (C).

2. Front Seat Slide Motor Cover - Install (with power seat)

   Courtesy of HONDA, U.S.A., INC.

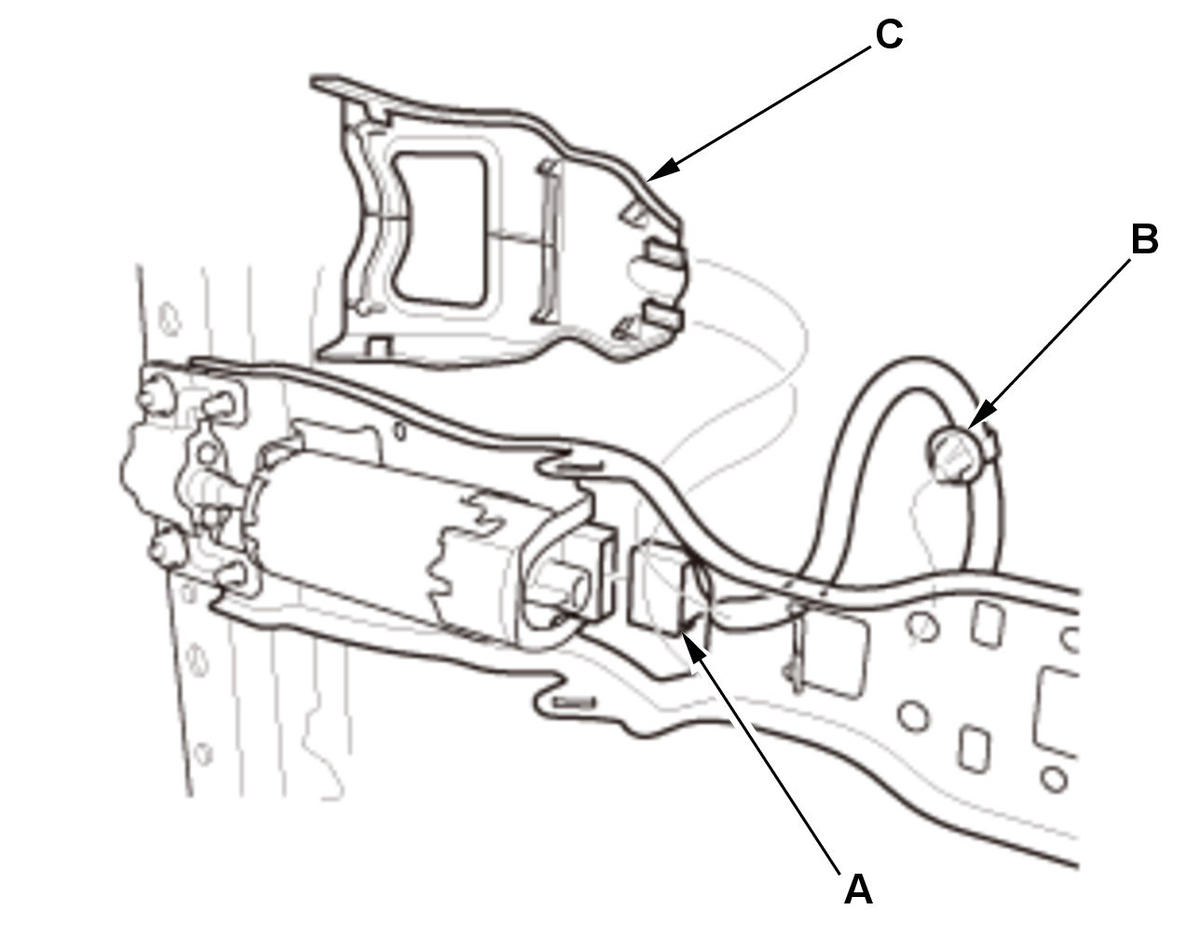

   1. Connect the connector (A), then install the clip (B). 2. Install the slide motor cover (C).

3. Front Seat Recline Inner Cover/Center Inner Cover - Install
4. Front Seat Cushion Cover/Pad - Install
5. Front Seat-Back Cover/Pad - Install
6. Front Passenger's Seat - Install
7. Battery Terminal - Connect
8. Seat Operation - Confirm

   1. Move the front seat and the seat-back through their full ranges of movement, making sure the harness are not pinched or interfering with other parts.

9. Front Passenger's Weight Sensor Unit - Initialize
10. Front Passenger's Weight Sensor Unit - Operation Check
11. SRS Operation - Confirm

    1. Press the engine start/stop button to select the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
