Removal After the Front Passenger's Airbag Deployment

  1. Battery Terminal - Disconnect
    1. Do the battery terminal disconnection procedure , then wait at least 3 minutes before starting work.
  2. Glove Box - Remove
    1. Remove the glove box .
  3. Front Passenger's Airbag Inflator Connector - Disconnect

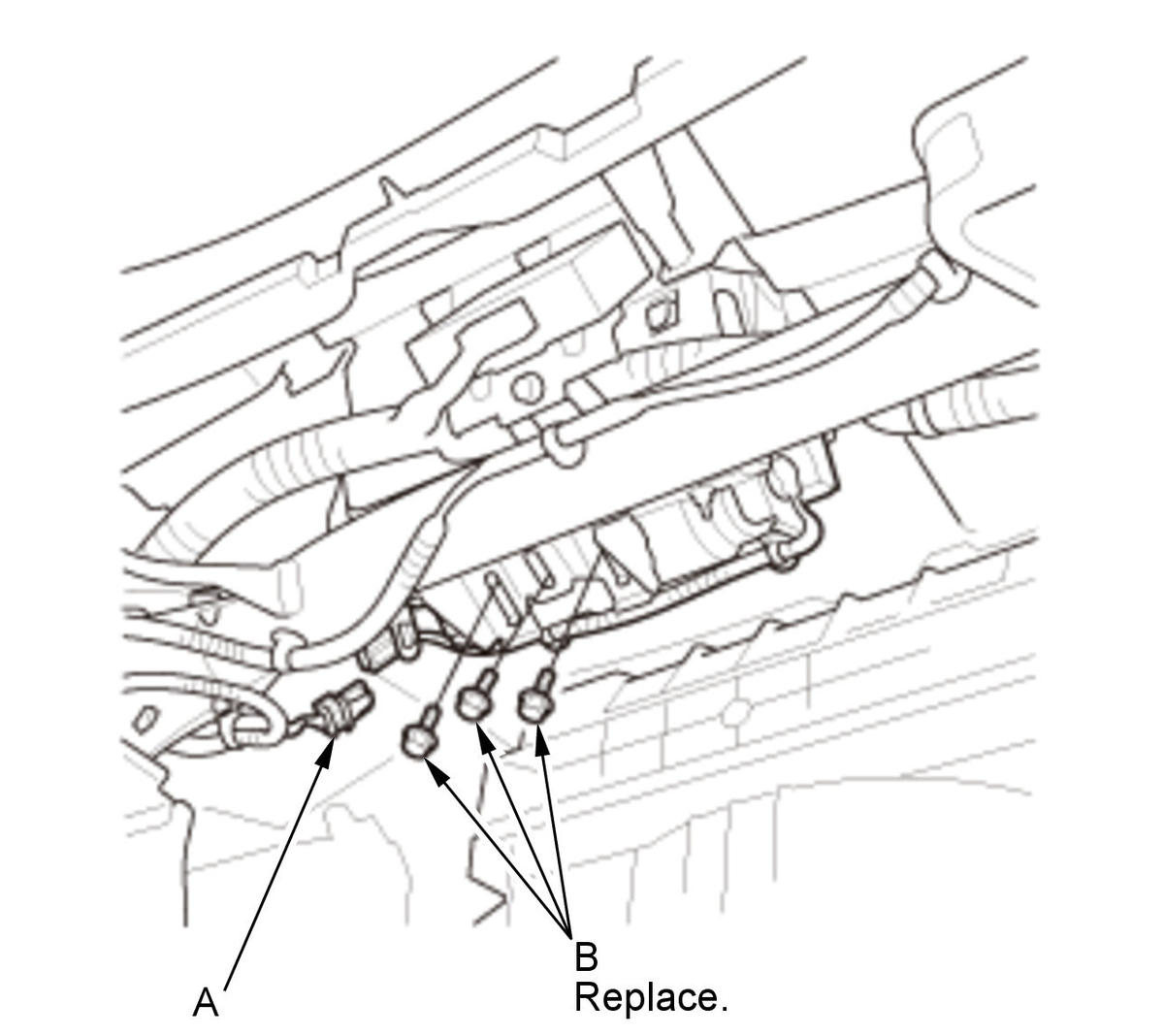

    GHH475171Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the front passenger's airbag inflator connector (A) on the dashboard wire harness.

    2. Remove the mounting bolts (B).
  4. Front Passenger's Airbag/Dashboard - Remove

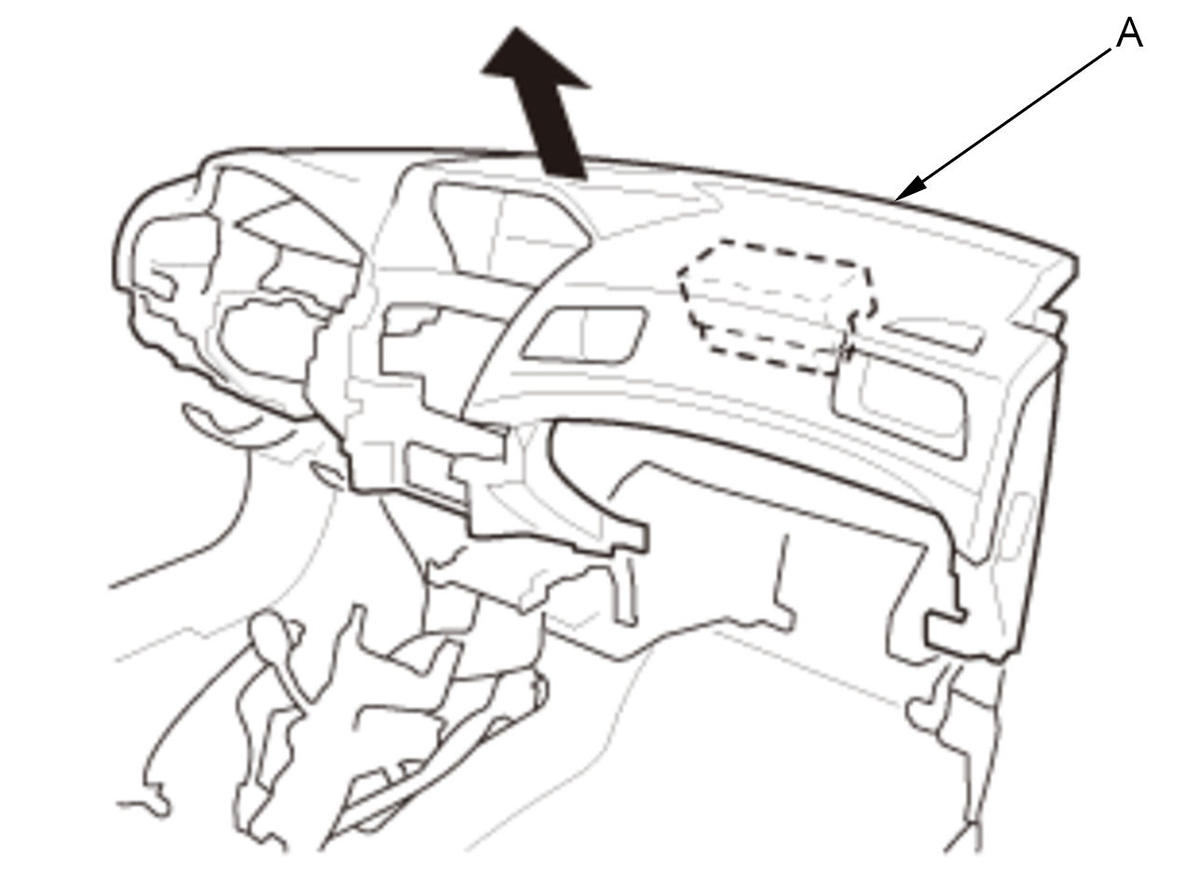

    GHH475172Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the front passenger's airbag/dashboard assembly (A) .
