Front Passenger's Airbag Cutoff Indicator: Removal

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Battery Terminal - Disconnect

   1. Do the battery terminal disconnection procedure , then wait at least 3 minutes before starting work.

2. Audio Display Unit (without navigation) - Remove

   1. Remove the audio display unit .

3. Navigation Display Unit (with navigation) - Remove

   1. Remove the navigation display unit .

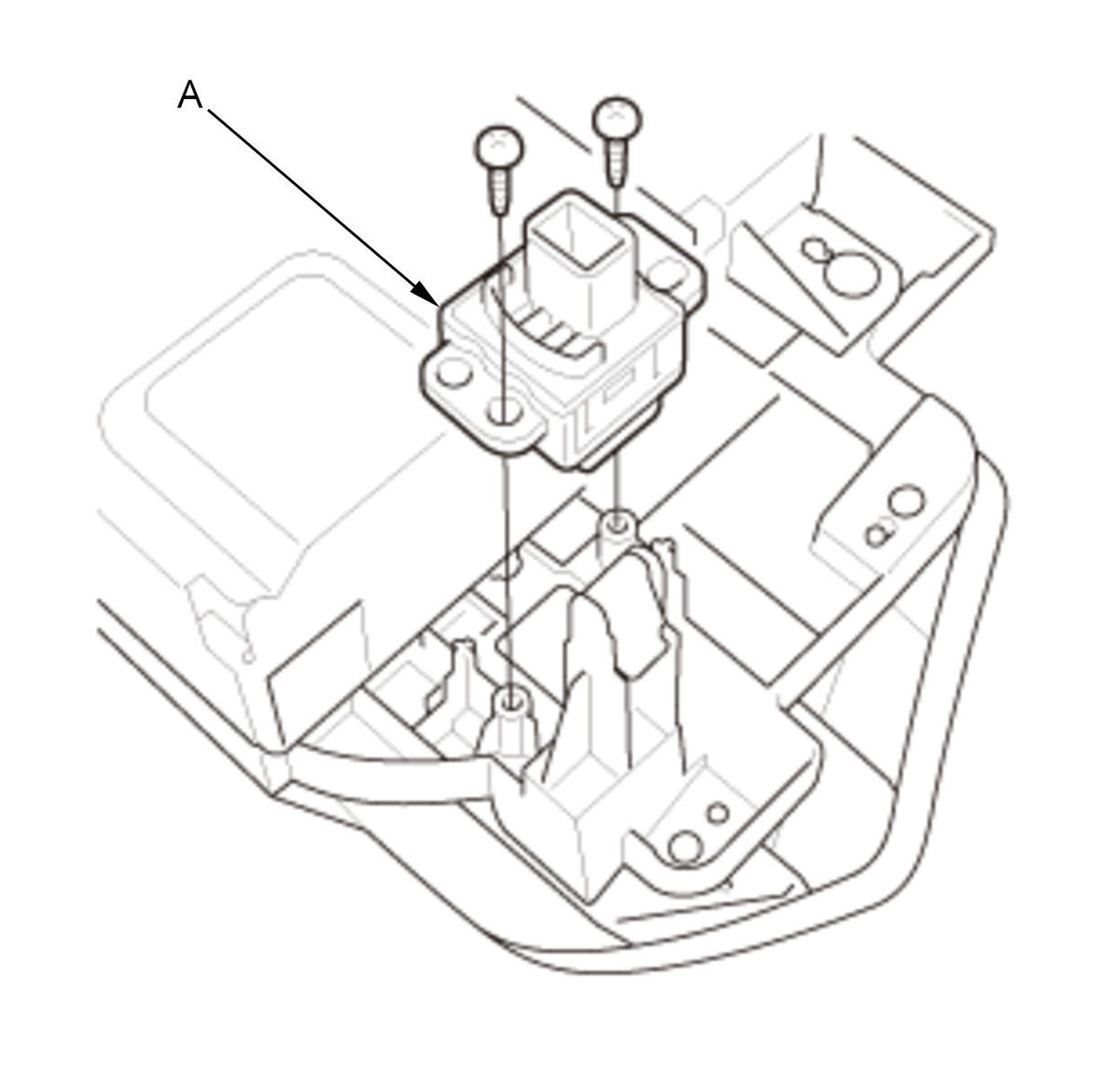

4. Front Passenger's Airbag Cutoff Indicator - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the front passenger's airbag cutoff indicator (A).
