Front Passenger's Airbag Cutoff Indicator: Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Passenger's Airbag Cutoff Indicator - Install

   Courtesy of HONDA, U.S.A., INC.

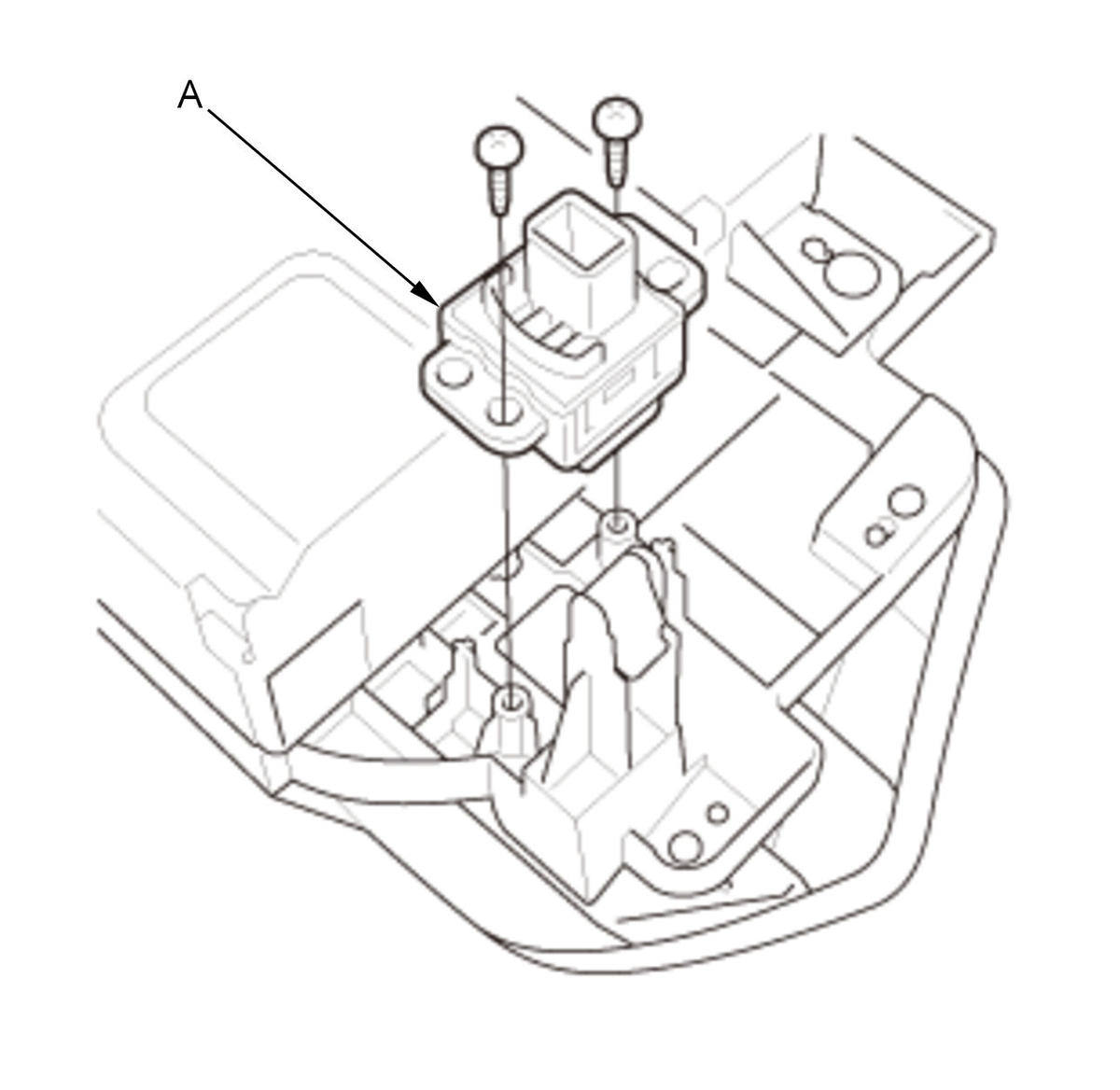

   1. Install the front passenger's airbag cutoff indicator (A).

2. Audio Display Unit (without navigation) - Install

   1. Install the audio display unit .

3. Navigation Display Unit (with navigation) - Install

   1. Install the navigation display unit .

4. Battery Terminal - Connect

   1. Do the battery terminal reconnection procedure .

5. DTC - Clear

   1. Clear any DTCs with the HDS.

6. SRS Operation - Confirm

   1. Press the engine start/stop button to select the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
