Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Battery Terminal - Disconnect
   NOTE: Wait at least 3 minutes before starting work.
2. Front Bumper - Remove
3. Front Impact Sensor - Remove

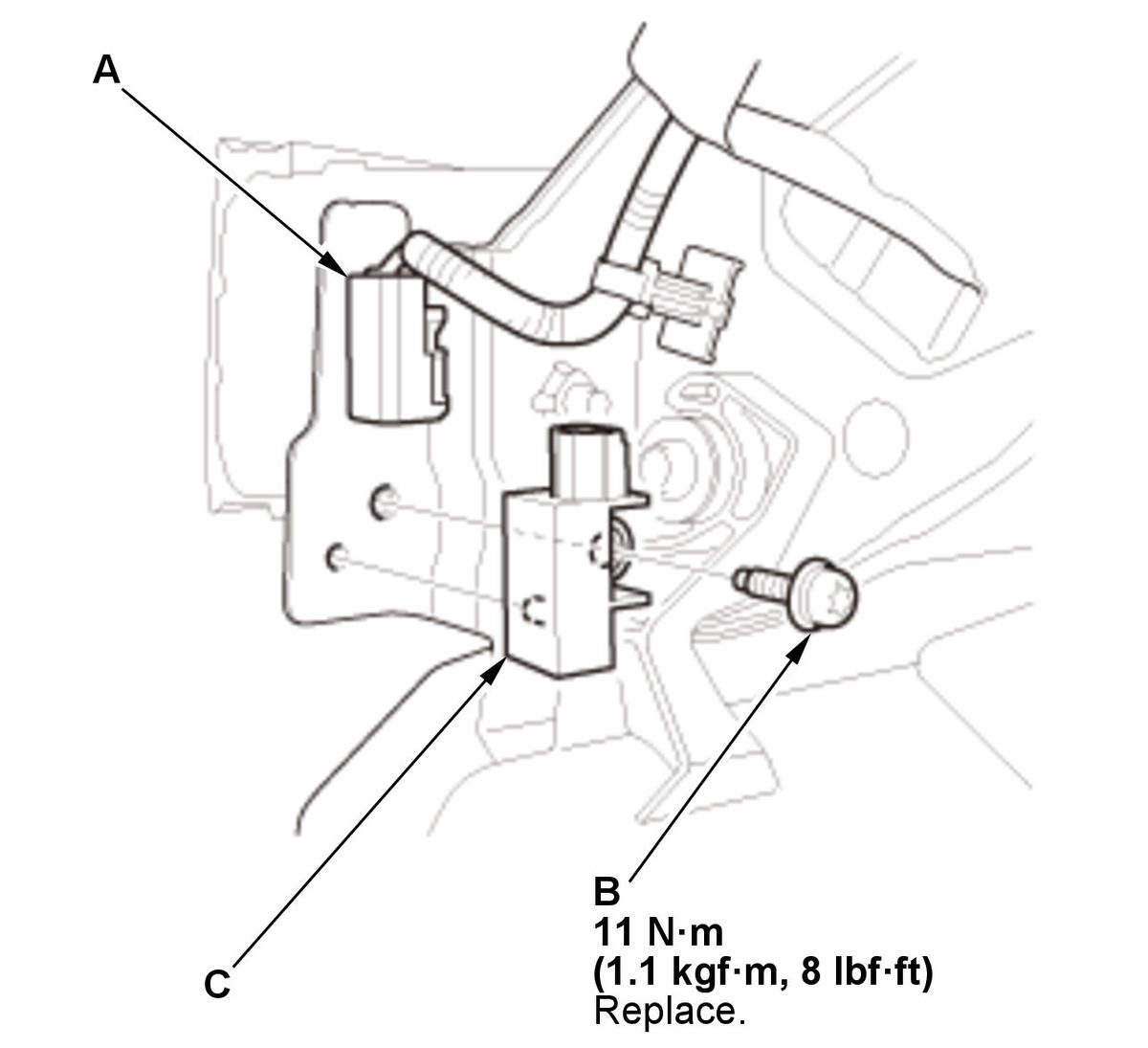

   Fig 1: Front Impact Sensor With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   1. Disconnect the connector (A). 2. Remove the bolt (B), then remove the front impact sensor (C).

4. All Removed Parts - Install

   1. Install the all removed parts in the reverse order of removal. NOTE: During installation, install the new bolt to the specified torque. Before installing the front bumper, make sure the SRS indicator works normally.

5. SRS Operation - Confirm

   1. Do the battery terminal reconnection procedure, press the engine start/stop button to select the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
