Driver's Airbag: Removal

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE: If replacing the driver's airbag after deployment, refer to Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.

Battery Terminal - Disconnect

1. Do the battery terminal disconnection procedure , then wait at least 3 minutes before starting work.

Driver's Airbag Inflator Connector - Disconnect

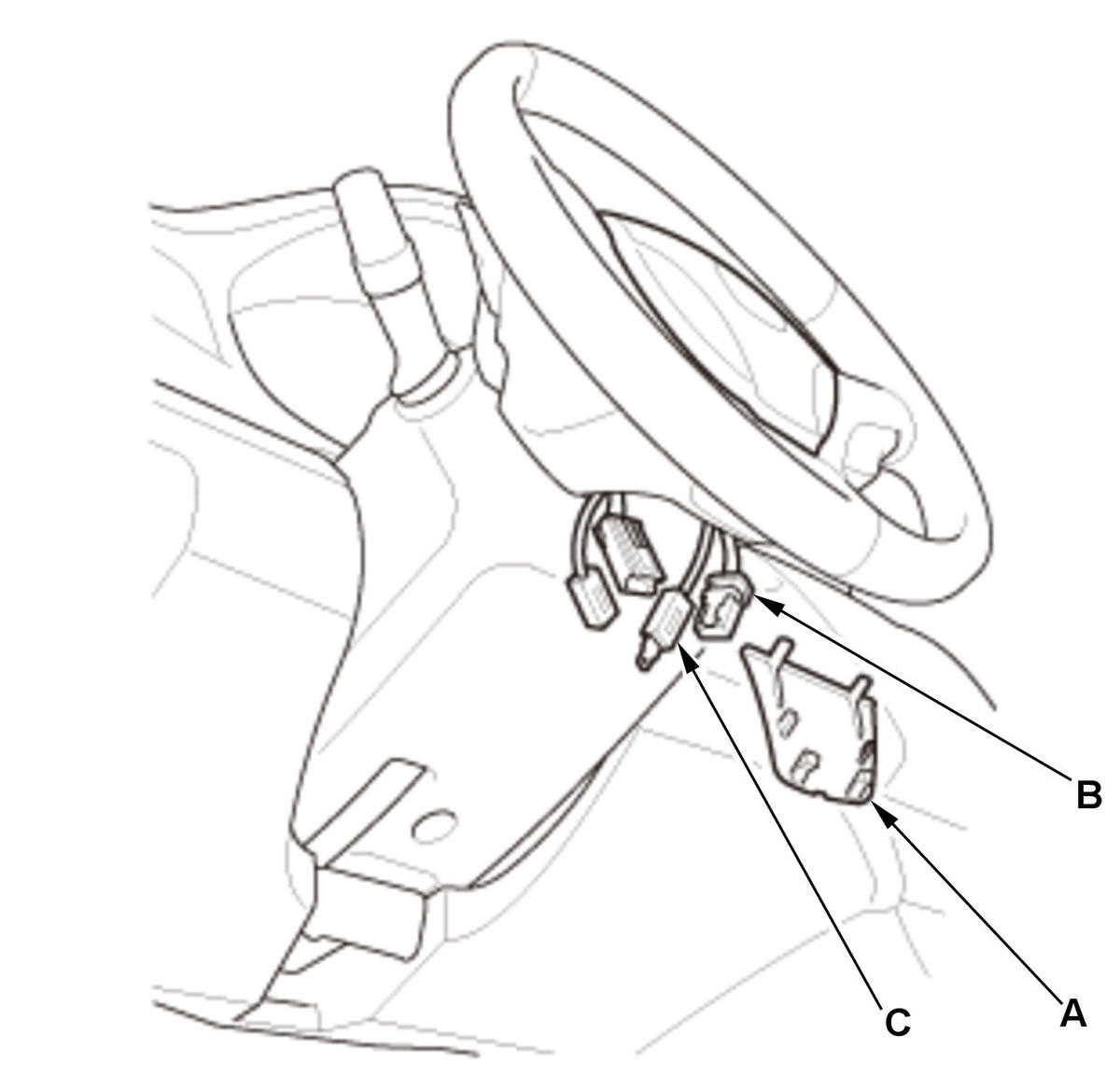

Courtesy of HONDA, U.S.A., INC.

1. Remove the access panel (A).

2. Disconnect the driver's airbag inflator connector (B) on the cable reel harness.

3. Disconnect the horn switch connector (C).

Driver's Airbag - Remove

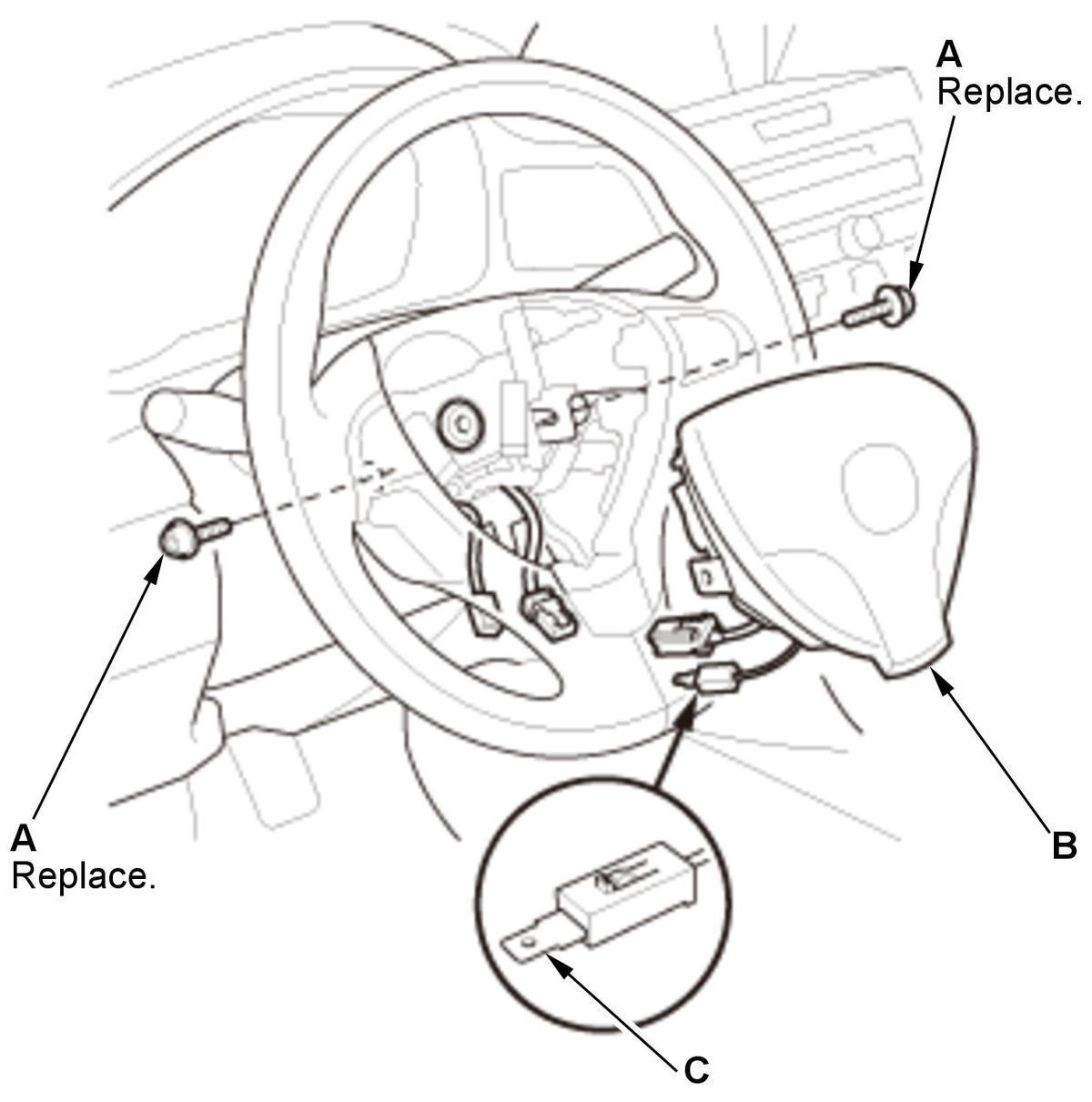

Courtesy of HONDA, U.S.A., INC.

1. Remove the TORX bolts (A) using a TORX T30 bit, then remove the driver's airbag (B).

NOTE: Make sure the terminal tab (C) of the horn switch connector is attached on the driver's airbag side.
