Driver's Airbag: Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Driver's Airbag - Install

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

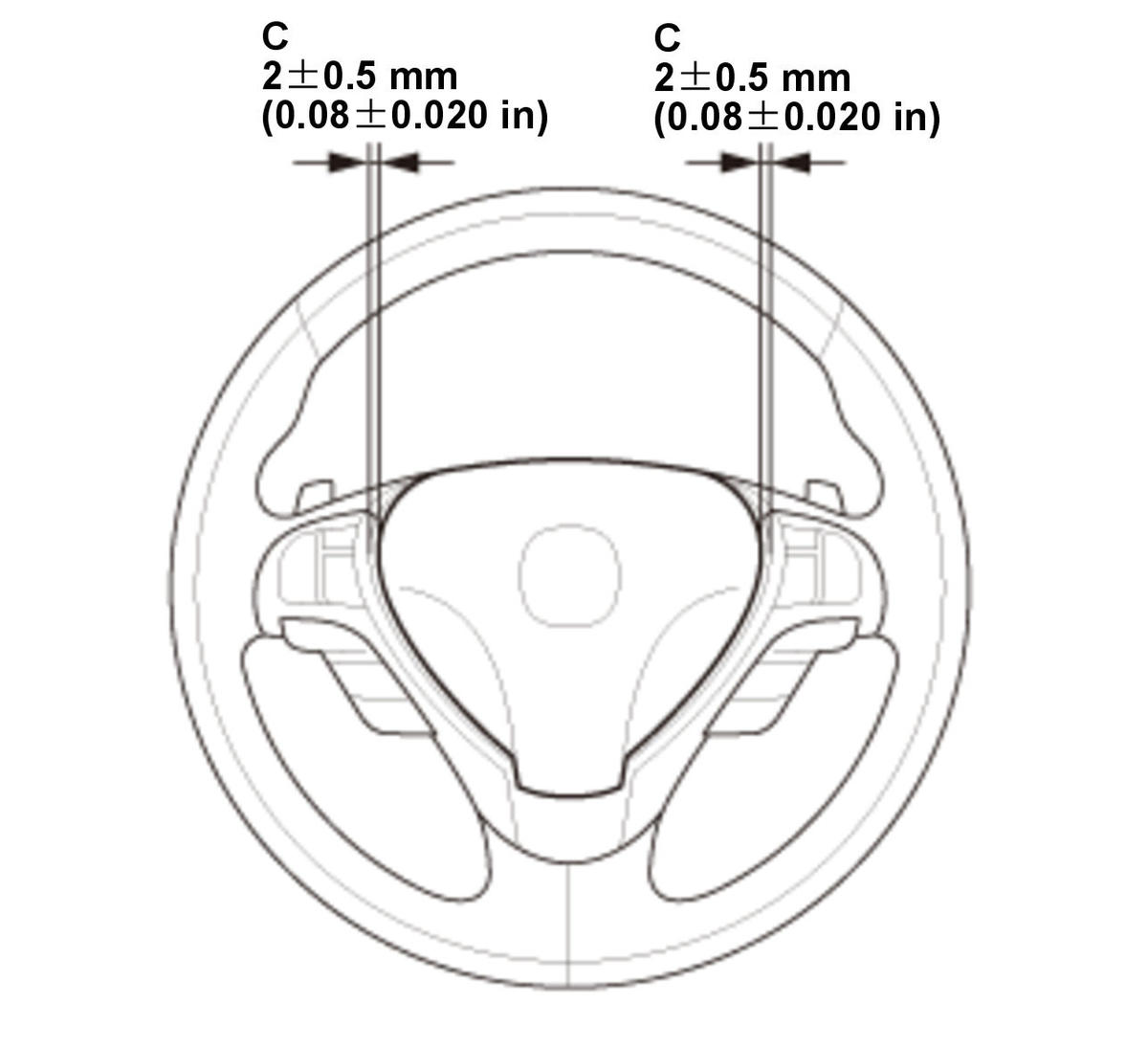

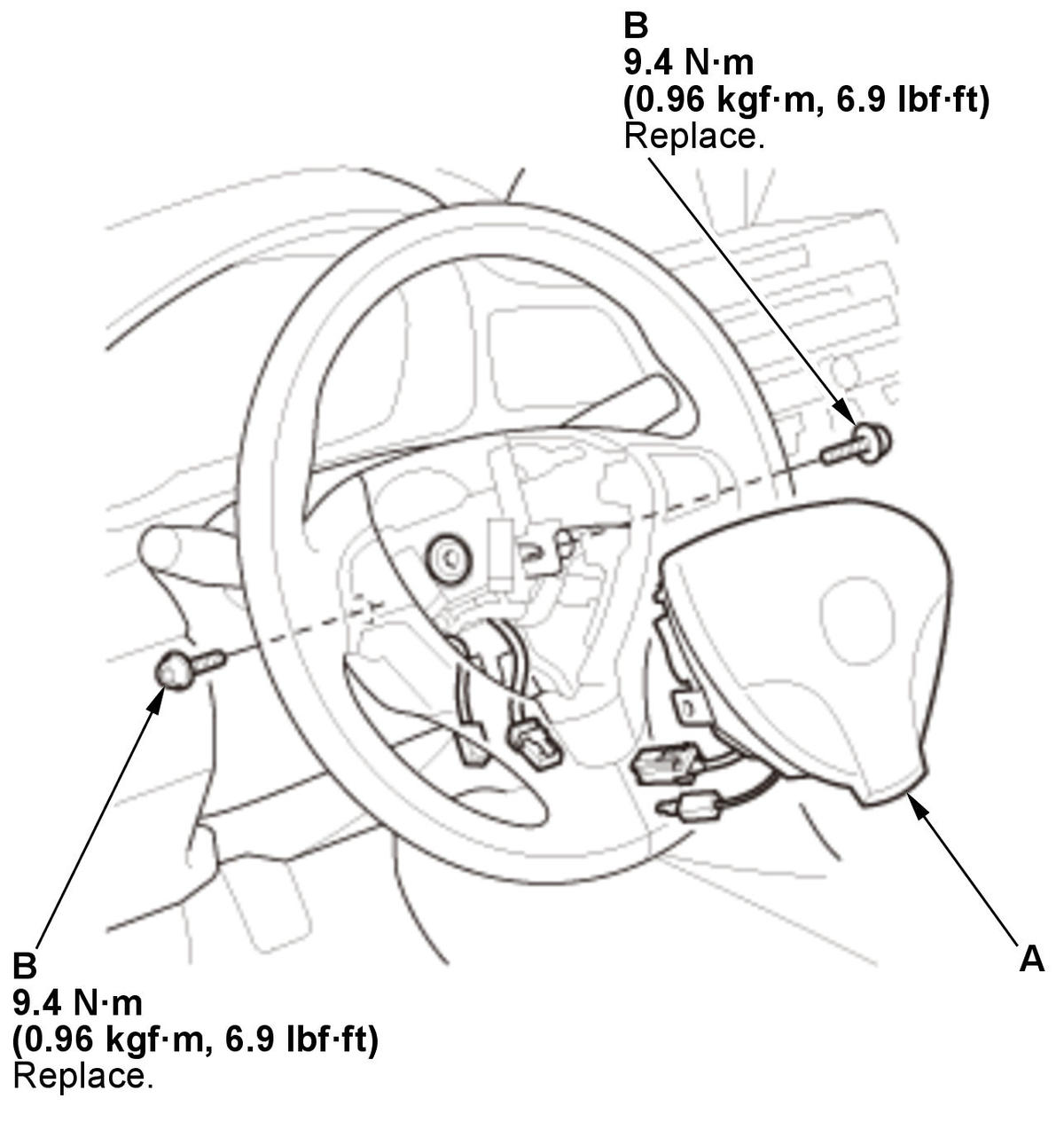

   NOTE: If you are replacing a deployed driver's airbag, inspect the cable reel for heat damage. If there is any damage, replace the cable reel . 1. Install the driver's airbag (A) with the new TORX bolts (B), using a TORX T30 bit. NOTE: Make sure the clearance (C) between the steering wheel and horn pad is the specified value.

2. Driver's Airbag Inflator Connector - Connect

   Courtesy of HONDA, U.S.A., INC.

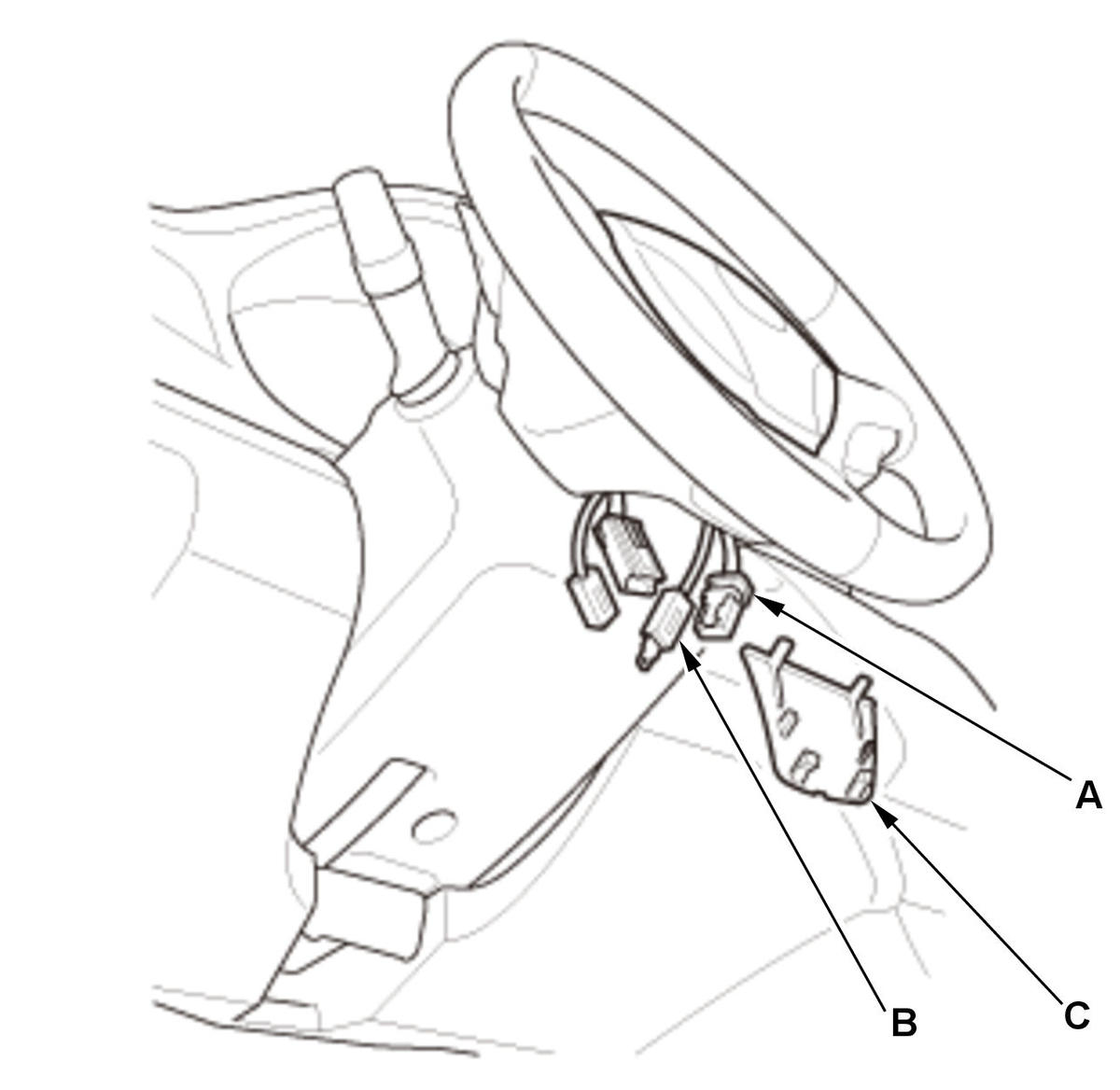

   1. Connect the driver's airbag inflator connector (A) on the cable reel harness. 2. Connect the horn switch connector (B). NOTE: After connecting the negative cable to the battery, make sure the horn works properly. 3. Install the access panel (C).

3. Battery Terminal - Connect

   1. Do the battery terminal reconnection procedure .

4. DTC - Clear

   1. Clear any DTCs with the HDS.

5. SRS Operation - Confirm

   1. Press the engine start/stop button to select the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
