Cable Reel: Removal

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Battery Terminal - Disconnect

   1. Do the battery terminal disconnection procedure , then wait at least 3 minutes before starting work.

2. Driver's Airbag - Remove

   1. Remove the driver's airbag .

3. Cable Reel Connector C - Disconnect

   Courtesy of HONDA, U.S.A., INC.

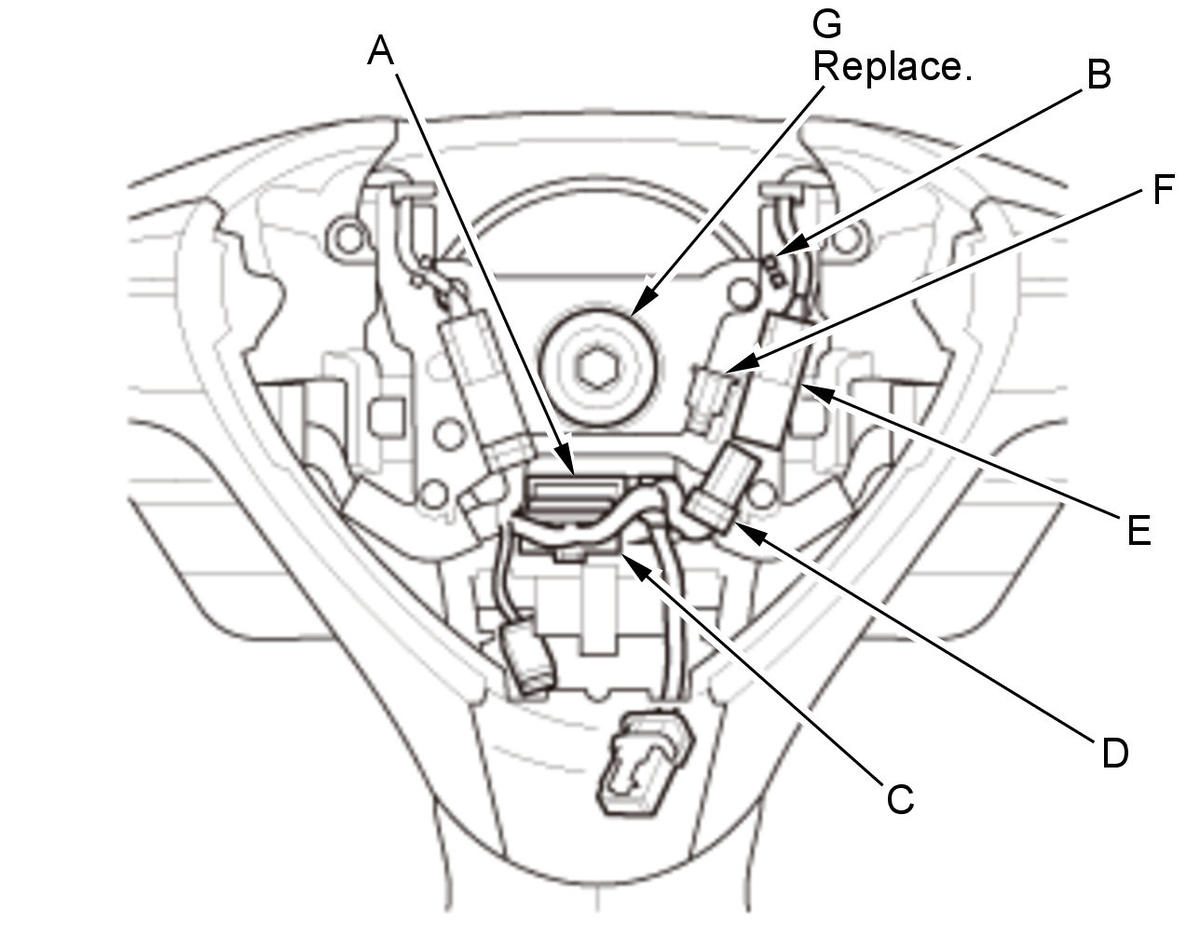

   1. Disconnect cable reel connector C on the cable reel subharness from the cable reel (A). 2. A/T: Remove the harness from the holder (B). 3. A/T: Disconnect the paddle shifter + (upshift switch) connector (D), then slide and remove the connector (E) from the bracket (F) to install the steering wheel puller. 4. Loosen the steering wheel bolt (G) three turns.

4. Steering Wheel - Remove

   1. Install a commercially available steering wheel puller on the steering wheel. Free the steering wheel from the steering column shaft . 2. Remove the steering wheel puller, then remove the steering wheel. NOTE: Remove the old sealant from the threads in the steering column shaft.

5. Column Cover - Remove

   1. Remove the upper and lower column covers .

6. Cable Reel Connectors A, B, and Steering Angle Sensor Connector - Disconnect

   Courtesy of HONDA, U.S.A., INC.

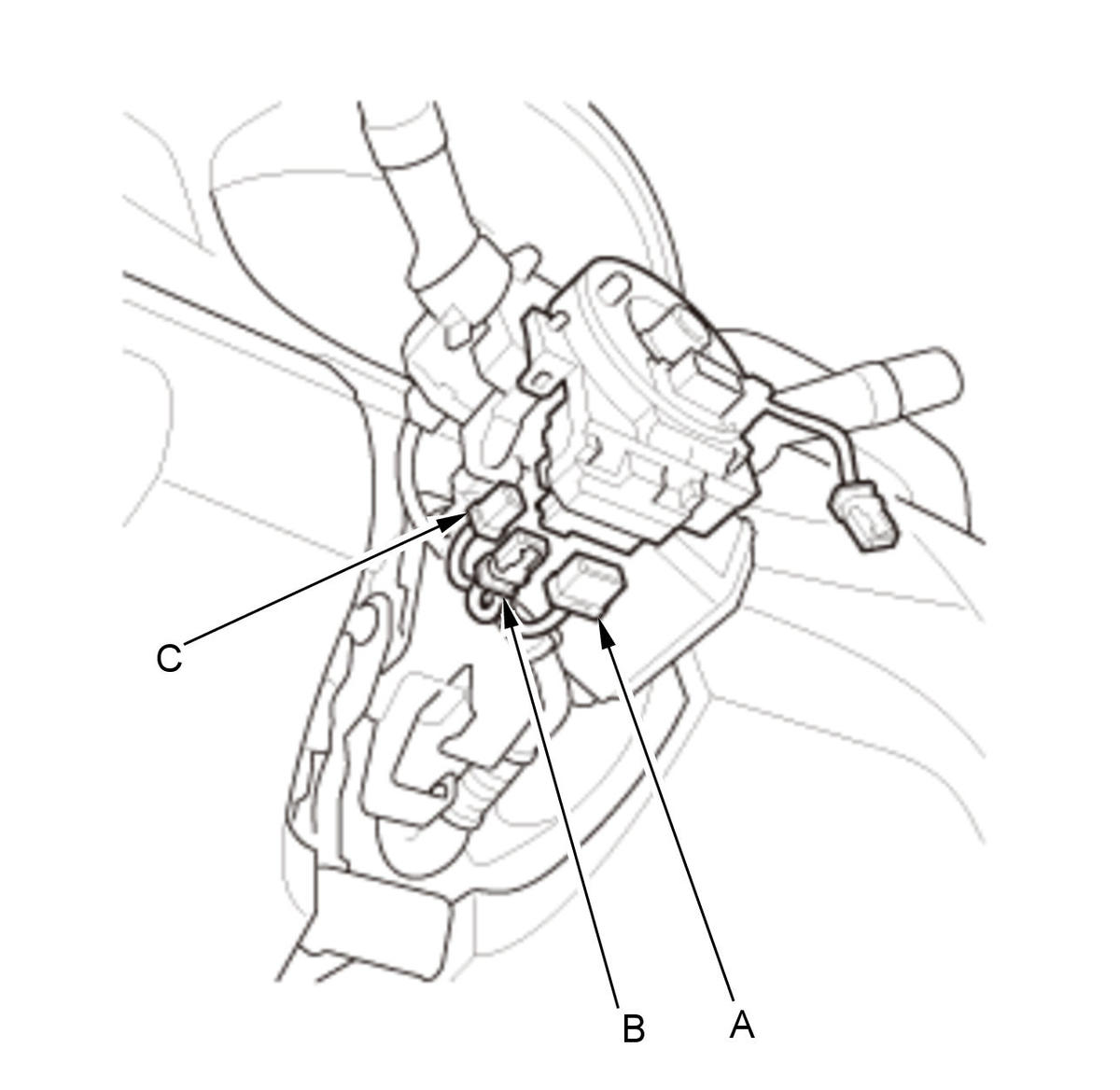

   1. Disconnect cable reel connectors A and B on the dashboard wire harness, and the steering angle sensor connector (C).

7. Cable Reel/Steering Angle Sensor - Remove

   Courtesy of HONDA, U.S.A., INC.

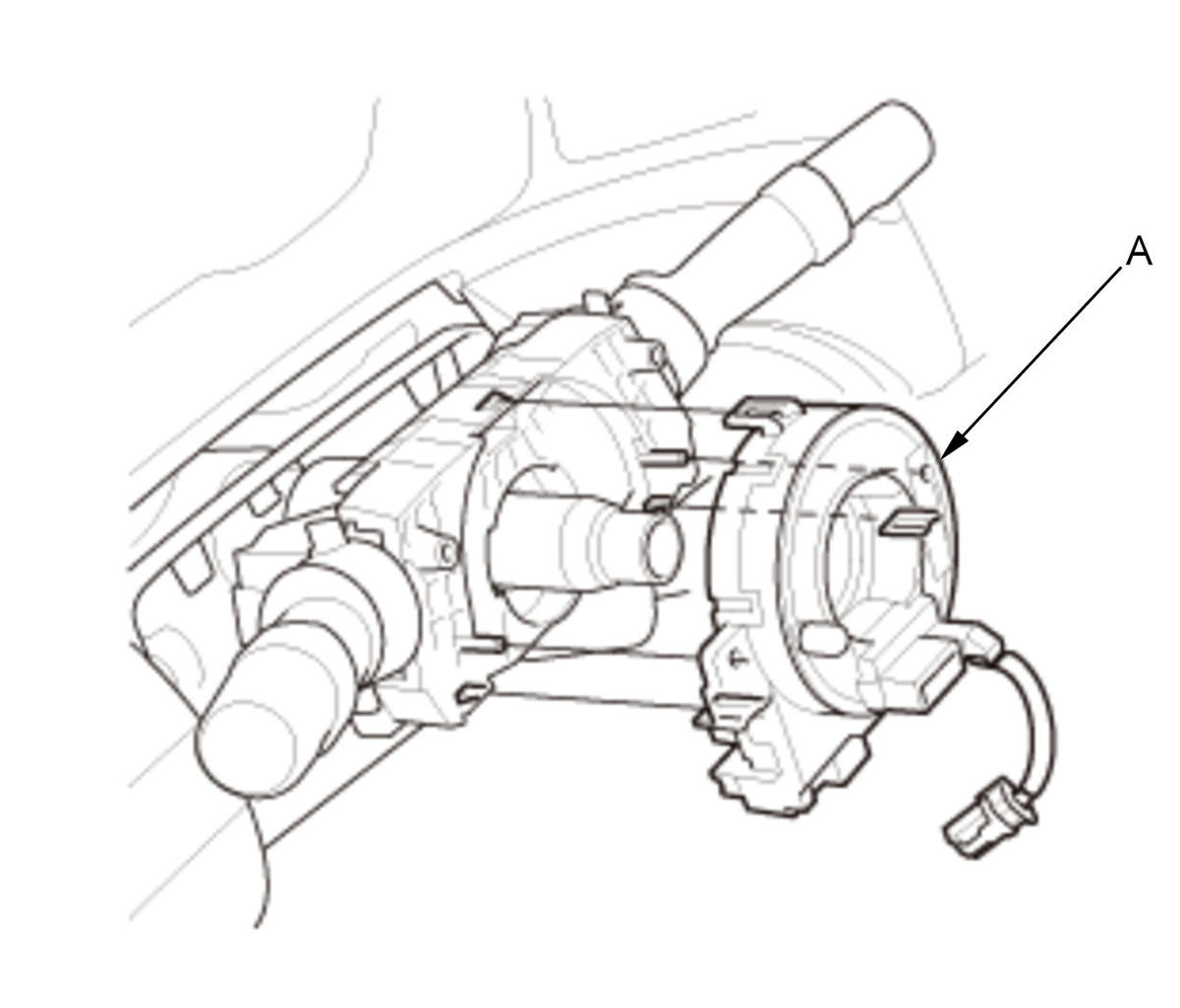

   1. Remove the cable reel/steering angle sensor (A).

8. Cable Reel - Remove

   Courtesy of HONDA, U.S.A., INC.

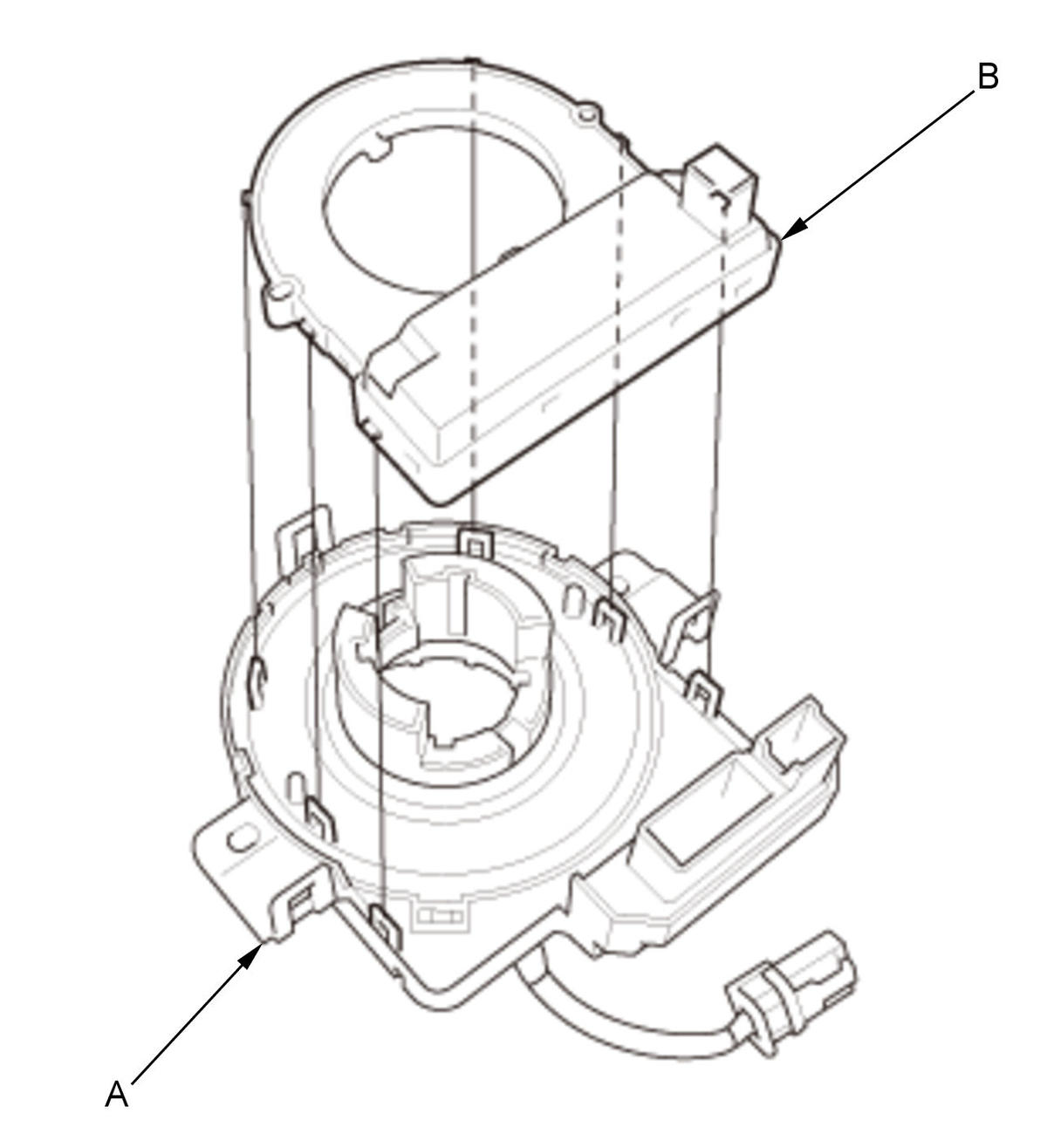

   1. Remove the cable reel (A) from the steering angle sensor (B).
