DTC P2814

WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

DTC P2814: Clutch Pressure Control Solenoid Valve G Circuit Low

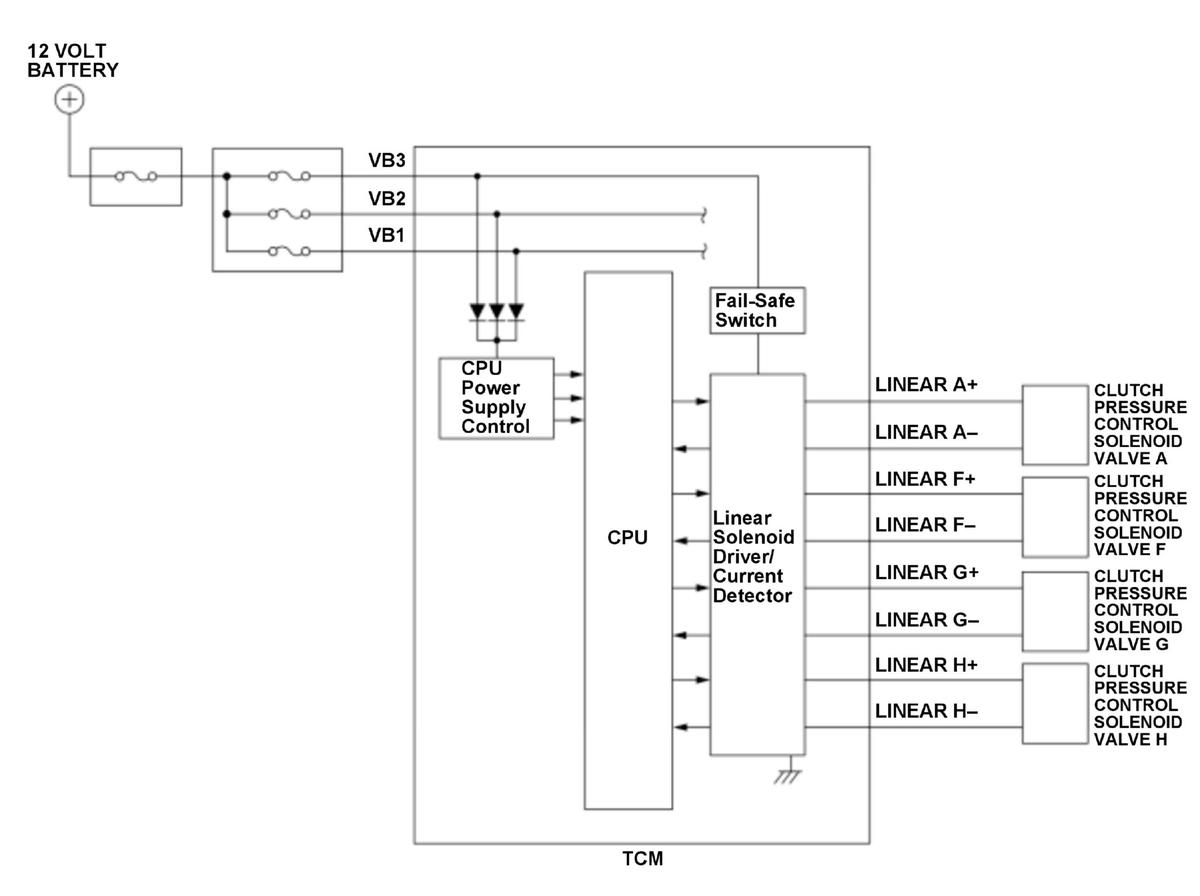

General Description

Courtesy of HONDA, U.S.A., INC.

Clutch pressure control solenoid valve G is controlled by duty output. A spool in clutch pressure control solenoid valve G moves the valve according to the current, and produces hydraulic pressure in proportion to the current. The transmission control module (TCM) measures the current that passes through clutch pressure control solenoid valve G and uses feedback control to compensate for the difference between the measured current and the commanded one. If the current value of clutch pressure control solenoid valve G is less than a specified value (regardless of the duty output), or the current value of clutch pressure control solenoid valve G is less than a specified value when the duty output is 100 %, the TCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	120 milliseconds or more
DTC Type	One drive cycle, MIL on, Shift position indicator blinks

Enable Conditions

Condition	Minimum	Maximum
12 volt battery voltage [Battery Voltage]	10.0 V	-
Command current value of clutch pressure control solenoid valve G	150 mA	1, 000 mA

[ ]: HDS Parameter

Malfunction Threshold

One of these conditions is met for at least 120 milliseconds:

The current value of clutch pressure control solenoid valve G is less than 75 mA (regardless of the duty output).
The current value of clutch pressure control solenoid valve G is less than 900 mA when the duty output is 100 %.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

Clutch pressure control solenoid valve G LINEAR G+ line open (includes a loose or disconnected connector)
Clutch pressure control solenoid valve G LINEAR G- line open (includes a loose or disconnected connector)
TCM internal circuit failure

Confirmation Procedure

Operating Condition

Turn the vehicle to the ON mode, and wait for at least 1 second.

With the HDS

None.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the MIL comes on, the shift position indicator blinks, and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the TCM memory.

Conditions for clearing the DTC

The shift position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
