DTC P087C, P087D

WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

DTC P087C: Two-Way Clutch Actuator Valve Stroke Sensor B Circuit Low DTC P087D: Two-Way Clutch Actuator Valve Stroke Sensor B Circuit High

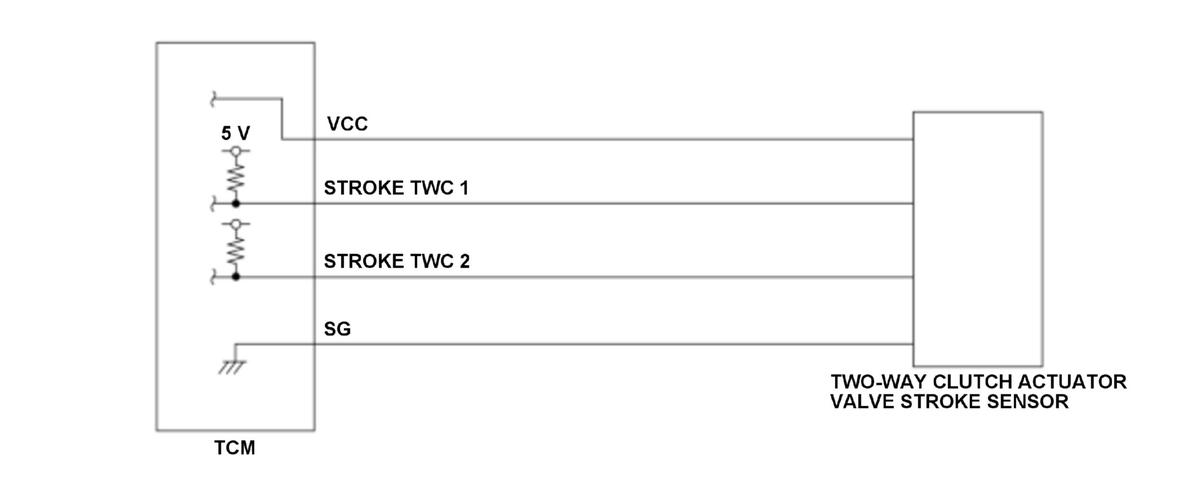

General Description

Courtesy of HONDA, U.S.A., INC.

The transmission control module (TCM) judges the two-way clutch position by the output voltage from the two-way clutch actuator valve stroke sensor. The TCM monitors the two-way clutch actuator valve stroke sensor output voltage, and when the output voltage is a specified value for a specified duration, the TCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	500 milliseconds or more
DTC Type	One drive cycle, MIL on, Shift position indicator blinks

Enable Conditions

Condition	Minimum	Maximum
12 volt battery voltage [Battery Voltage]	10 V	-
Vehicle	ON mode
Other	No abnormality in sensor supply (VCC)

[ ]: HDS Parameter

Malfunction Threshold

DTC: P087C

The two-way clutch actuator valve stroke sensor B output voltage is less than 0.094 V for at least 500 milliseconds.

DTC: P087D

The two-way clutch actuator valve stroke sensor B output voltage is more than 4.91 V for at least 500 milliseconds.

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

Two-way clutch actuator valve stroke sensor line failure
Two-way clutch actuator valve stroke sensor failure
TCM internal circuit failure

Confirmation Procedure

Operating Condition

Turn the vehicle to the ON mode, and wait for at least 5 seconds.

With the HDS

None.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the MIL comes on, the shift position indicator blinks, and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the TCM memory.

Conditions for clearing the DTC

The shift position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
