Paddle Shifter (2016 2017 2018 2019 2020 2021 2022): Test

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repair or service.

1. Driver's Airbag - Remove
2. Paddle Shifter - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

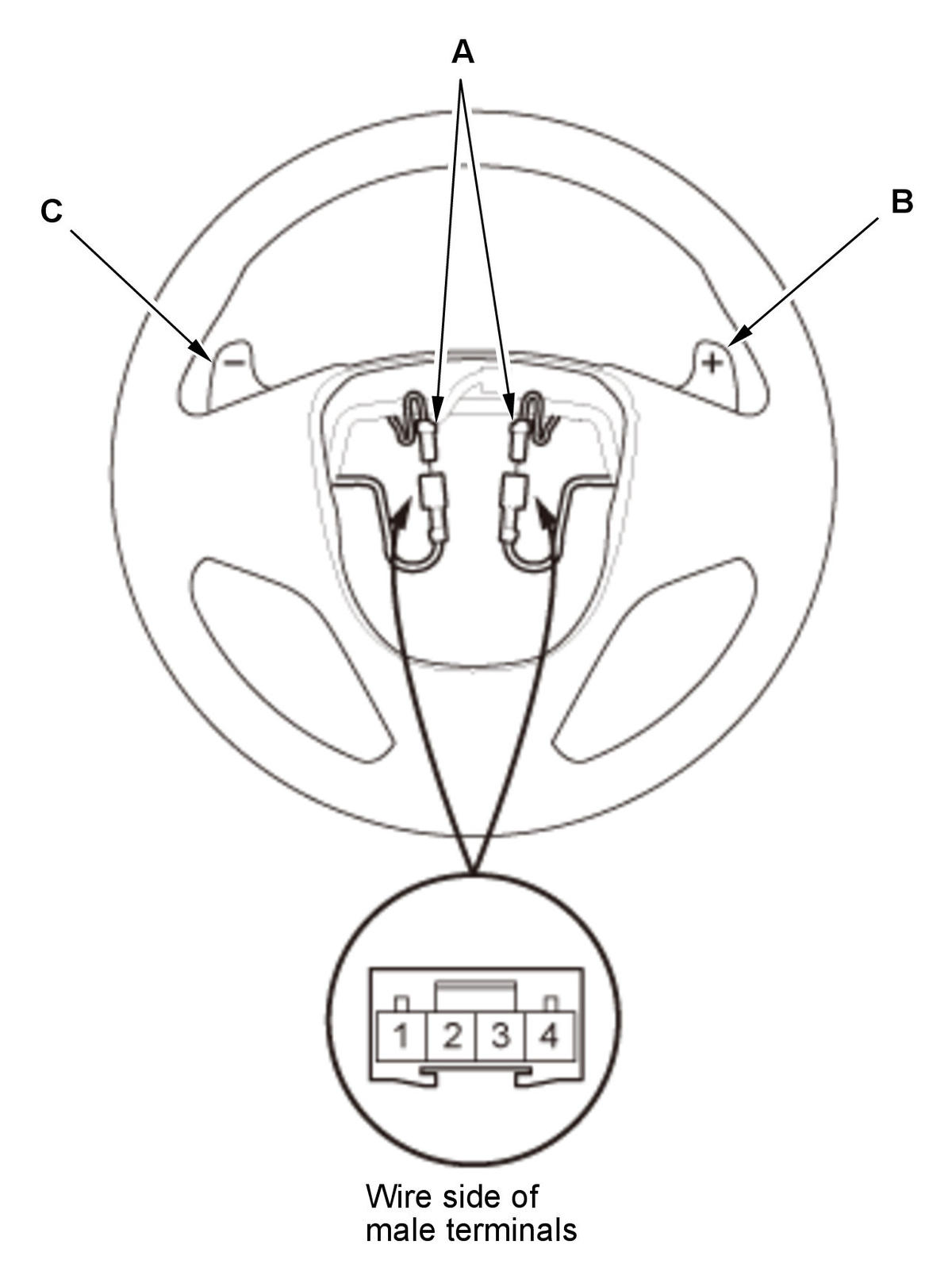

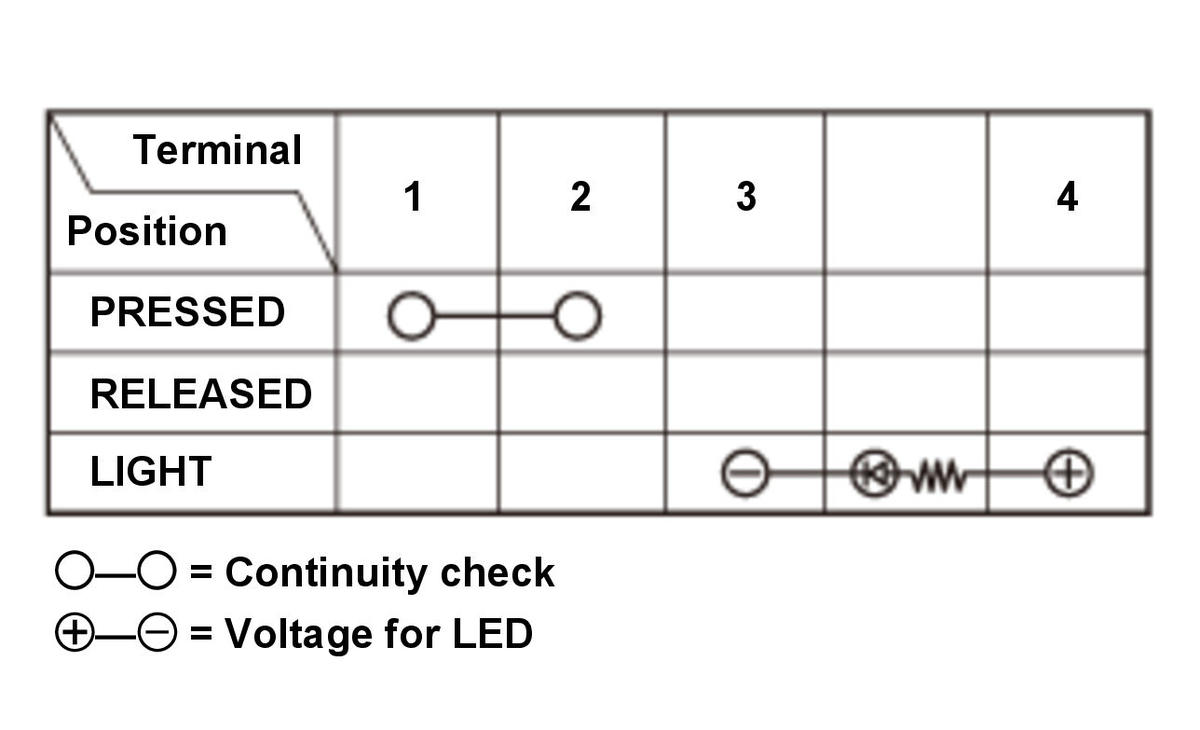

   1. Disconnect the connectors (A). 2. Check the paddle shifter + (upshift switch) (B) and the paddle shifter - (downshift switch) (C) according to the table. NOTE:  This important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse). 3. If the result is not as specified, replace faulty paddle shifter .

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
