Moonroof Wind Deflector: Removal

  1. Wind Deflector - Remove
    GHH472776Courtesy of HONDA, U.S.A., INC.
    		 1. Open the glass fully.

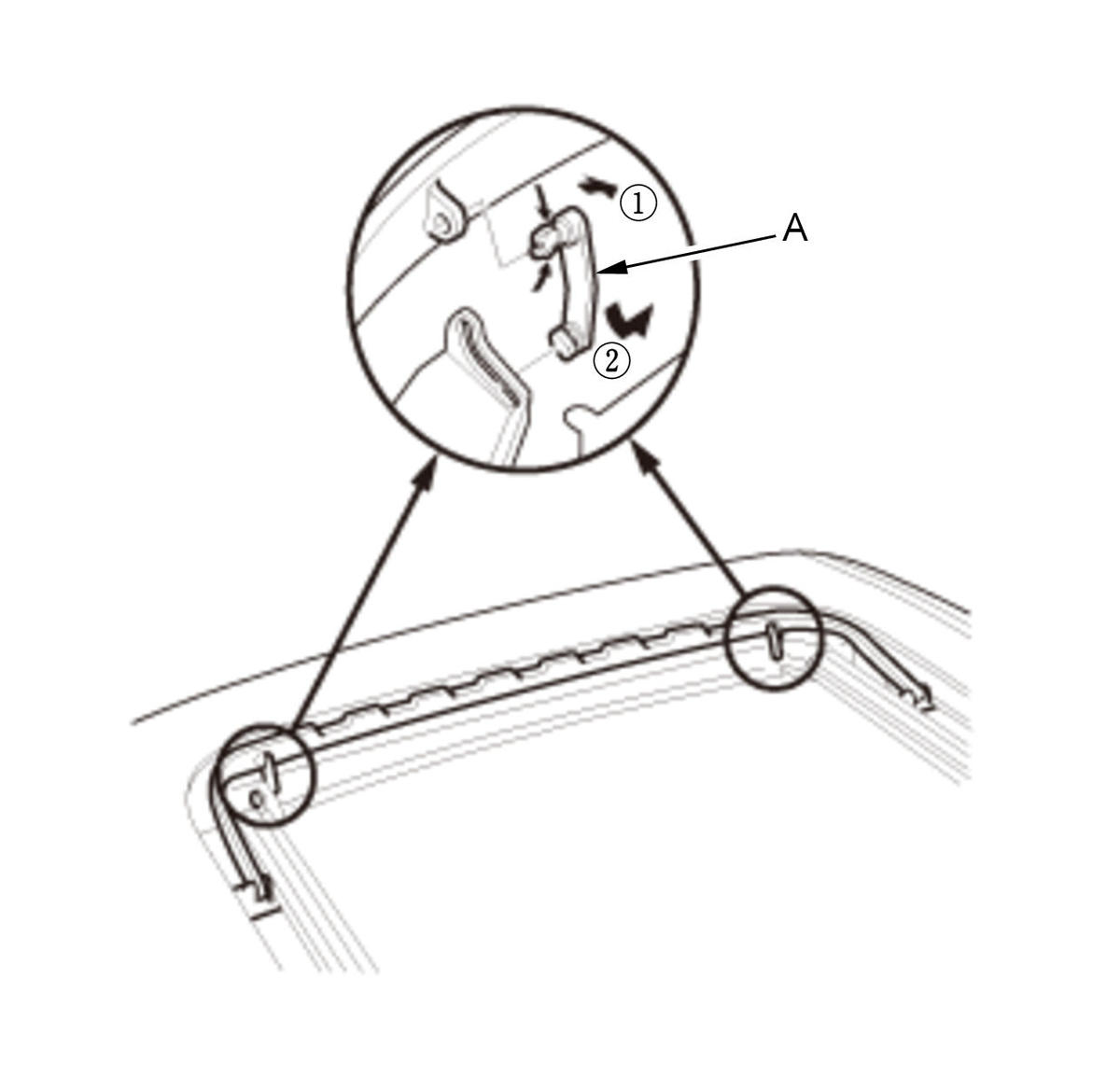

    2. Remove both deflector links (A).
    GHH472777Courtesy of HONDA, U.S.A., INC.

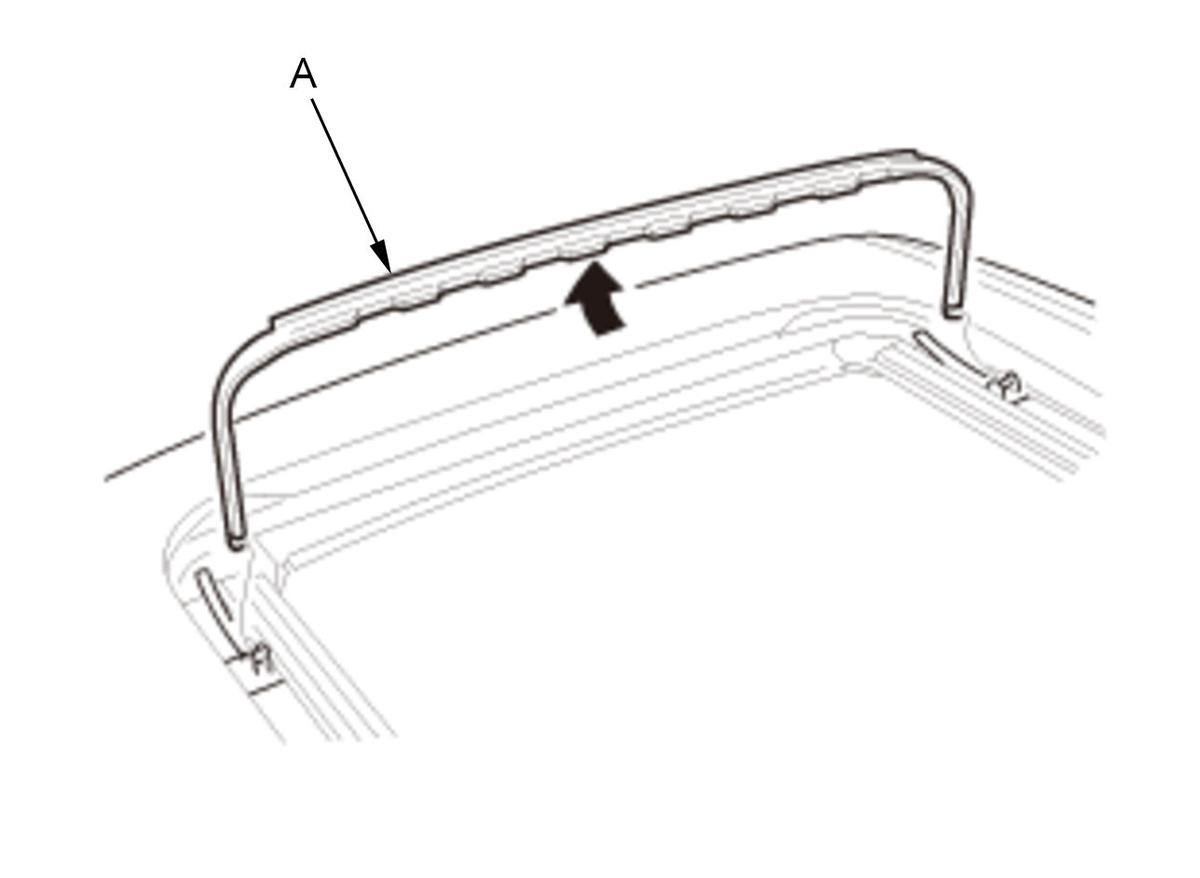

    		 3. Remove the wind deflector (A).
    GHH472778Courtesy of HONDA, U.S.A., INC.

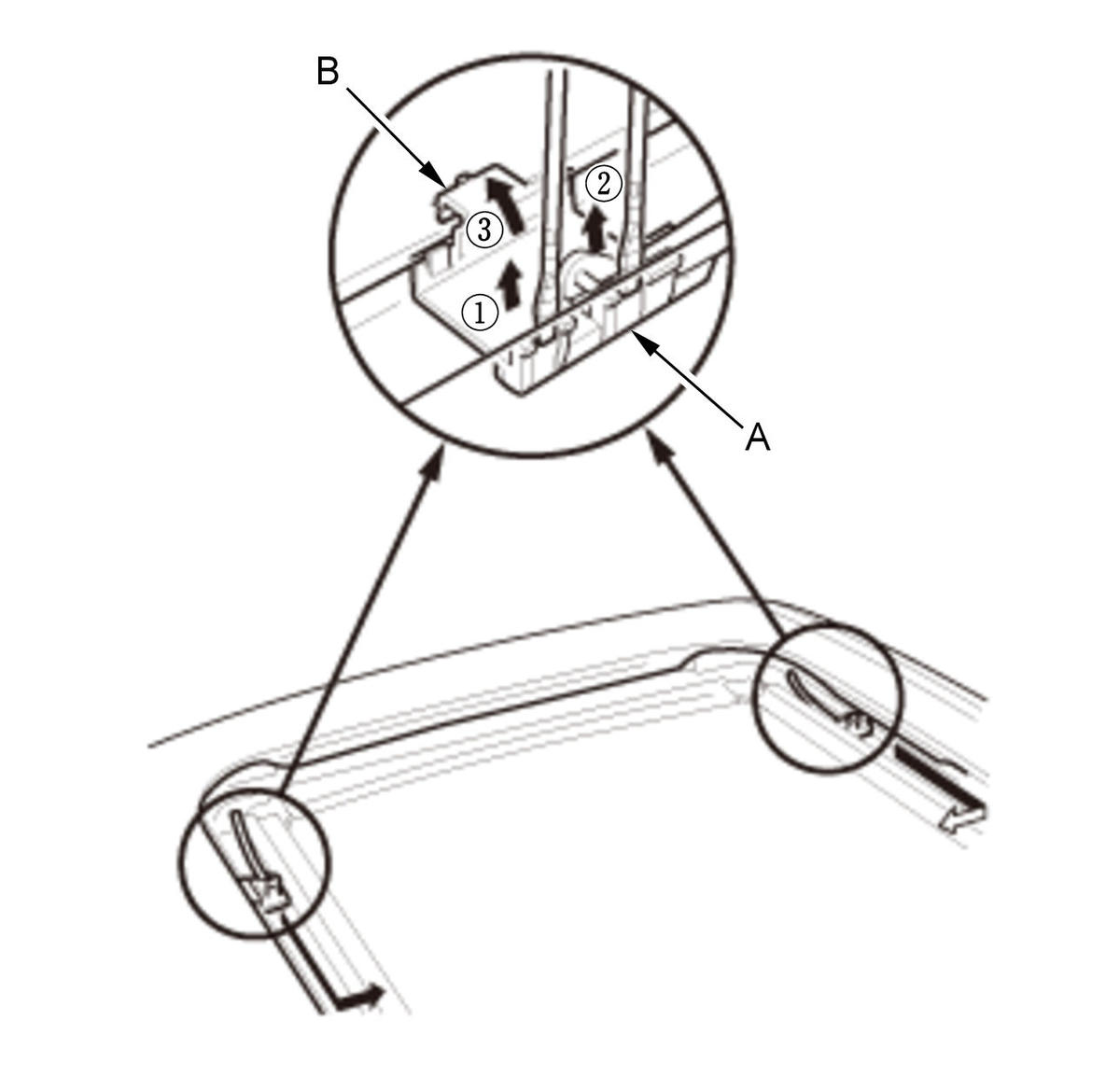

    		 4. Pry up on the deflector arm bases (A) with a flat-tip screwdriver, and release the hooks (B), then remove both deflector arm bases.
