Moonroof Wind Deflector: Installation

  1. Wind Deflector - Install

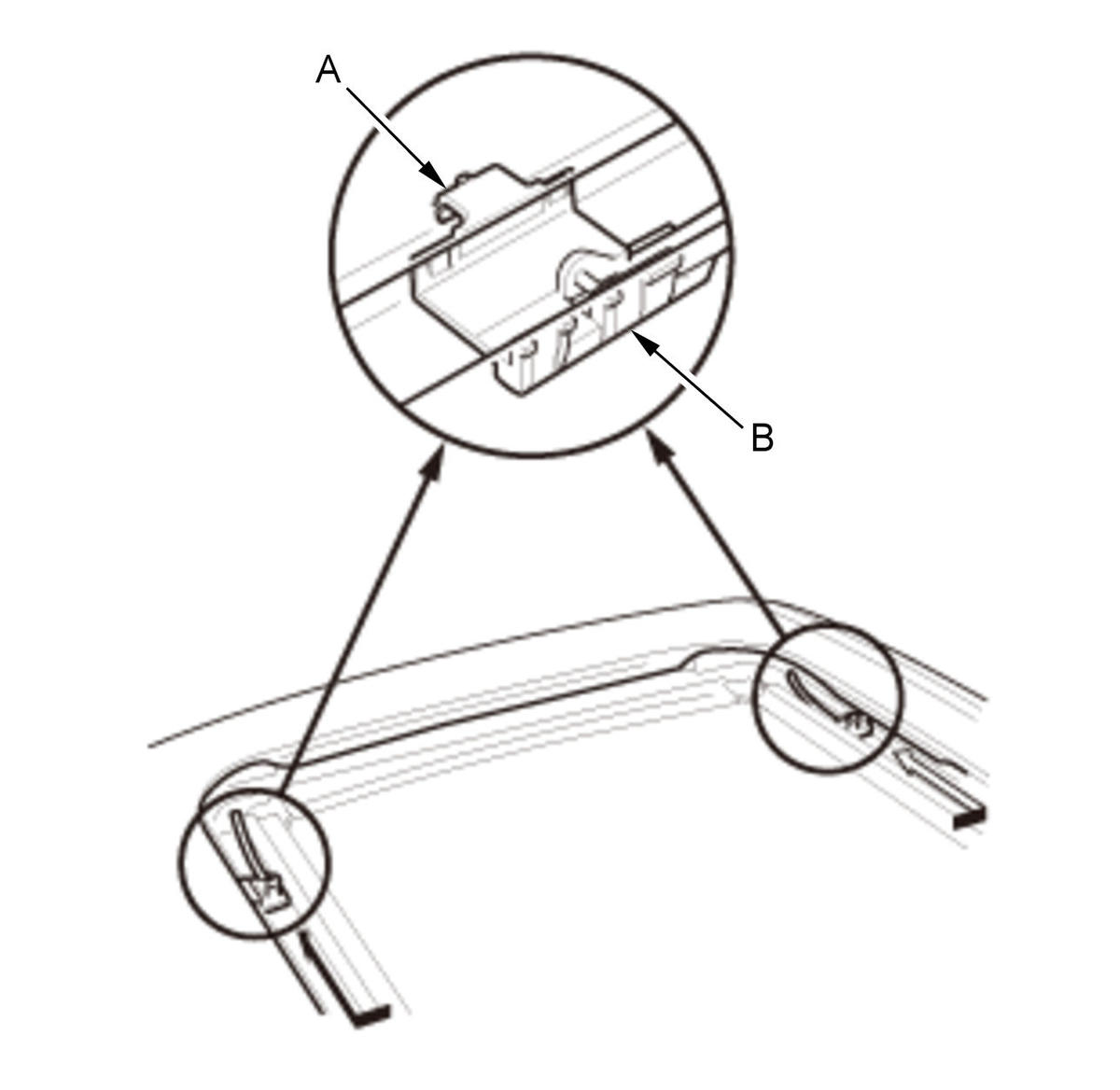

    GHH472779Courtesy of HONDA, U.S.A., INC.
    		 1. Install the hooks (A), then install both deflector arm bases (B).

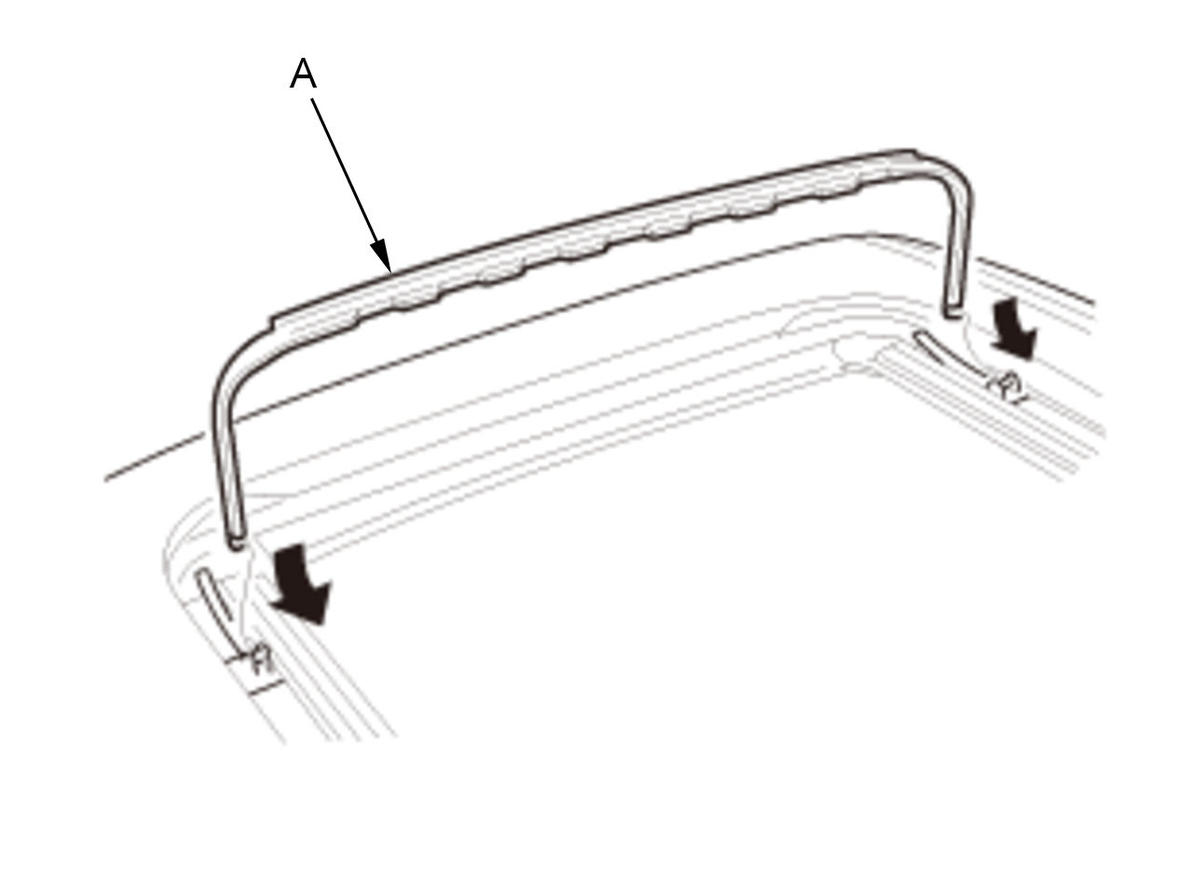

    GHH472780Courtesy of HONDA, U.S.A., INC.
    		 2. Install the wind deflector (A).

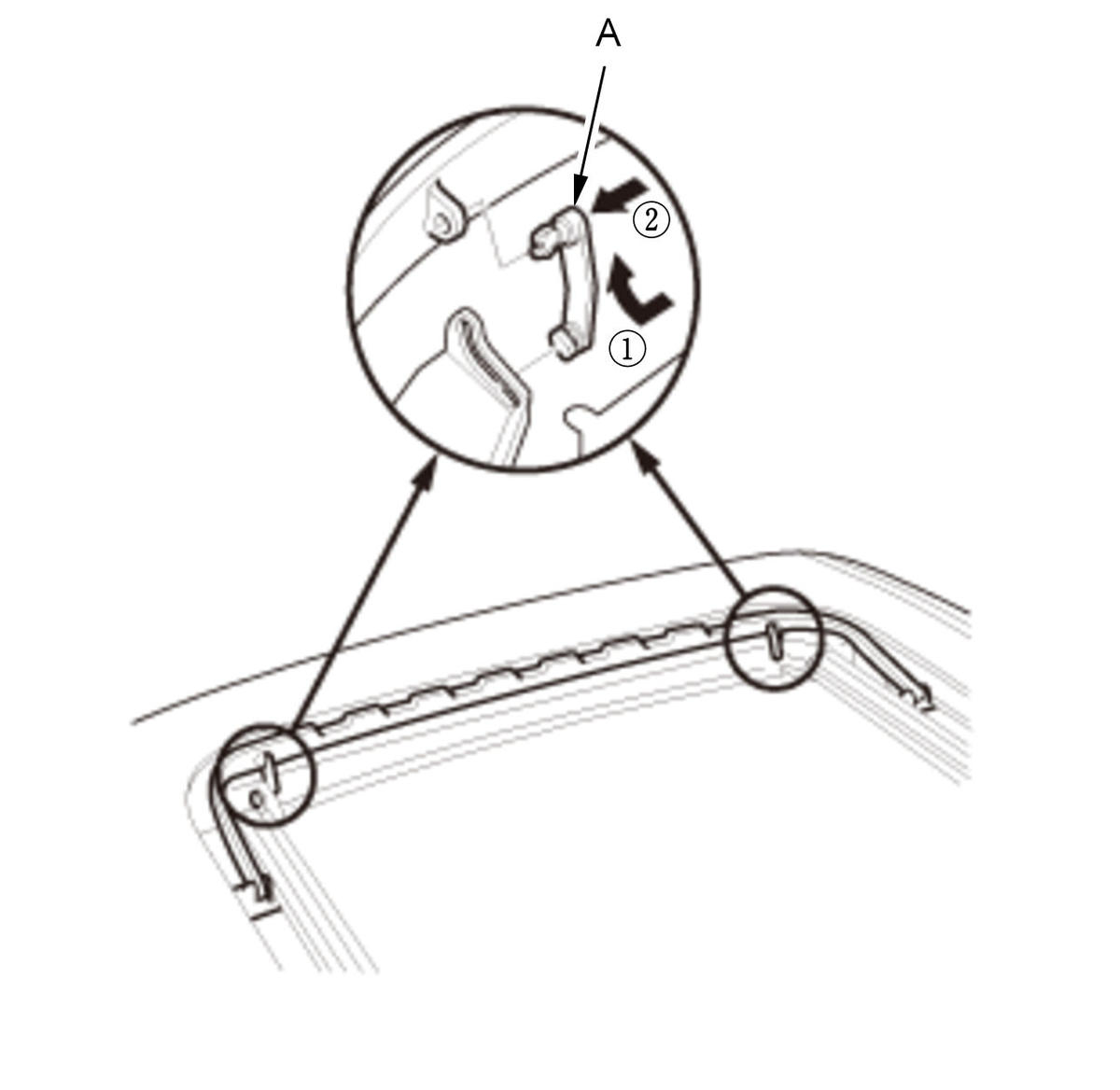

    GHH472781Courtesy of HONDA, U.S.A., INC.
    		 3. Install both deflector links (A).
  2. Moonroof Control Unit - Reset
    1. Reset the moonroof control unit .
