Moonroof Sunshade: Removal

  1. Drain Channel - Remove
    1. Remove the drain channel .
  2. Sunshade - Remove

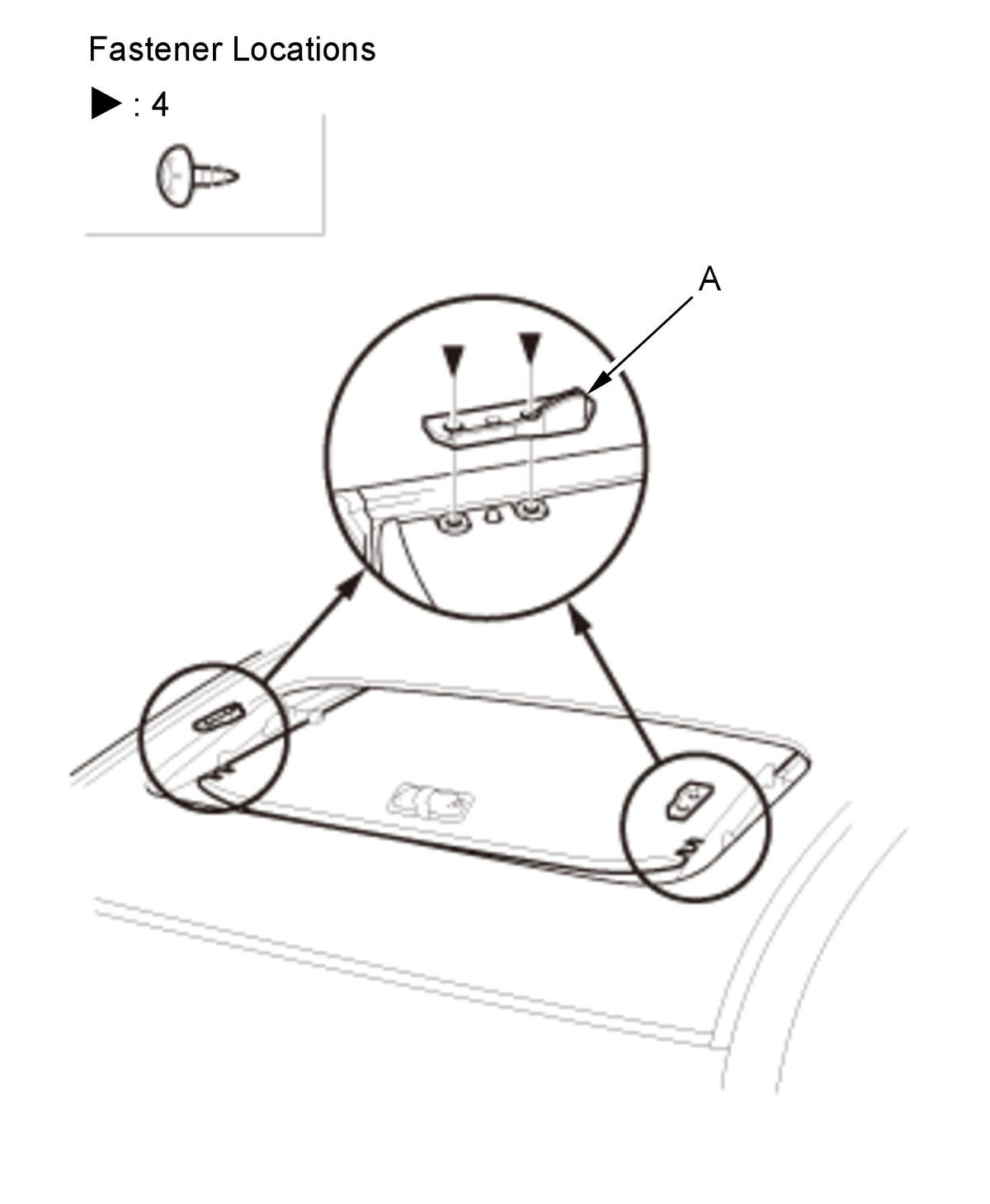

    GHH472766Courtesy of HONDA, U.S.A., INC.
    		 1. Remove both sunshade slider spacers (A).

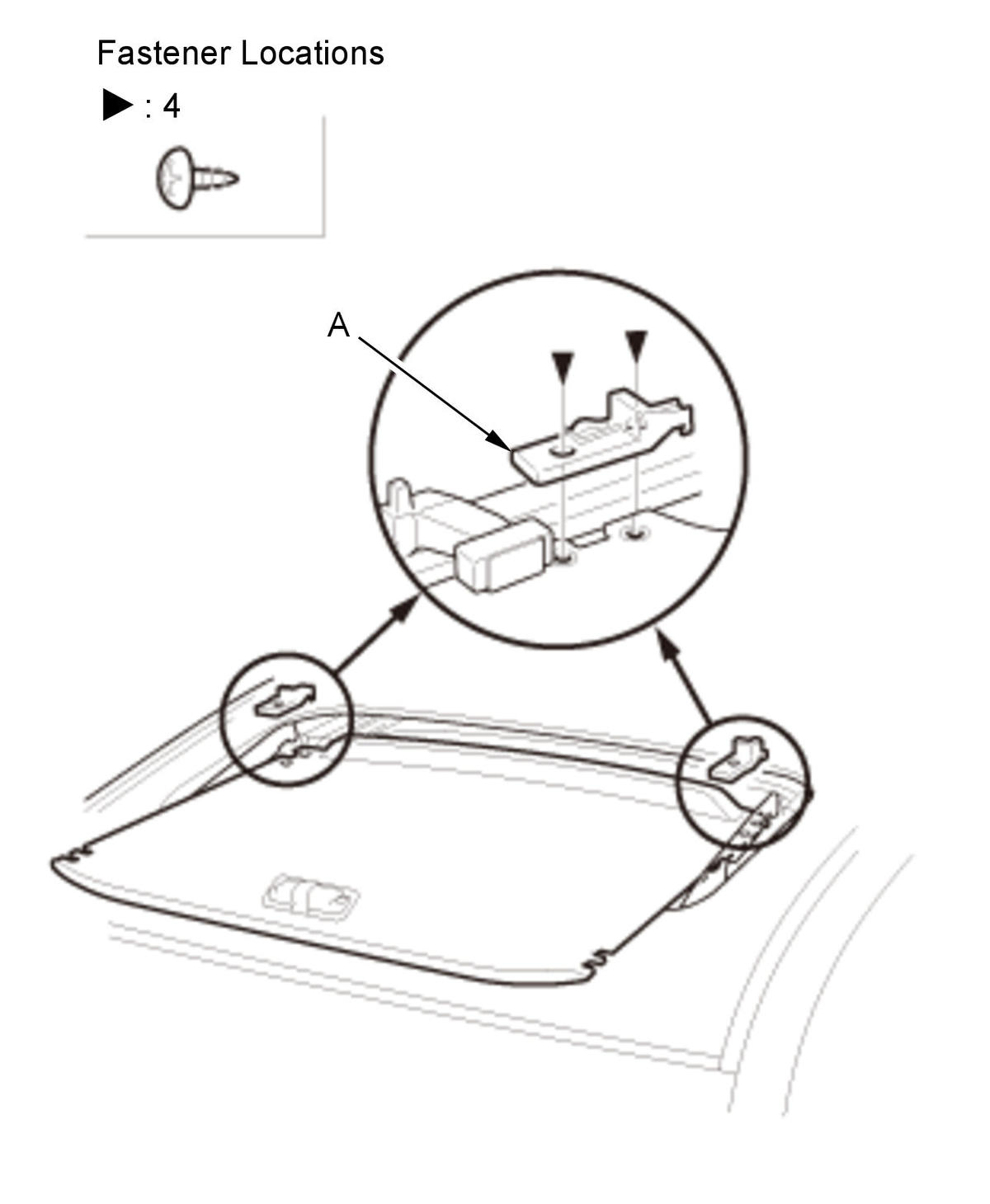

    GHH472767Courtesy of HONDA, U.S.A., INC.
    		 2. Remove both rear sunshade hooks (A).

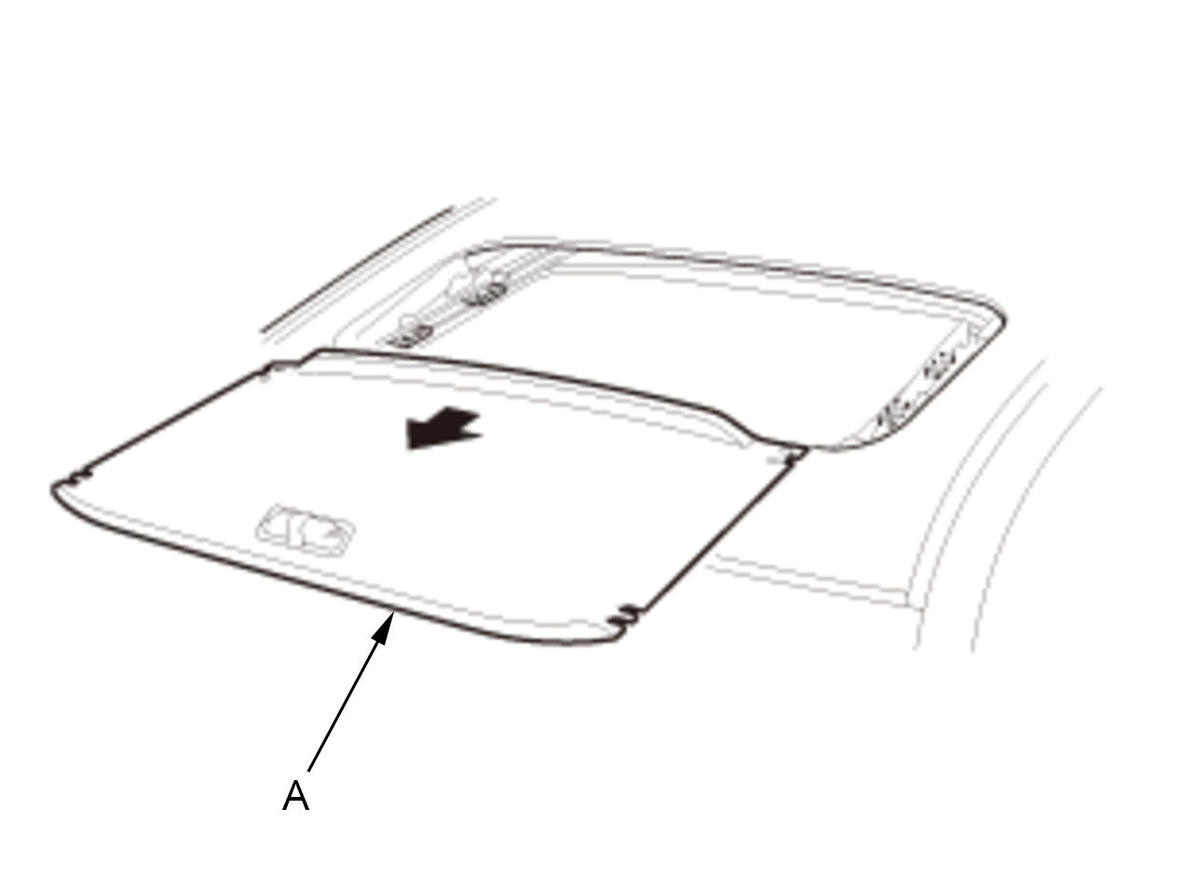

    GHH472768Courtesy of HONDA, U.S.A., INC.
    		 3. Remove the sunshade (A).

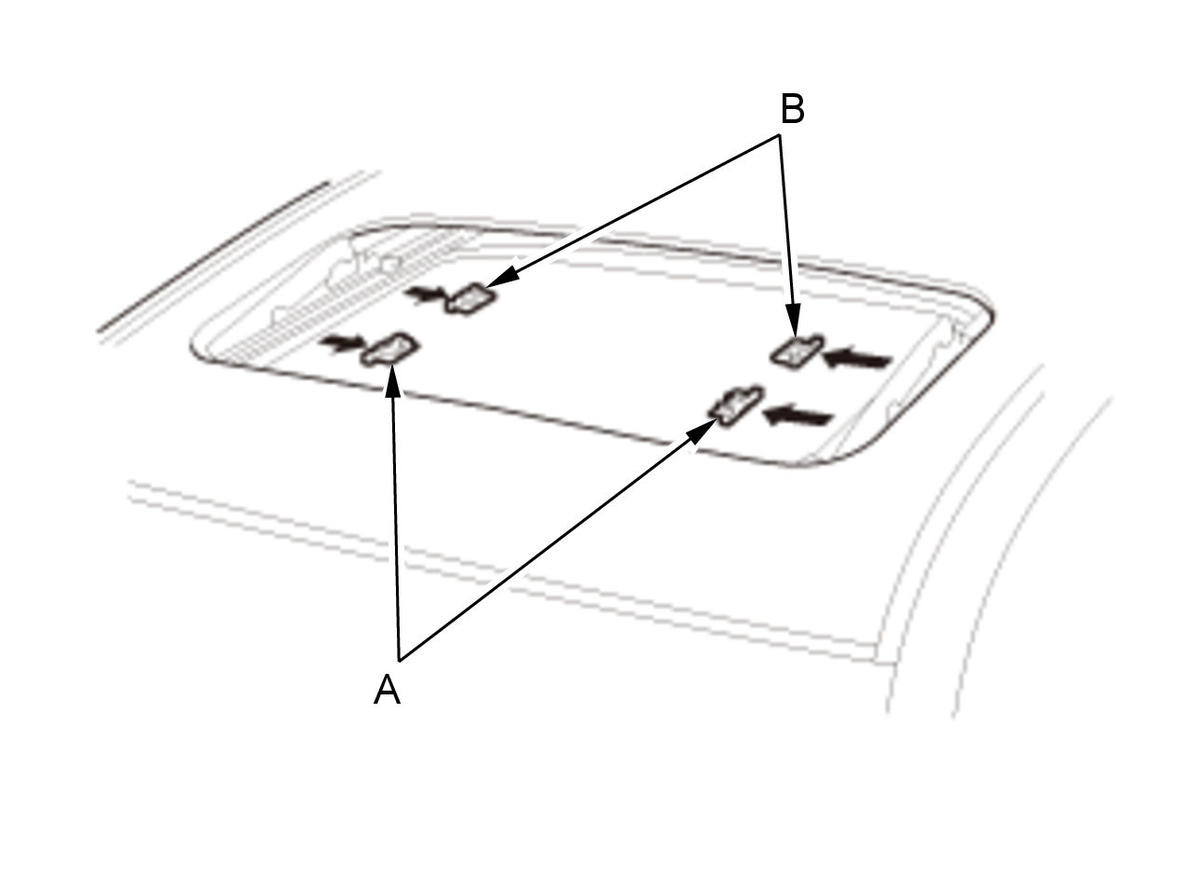

    GHH472769Courtesy of HONDA, U.S.A., INC.
    		 4. Remove both sunshade front sliders (A) and both sunshade rear sliders (B).

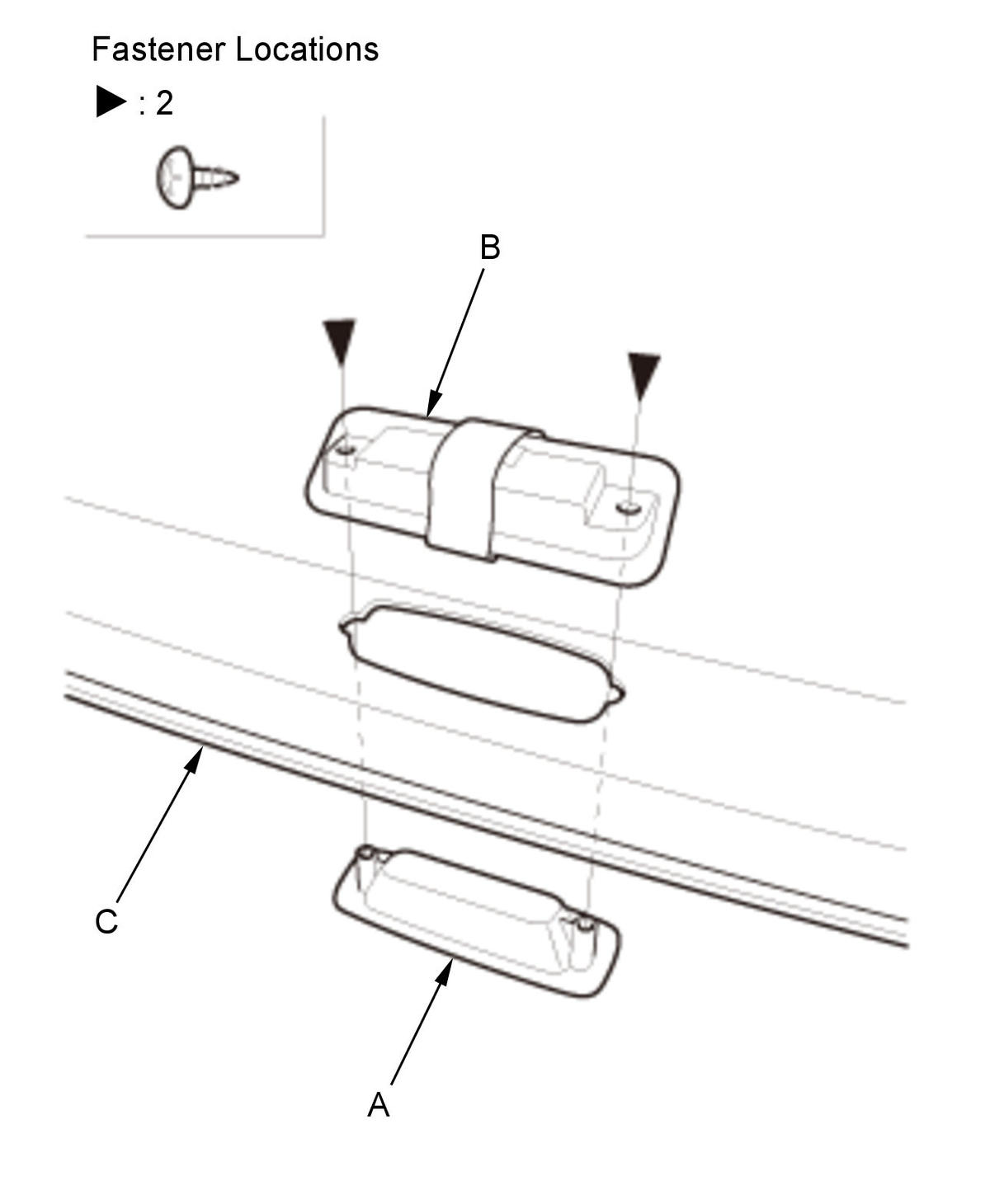

    GHH472770Courtesy of HONDA, U.S.A., INC.
    		 5. If necessary, remove the sunshade handle (A) and the sunshade handle bracket (B) from the sunshade (C).
