Moonroof Sunshade: Installation

  1. Sunshade - Install

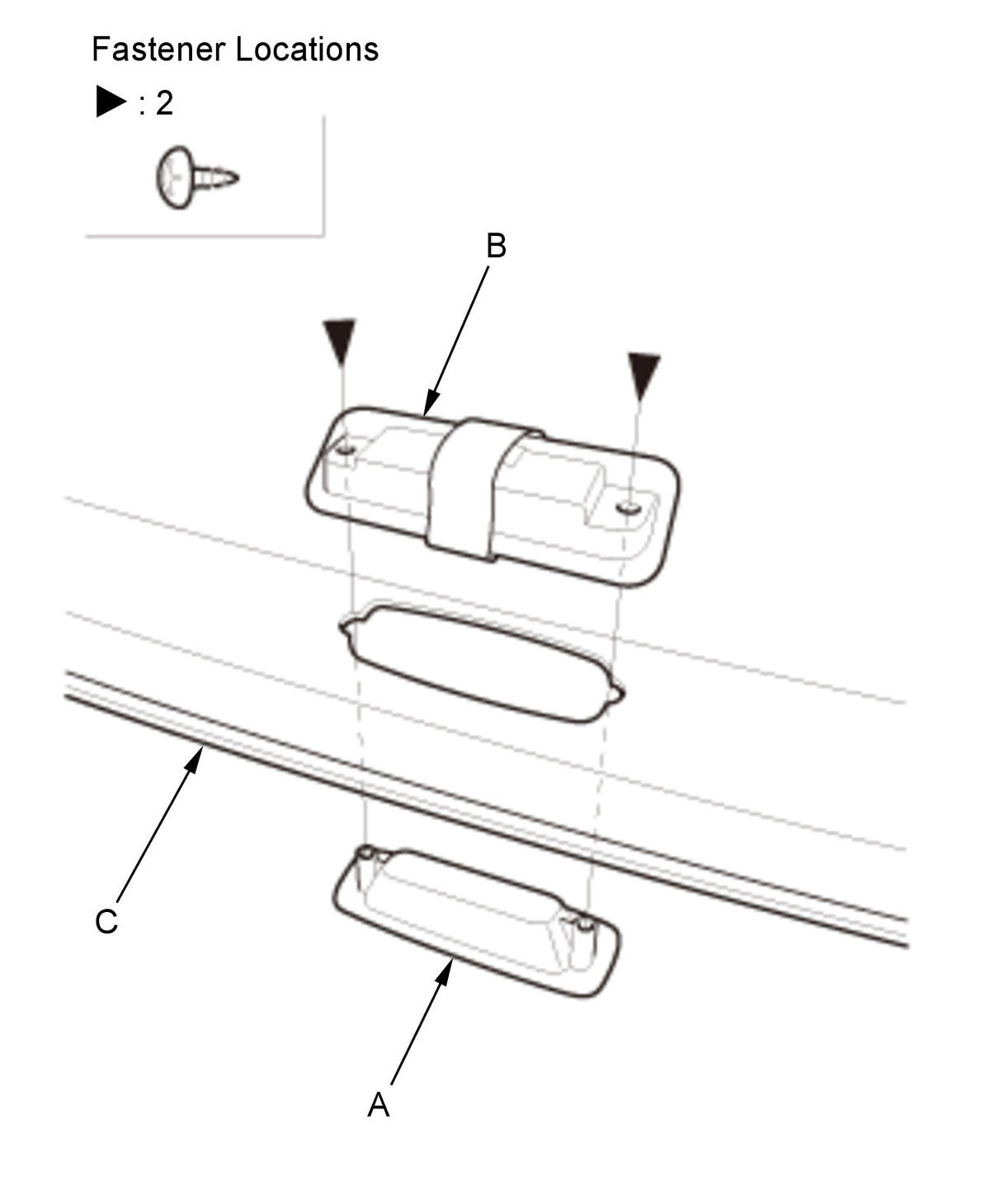

    GHH472771Courtesy of HONDA, U.S.A., INC.
    		 1. Install the sunshade handle (A) and the sunshade handle bracket (B) to the sunshade (C).

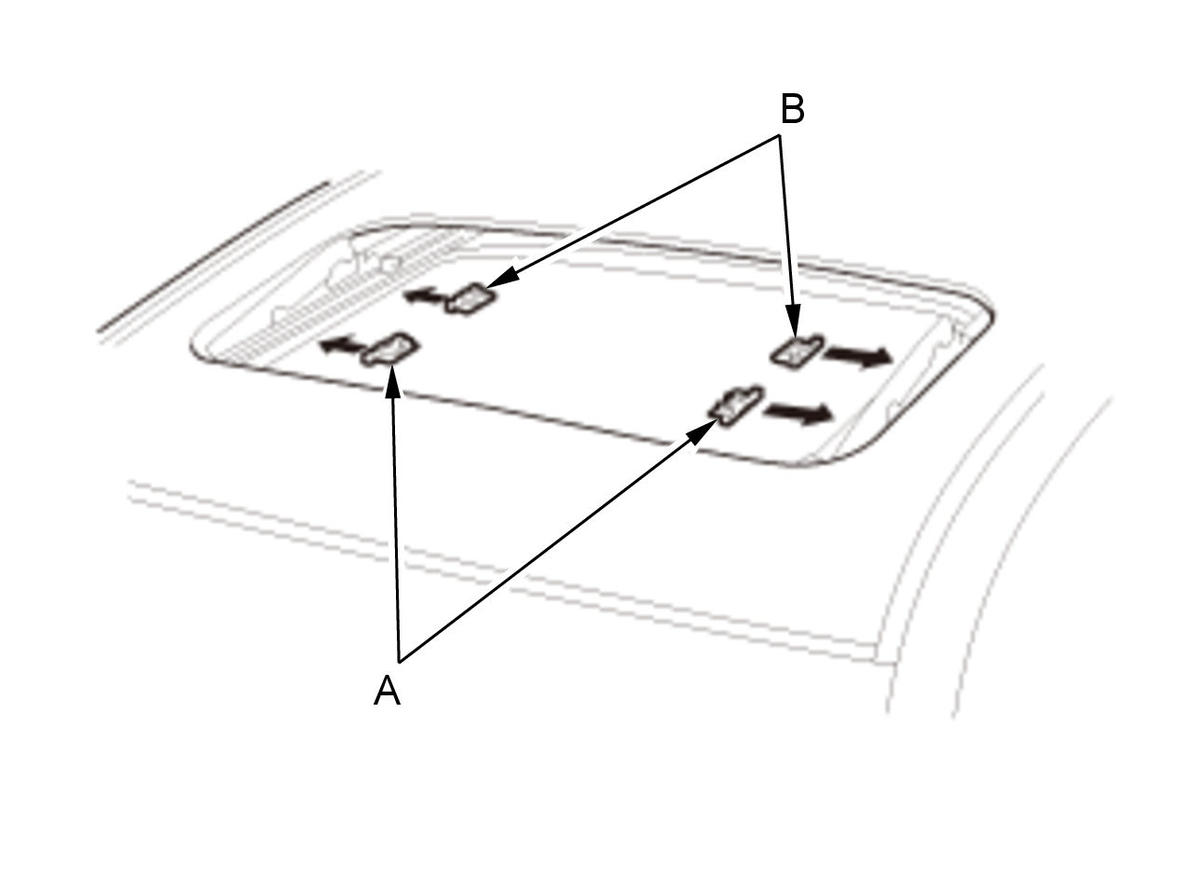

    GHH472772Courtesy of HONDA, U.S.A., INC.
    		 2. Install both sunshade front sliders (A) and both sunshade rear sliders (B).

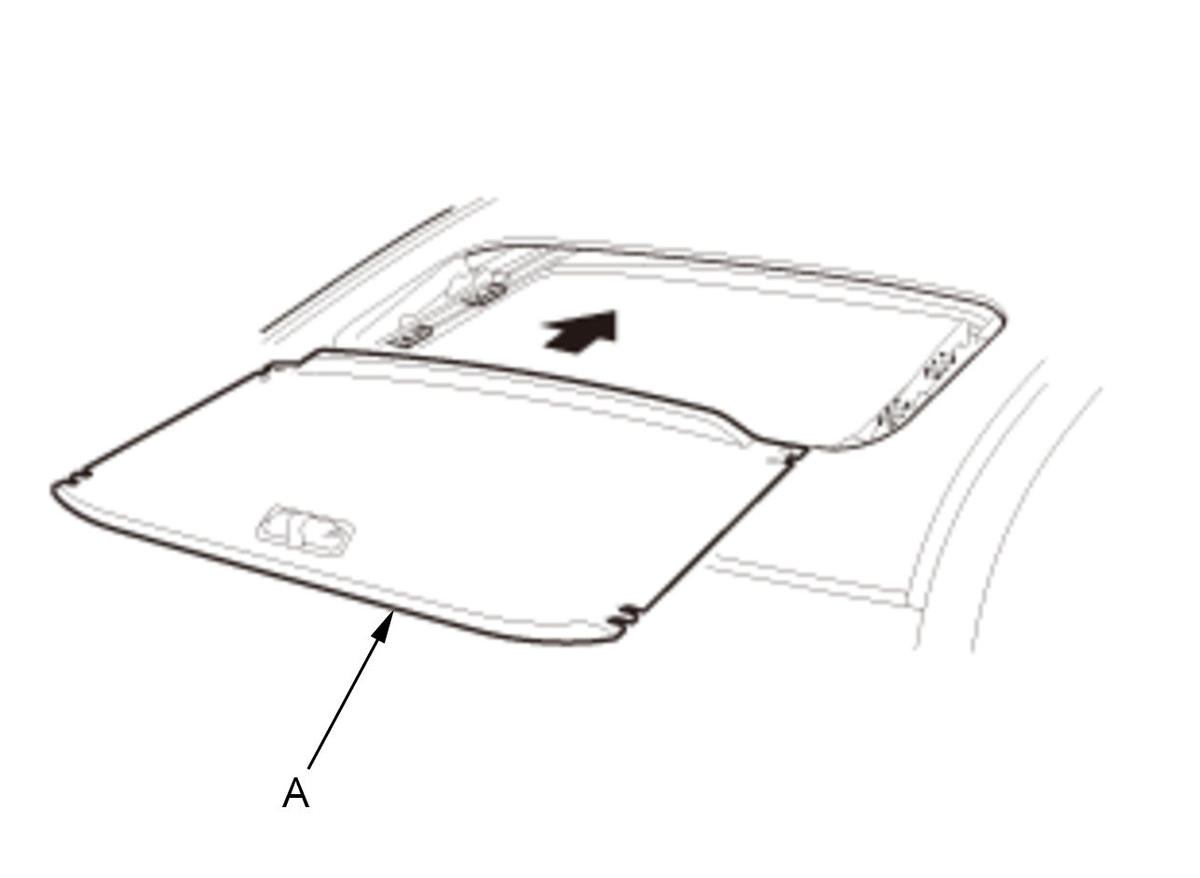

    GHH472773Courtesy of HONDA, U.S.A., INC.
    		 3. Install the sunshade (A).

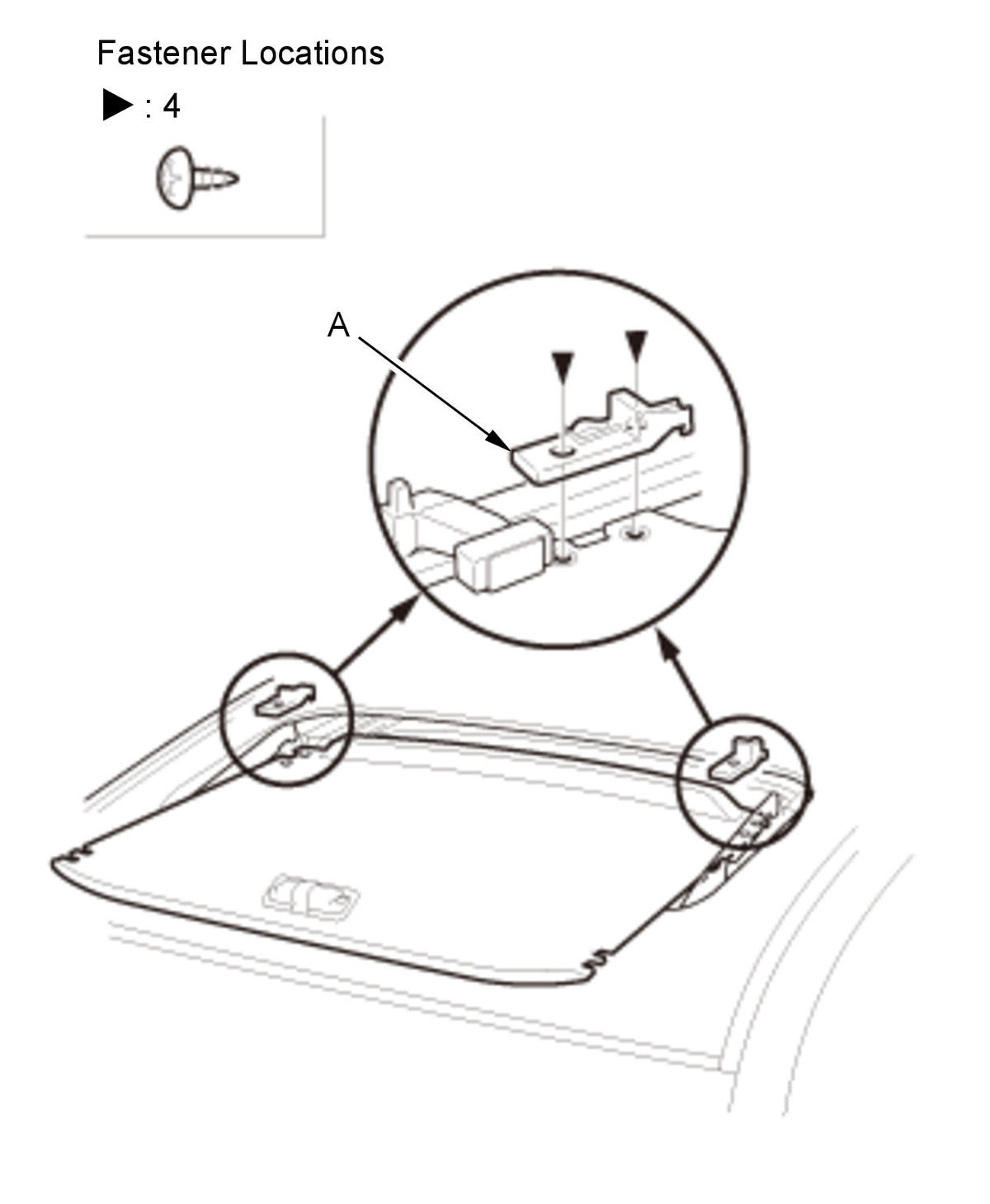

    GHH472774Courtesy of HONDA, U.S.A., INC.
    		 4. Install both rear sunshade hooks (A).

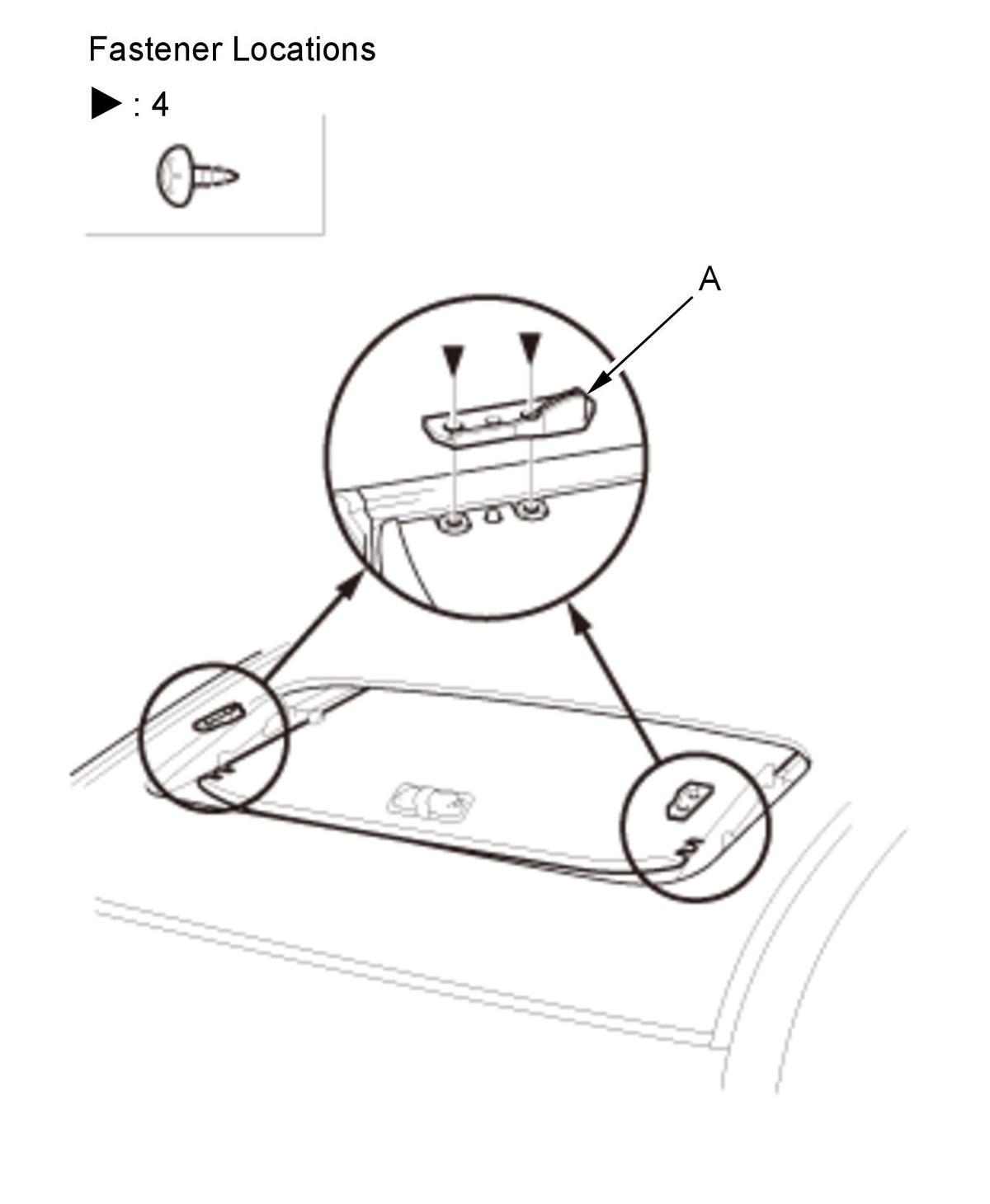

    GHH472775Courtesy of HONDA, U.S.A., INC.
    		 5. Install both sunshade slider spacers (A).
  2. Drain Channel - Install
    1. Install the drain channel .
