Moonroof Motor-Control Unit: Installation

  1. Moonroof Motor - Install

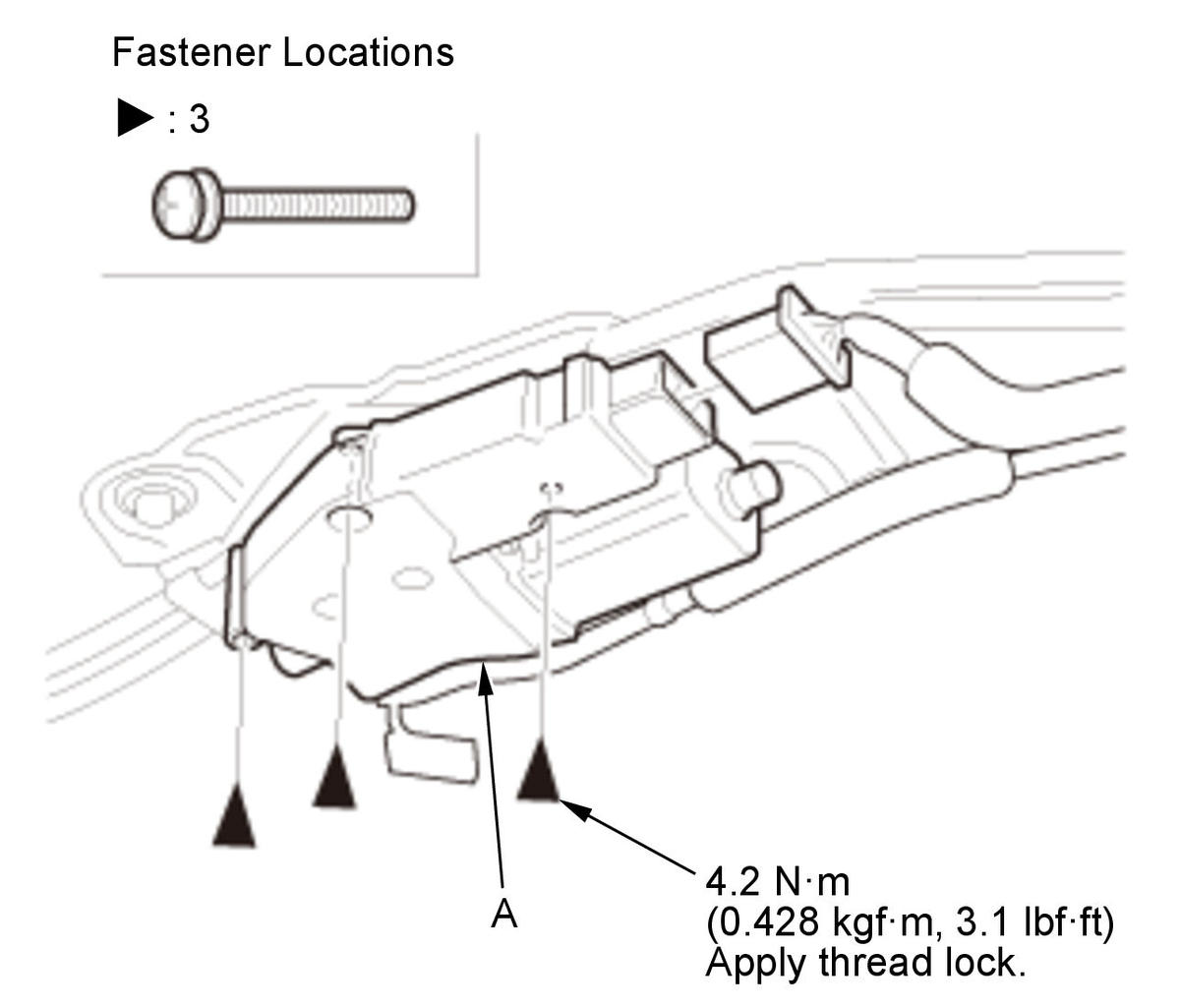

    GHH472765Courtesy of HONDA, U.S.A., INC.
    		 1. Install the moonroof motor (A).

    NOTE: Apply medium strength liquid thread lock to the bolts before installation.
  2. Headliner - Install
    1. Install the headliner .
  3. Moonroof Control Unit - Reset
    1. Reset the moonroof control unit .
