Moonroof Glass: Removal

Both Link Covers - Remove

GHH472758

Courtesy of HONDA, U.S.A., INC.

1. Close the glass fully.

2. Slide the sunshade all the way back.

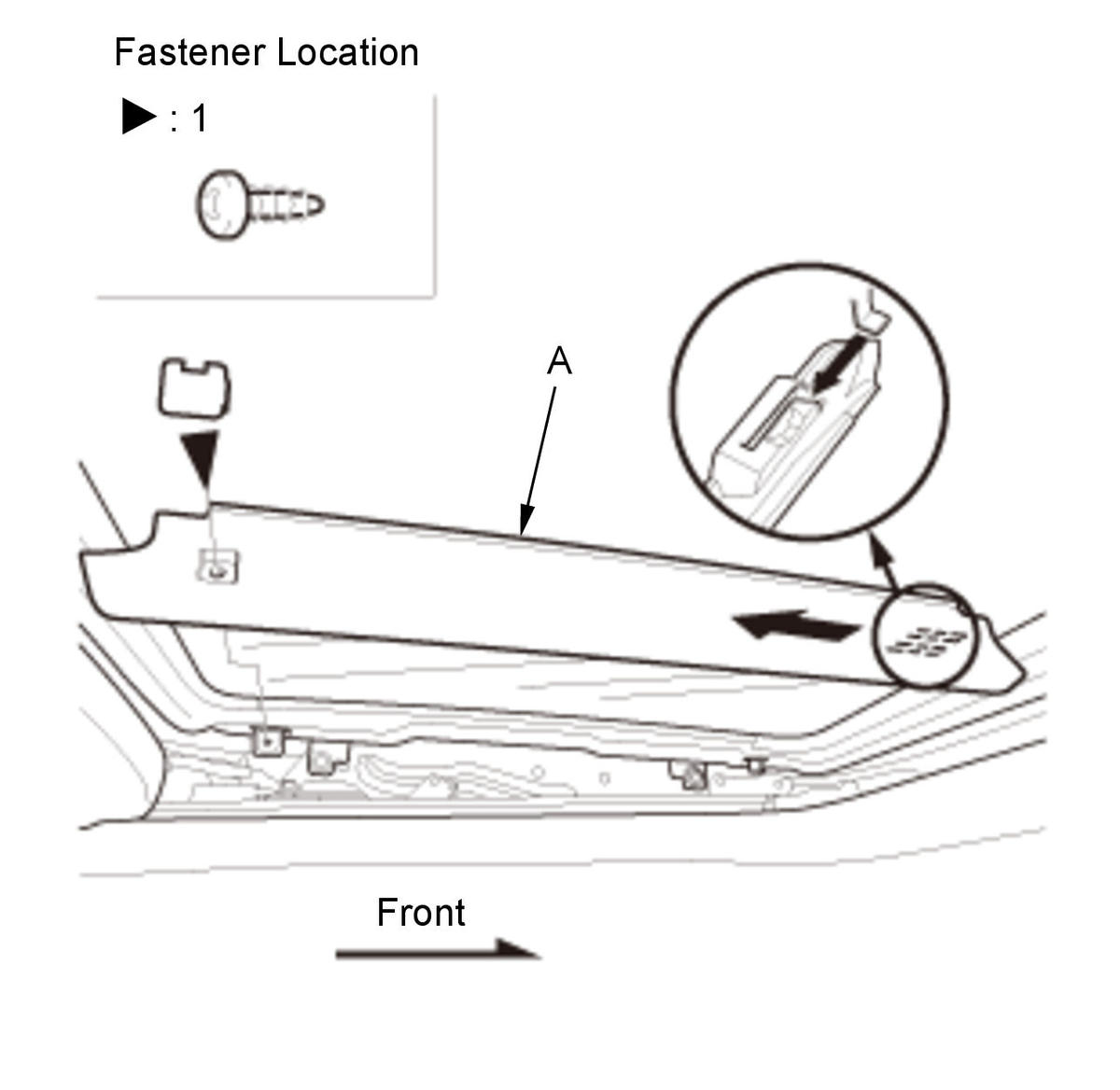

3. Remove the link cover (A).

4. Repeat on the opposite side.

Moonroof Glass - Remove

GHH472759

Courtesy of HONDA, U.S.A., INC.

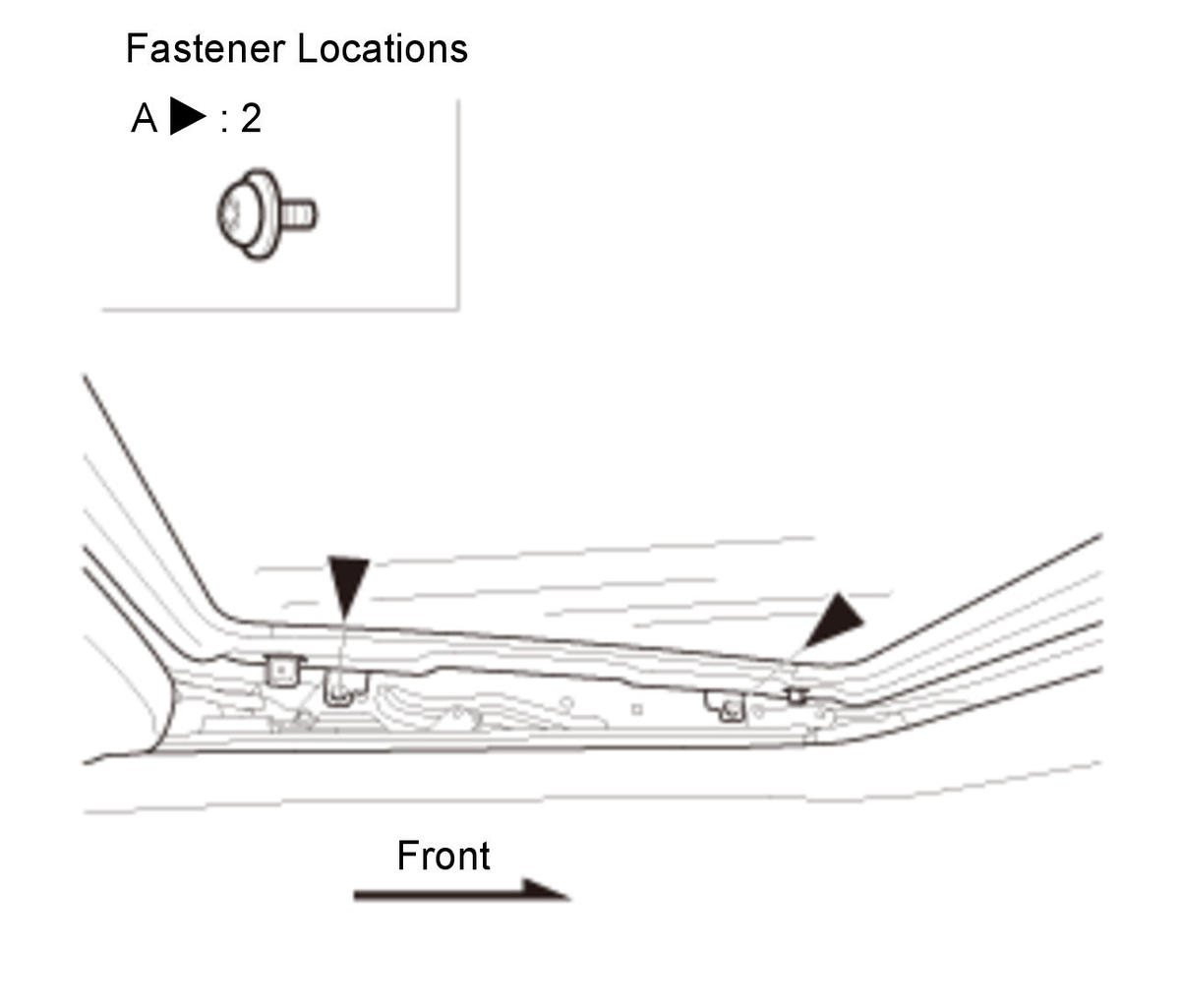

1. Remove the bolts (A) with a TORX T25 bit.

2. Repeat on the opposite side.

GHH472760

Courtesy of HONDA, U.S.A., INC.

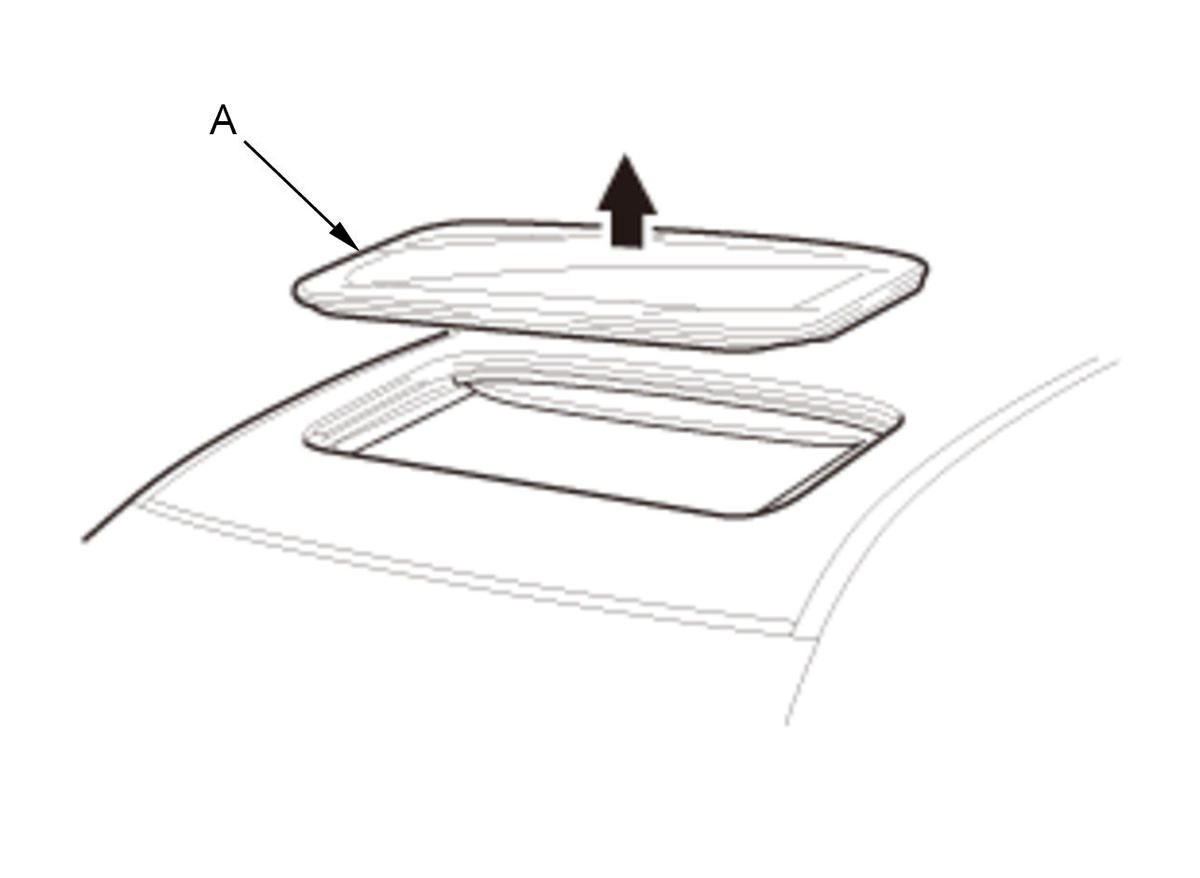

3. Remove the glass (A) by lifting it up.
