Moonroof Glass: Installation

  1. Moonroof Glass - Install

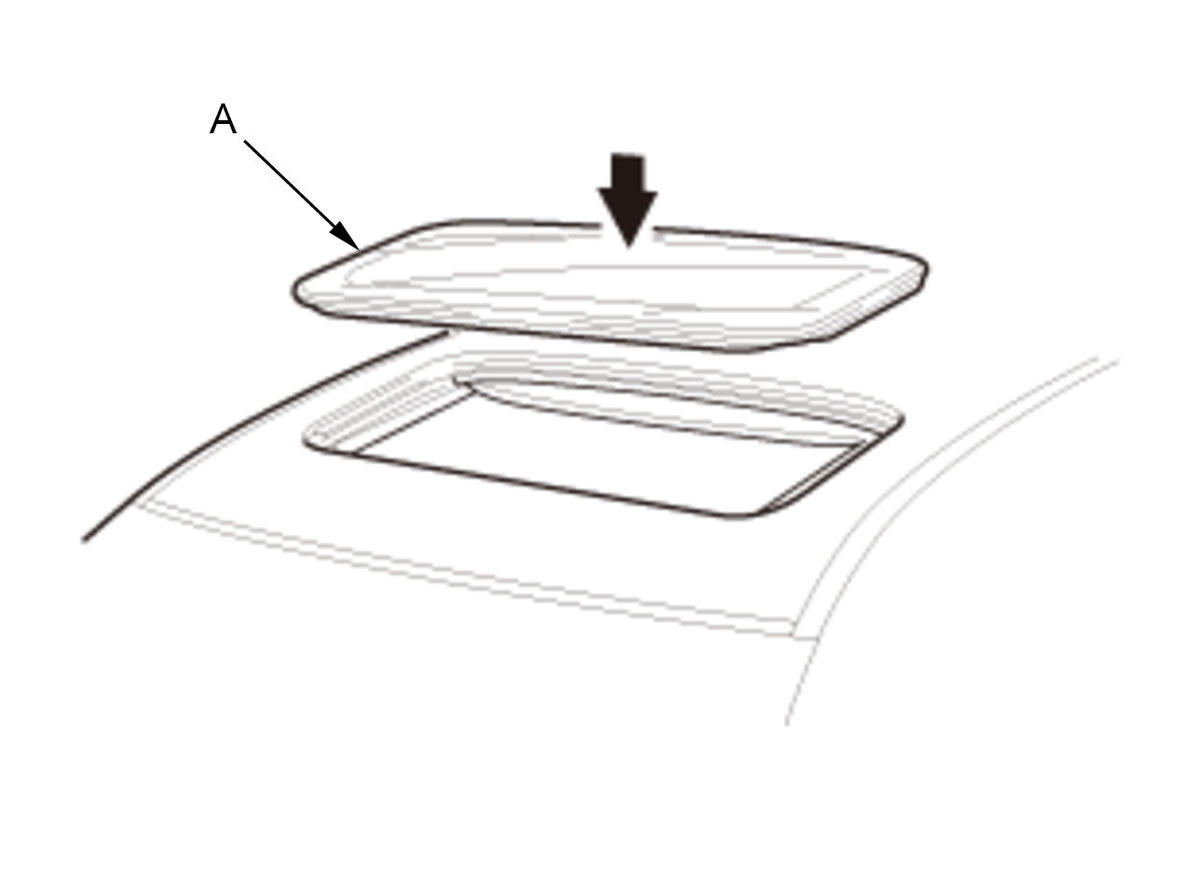

    GHH472761Courtesy of HONDA, U.S.A., INC.
    		 1. Install the glass (A).

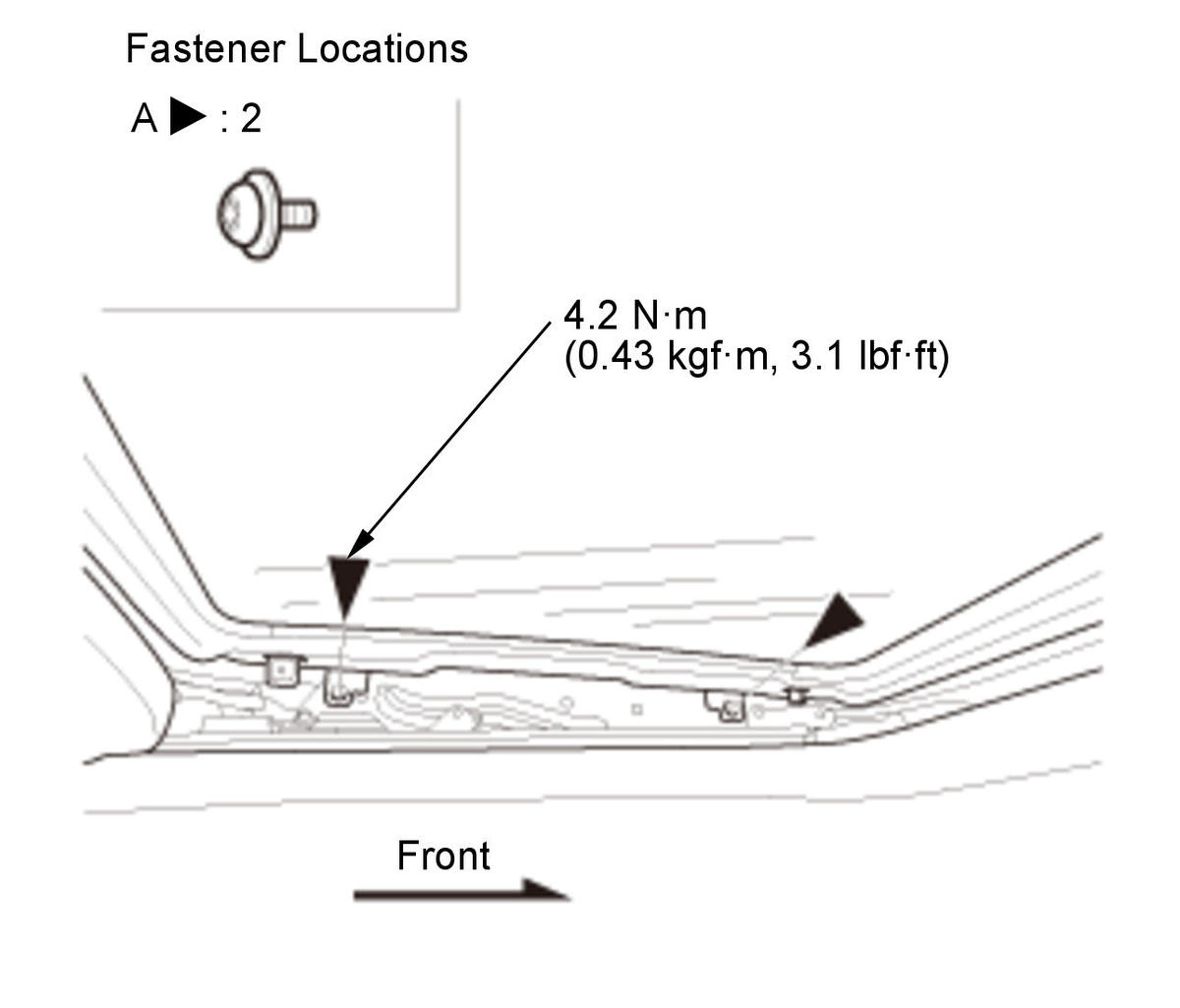

    GHH472762Courtesy of HONDA, U.S.A., INC.
    		 2. Install the bolts (A) with a TORX T25 bit.

    3. Repeat on the opposite side.
  2. Moonroof Glass Position - Adjust
    1. Adjust the moonroof glass position .
  3. Both Link Covers - Install

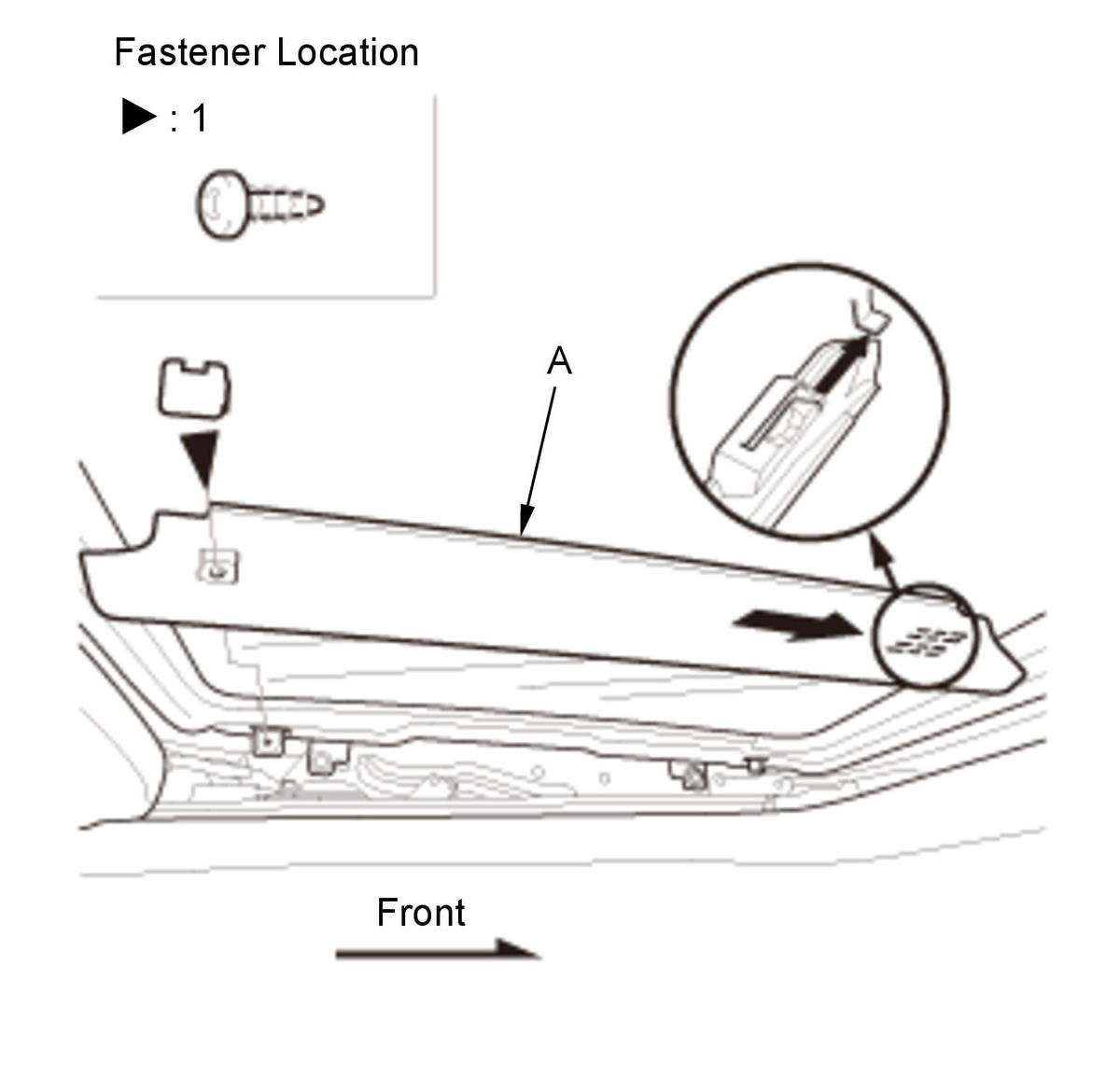

    GHH472763Courtesy of HONDA, U.S.A., INC.
    		 1. Install the link cover (A).

    2. Repeat on the opposite side.
  4. Moonroof Control Unit - Reset
    1. Reset the moonroof control unit .
  5. Water Leaks - Check
    1. Check for water leaks .
