Rear Drain Tube

Trunk Rear Side Trim Panel - Remove

1. Remove the trunk rear side trim panel .
Headliner - Remove

1. Remove the headliner .

Rear Drain Tube - Remove

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

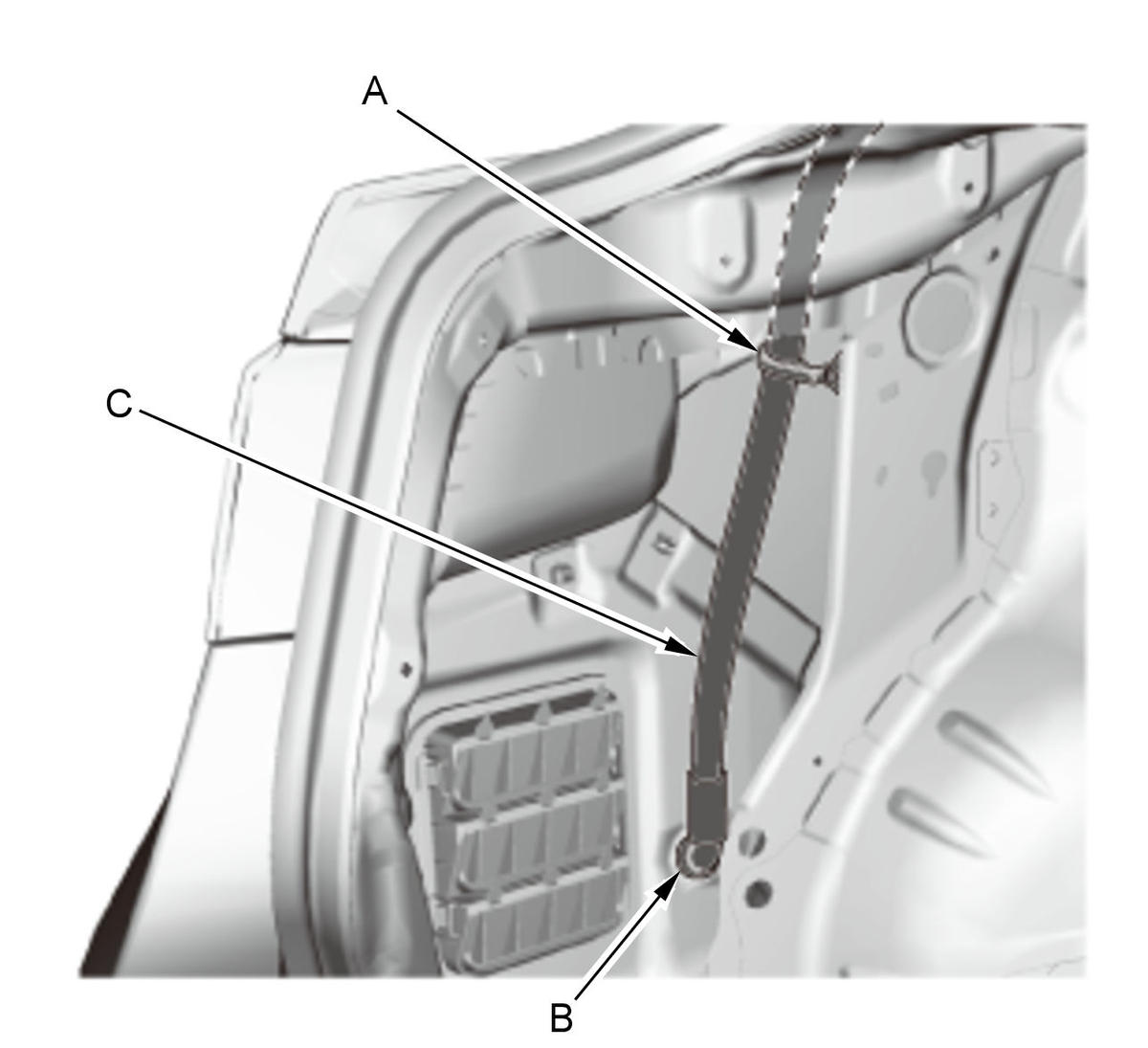

1. Remove the clip (A).

2. Pull the rear drain valve (B) out of the body hole.

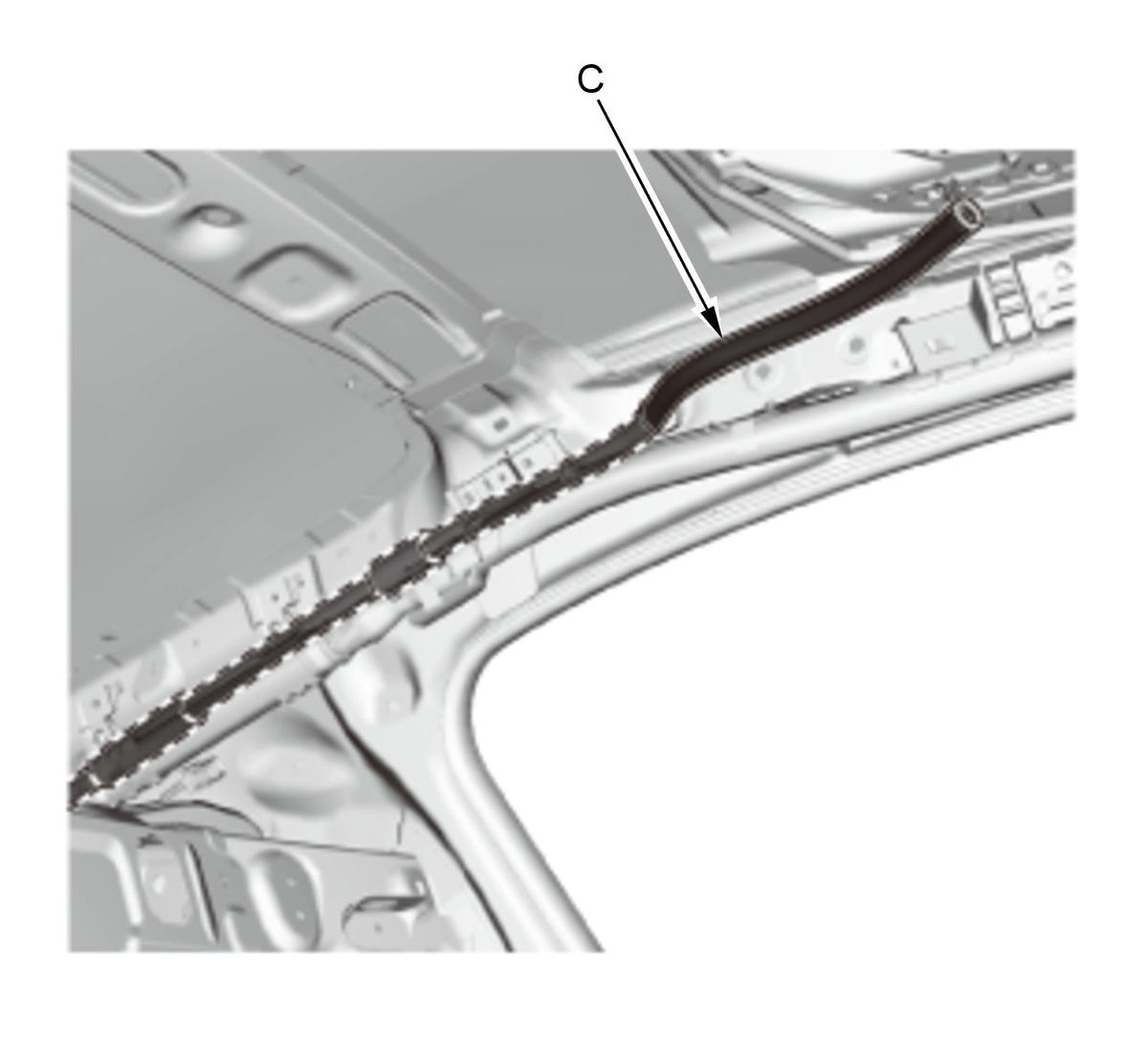

3. Tie a string to the top end of the rear drain tube (C), then pull the drain tube down out of the pillar. Leave the string in the pillar to use when reinstalling the drain tube.
