Moonroof Frame

  1. Headliner - Remove
    1. Remove the headliner .
  2. Moonroof Frame - Remove
    GHH472745Courtesy of HONDA, U.S.A., INC.

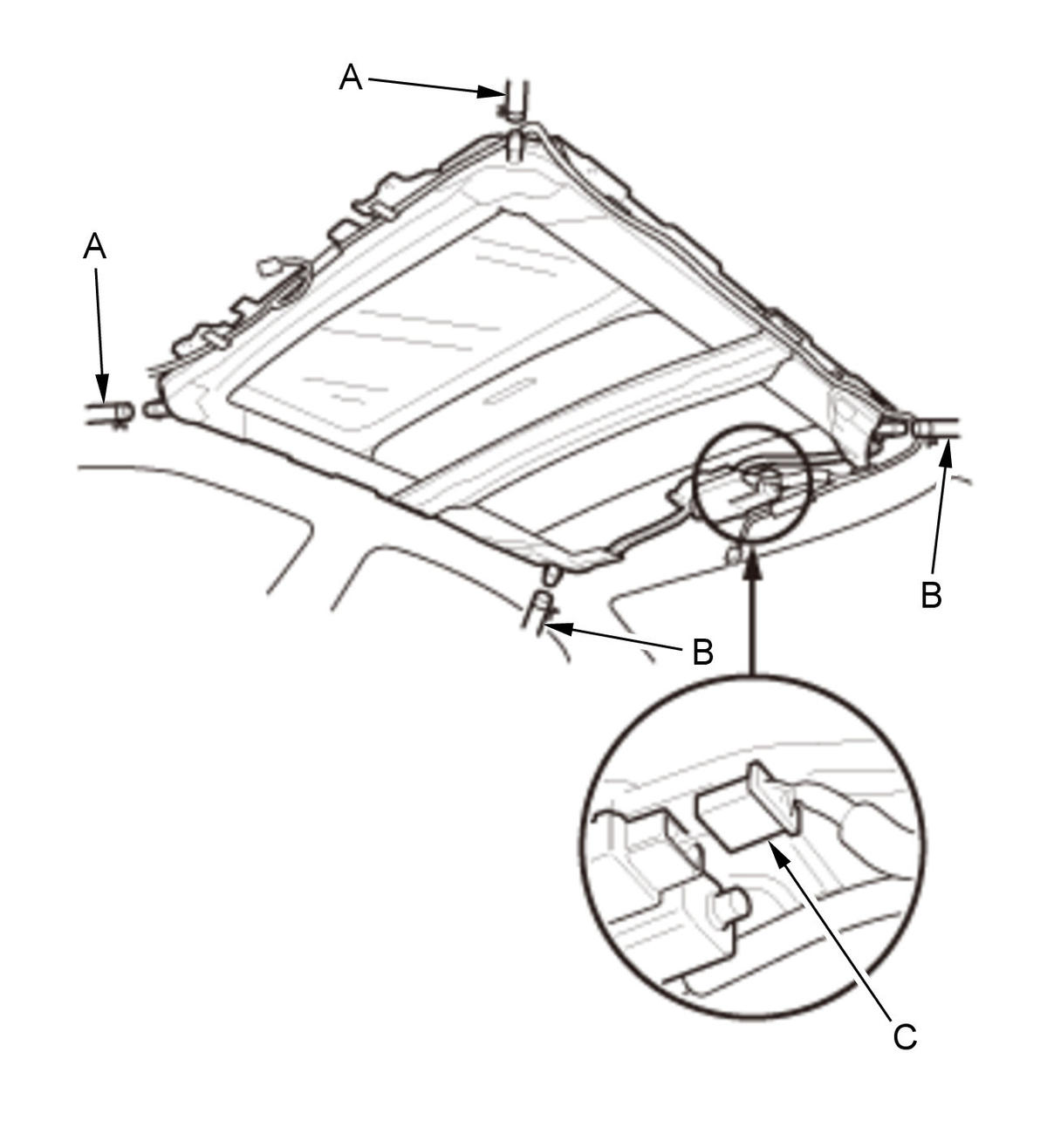

    		 1. Disconnect the front drain tubes (A), the rear drain tubes (B), and the moonroof motor connector (C).
    GHH472746Courtesy of HONDA, U.S.A., INC.

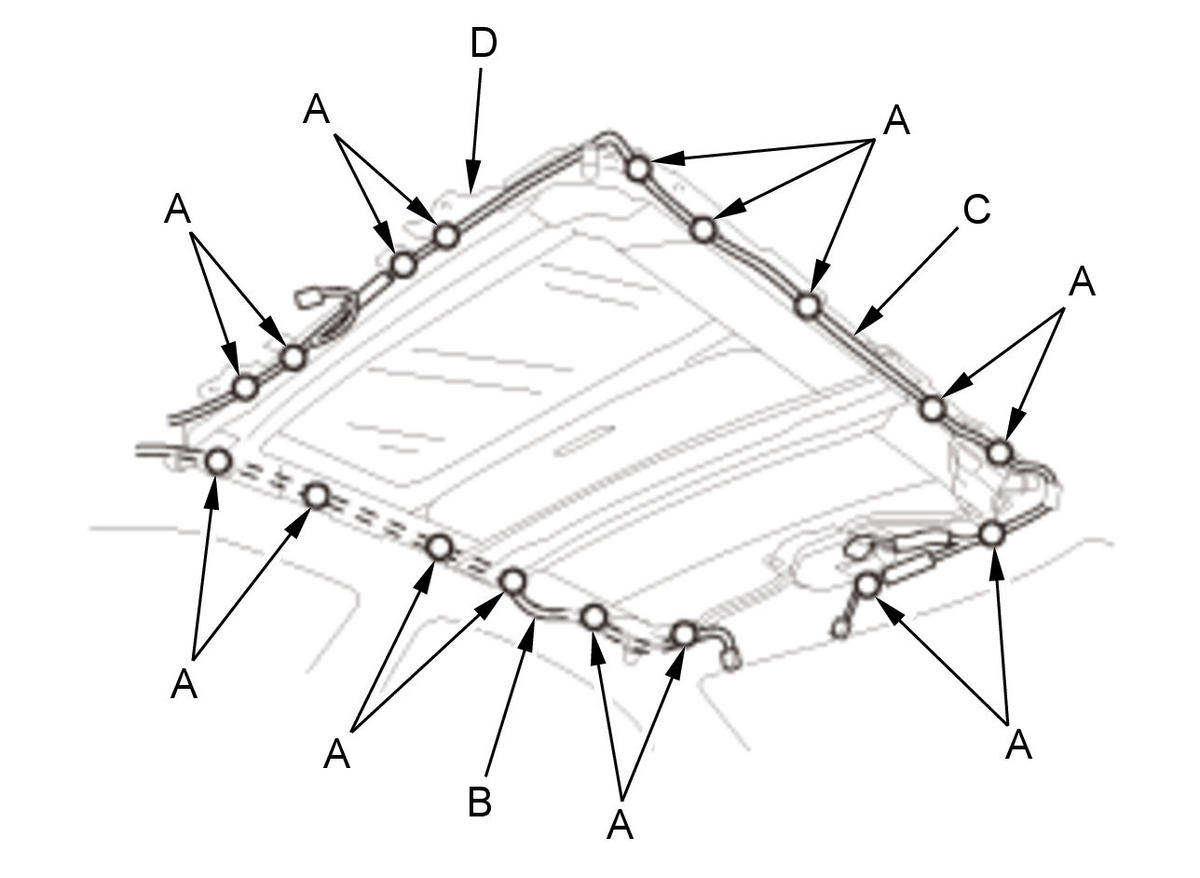

    		 2. Remove the harness clips (A) securing the roof wire harness (B) and the moonroof subharness (C) from the frame (D).
    GHH472747Courtesy of HONDA, U.S.A., INC.

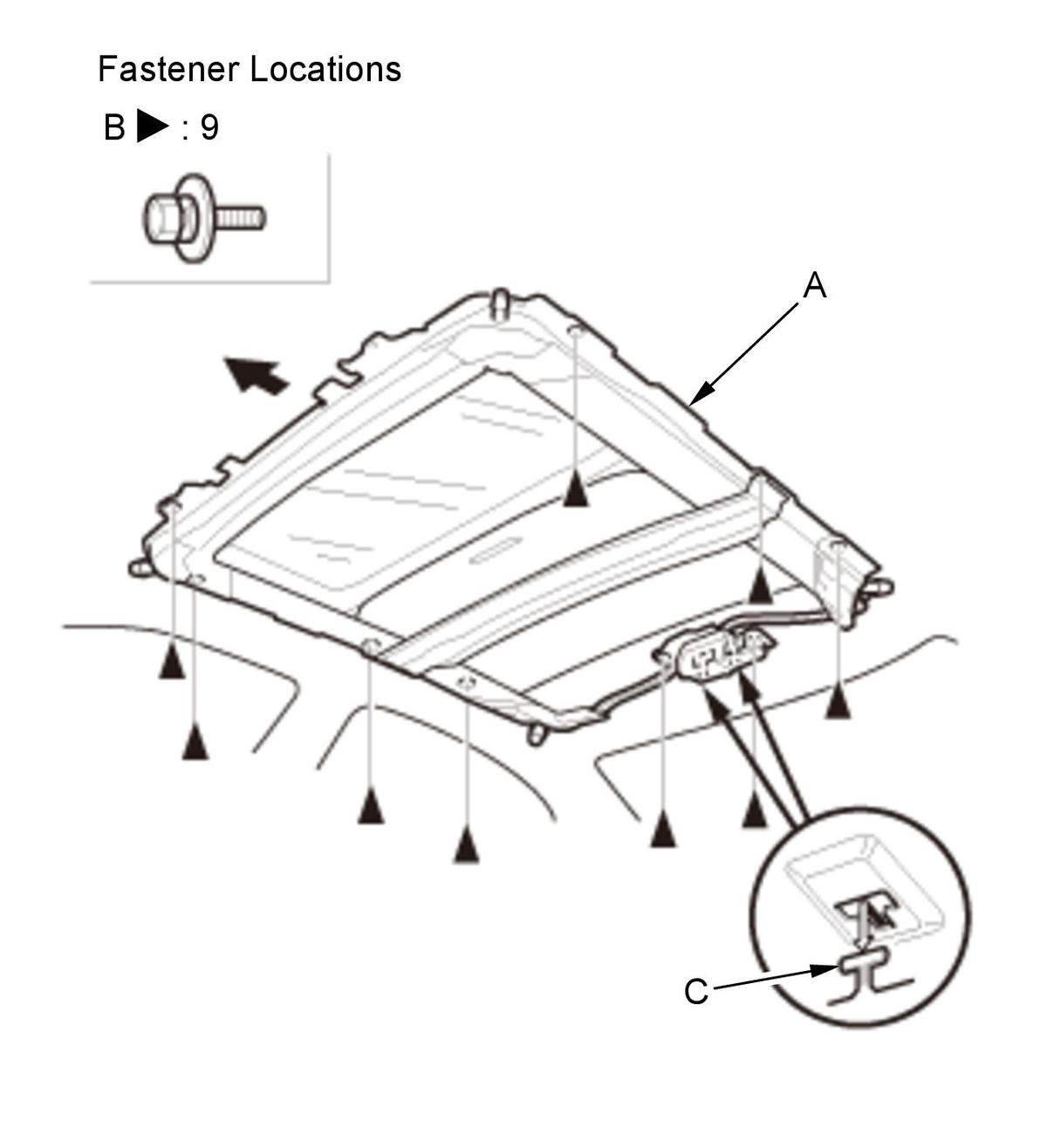

    		 3. With an assistant holding the frame (A), remove the bolts (B) starting at the rear, and release the hooks (C) by moving the frame forward, then carefully remove the frame.
