Front Drain Tube

Both Kick Panels - Remove

1. Remove both kick panels .
Glove Box - Remove

1. Remove the glove box .
Headliner - Remove

1. Remove the headliner .

Front Drain Tube - Remove

Courtesy of HONDA, U.S.A., INC.

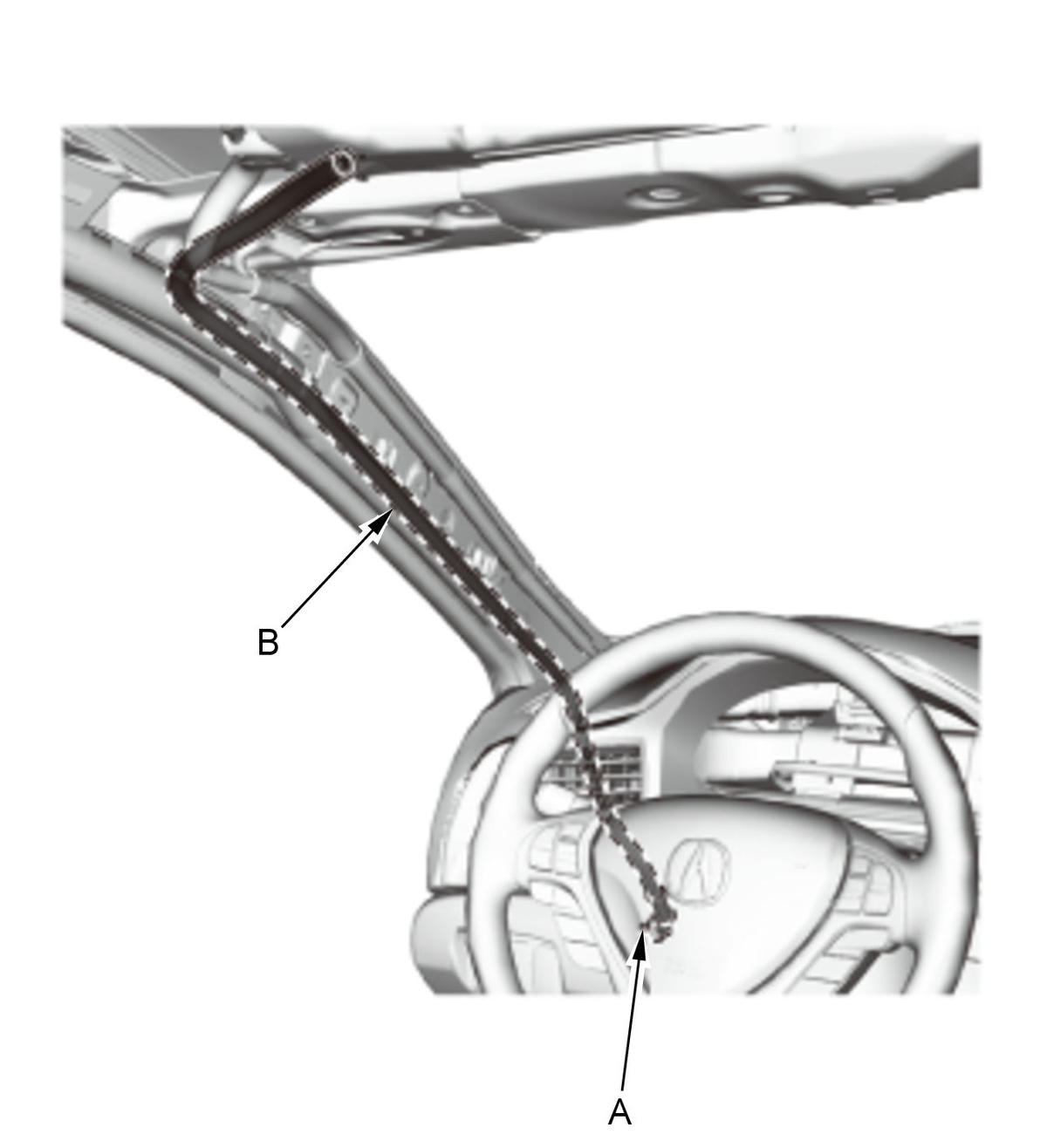

1. Pull the front drain valve (A) out of the body hole.

2. Tie a string to the top end of the front drain tube (B), then pull the drain tube down out of the pillar. Leave the string in the pillar to use when reinstalling the drain tube.
