Rear Drain Tube

  1. Rear Drain Tube - Install
    GHH472756GHH472757Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH472756GHH472757Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

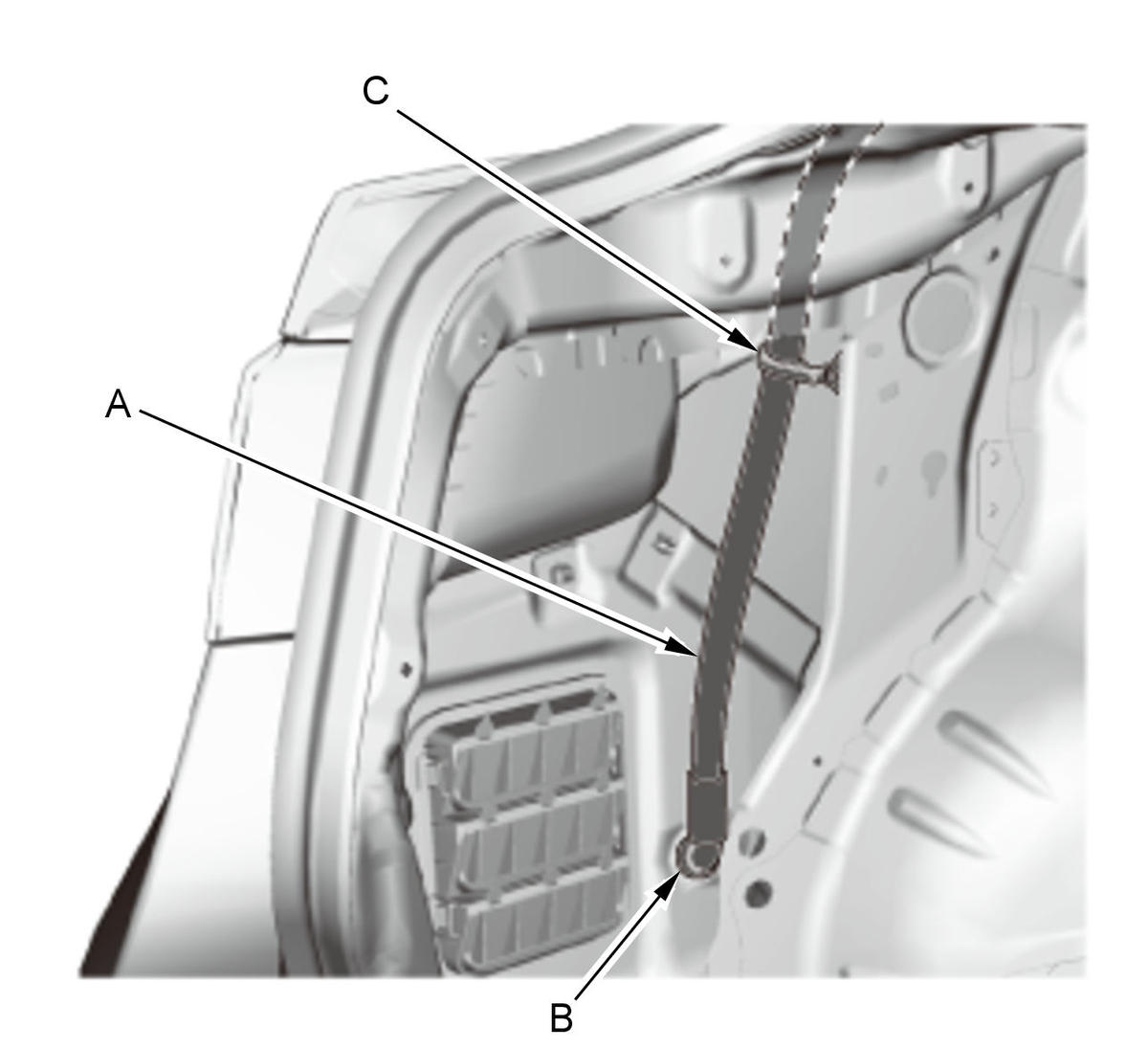

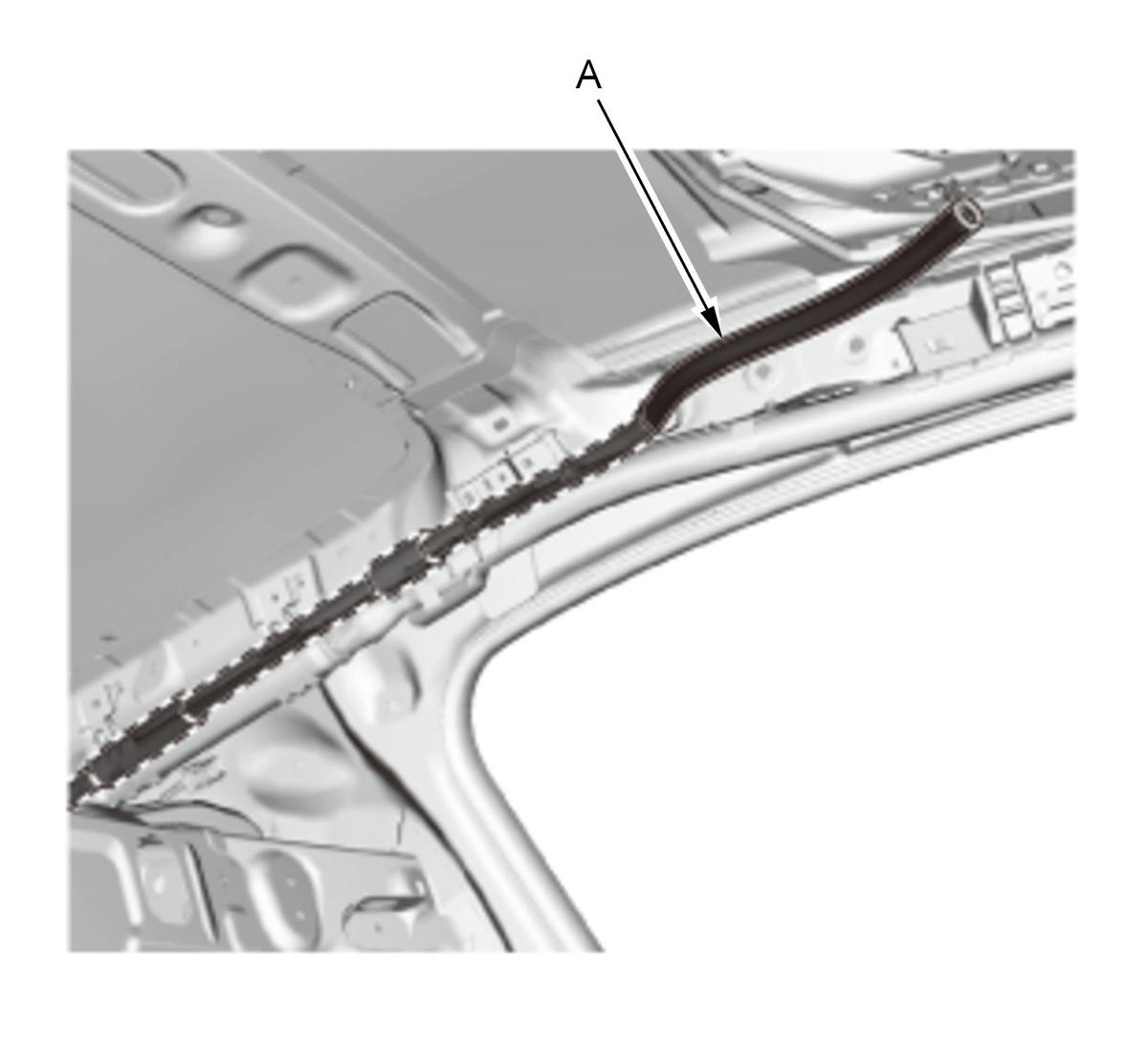

    		 1. Install the rear drain tube (A) using the string left in the pillar.

    2. Install the rear drain valve (B) to the body hole.

    3. Install the clip (C).
  2. Headliner - Install
    1. Install the headliner .
  3. Trunk Rear Side Trim Panel - Install
    1. Install the trunk rear side trim panel .
