Moonroof Frame

  1. Moonroof Frame - Install

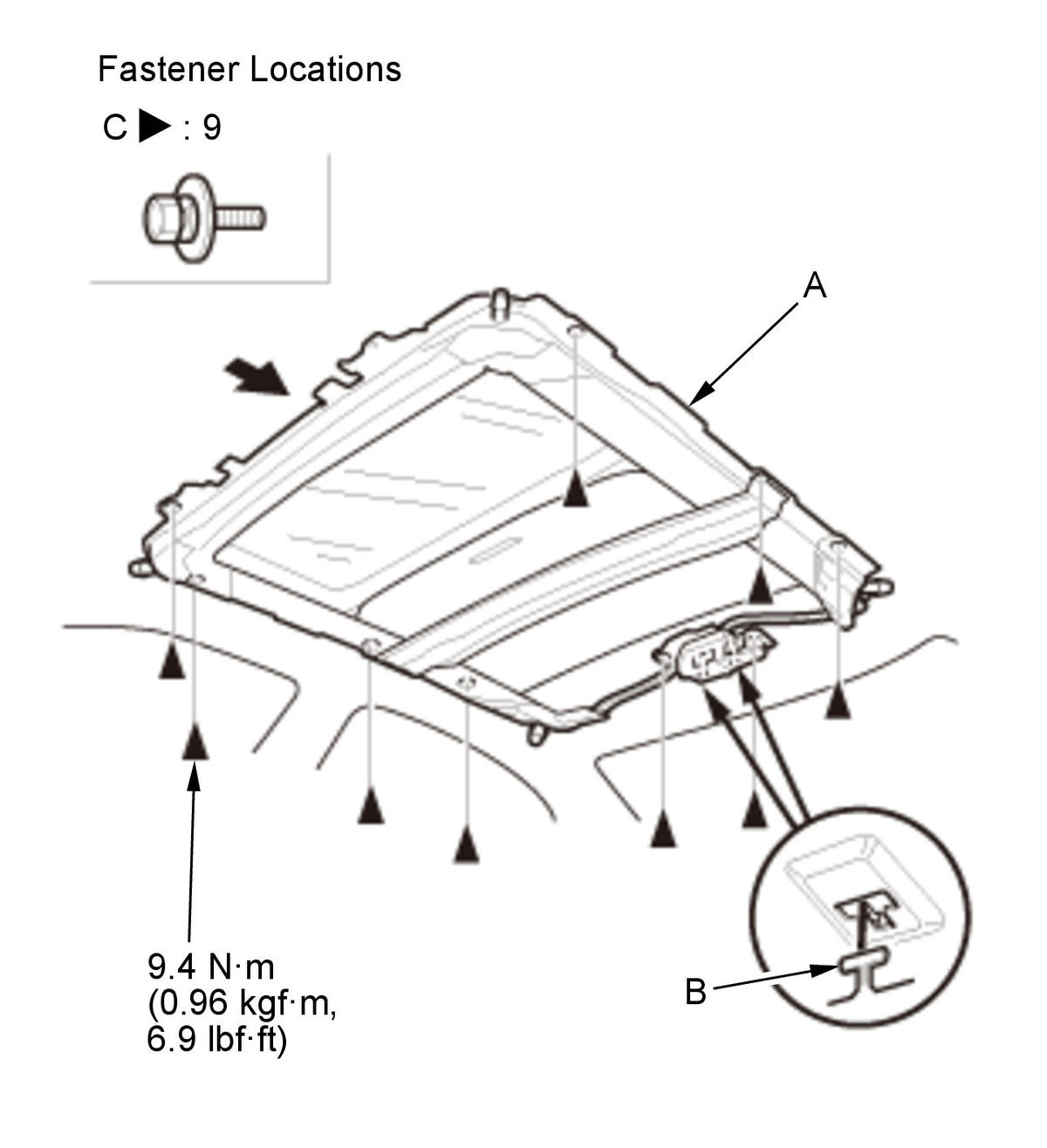

    GHH472752Courtesy of HONDA, U.S.A., INC.
    		 1. With an assistant holding the frame (A), install the hooks (B), then install the bolts (C).

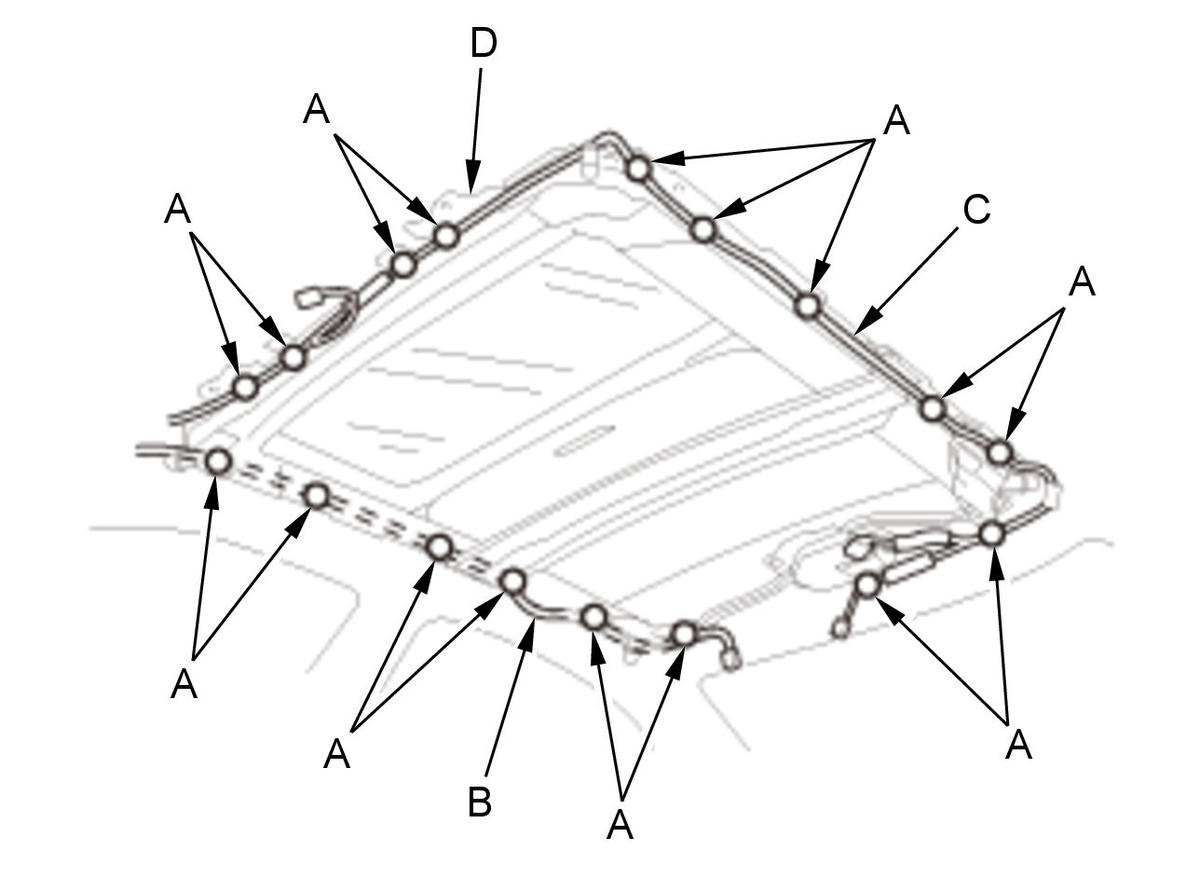

    GHH472753Courtesy of HONDA, U.S.A., INC.
    		 2. Install the harness clips (A) securing the roof wire harness (B) and the moonroof subharness (C) to the frame (D).

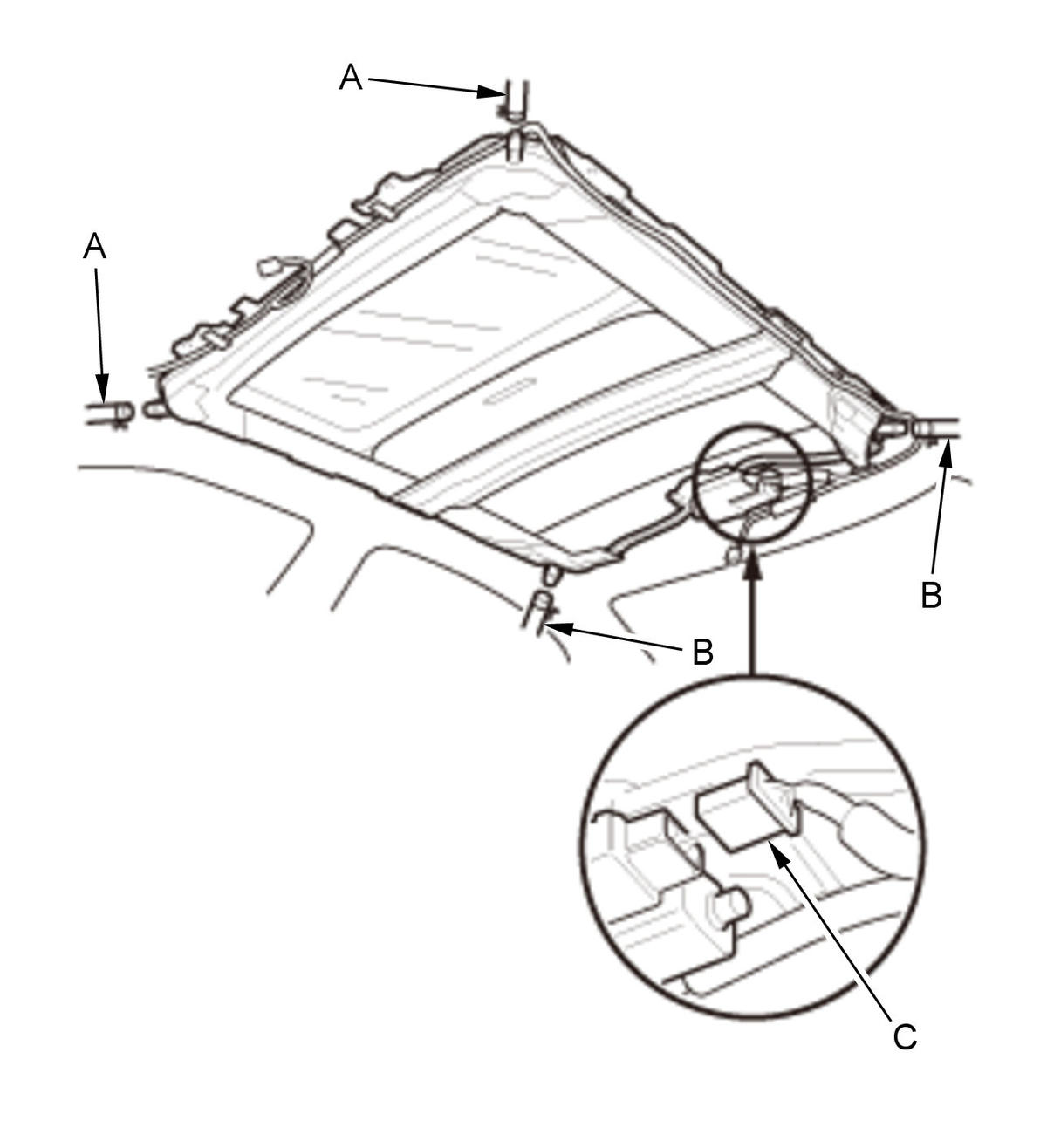

    GHH472754Courtesy of HONDA, U.S.A., INC.
    		 3. Connect the front drain tubes (A), the rear drain tubes (B), and the moonroof motor connector (C).
  2. Headliner - Install
    1. Install the headliner .
  3. Water Leaks - Check
    1. Check for water leaks .
