Front Drain Tube

  1. Front Drain Tube - Install

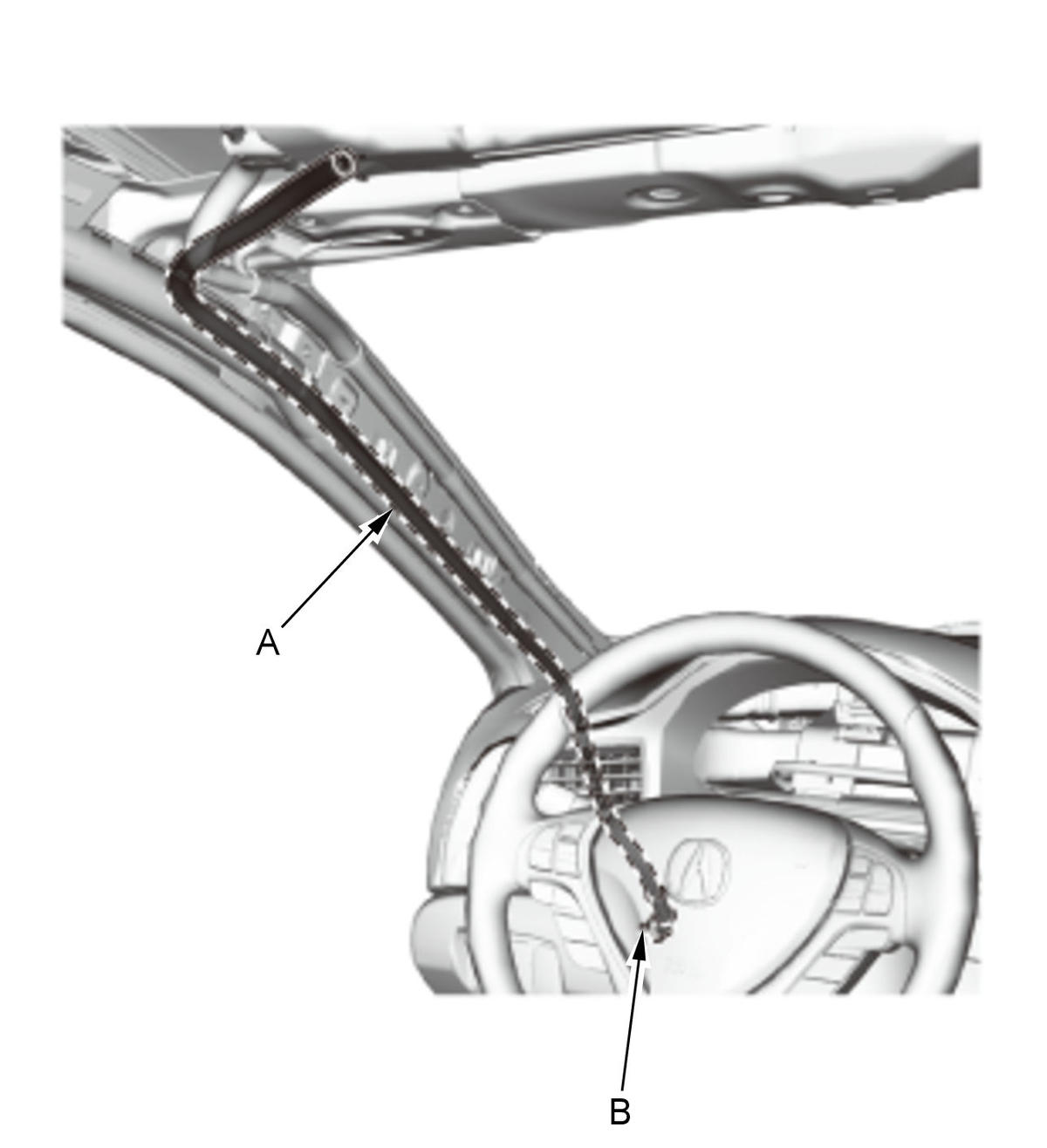

    GHH472755Courtesy of HONDA, U.S.A., INC.
    		 1. Install the front drain tube (A) using the string left in the pillar.

    2. Install the front drain valve (B) to the body hole.
  2. Headliner - Install
    1. Install the headliner .
  3. Glove Box - Install
    1. Install the glove box .
  4. Both Kick Panels - Install
    1. Install both kick panels .
