Moonroof Drain Channel: Removal

Drain Channel - Remove

Courtesy of HONDA, U.S.A., INC.

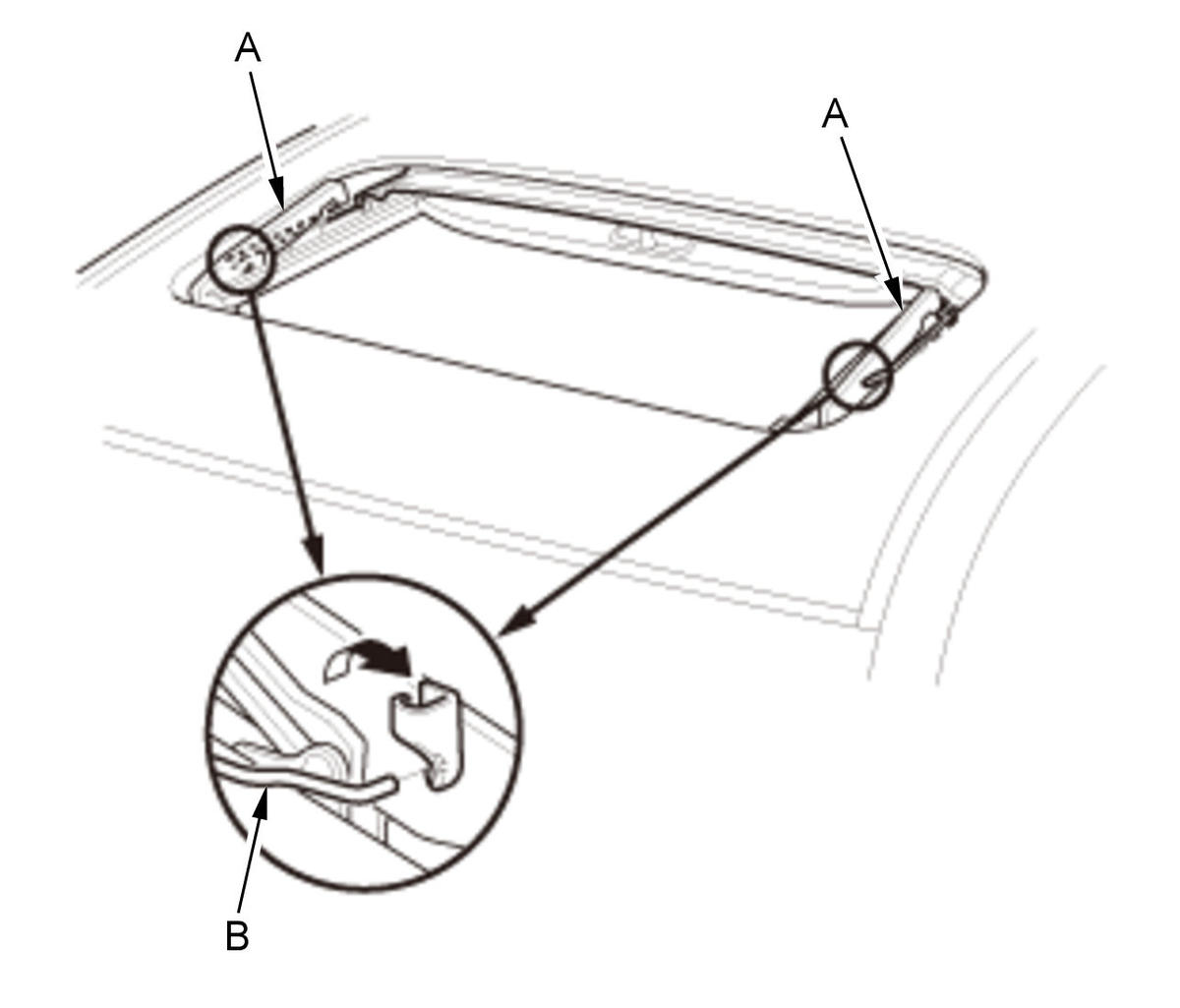

1. Slide both glass brackets (A) with the moonroof switch to the position where the moonroof normally tilts up.

2. Disconnect both drain channel rods (B).

Courtesy of HONDA, U.S.A., INC.

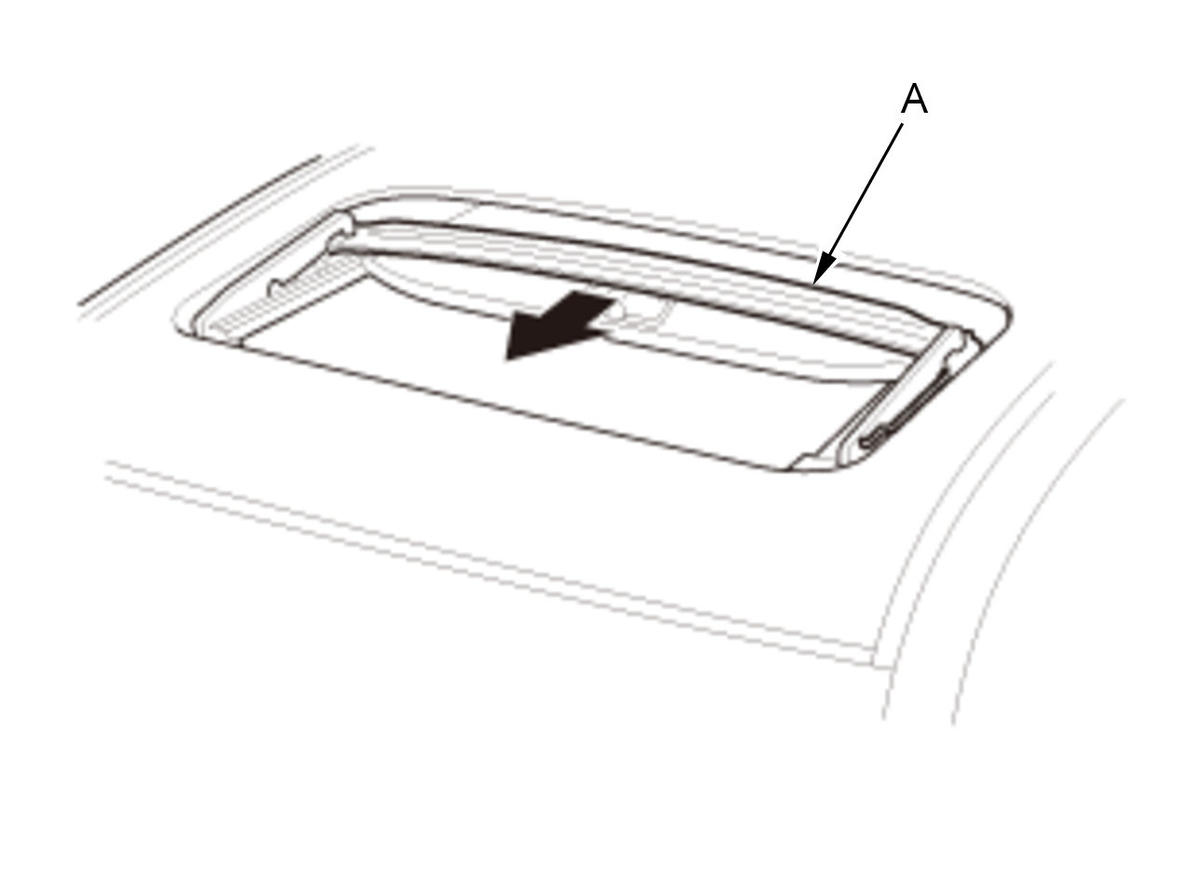

3. Slide the drain channel (A) forward.

Courtesy of HONDA, U.S.A., INC.

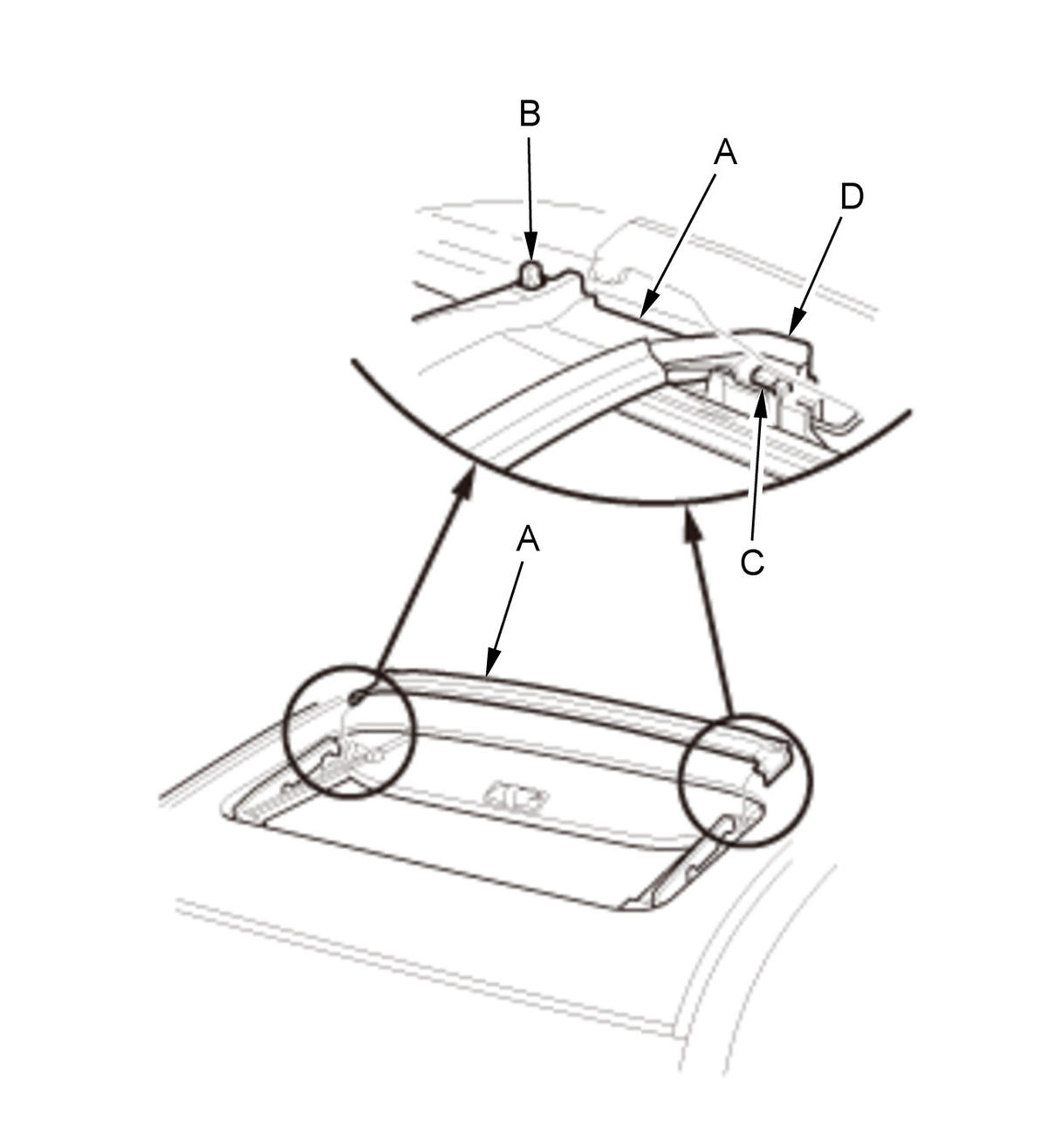

4. Remove the rear edge of the drain channel (A) from both clips (B).

5. Release the drain channel from both hooks (C) of the drain channel slider (D) by pulling it rearward.

6. Remove the drain channel.
