Moonroof Drain Channel: Installation

Drain Channel - Install

Courtesy of HONDA, U.S.A., INC.

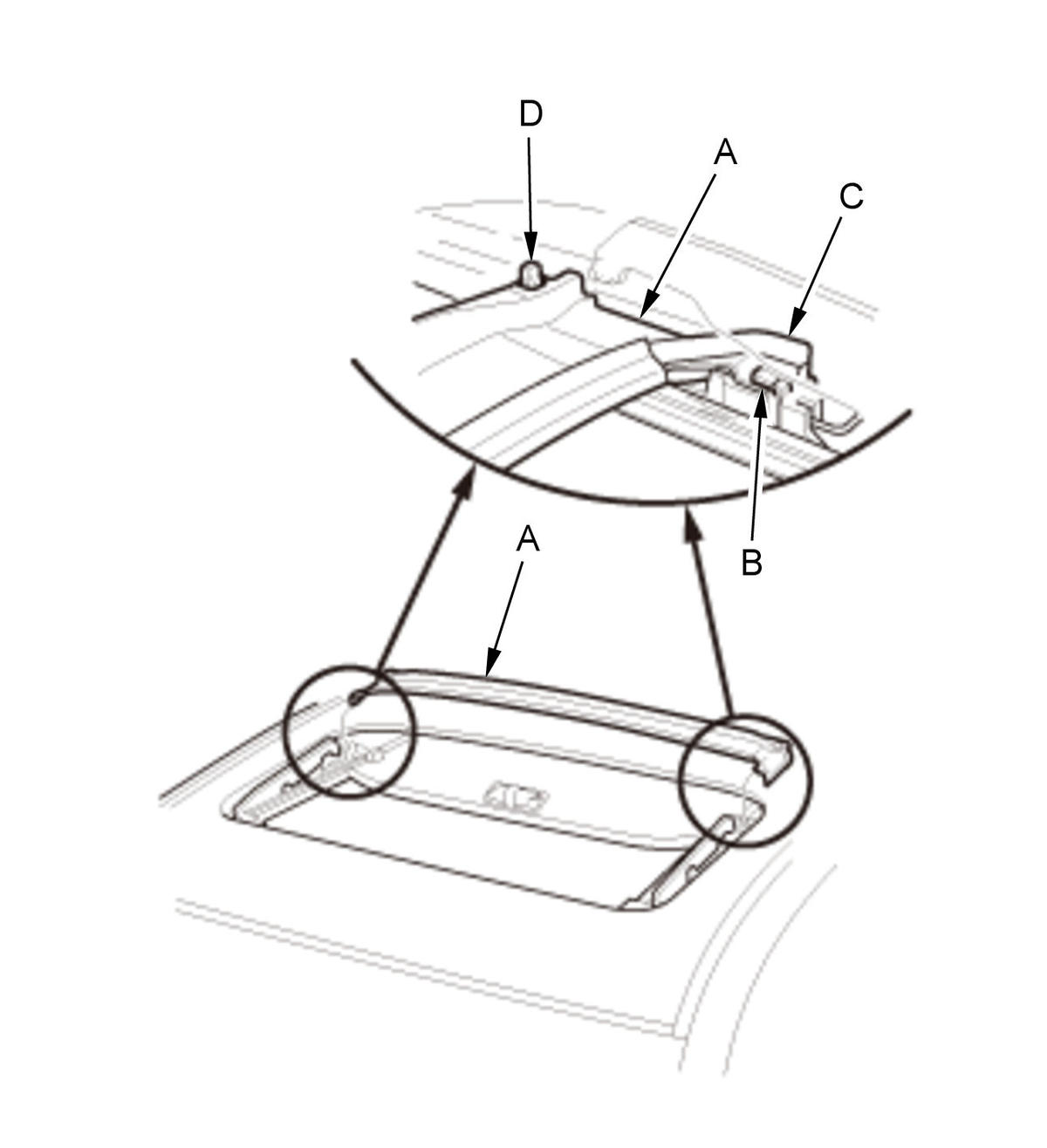

1. Install the drain channel (A) to both hooks (B) of the drain channel slider (C).

2. Install the rear edge of the drain channel to both clips (D).

Courtesy of HONDA, U.S.A., INC.

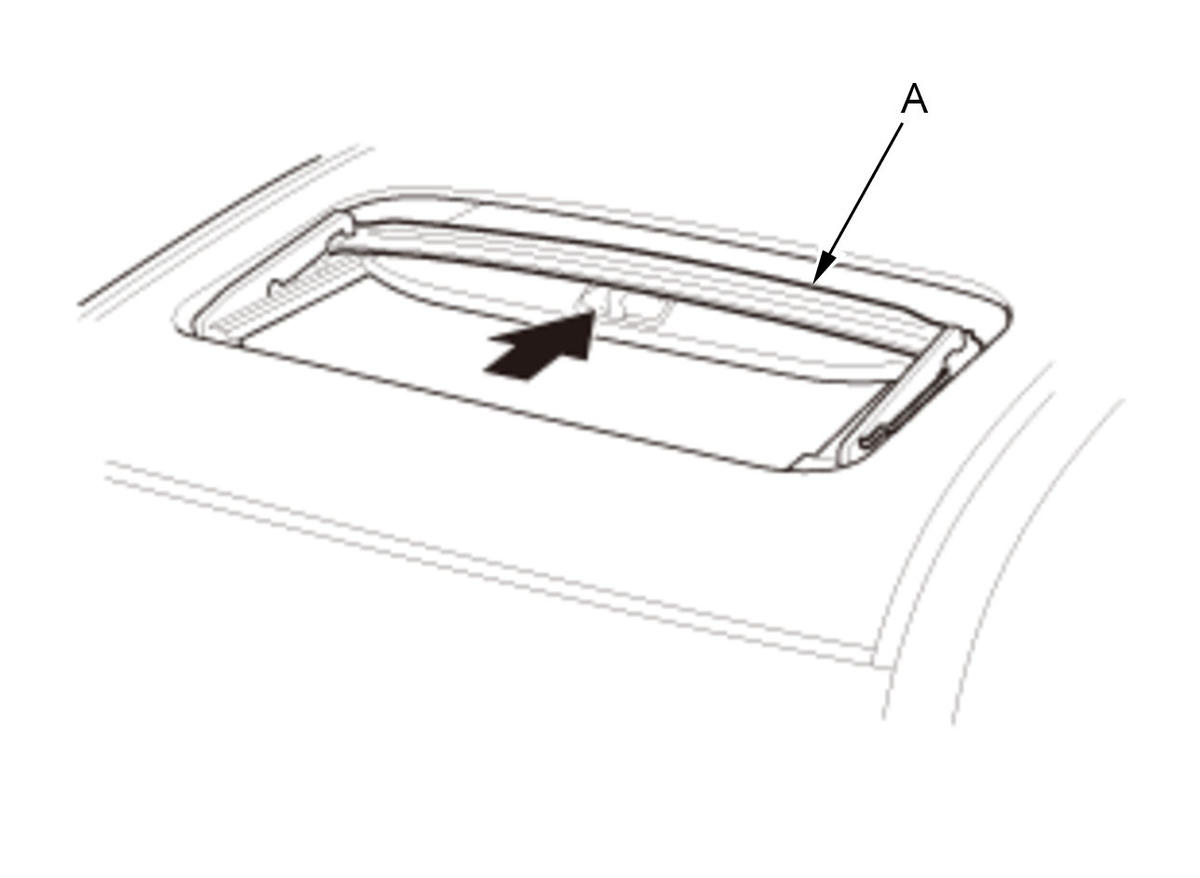

3. Slide the drain channel (A) rearward.

Courtesy of HONDA, U.S.A., INC.

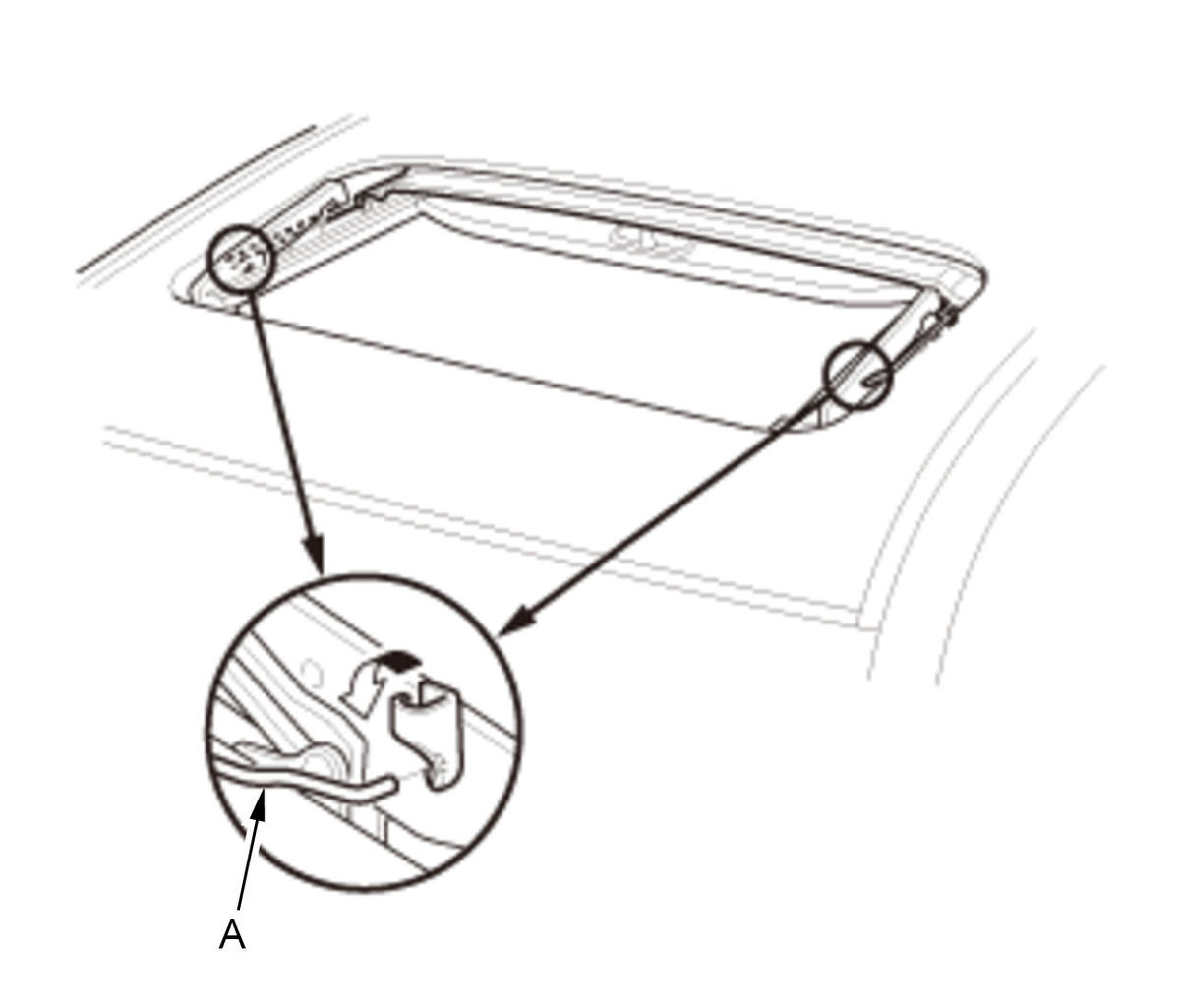

4. Connect both drain channel rods (A).
