Moonroof Drain Channel Slider And Cable Assembly: Removal

  1. Moonroof Motor - Remove
    1. Remove the moonroof motor .
  2. Sunshade - Remove
    1. Remove the sunshade .
  3. Moonroof Frame - Remove
    1. Remove the moonroof frame .
  4. Drain Channel Slider and Cable Assembly - Remove

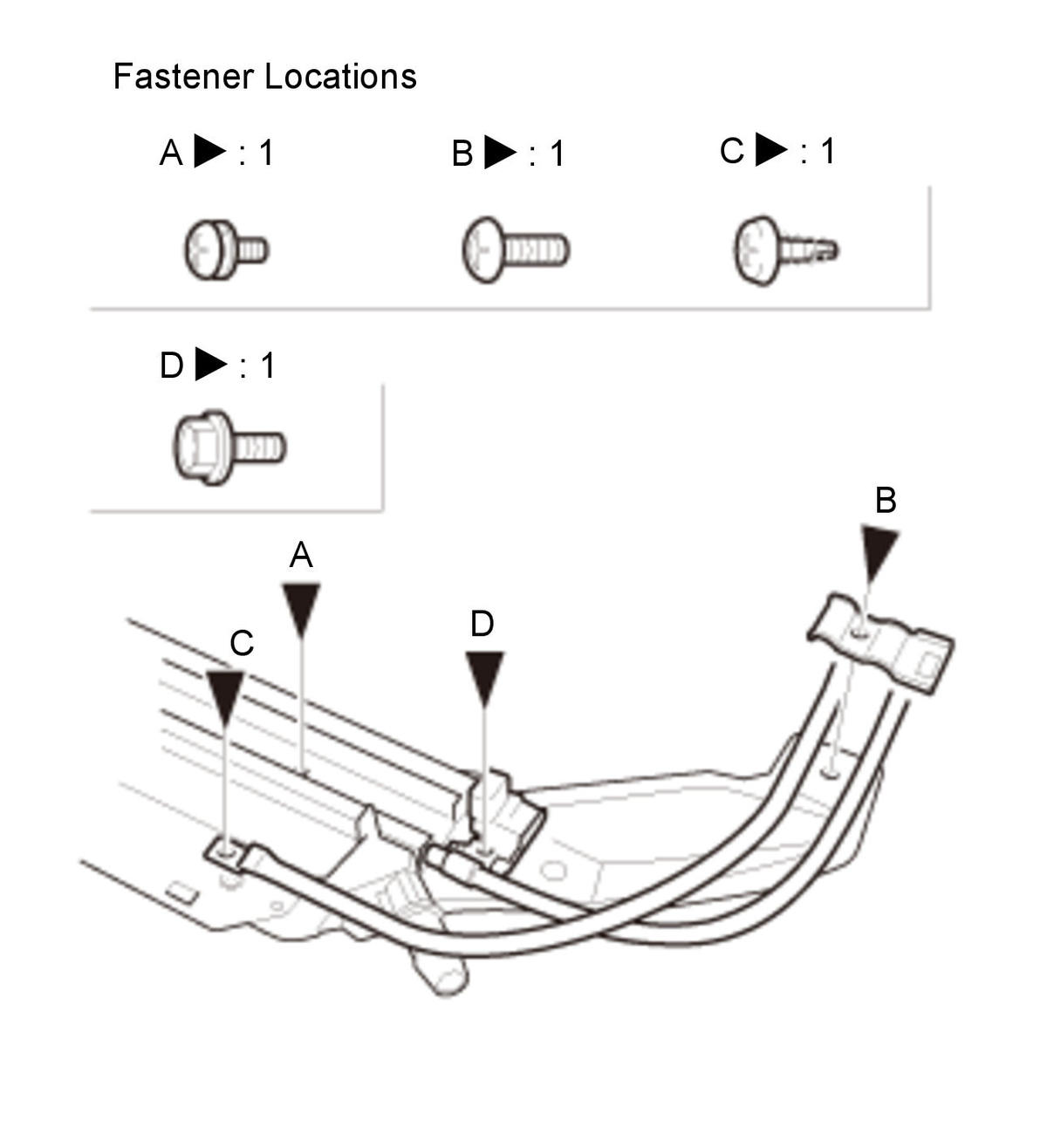

    GHH472736Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the screws (A, B, C) and the bolt (D).

    2. Repeat on the opposite side.

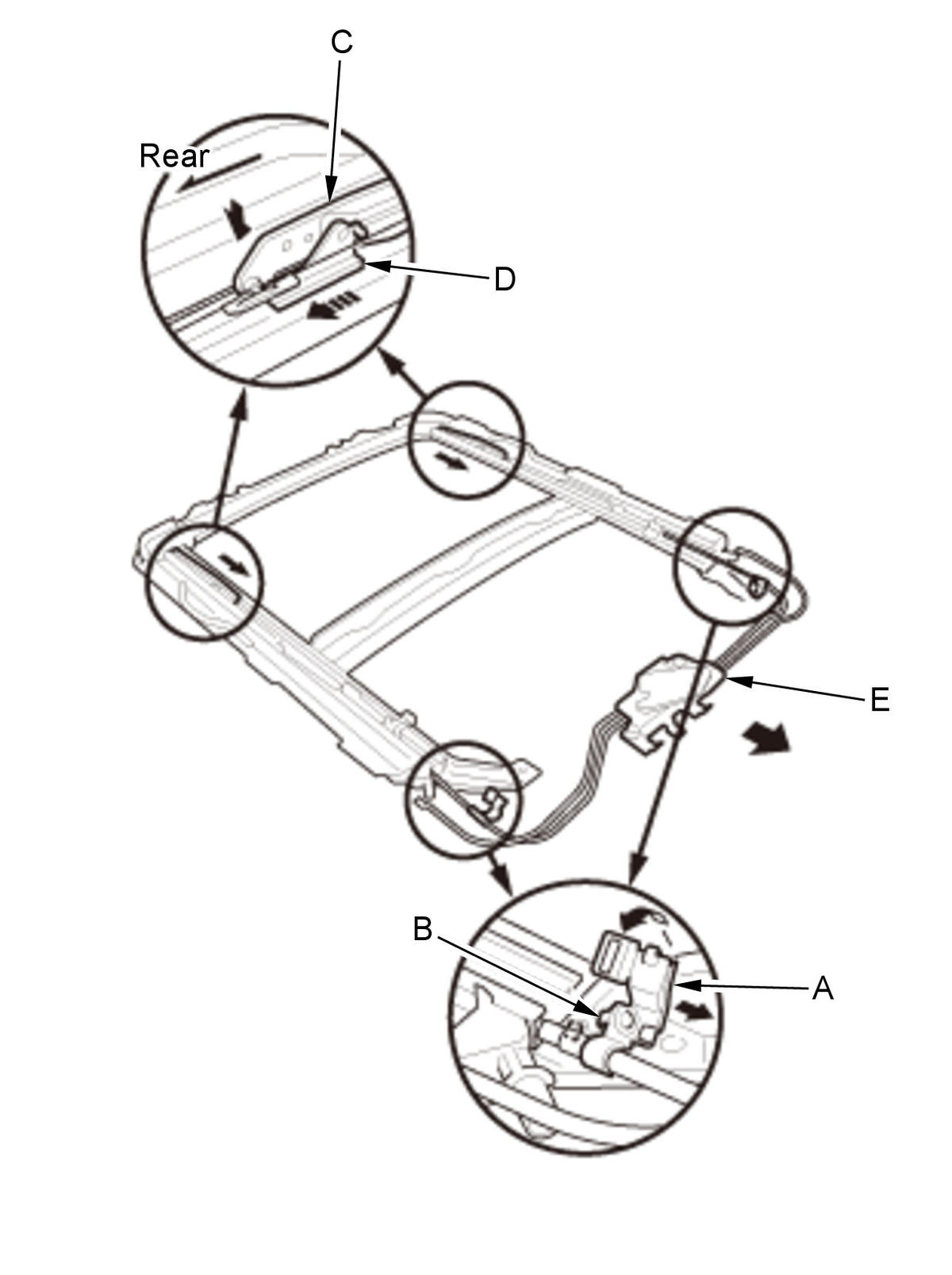

    GHH472737Courtesy of HONDA, U.S.A., INC.
    		 3. Turn both cable tube side brackets (A) up to release the hooks (B) from the holes in both sides of the frame.

    4. Pivot the glass brackets (C) down by sliding the link lifters (D) back, then slide both glass brackets back with the link lifters.

    5. Slide the cable assembly (E) half-way back.

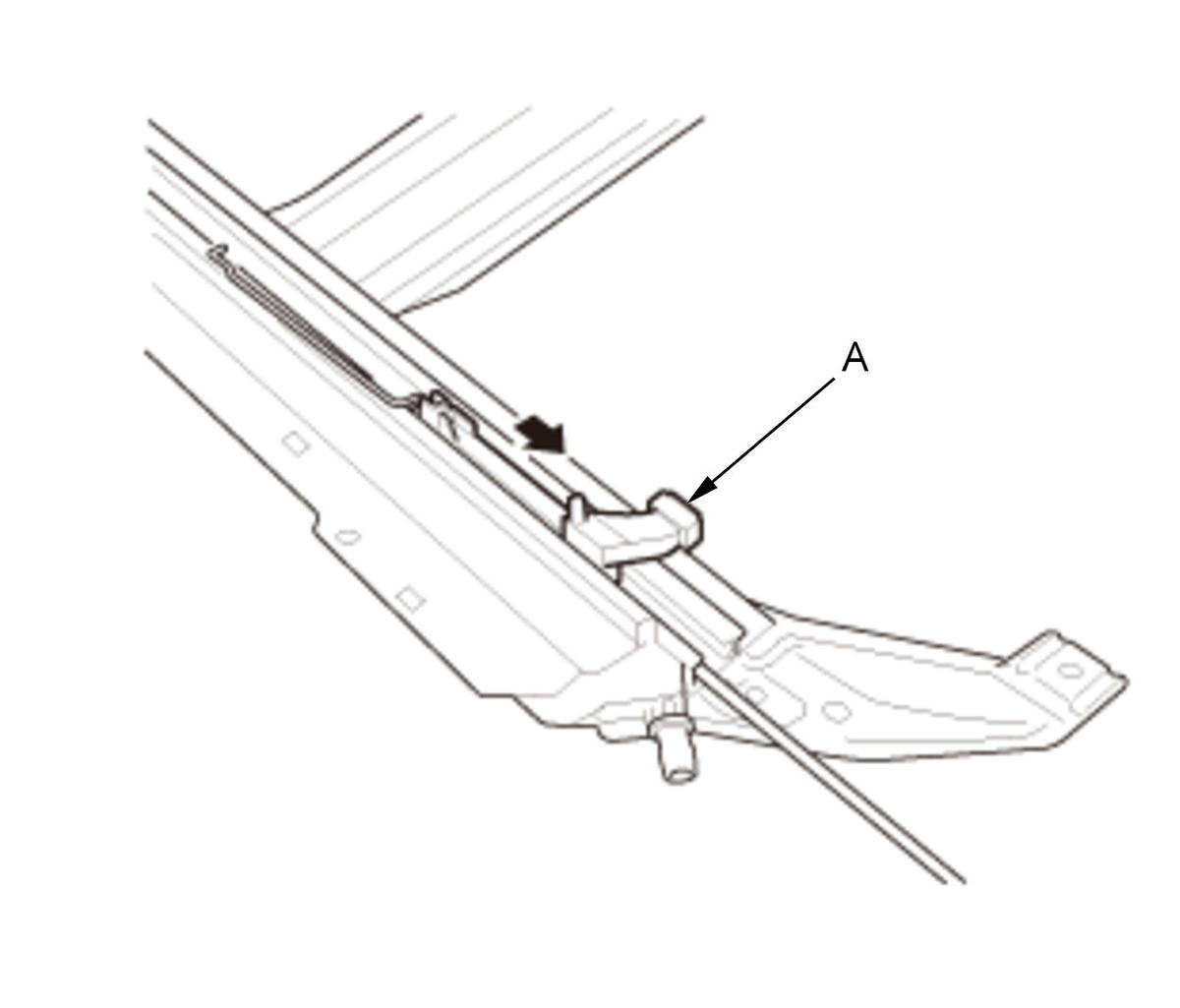

    GHH472738Courtesy of HONDA, U.S.A., INC.
    		 6. Remove the drain channel slider (A).

    7. Repeat on the opposite side.

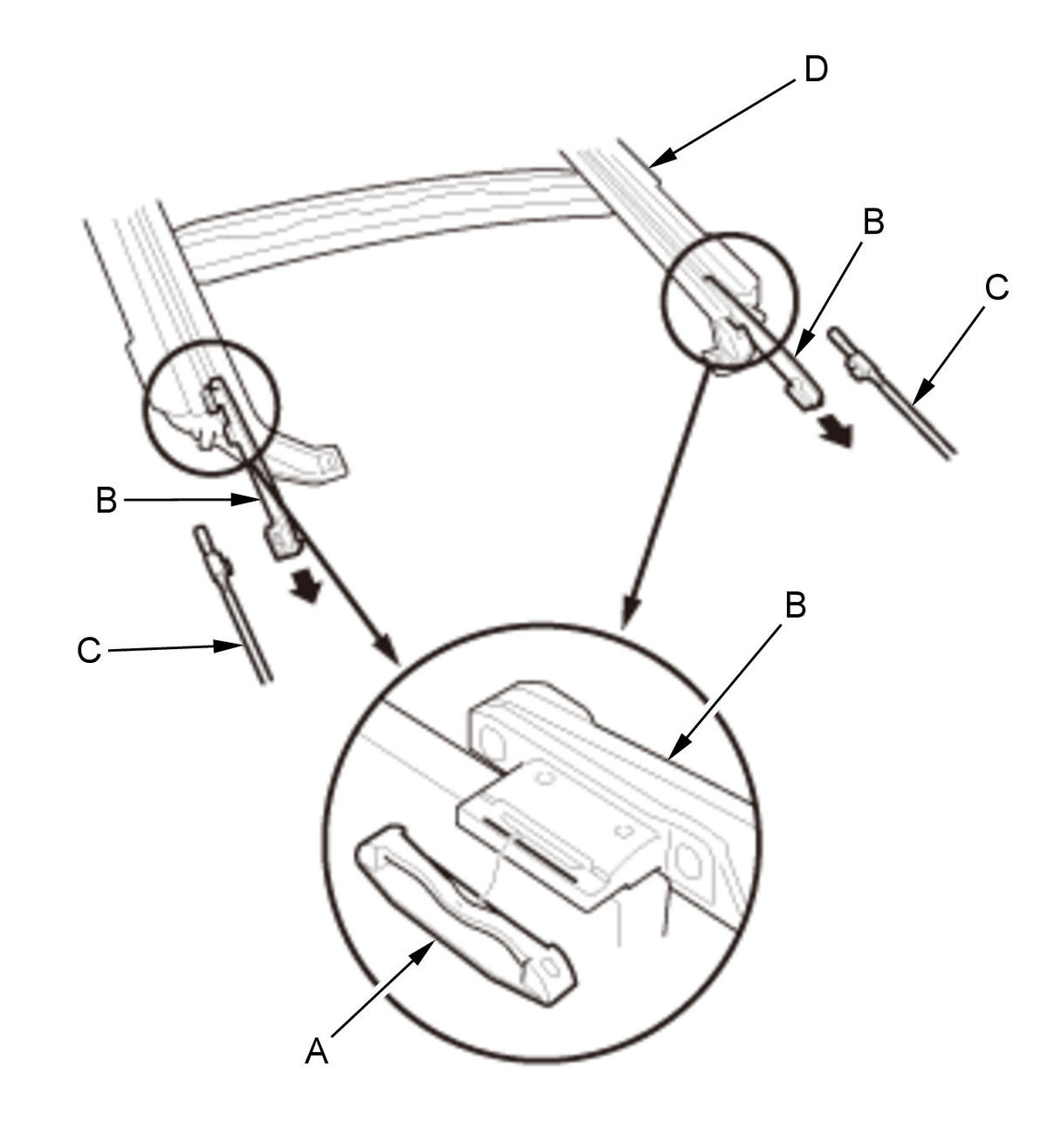

    GHH472739Courtesy of HONDA, U.S.A., INC.
    		 8. Remove both deflector sliders (A) from both glass brackets (B).

    9. Remove the cable assembly (C) and both glass brackets from the frame (D).
