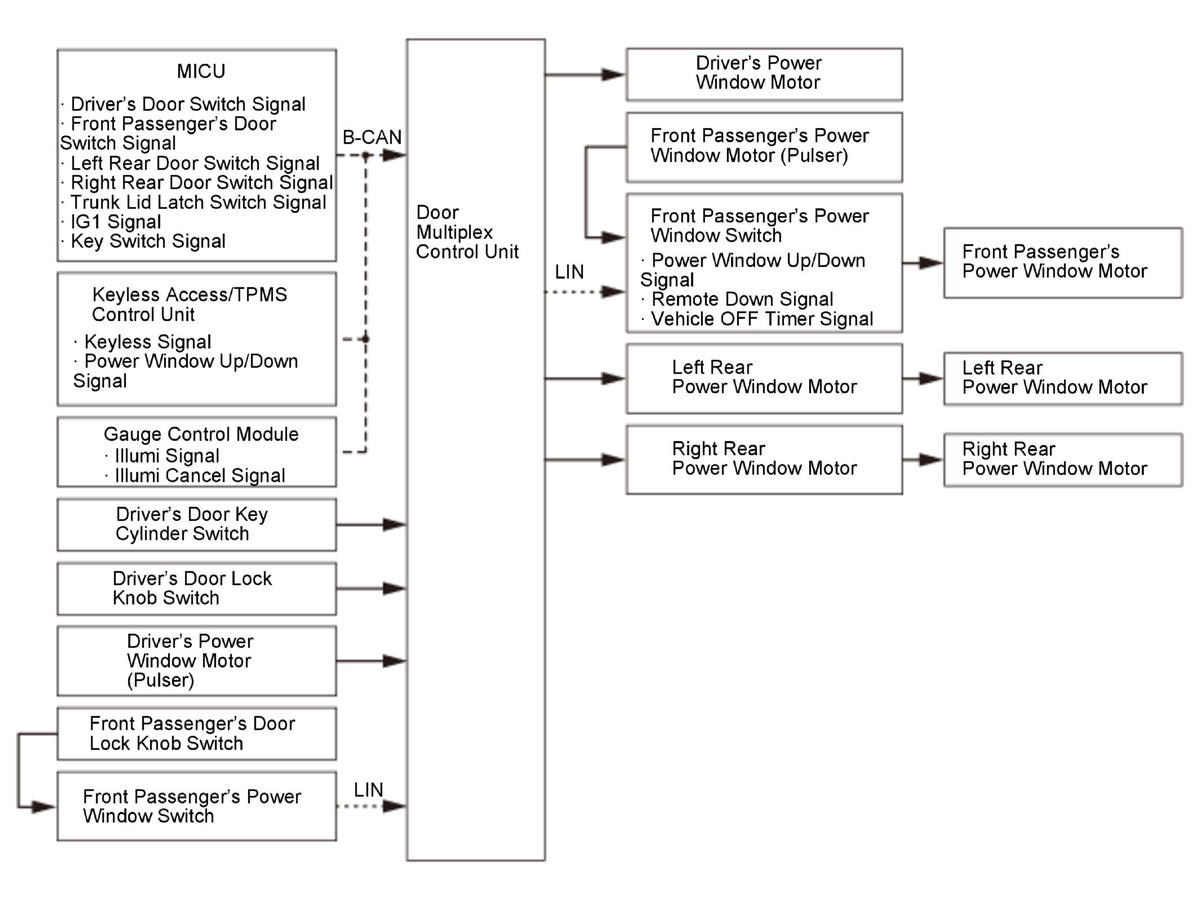

Power Windows System - System Diagram (2016 2017 2018 2019 2020 2021 2022)
Power Windows System - System Diagram (2016 2017 2018 2019 2020 2021 2022)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
