Power Windows System - Control/Function (2016 2017 2018 2019 2020 2021 2022)

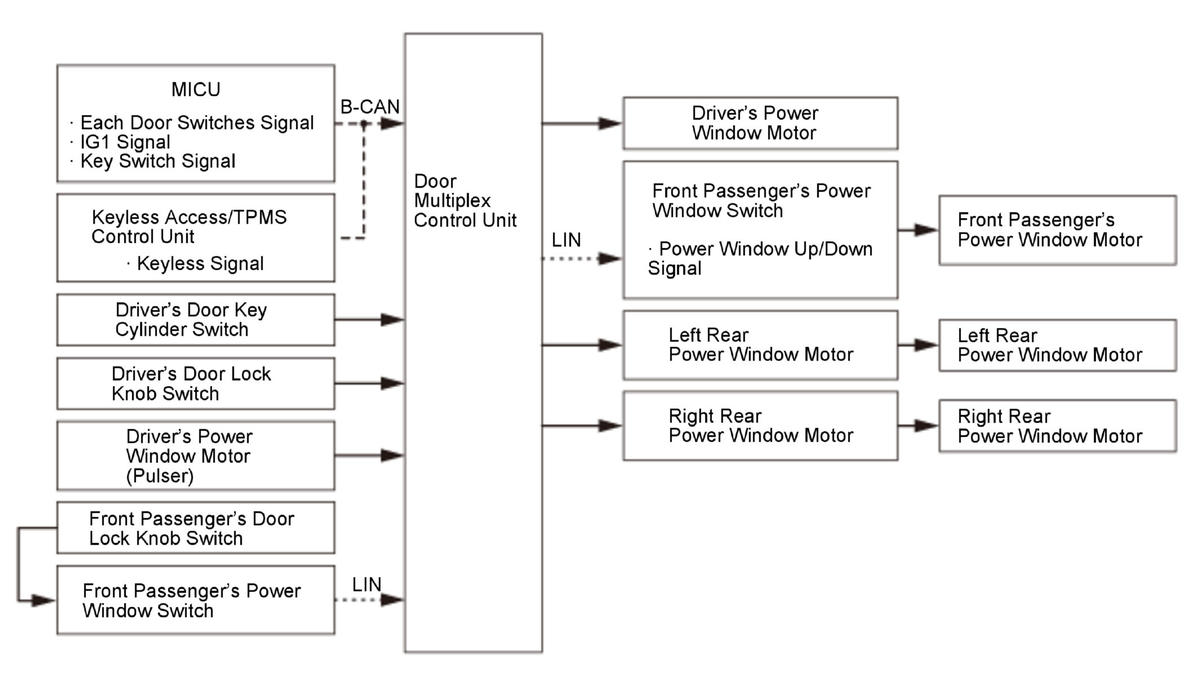

Basic Operation
- Manual Up/Down Function
The 1-step operation of the power window switch moves the window up or down. Available during the vehicle in the ON mode or the vehicle off operation.
- Auto Up/Down Function (only in driver side)
The 2-step operation of the power window switch moves the window upwardly or downwardly. Available when the vehicle in the ON mode or the vehicle off operation.
Auto Reverse Power Window Function

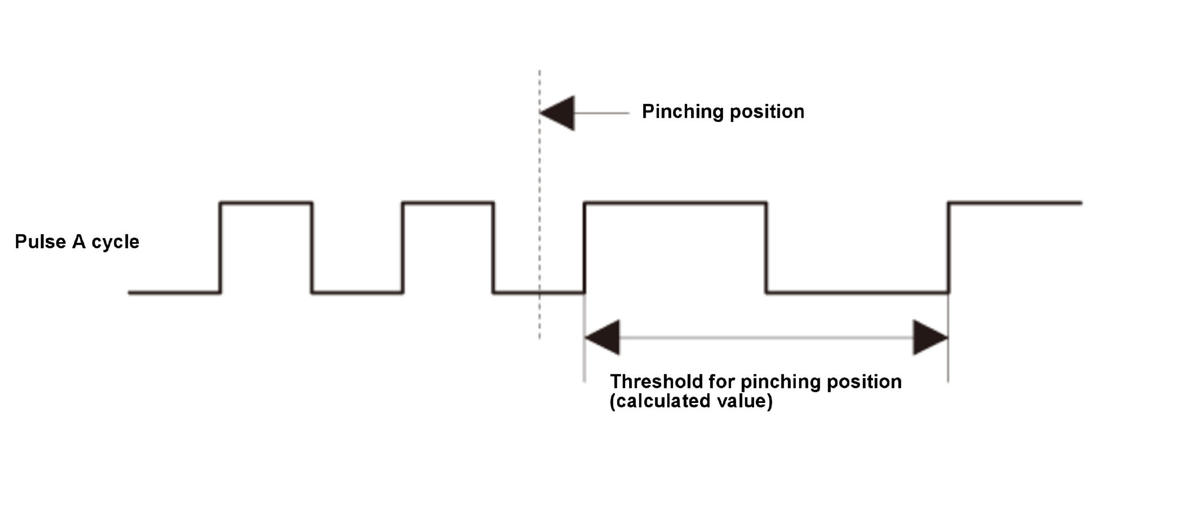

When an object is detected during the AUTO UP operation, the window stops closing and reverses about 70 mm (2.76 in). If the window is less than halfway opened (about 220 mm (8.66 in)), it will reverse to half open position (about 220 mm (8.66 in)). In the manual operation, this function is active only during the vehicle off operation. This function is activated based on the calculation of the rotation speed and load change of the motor's pulse A.

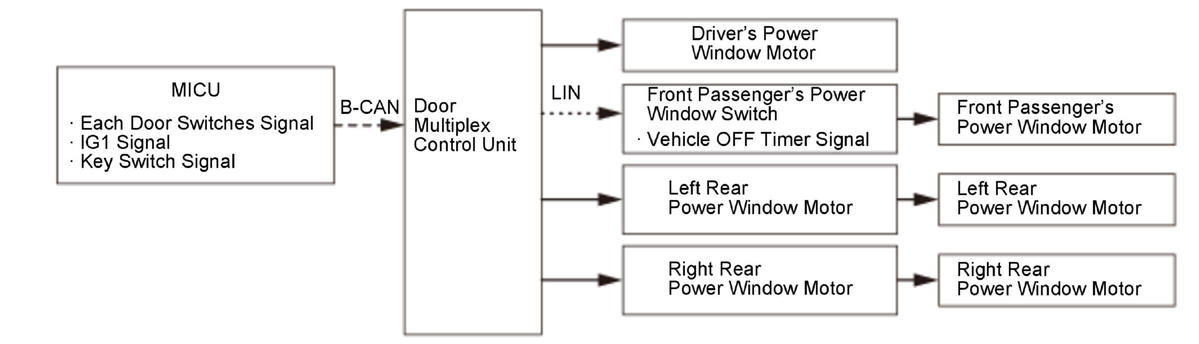

Vehicle OFF Operation
For about 10 minutes after the vehicle is turned to the OFF (LOCK) mode, the window's open/close operation with the power window switches is available.
| Vehicle OFF Operation Start Condition |
|
|
| Vehicle OFF Operation Cancel Condition | Timer | Vehicle ON mode -> OFF (LOCK) mode and elapsed 10 minutes |
| Door |
|
|
Keyless/Key Cylinder Operation
By turning the key a second time and holding it with the key inserted into the driver's door key cylinder, the windows close (or open) (turning the key clockwise to open, turning the key counterclockwise to close). The windows stop moving when the key is returned to the neutral position.
By pressing and holding the UNLOCK button of the remote a second time, the windows open. The windows stop moving when the UNLOCK button is released.
