Windows / Glass - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

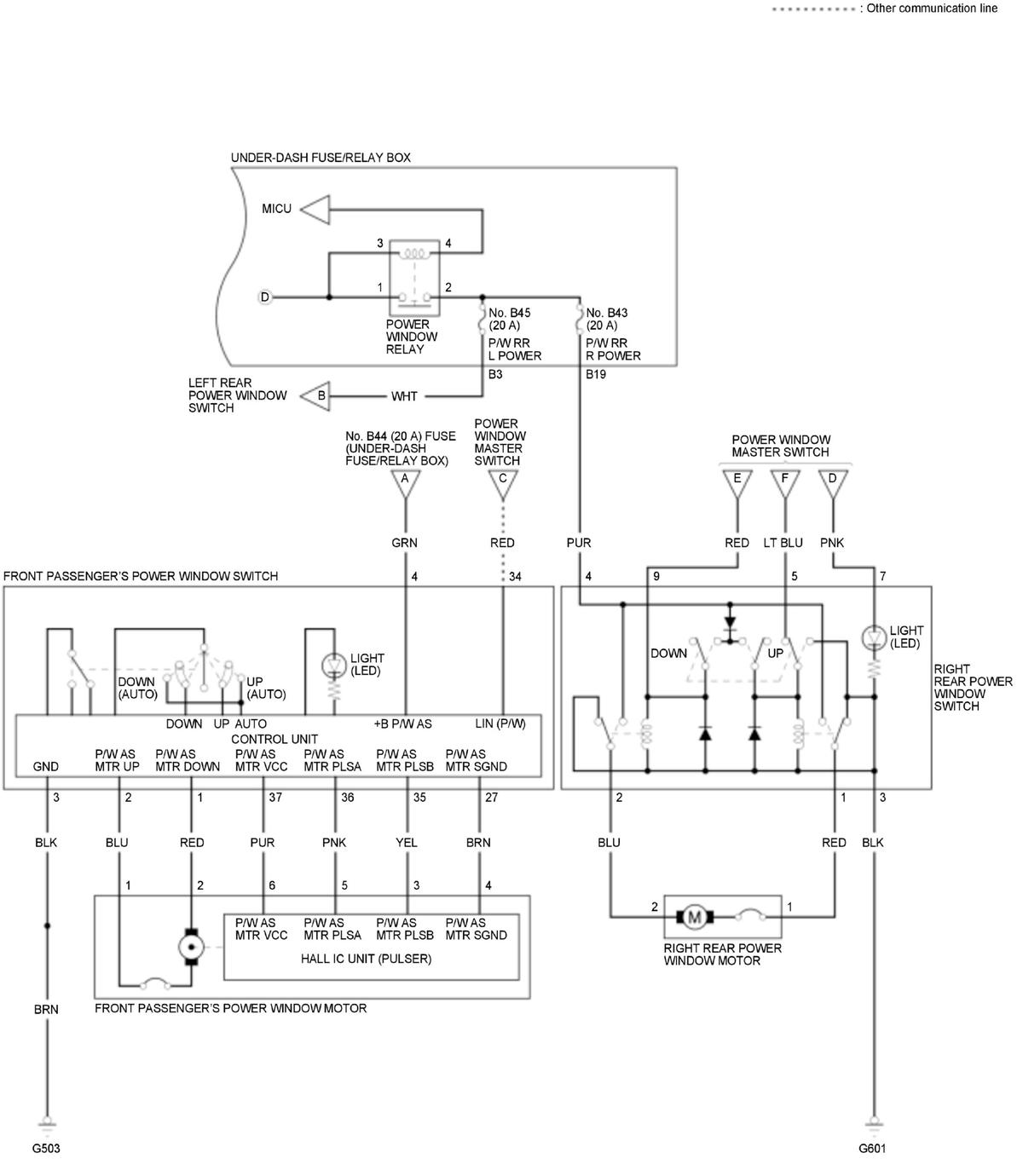

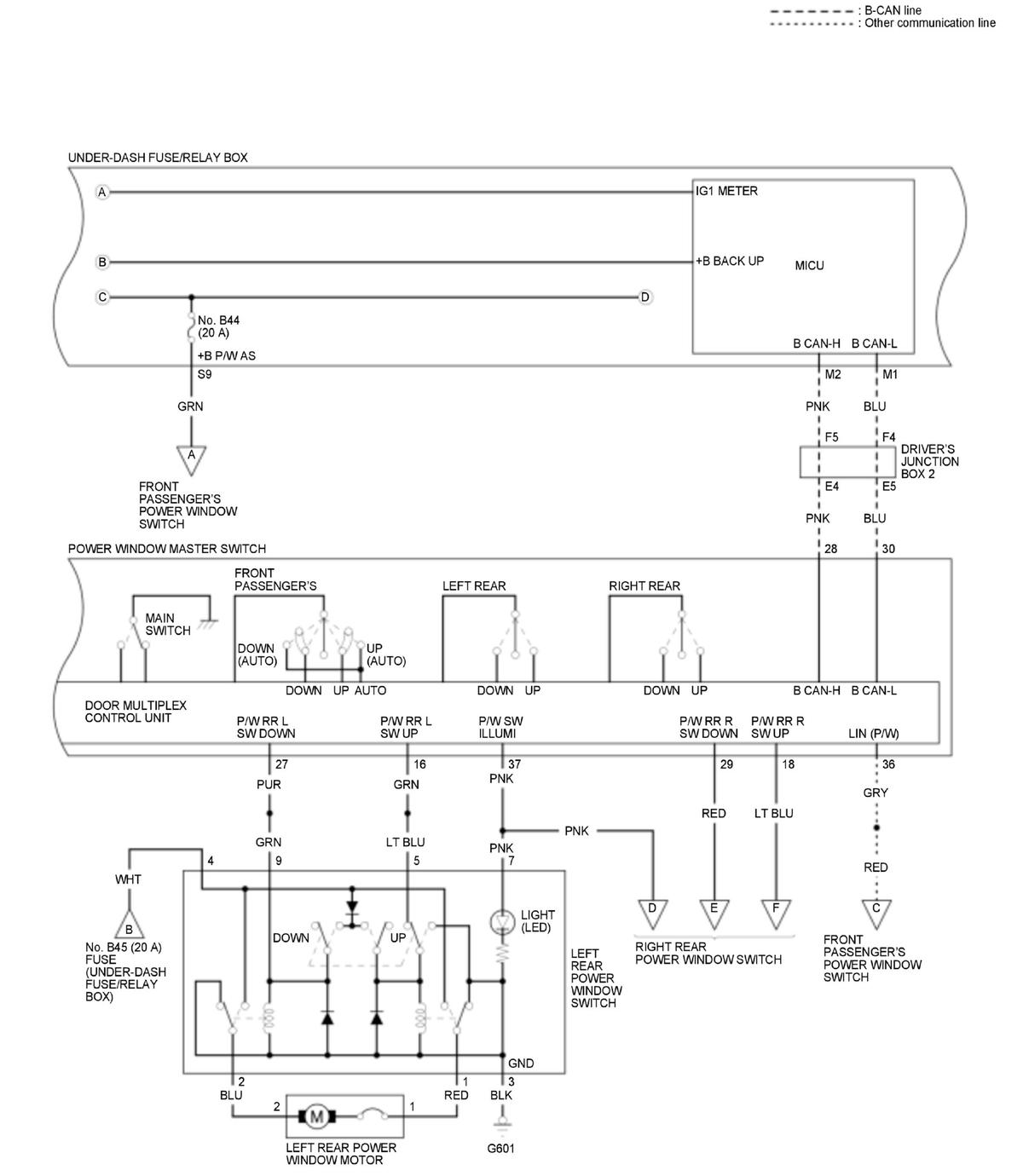

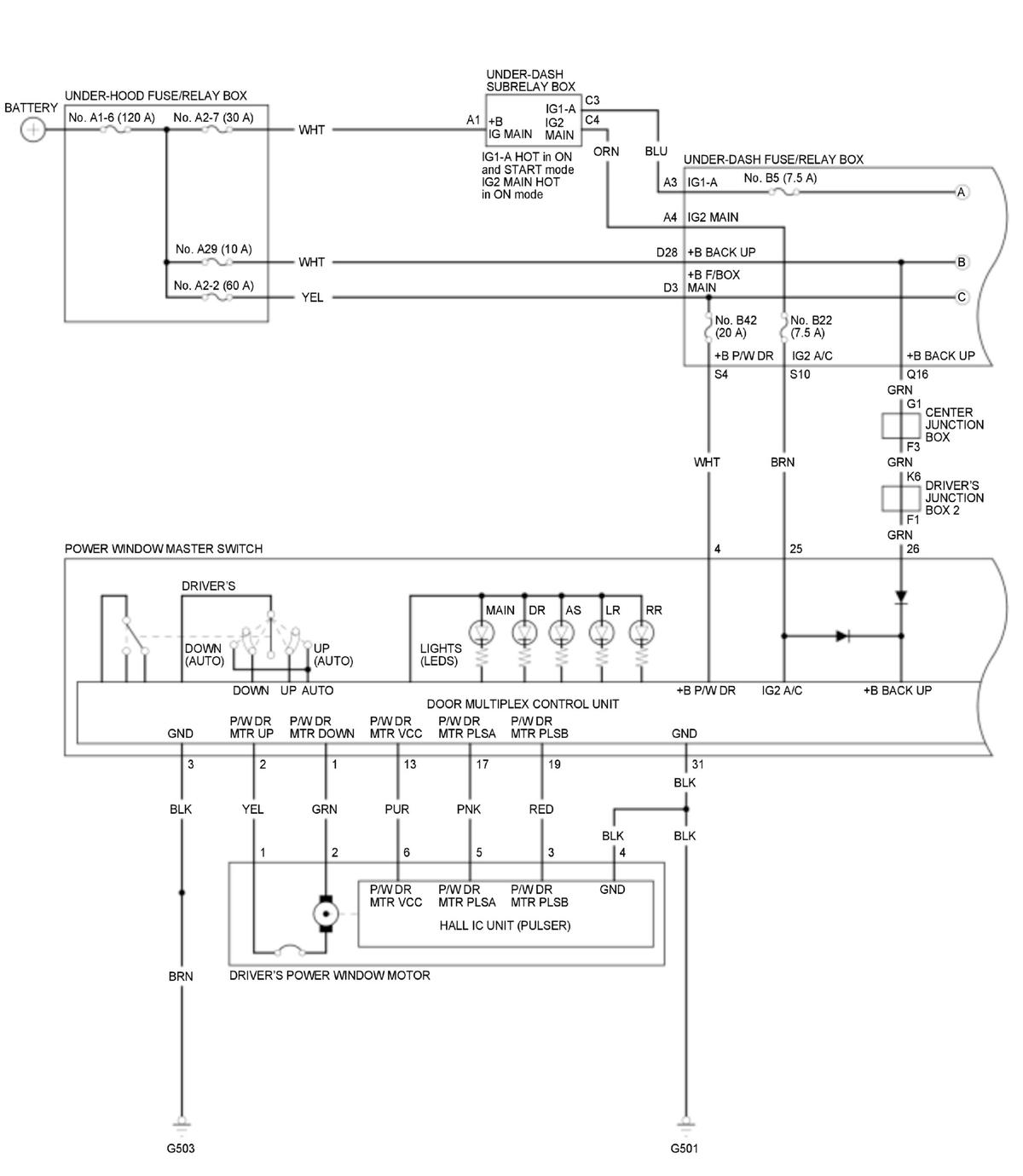

Power Windows (2019 2020 2021 2022)
Power Windows (2019 2020 2021 2022)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
