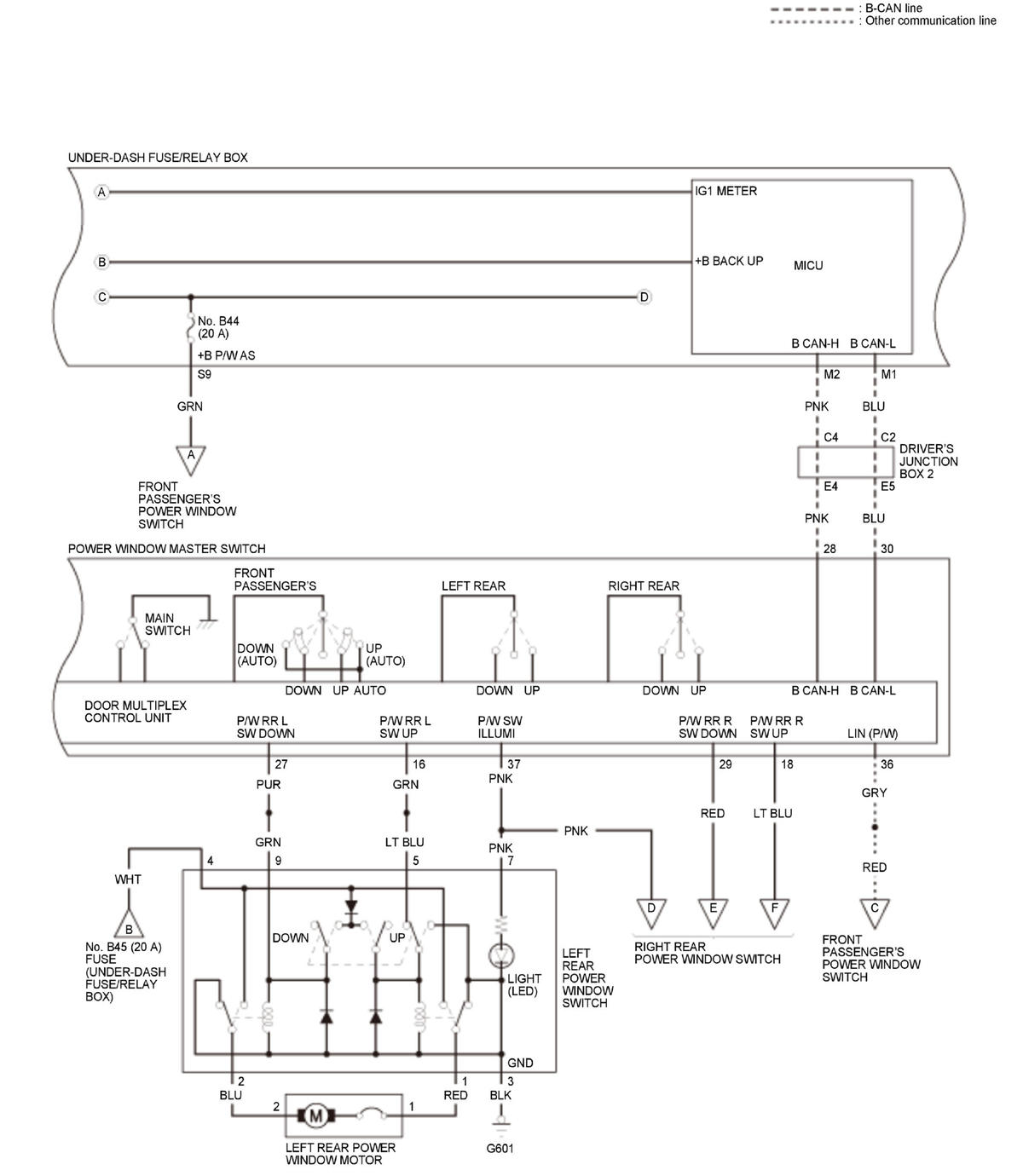

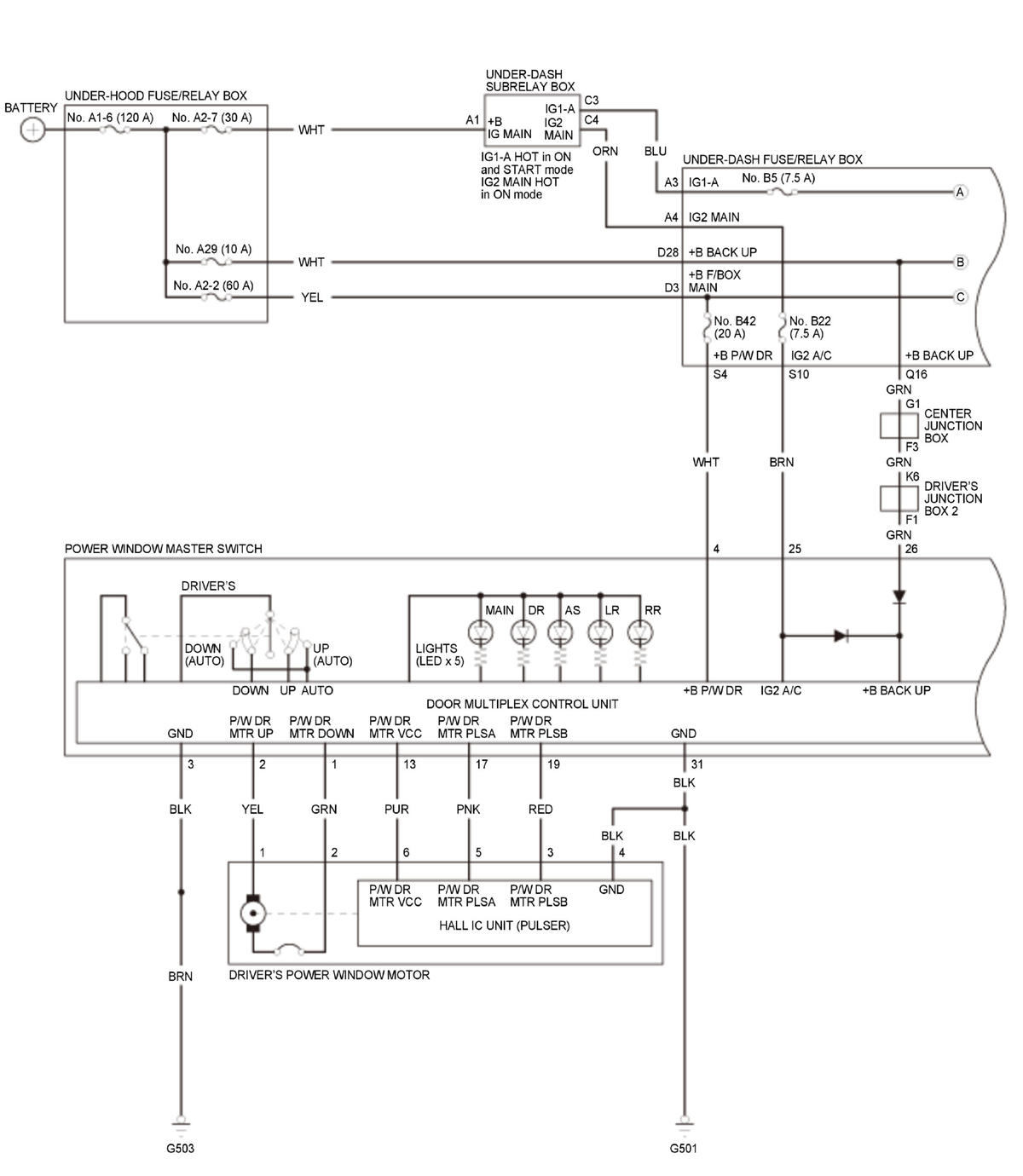

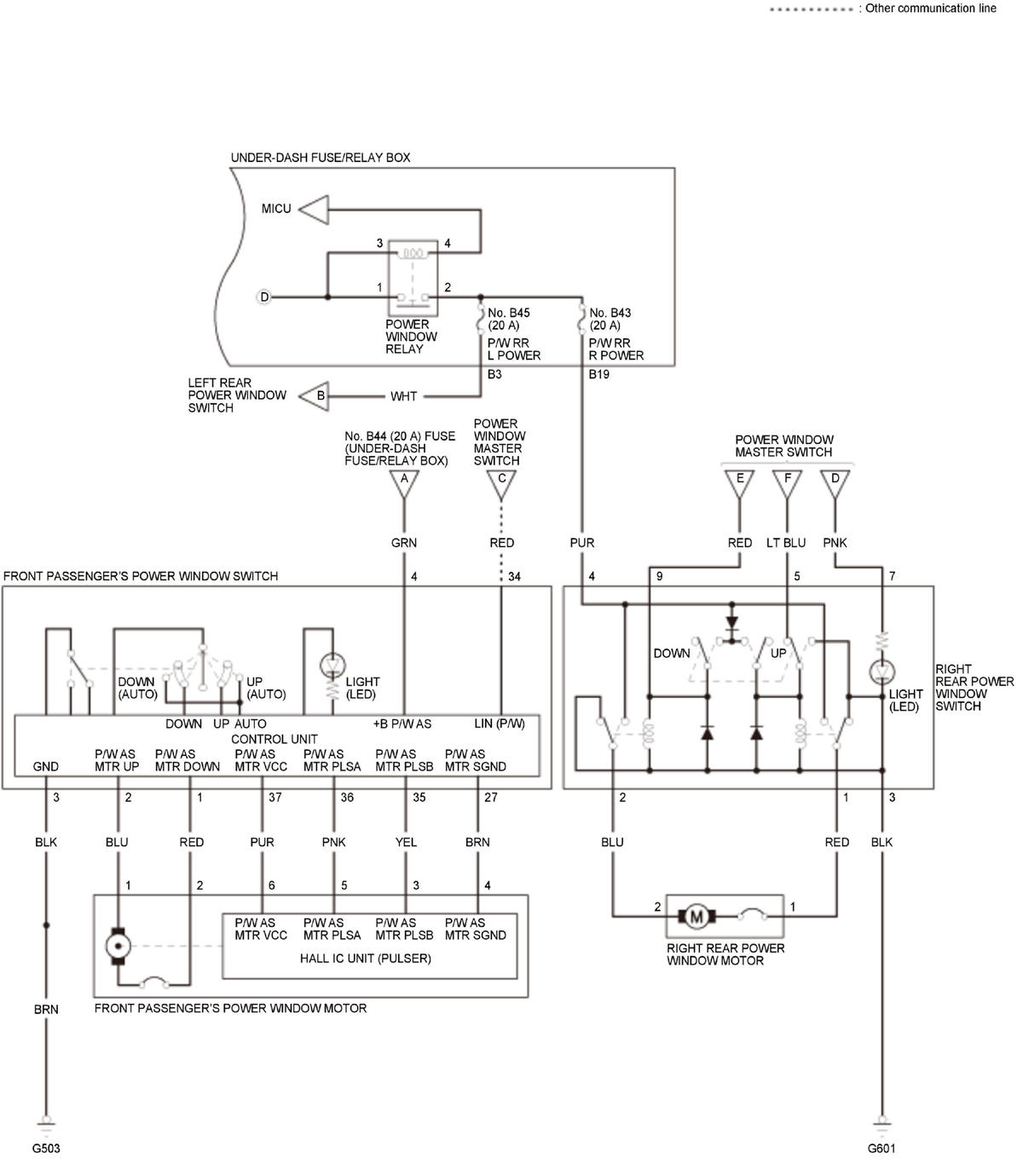

Home >> Acura >> 2022 >> ILX >> Repair and Diagnosis >> Accessories & Equipment >> Window Motors & Regulators >> Windows / Glass - Testing & Troubleshooting (Except Hybrid) >> Circuit Diagram >> Power Windows (2016 2017 2018)
