Rear Seat-Back Release Lever/Cable: Installation

  1. Rear Seat-Back Release Cable - Install

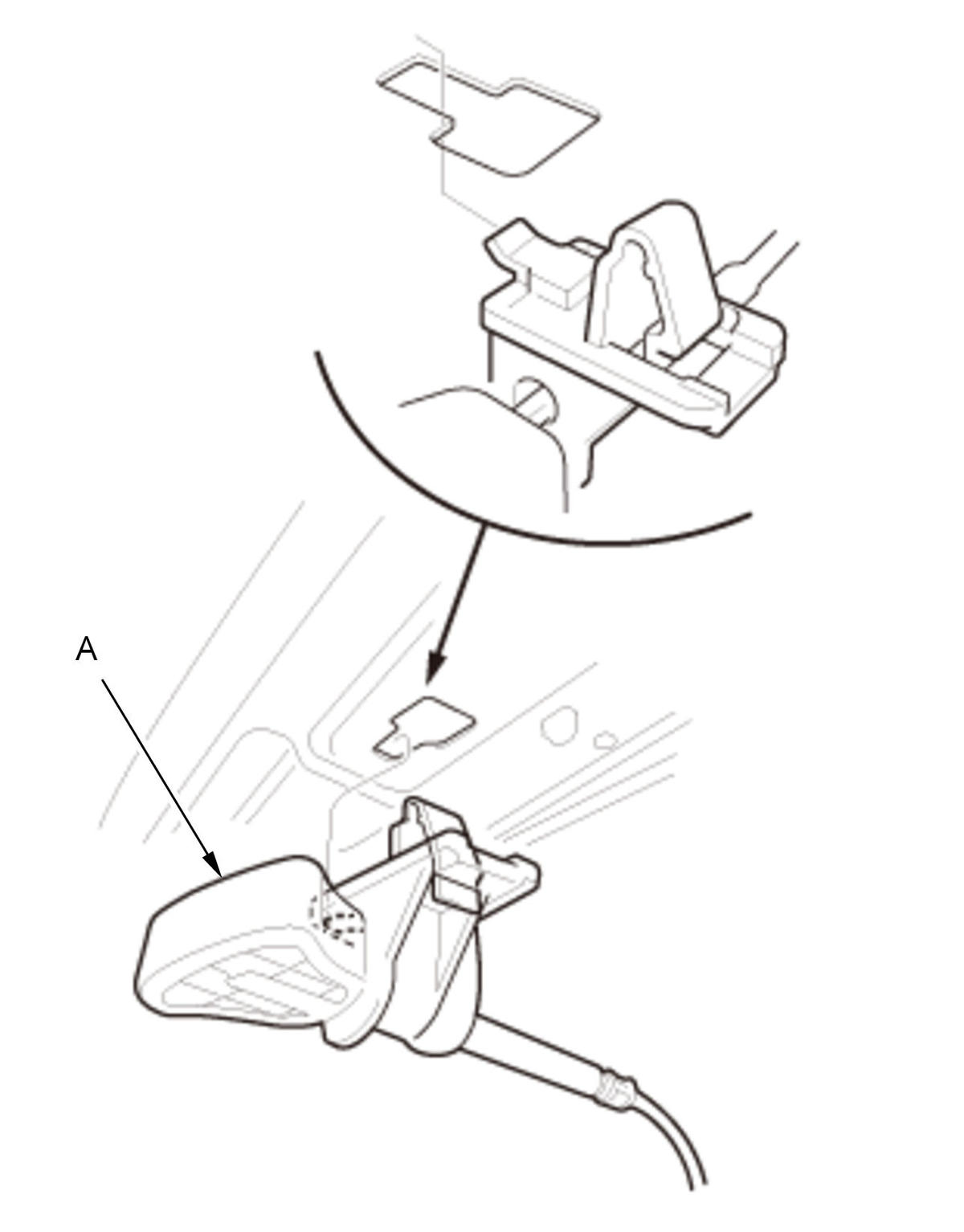

    GHH474025Courtesy of HONDA, U.S.A., INC.
    		 1. From the trunk compartment, install the rear seat-back release lever/cable (A).

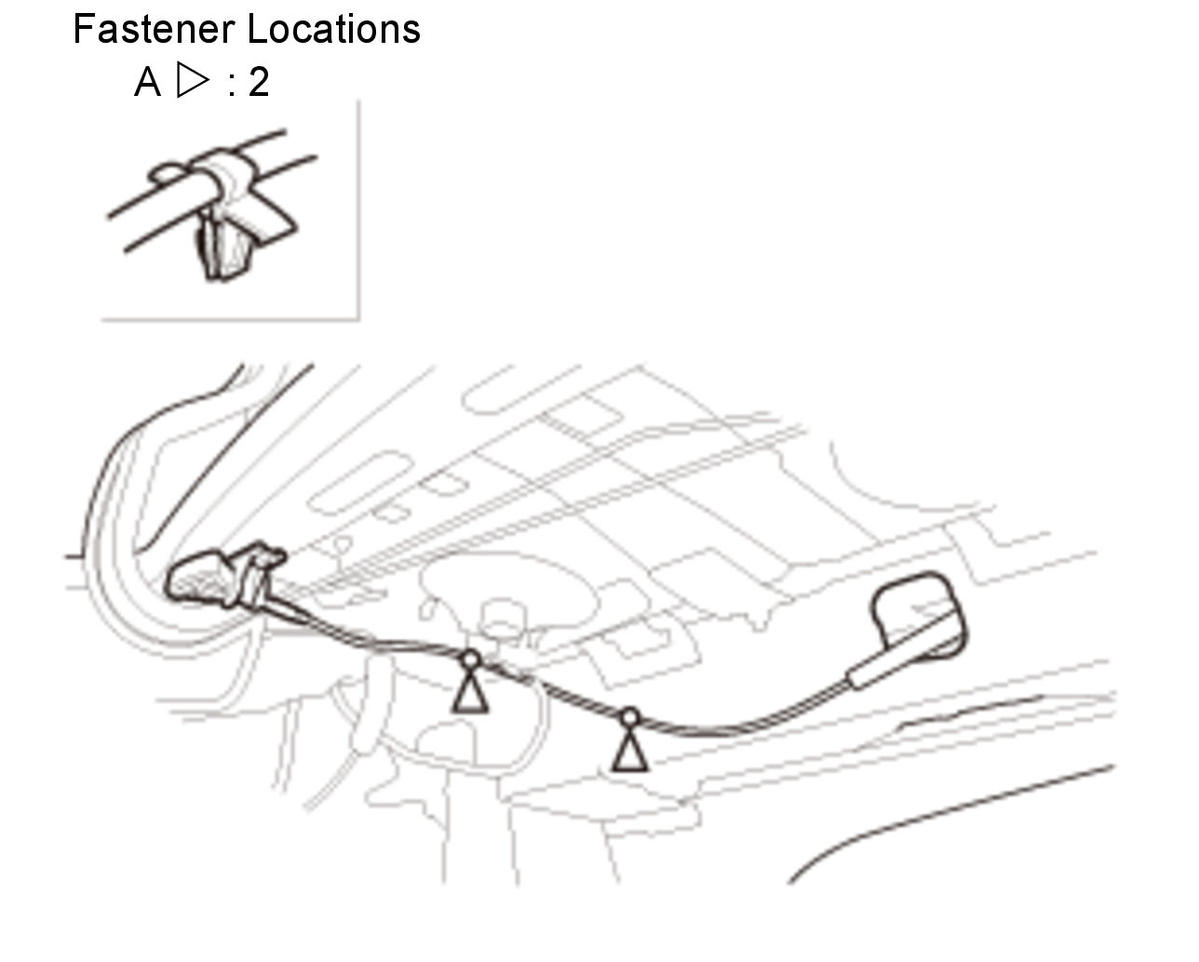

    GHH474026Courtesy of HONDA, U.S.A., INC.
    		 2. Install the cable clips (A).
  2. Rear Seat-Back Release Cable - Connect

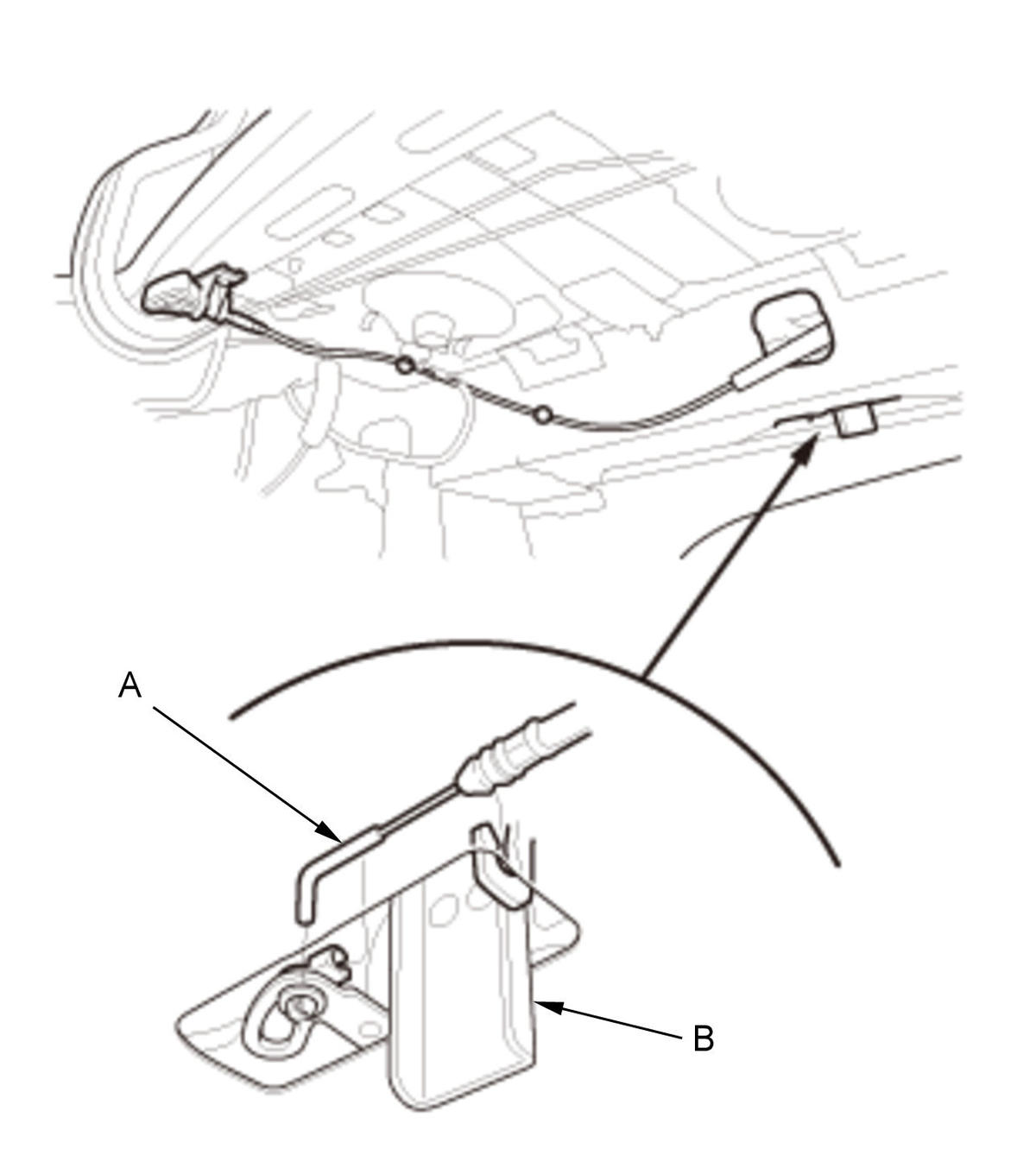

    GHH474027Courtesy of HONDA, U.S.A., INC.
    		 1. Connect the seat-back release cable (A) to the seat-back latch (B).
