Rear Seat-Back Latch: Removal

  1. Rear Seat-Back Release Lever/Cable - Remove
    1. Remove the rear seat-back release lever/cable .
  2. Rear Shelf - Remove
    1. Remove the rear shelf .
  3. Rear Seat-Back Latch - Remove

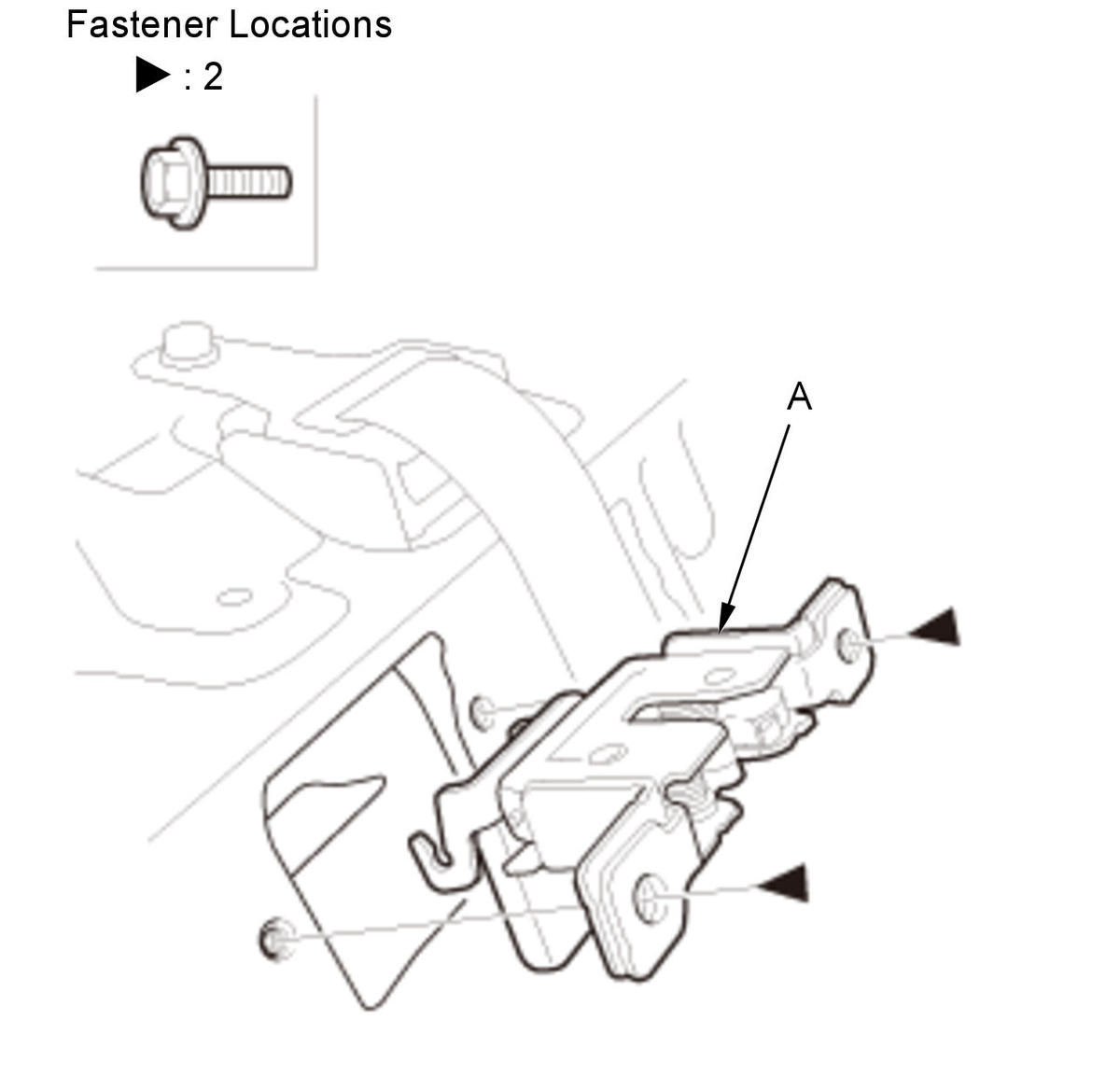

    GHH474020Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the rear seat-back latch (A).
