Rear Seat-Back Latch: Installation

  1. Rear Seat-Back Latch - Install

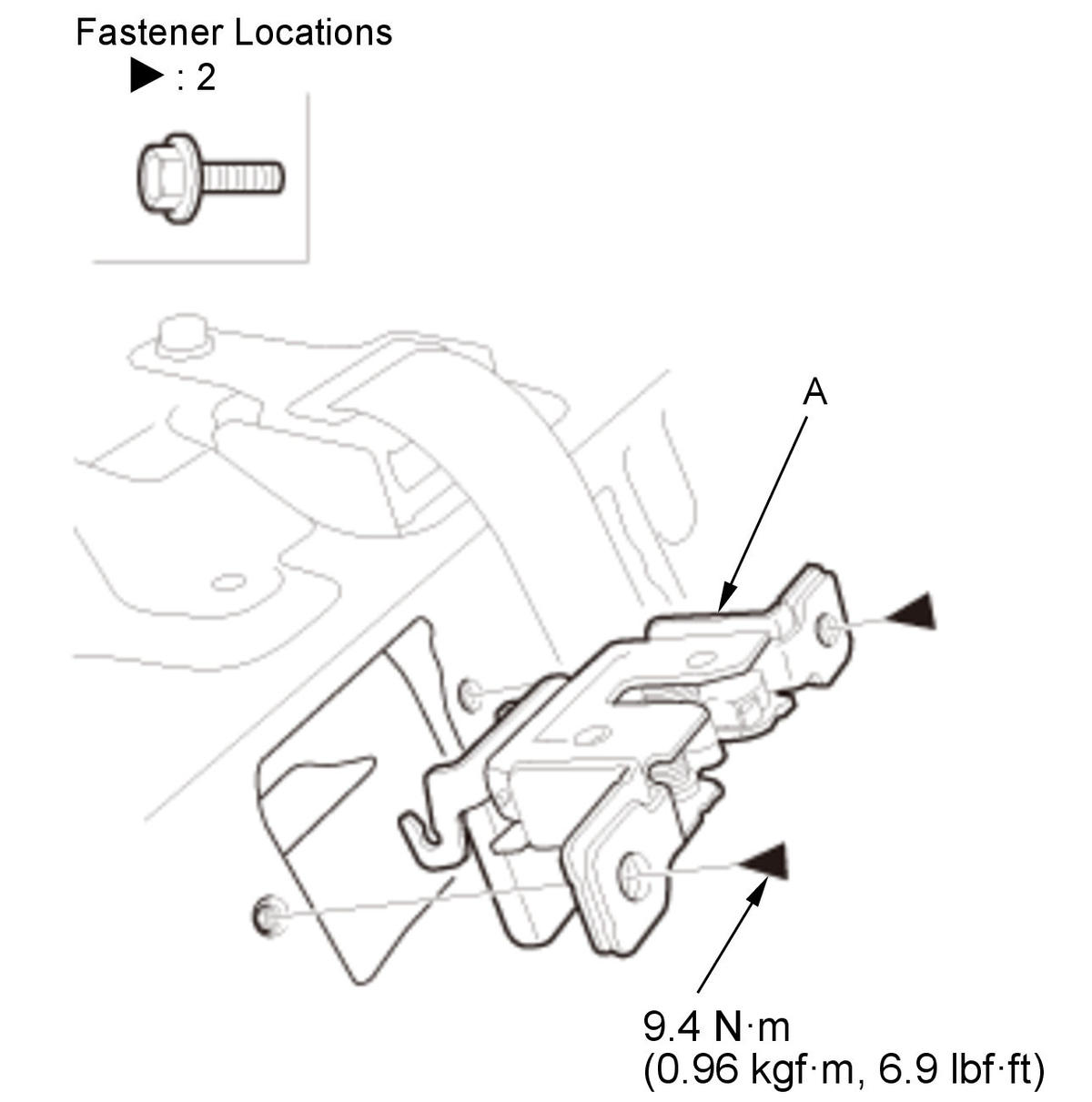

    GHH474021Courtesy of HONDA, U.S.A., INC.
    		 1. Install the rear seat-back latch (A).
  2. Rear Shelf - Install
    1. Install the rear shelf .
  3. Rear Seat-Back Release Lever/Cable - Install
    1. Install the rear seat-back release lever/cable .
