Removal and Installation

Rear Seat Armrest - Remove
Rear Seat-Back - Remove

Rear Seat-Back Cover - Remove

Courtesy of HONDA, U.S.A., INC.

1. Remove all of the head restraints.

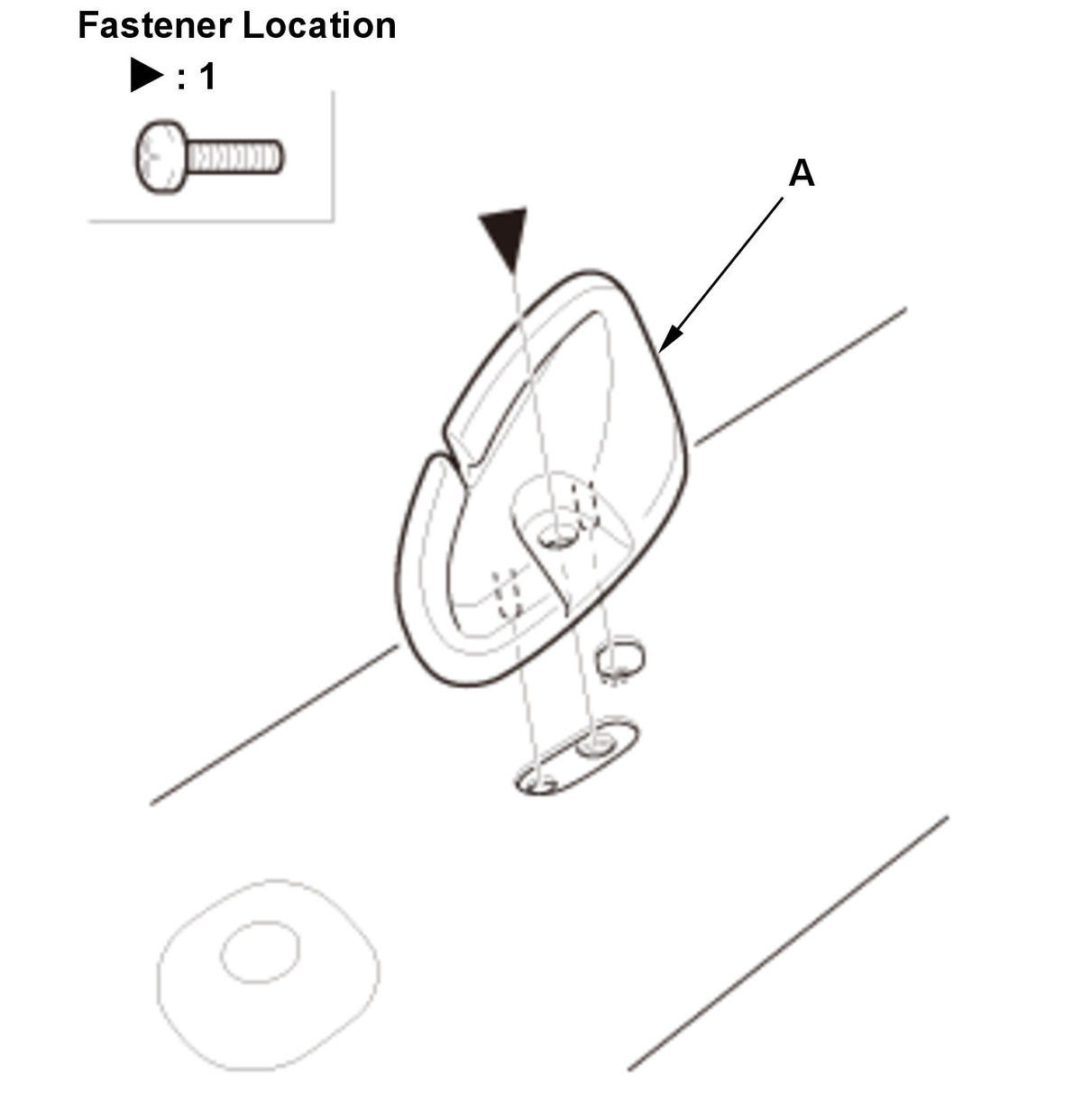

2. Remove the center seat belt guide (A).

Courtesy of HONDA, U.S.A., INC.

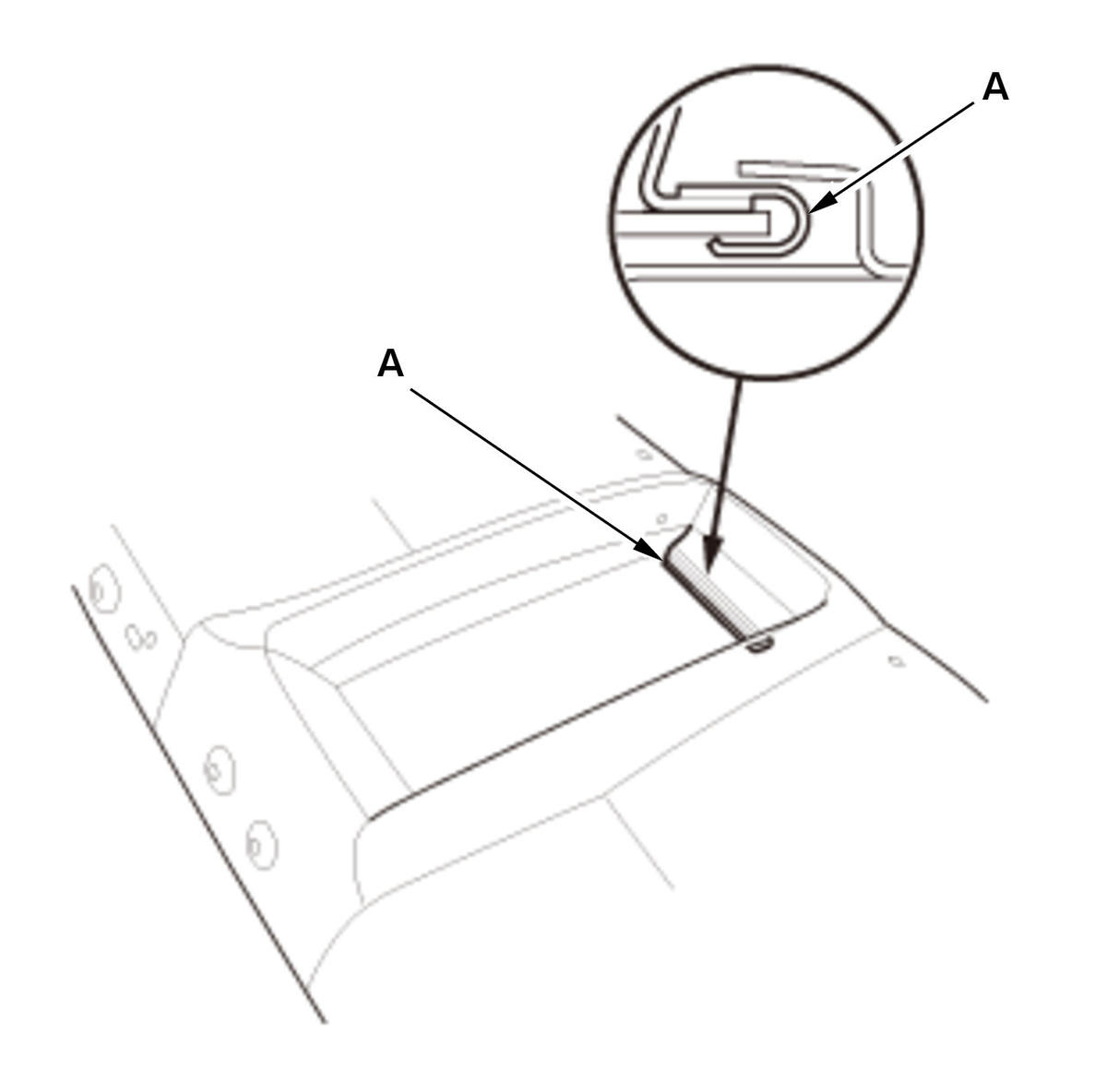

3. Release the hook strip (A).

Courtesy of HONDA, U.S.A., INC.

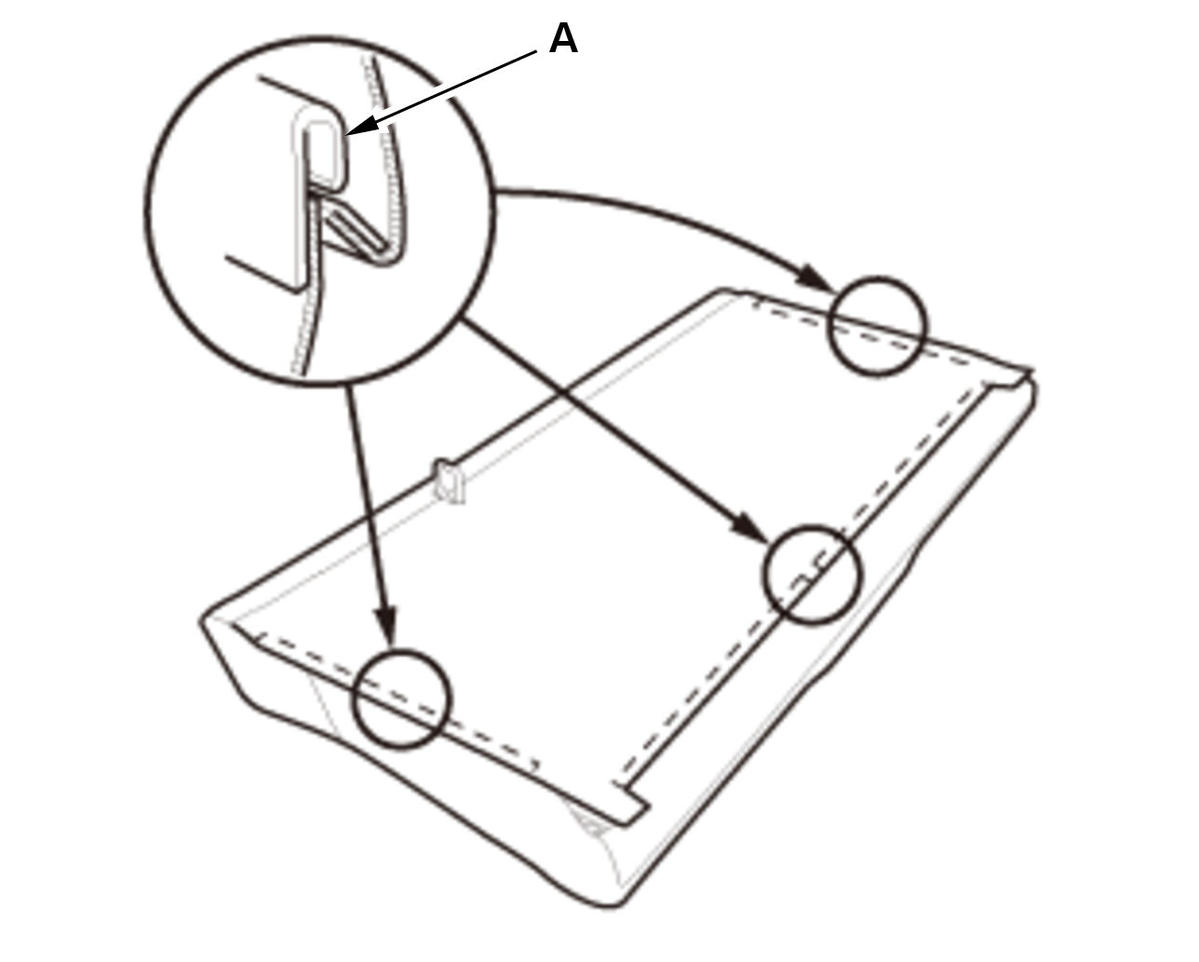

4. Release the hook strips (A).

Courtesy of HONDA, U.S.A., INC.

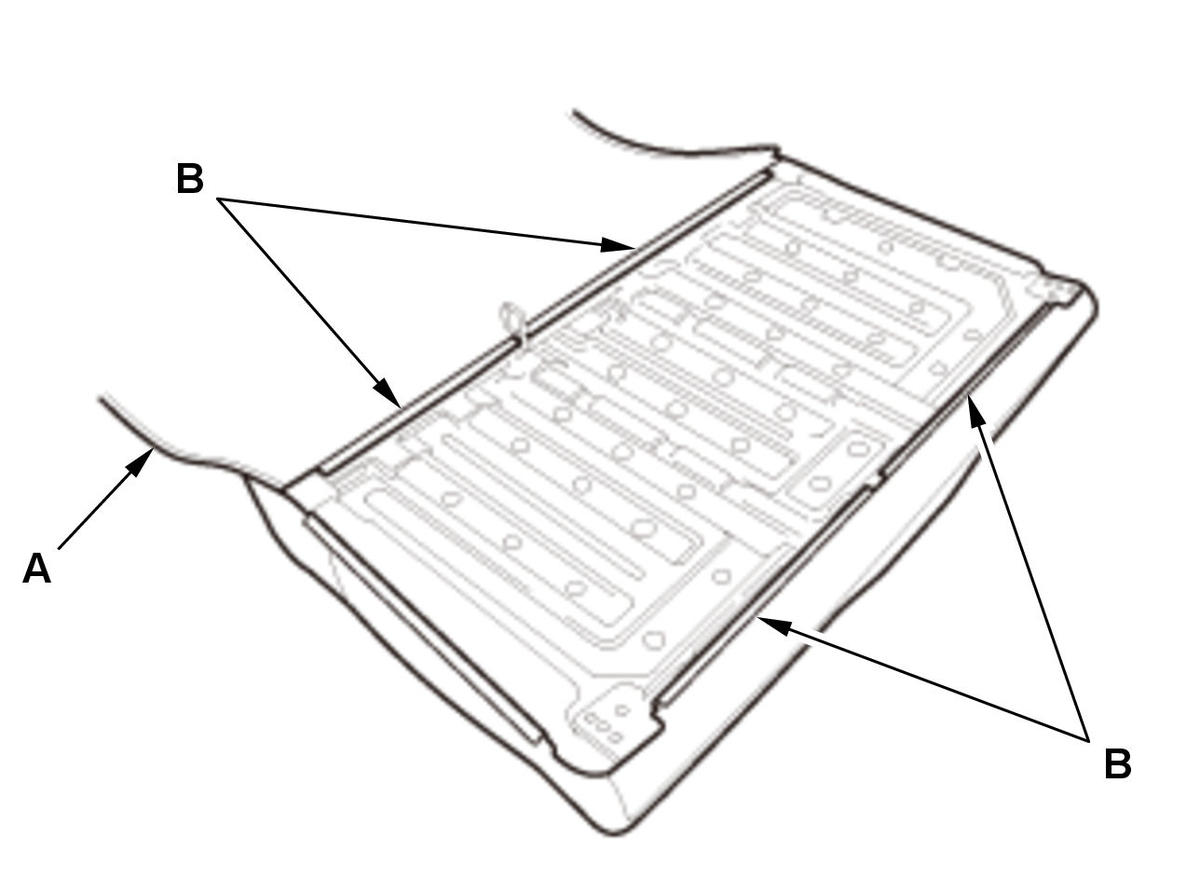

5. Turn over the rear seat-back cover (A).

6. Release the hook strips (B).

Courtesy of HONDA, U.S.A., INC.

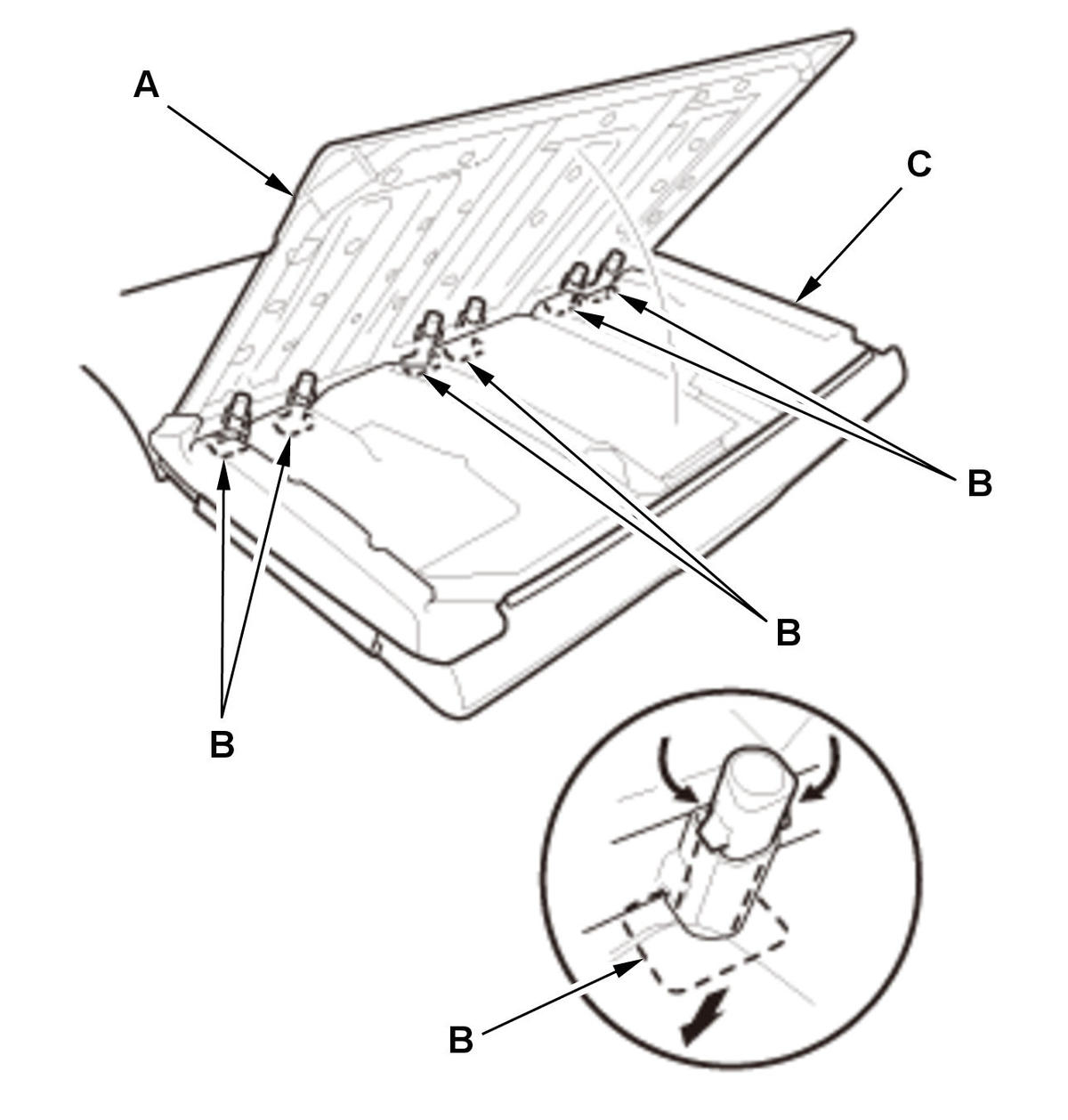

7. While pulling out the rear seat-back frame (A), remove the head restraint guides (B).

8. Remove the rear seat-back frame from the rear seat-back cover/pad (C).

Courtesy of HONDA, U.S.A., INC.

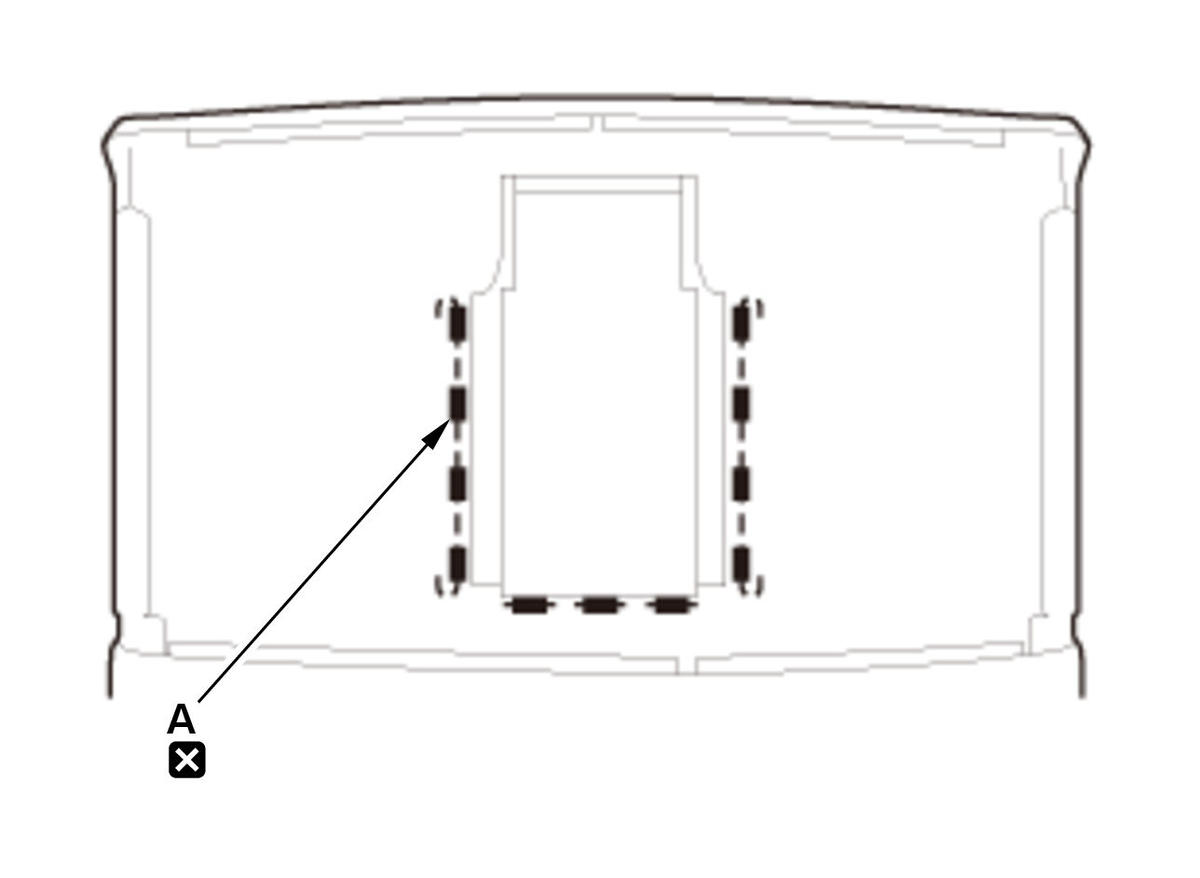

9. Release the upholstery rings (A).

'13-18

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

'19-21

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

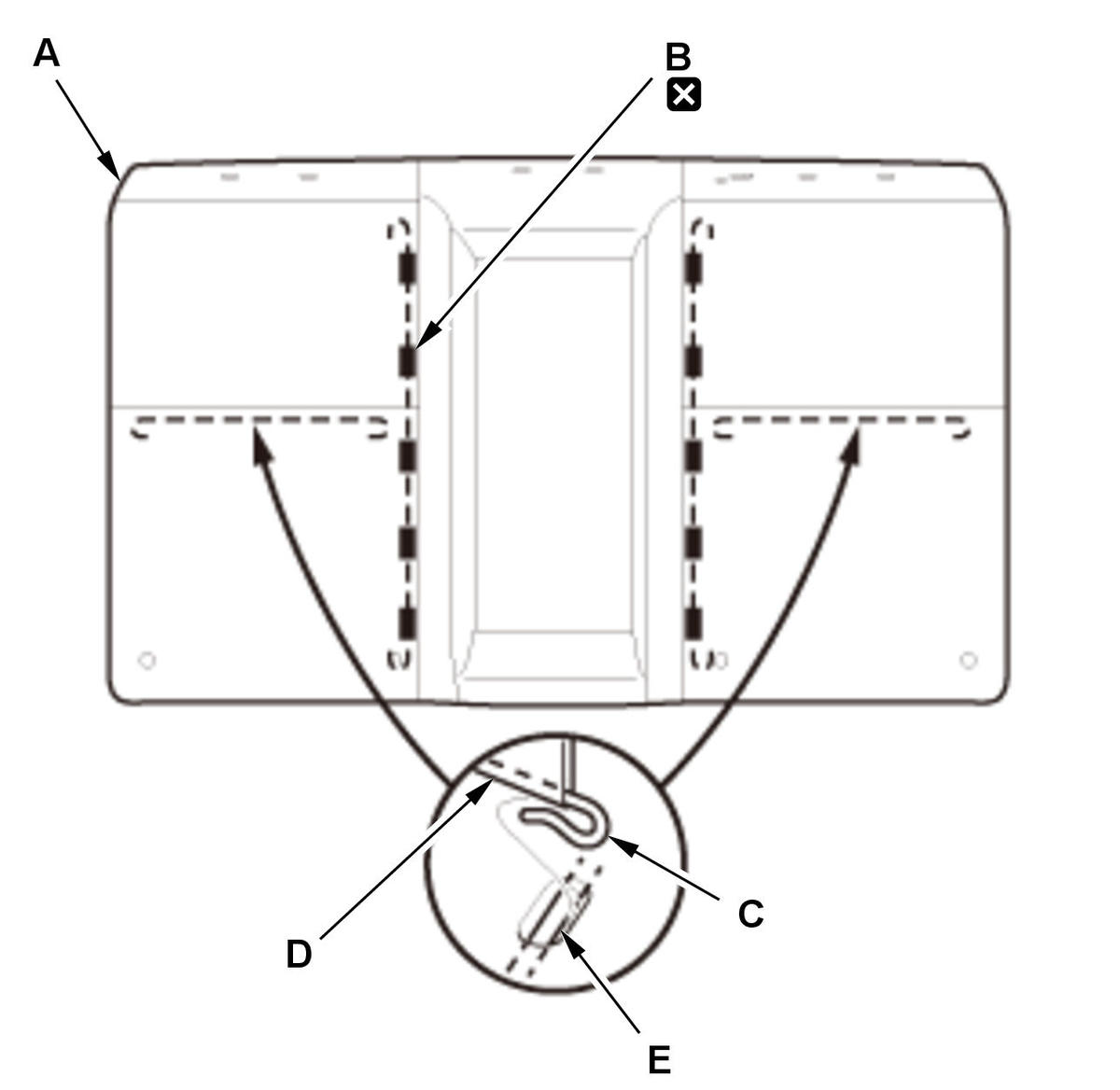

10. While pulling back the rear seat-back cover (A), release the upholstery rings (B).

11. '13-18 : Release the hooks (C) of the lateral wires (D) from the longitudinal wires (E) on the pad, then remove the seat-back cover.

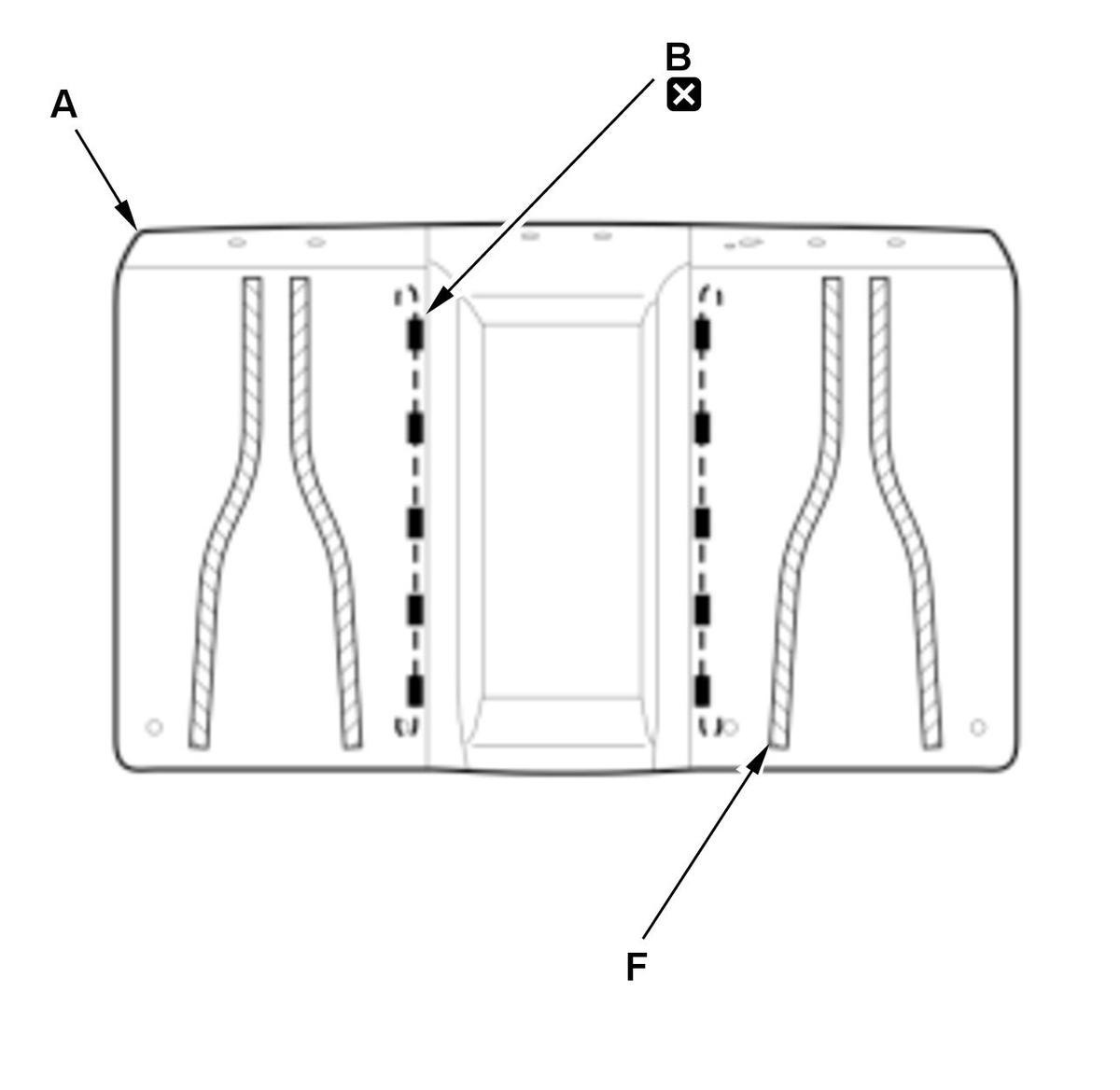

12. '19-21 : Remove the hook and loop fasteners (F), then remove the seat-back cover.

All Removed Parts - Install

Courtesy of HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.

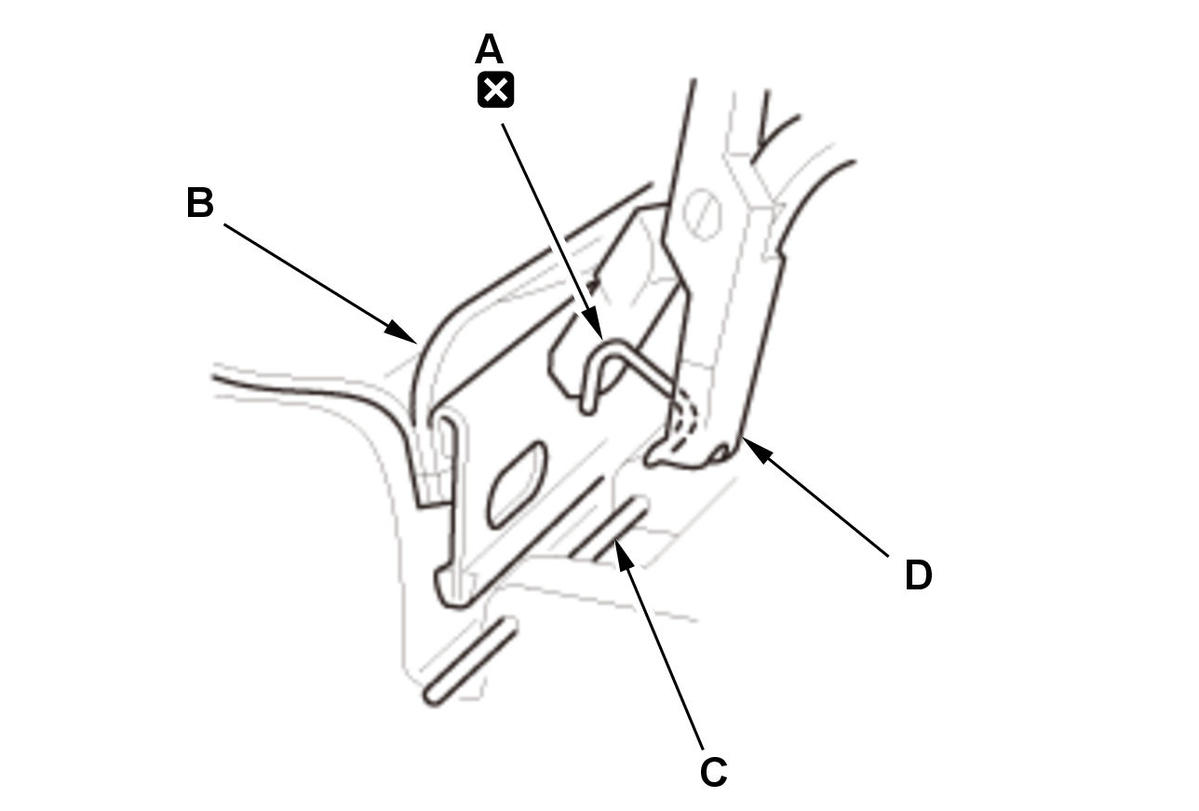

NOTE: Replace all of the upholstery rings (A) fastening the seat-back cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).
