Removal and Installation

Rear Seat Cushion - Remove

Rear Seat Cushion Cover - Remove

Courtesy of HONDA, U.S.A., INC.

1. From the back of the rear seat cushion (A), release the upholstery rings (B), then fold back the rear seat cushion cover.

2. Pull out the cushion cover straps (C) through the holes in the seat cushion pad.

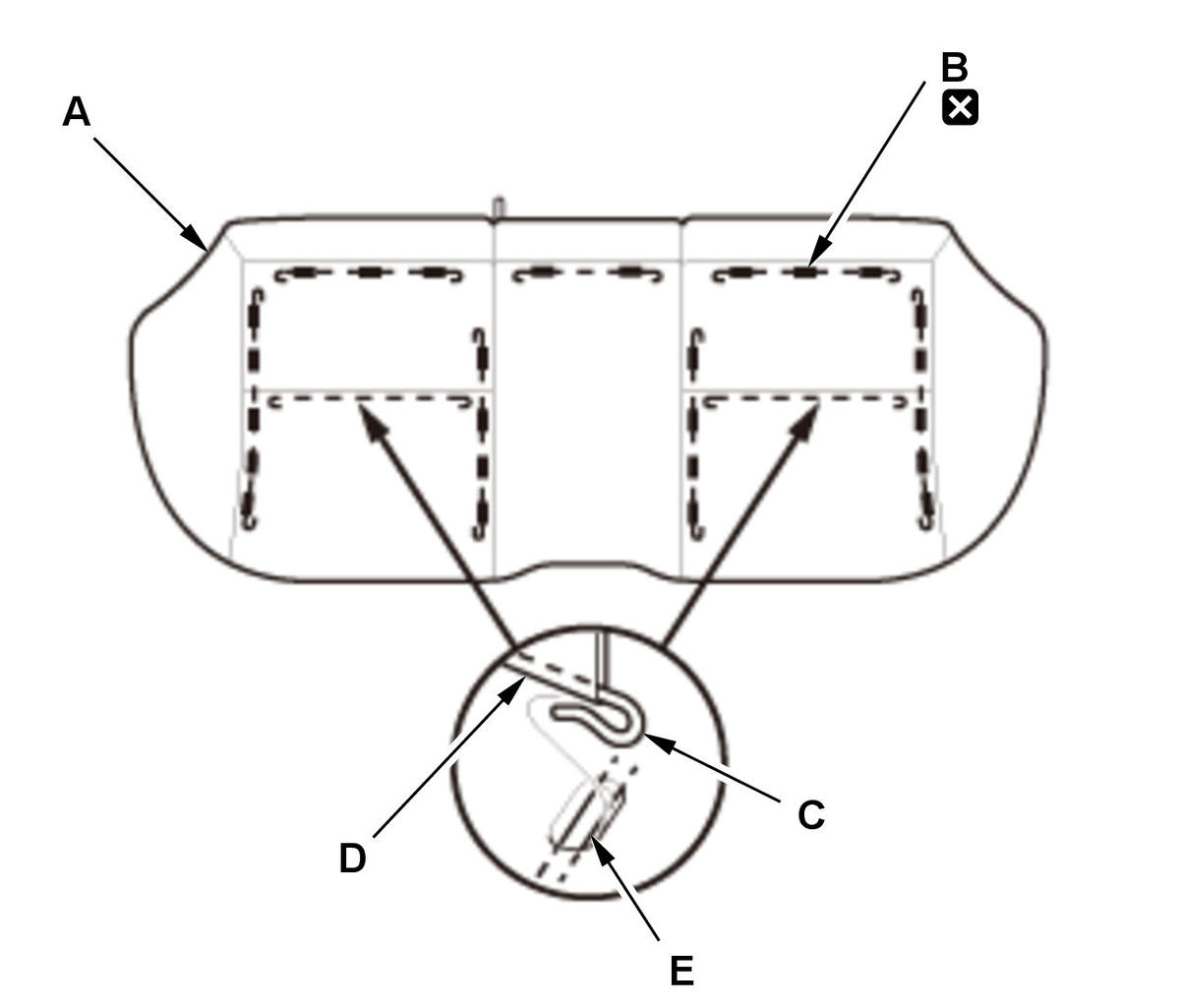

'13-18

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

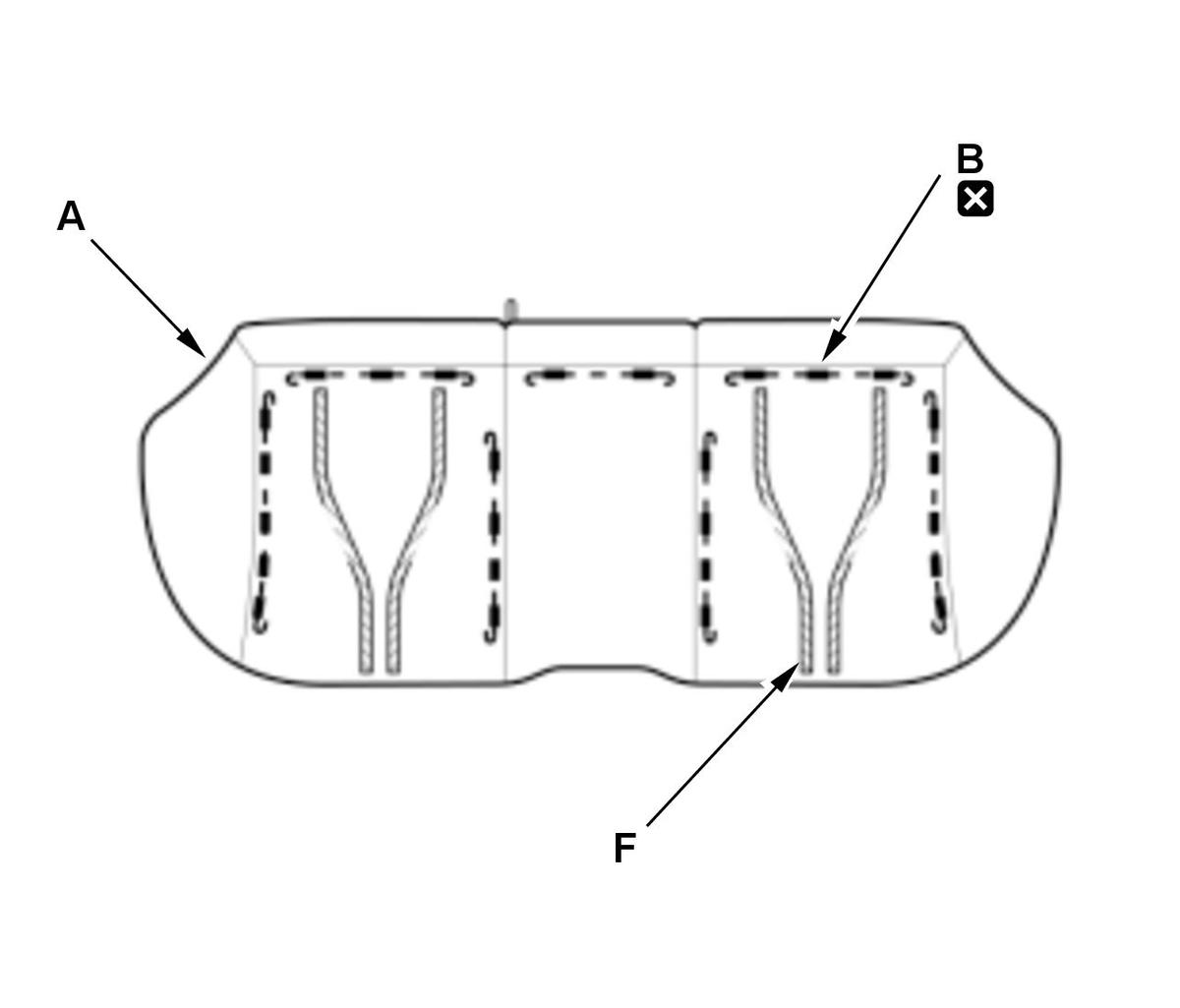

'19-21

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

3. Pull back the edge of the seat cushion cover (A) all the way around, and release the upholstery rings (B).

4. '13-18: Release the hooks (C) of the lateral wires (D) from the longitudinal wires (E) on the pad, then remove the seat cushion cover.

5. '19-21: Remove the hook and loop fasteners (F), then remove the seat cushion cover.

All Removed Parts - Install

Courtesy of HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.

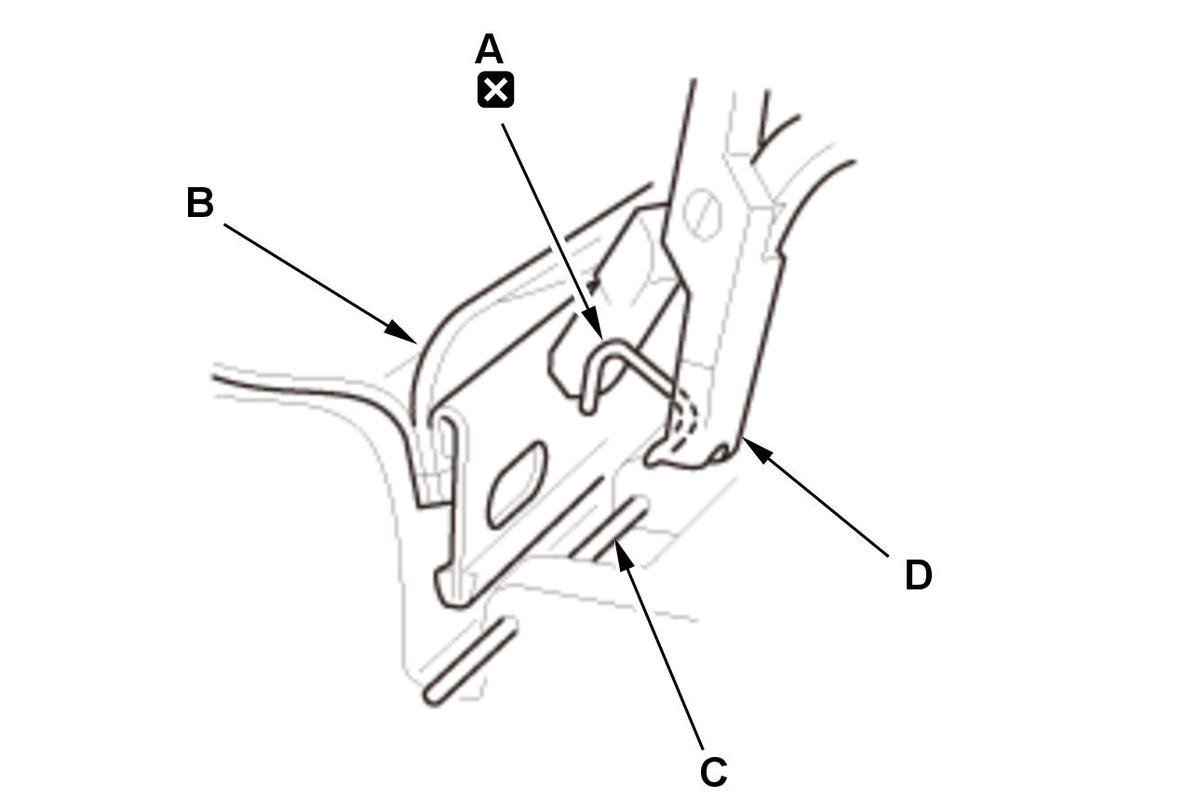

NOTE: Replace all of the upholstery rings (A) fastening the seat cushion cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).
