Rear Seat Armrest: Removal

  1. Rear Seat Armrest - Remove

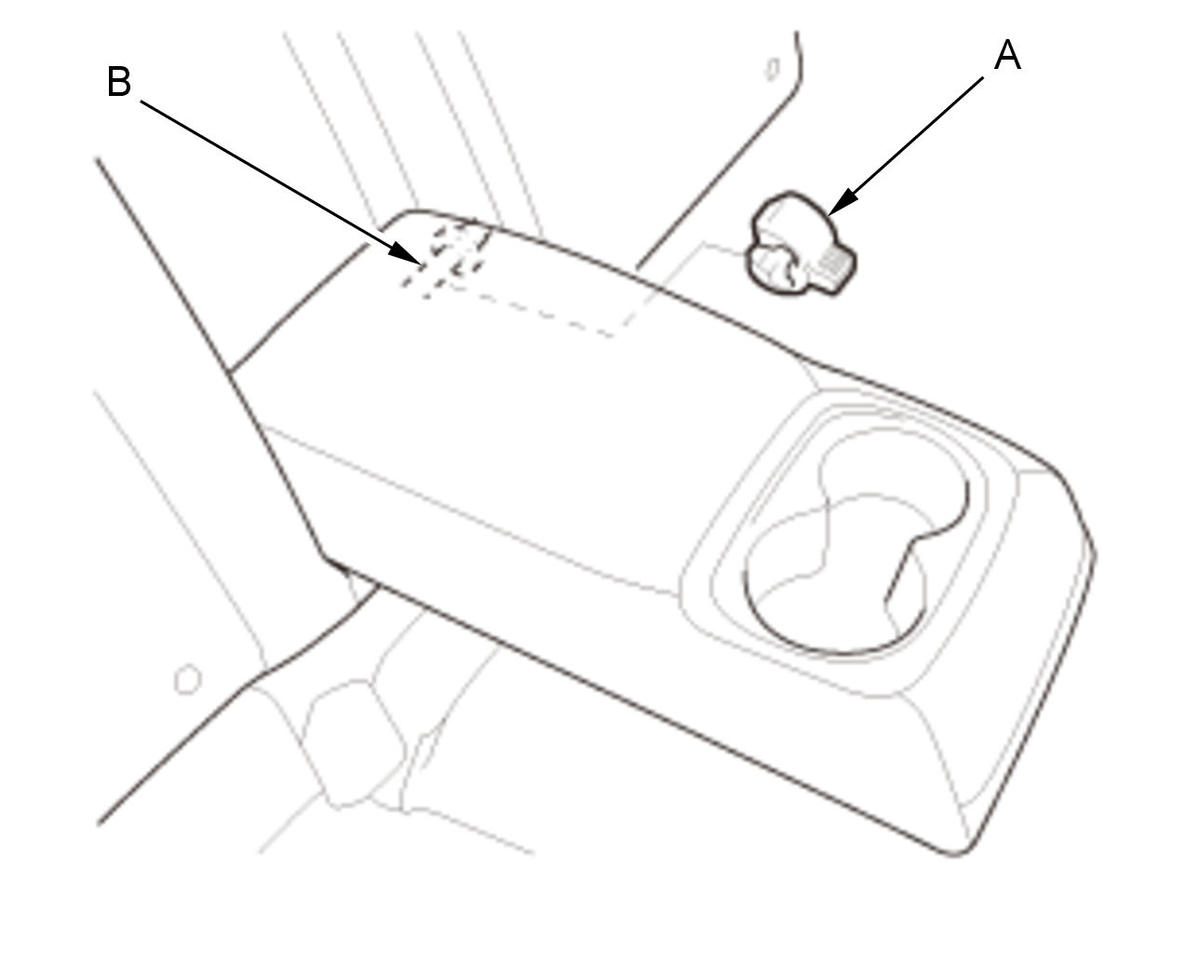

    GHH473991Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the clip (A) from the pivot shaft (B).

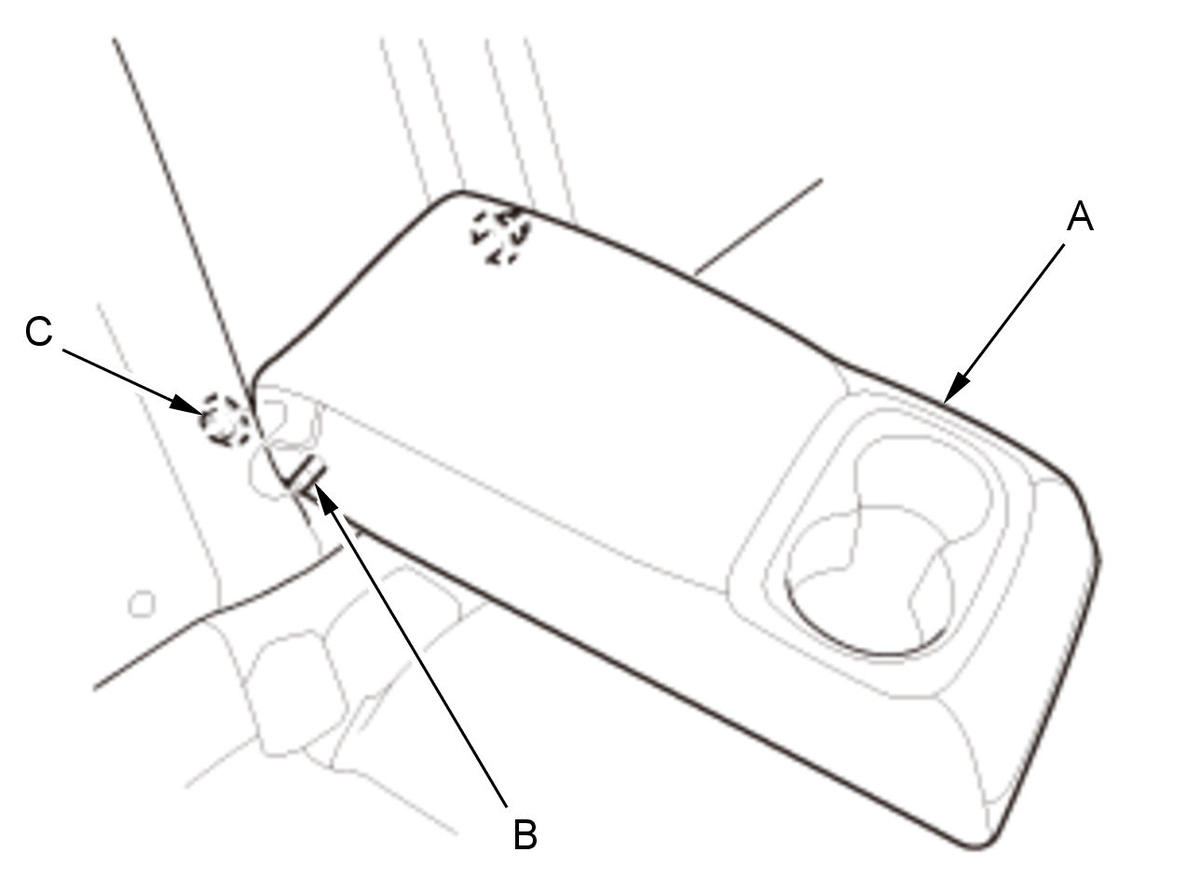

    GHH473992Courtesy of HONDA, U.S.A., INC.
    		 2. Slide the armrest (A) toward the driver's side, and release the pivot shaft (B) from the collar (C), then remove the armrest.

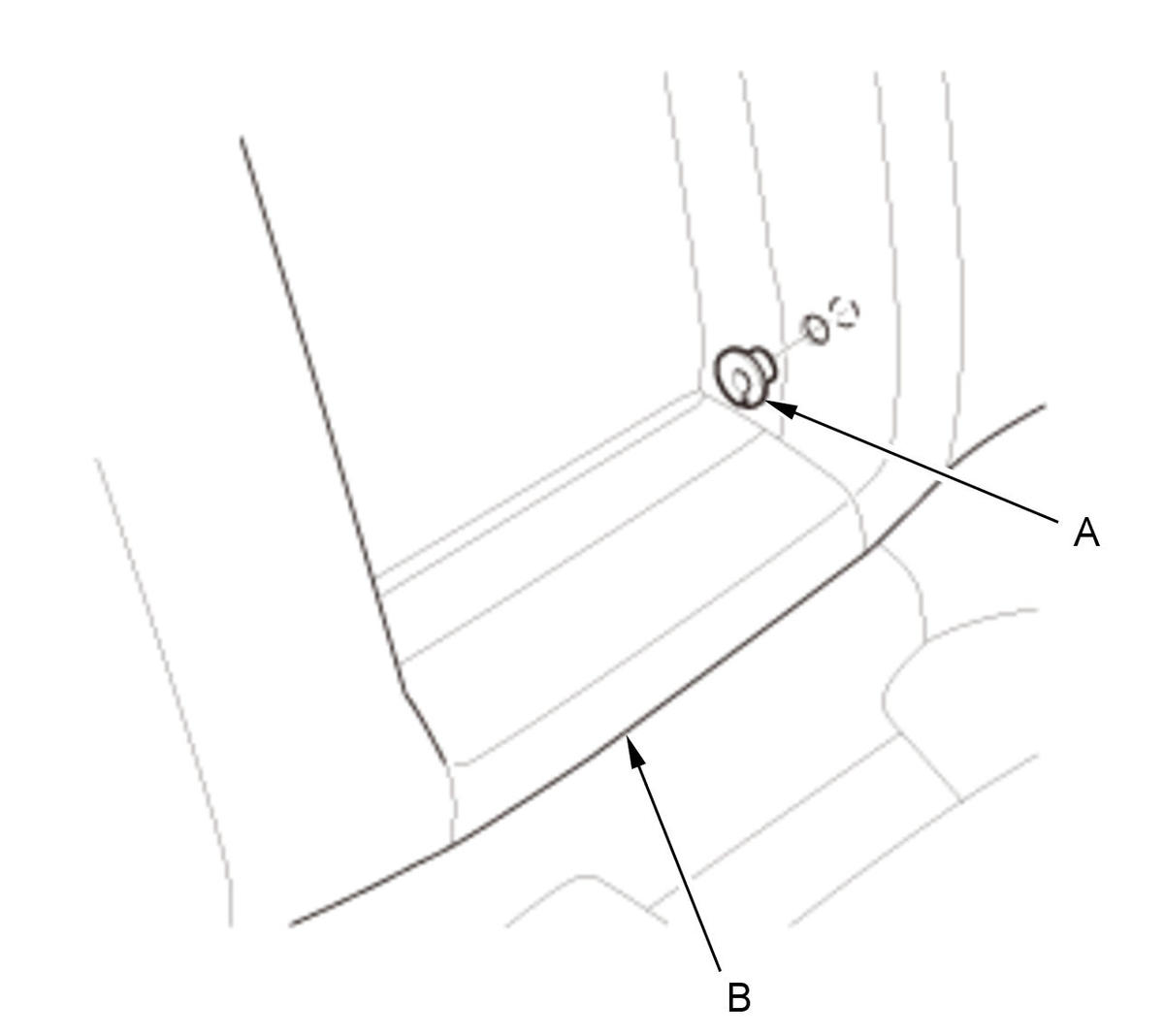

    GHH473993Courtesy of HONDA, U.S.A., INC.
    		 3. If necessary, remove the collar (A) from the rear seat-back (B).
