Rear Seat Armrest: Installation

  1. Rear Seat Armrest - Install

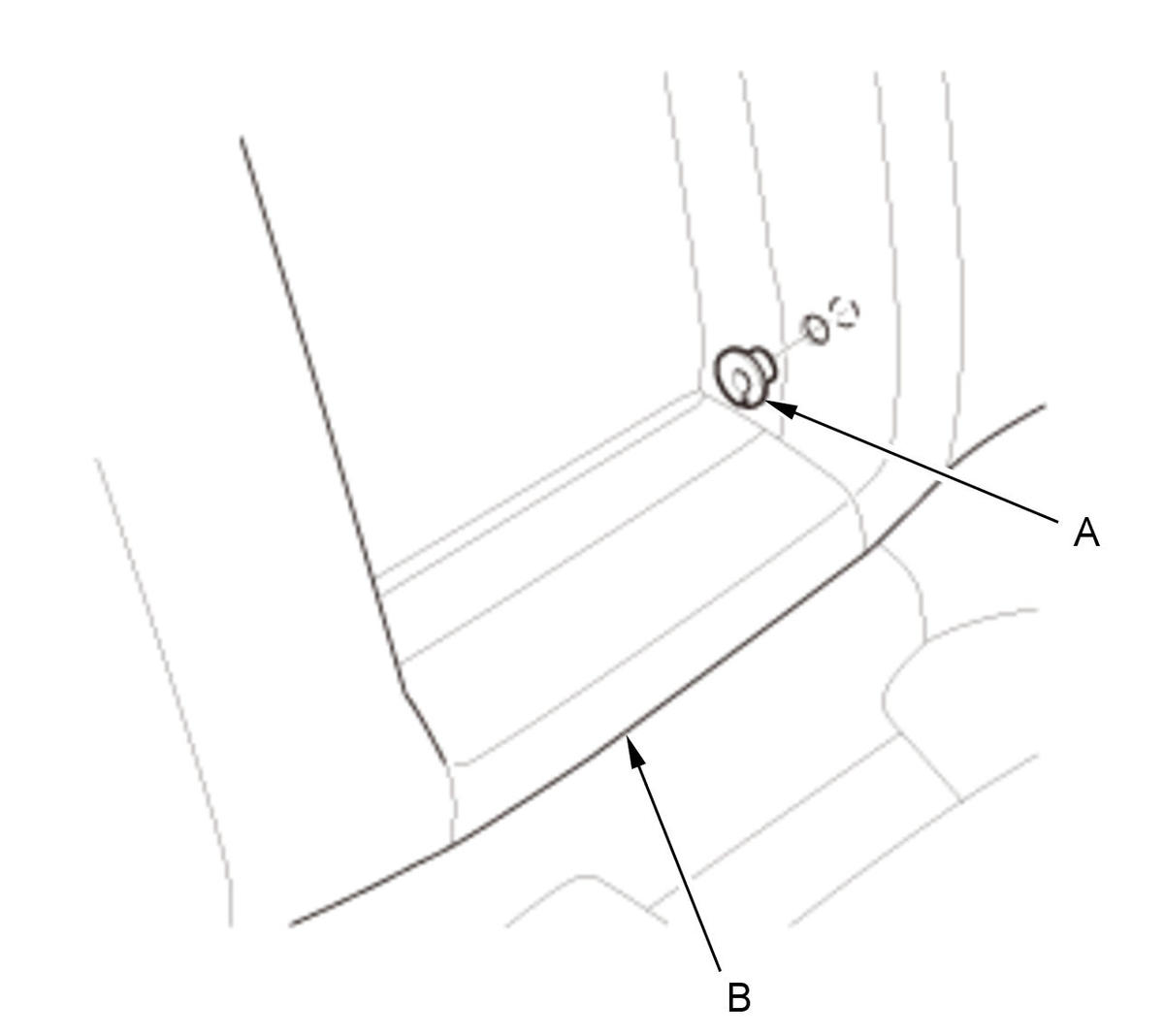

    GHH473994Courtesy of HONDA, U.S.A., INC.
    		 1. Install the collar (A) to the rear seat-back (B).

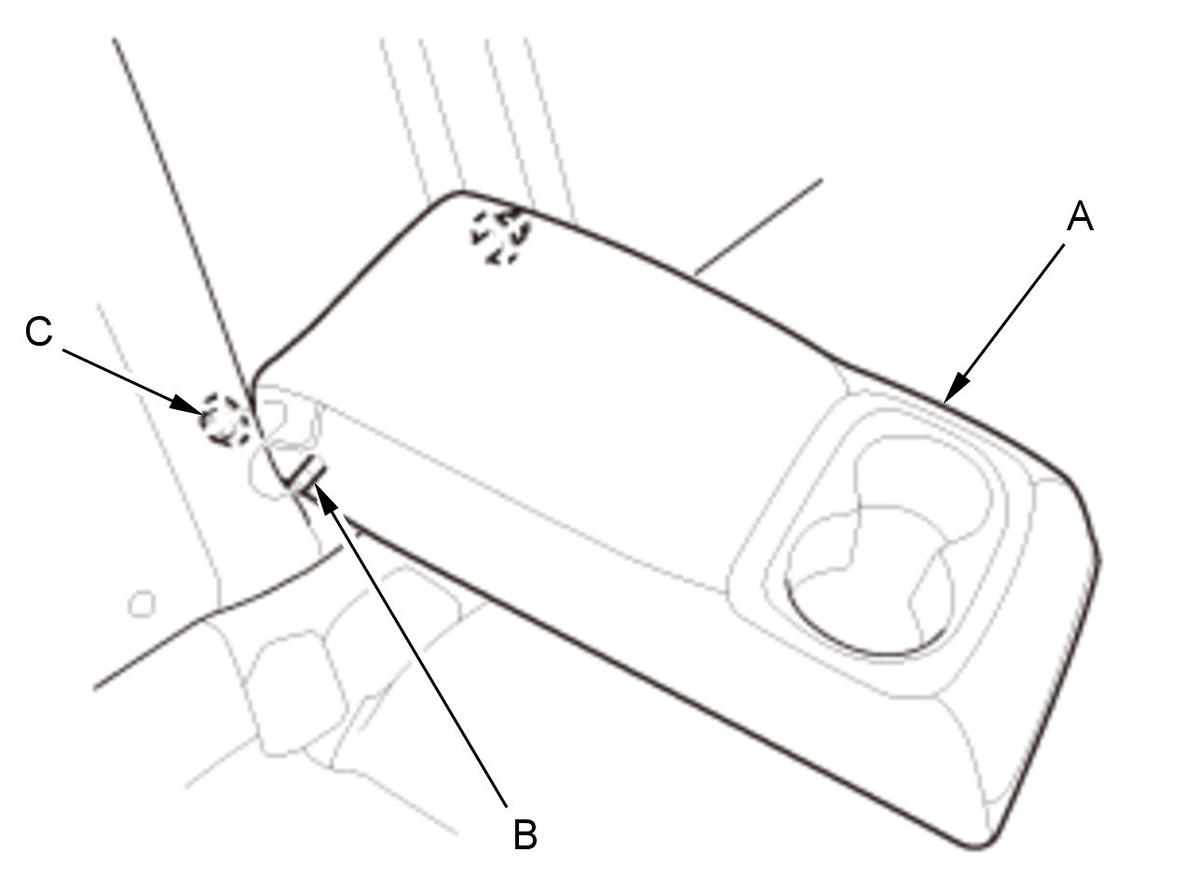

    GHH473995Courtesy of HONDA, U.S.A., INC.
    		 2. Slide the armrest (A) toward the driver's side, and install the pivot shaft (B) to the collar (C).

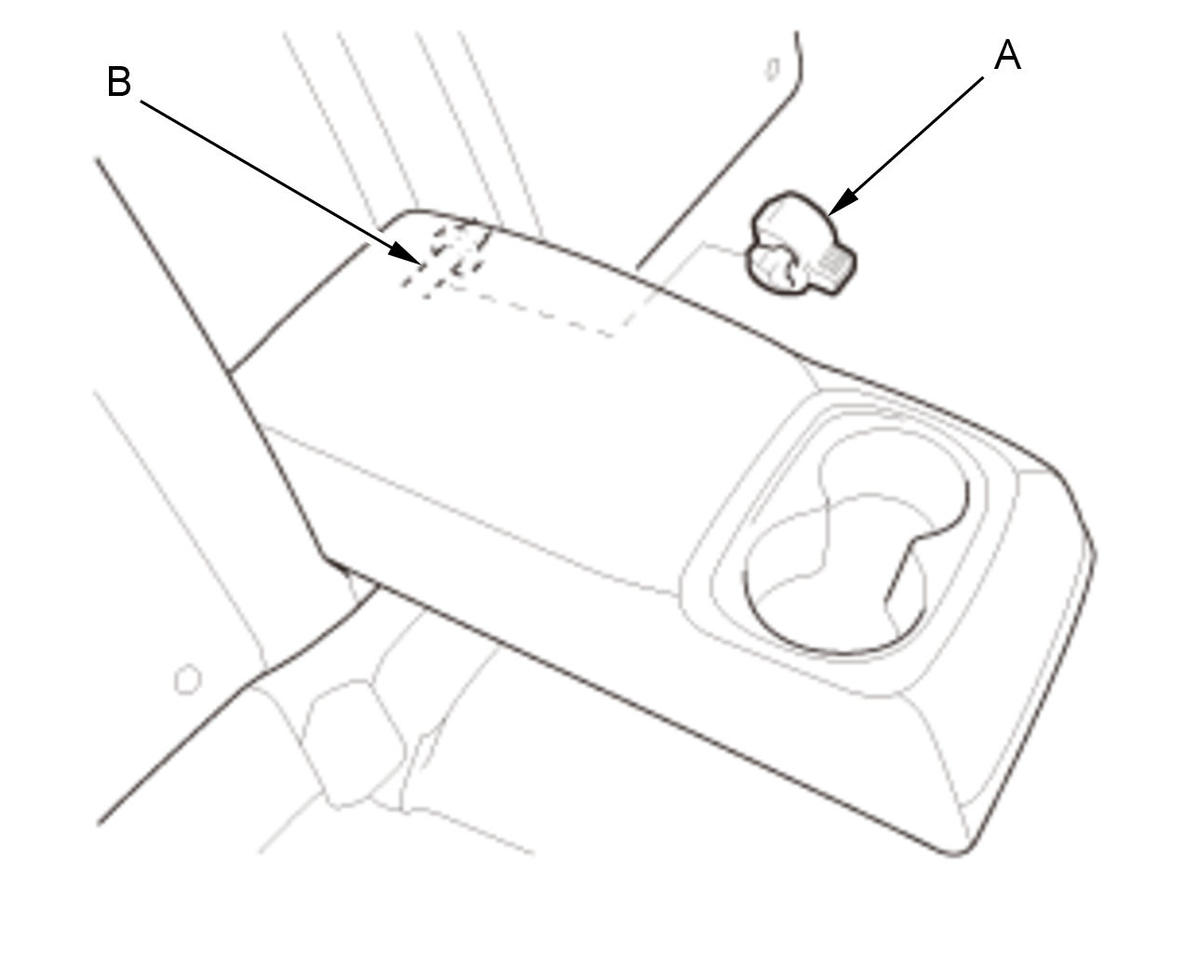

    GHH473996Courtesy of HONDA, U.S.A., INC.
    		 3. Install the clip (A) to the pivot shaft (B).
