Rear Seat Armrest Beverage Holder: Removal

  1. Rear Seat Armrest Beverage Holder - Remove

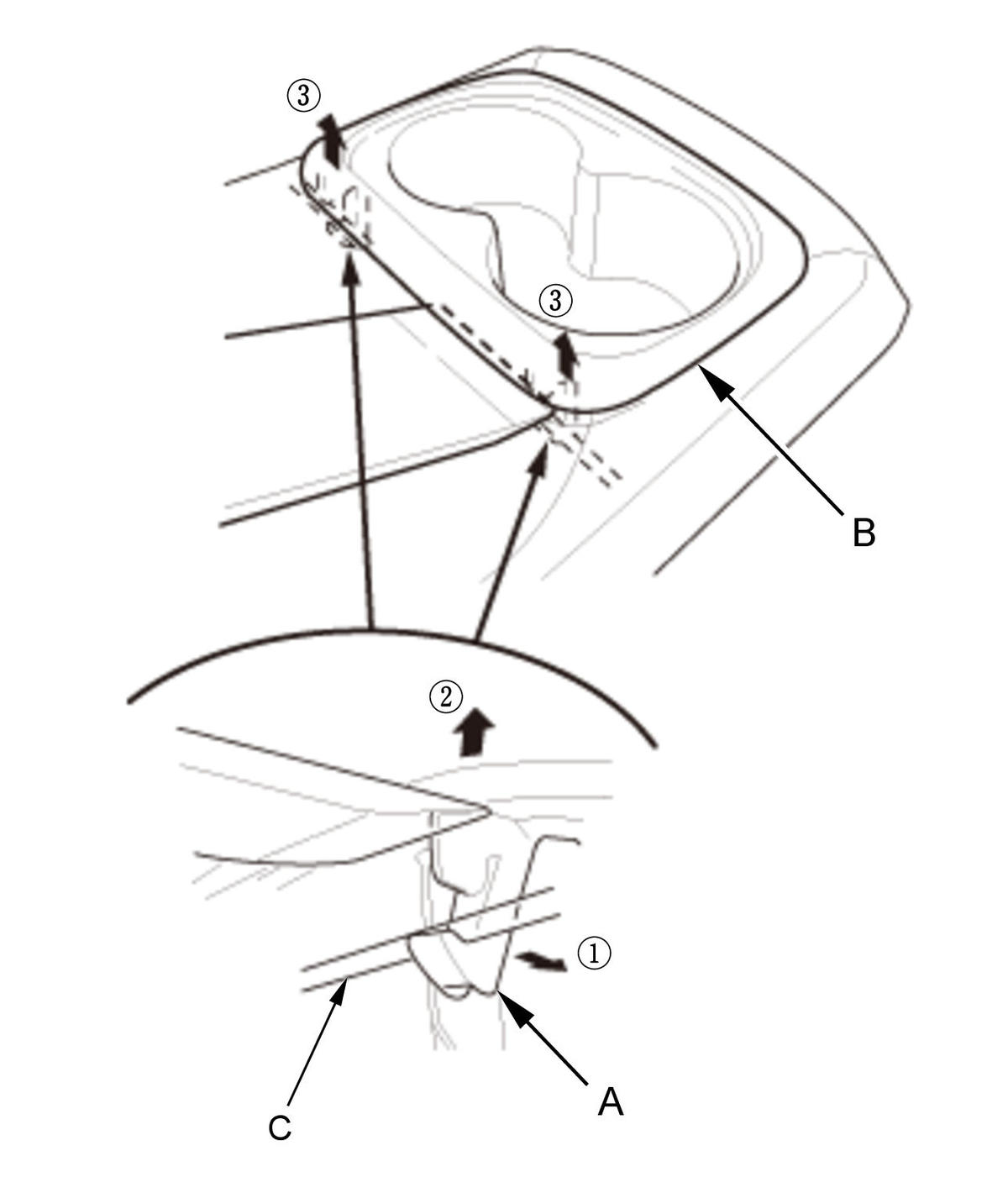

    GHH473987Courtesy of HONDA, U.S.A., INC.
    		 1. Release the hooks (A) of the rear seat armrest beverage holder (B) from the rod (C) with the appropriate trim tool.

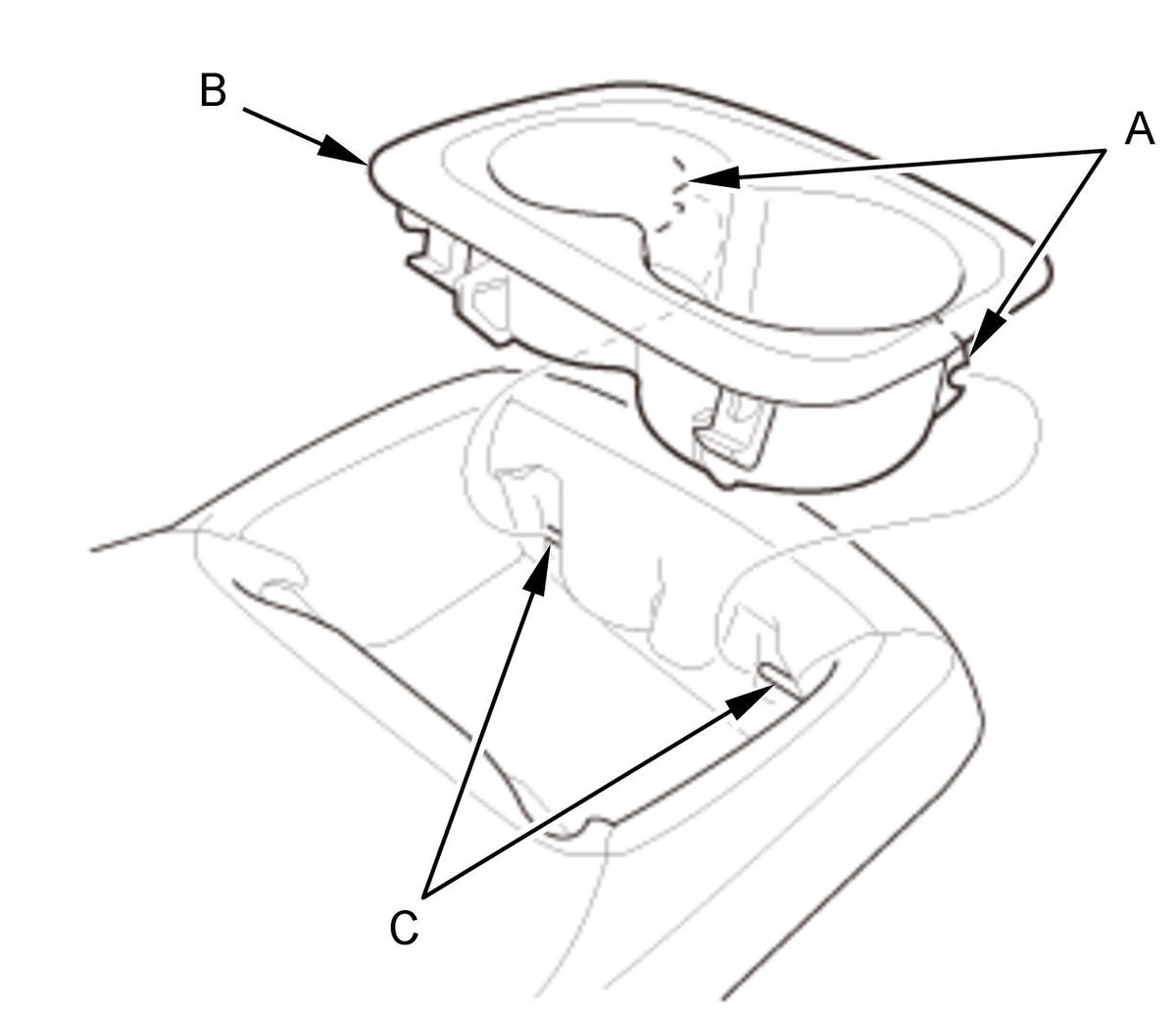

    GHH473988Courtesy of HONDA, U.S.A., INC.
    		 2. Release the hooks (A) of the rear seat armrest beverage holder (B) from the rod (C), then remove the beverage holder.
