Rear Seat Armrest Beverage Holder: Installation

  1. Rear Seat Armrest Beverage Holder - Install

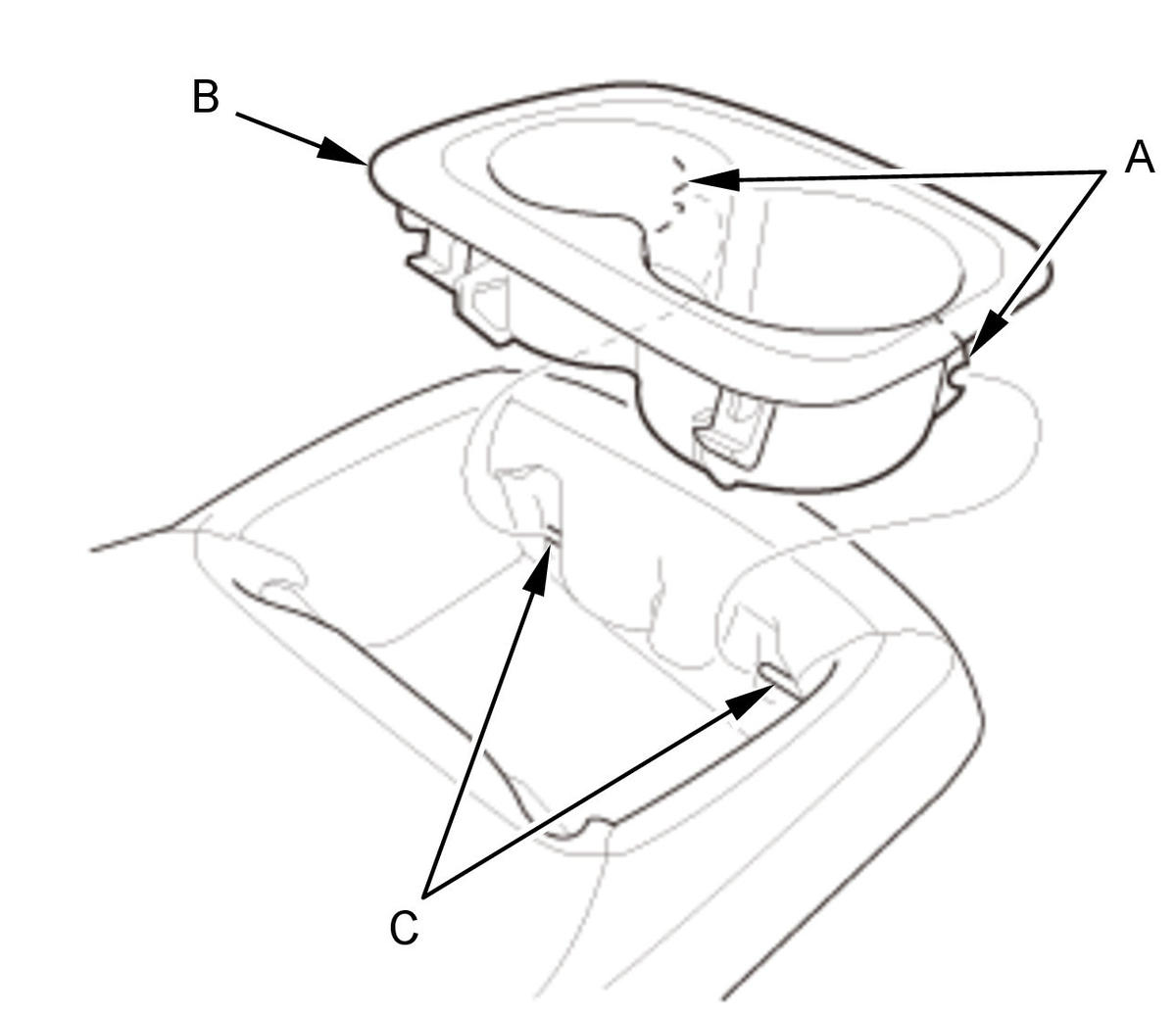

    GHH473989Courtesy of HONDA, U.S.A., INC.
    		 1. Install the hooks (A) of the rear seat armrest beverage holder (B) to the rod (C).

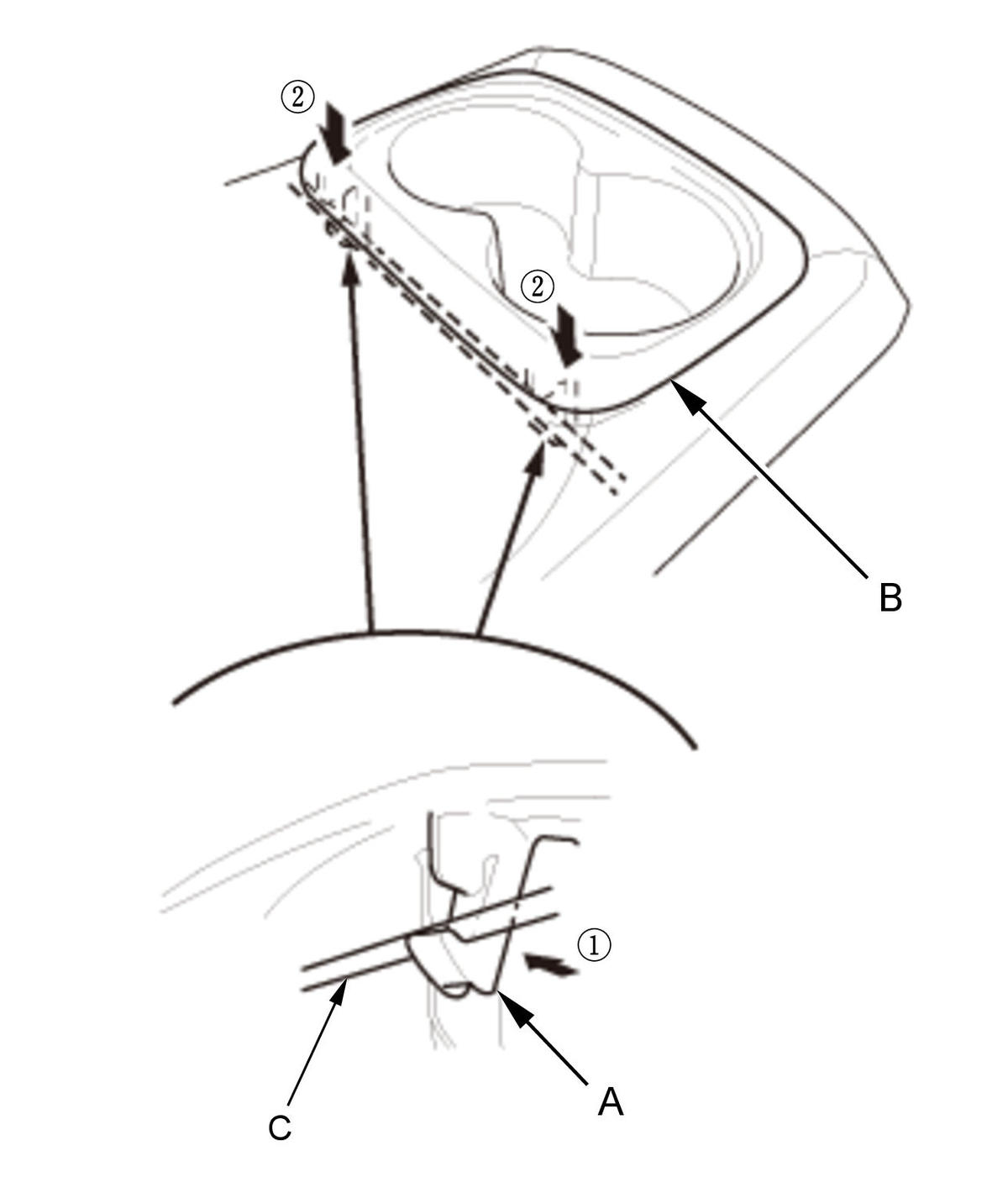

    GHH473990Courtesy of HONDA, U.S.A., INC.
    		 2. Install the hooks (A) of the rear seat armrest beverage holder (B) to the rod (C).
