Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Driver's Seat - Remove
2. Power Seat Control Unit - Remove

   Courtesy of HONDA, U.S.A., INC.

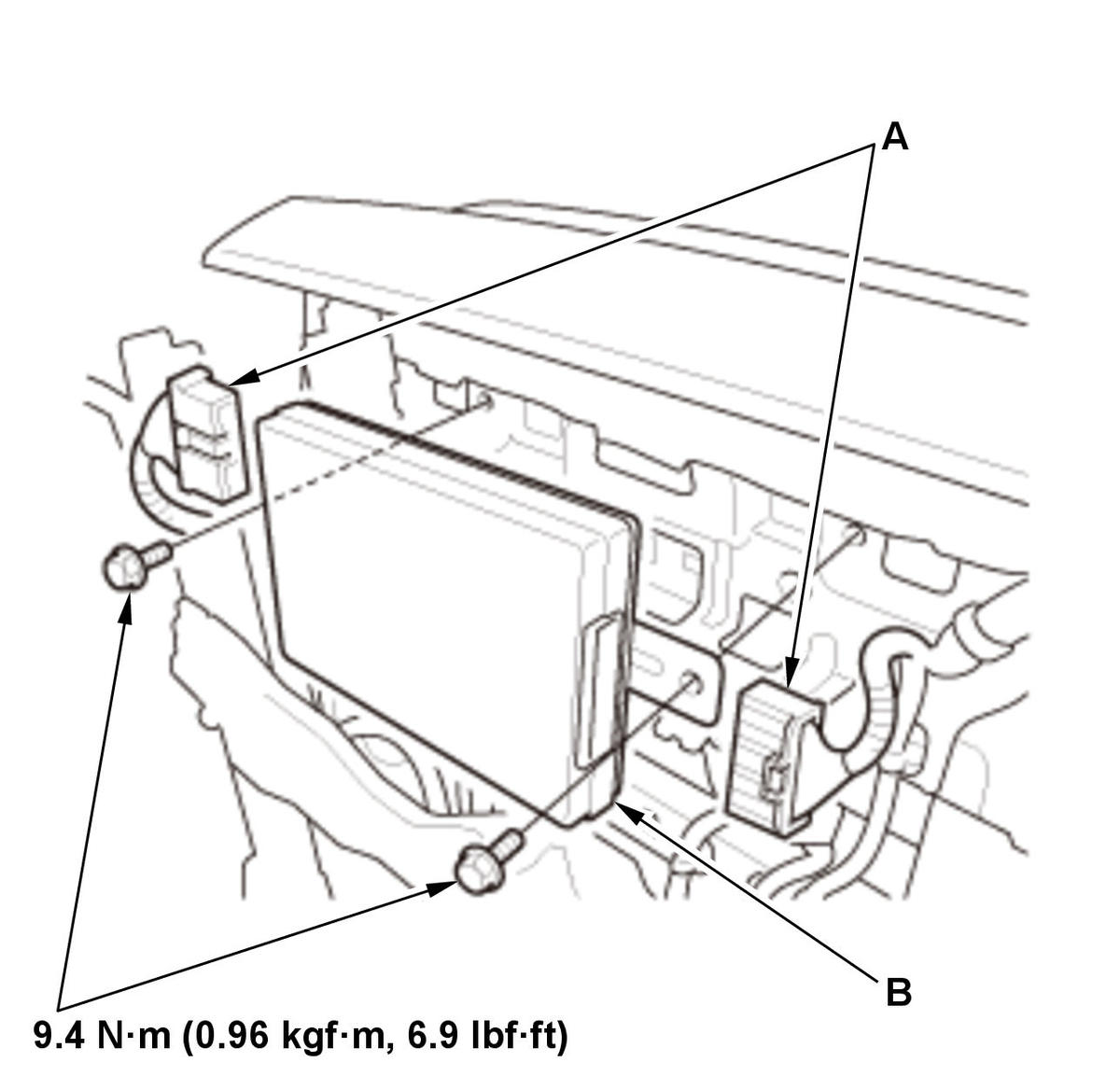

   1. Disconnect the power seat control unit connectors (A). 2. Remove the power seat control unit (B).

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
