Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

Front Seat - Remove

Front Seat-Back Harness - Remove

Courtesy of HONDA, U.S.A., INC.

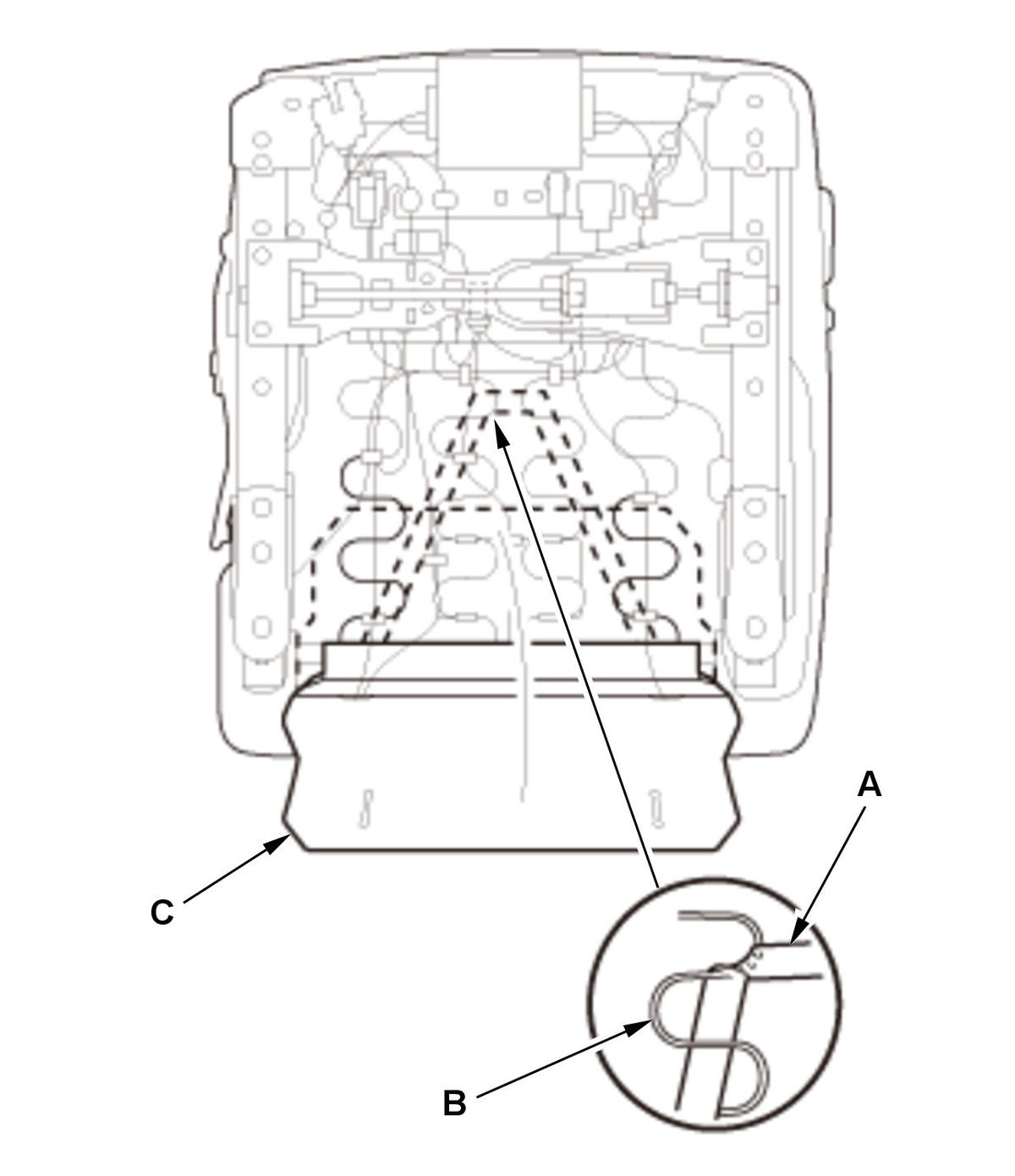

1. From under the seat cushion, release the elastic strap (A) from the seat cushion frame springs (B), then pull back the undercover (C) of the seat-back cover.

Driver's Seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Passenger's Seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

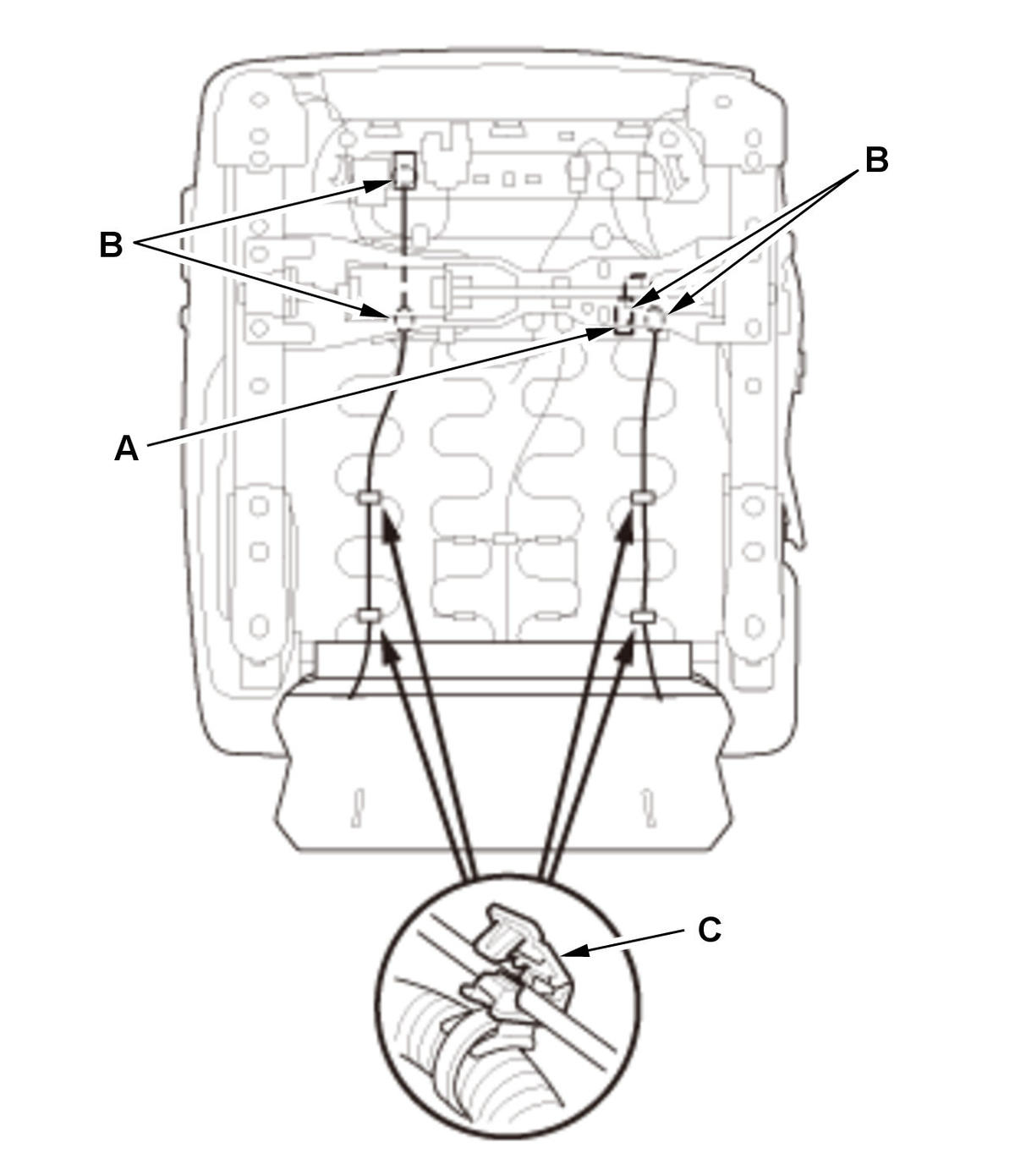

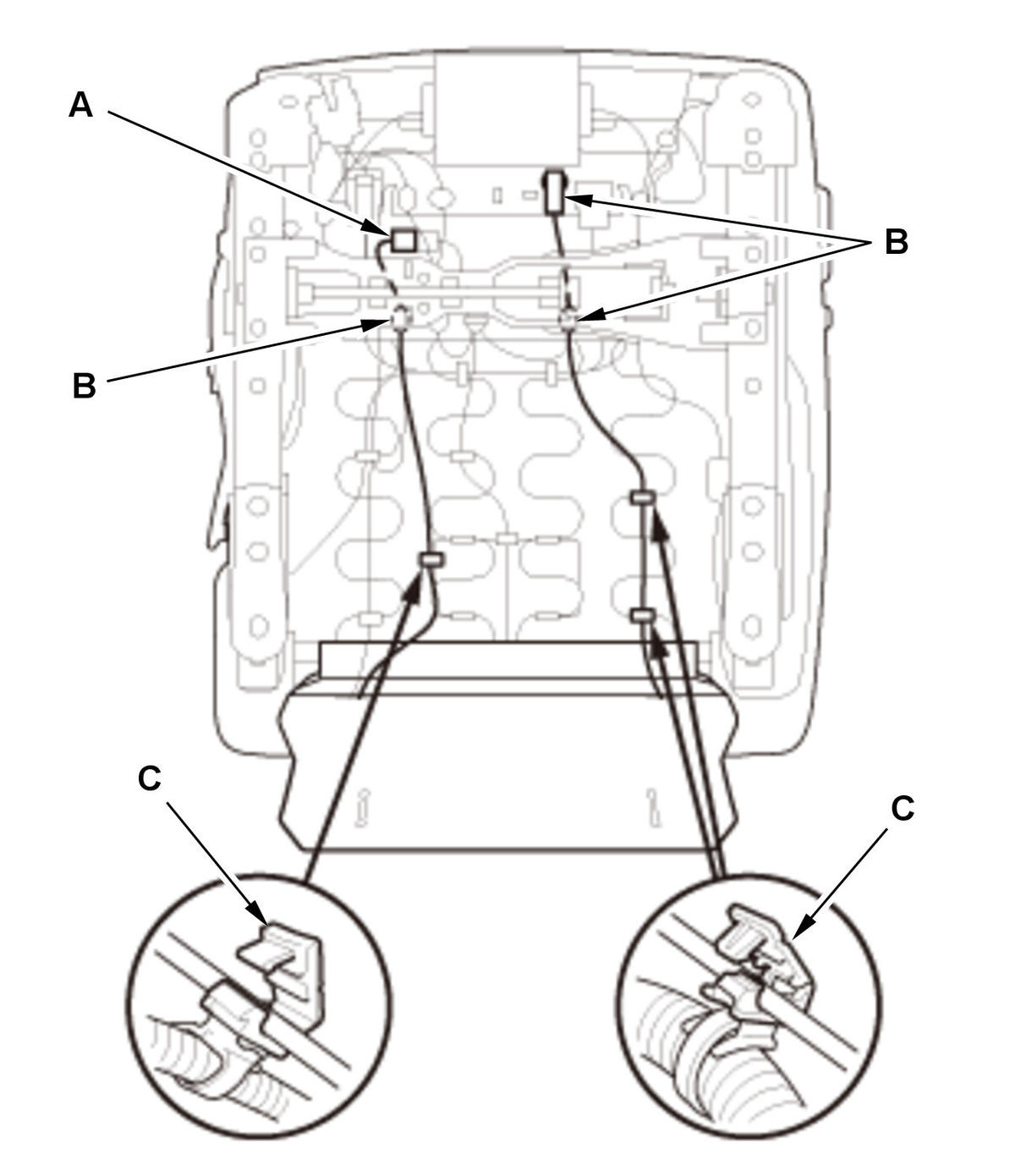

2. With seat heater: From under the seat cushion, disconnect the connector (A).

3. Remove the harness clips (B) and the harness holders (C).

Front Seat-Back Cover/Pad - Remove

Courtesy of HONDA, U.S.A., INC.

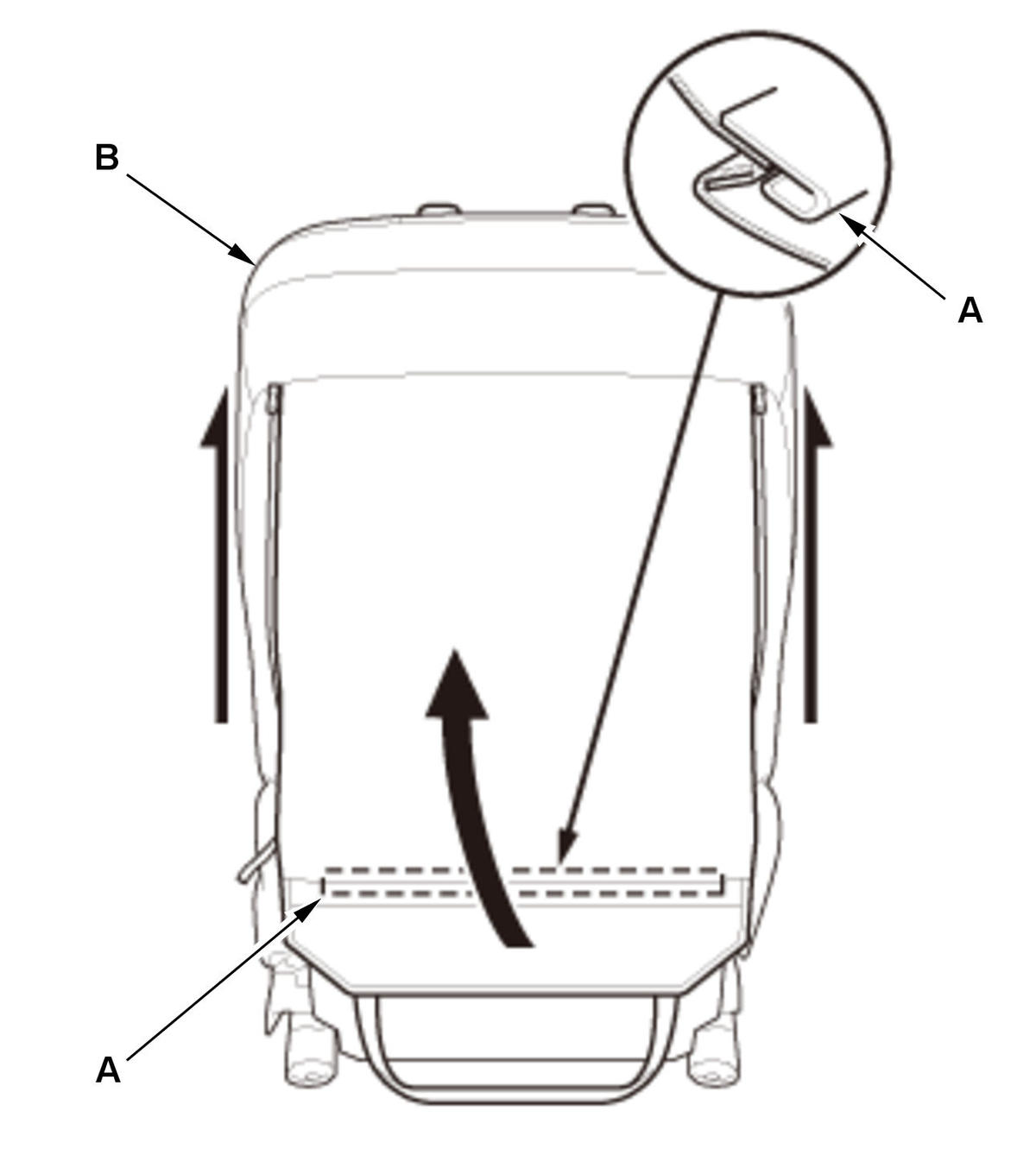

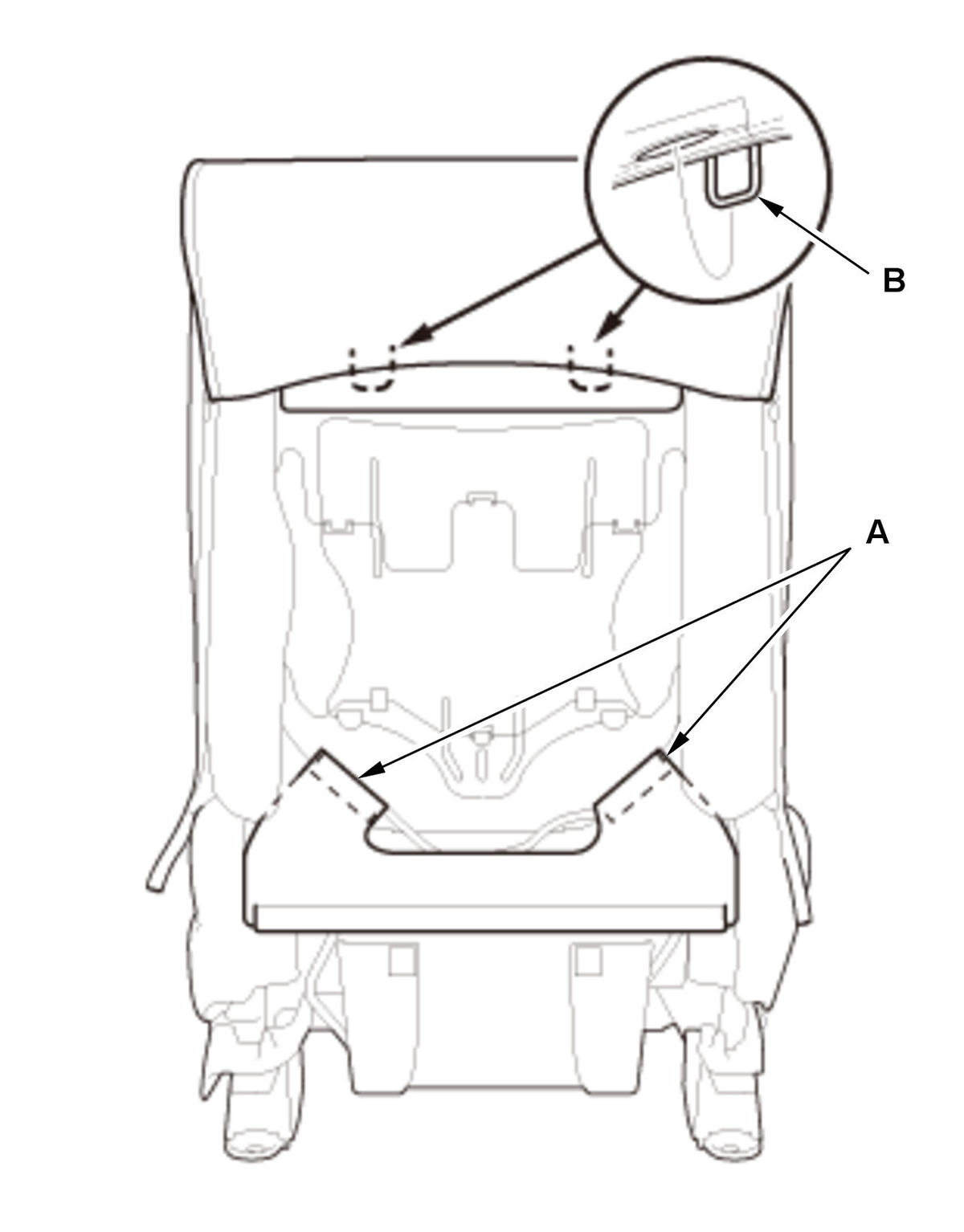

1. Release the hook strip (A), and unzip the seat-back cover (B).

Courtesy of HONDA, U.S.A., INC.

2. Release the hook and loop fasteners (A).

Courtesy of HONDA, U.S.A., INC.

3. Release the hook strips (A).

4. Release the hooks (B) from inside of the seat-back cover.

Courtesy of HONDA, U.S.A., INC.

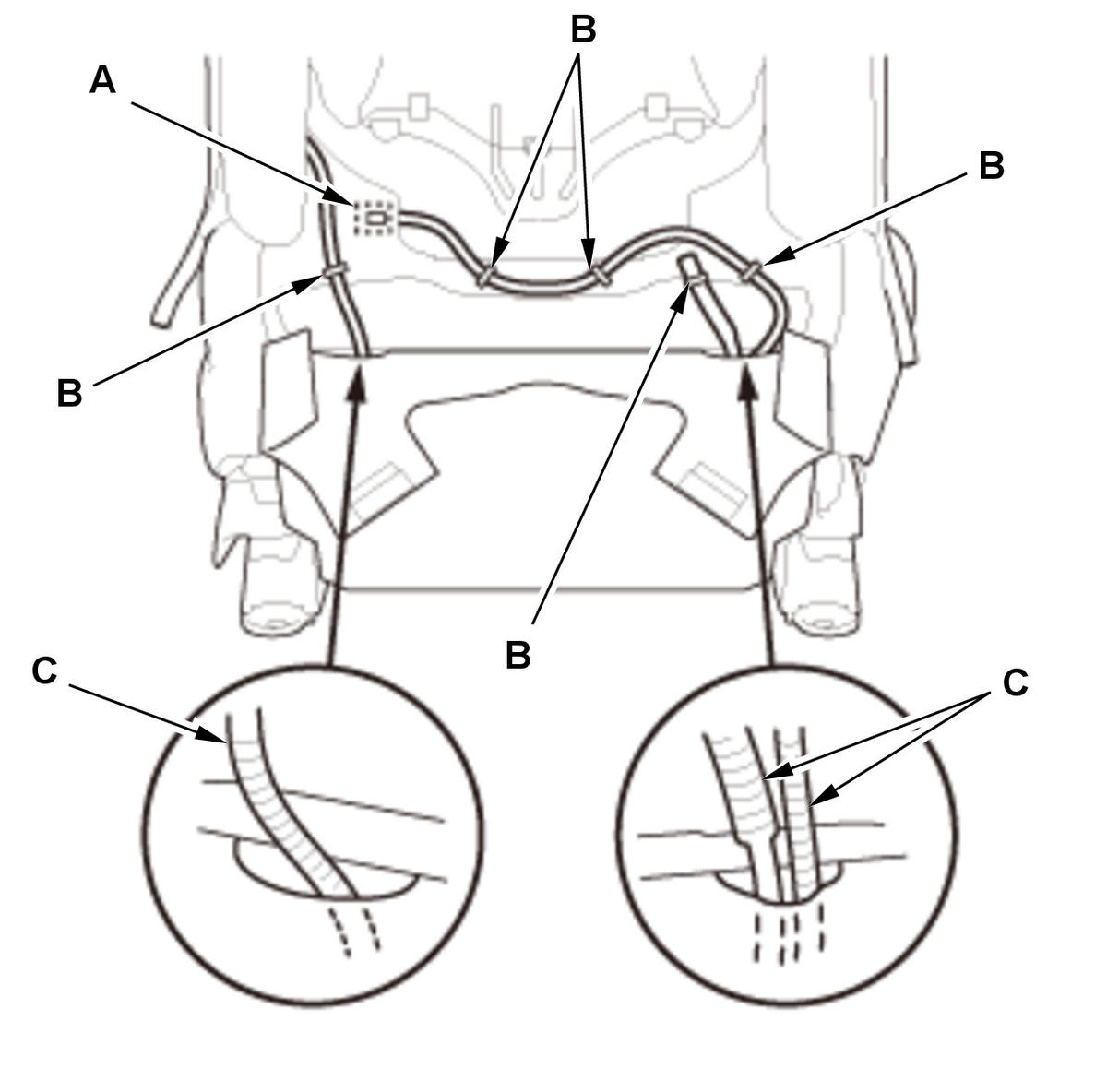

5. Driver's seat: Disconnect the connector (A).

6. Remove the harness clips (B).

7. Pull out the harnesses (C) through the seat-back cover.

Courtesy of HONDA, U.S.A., INC.

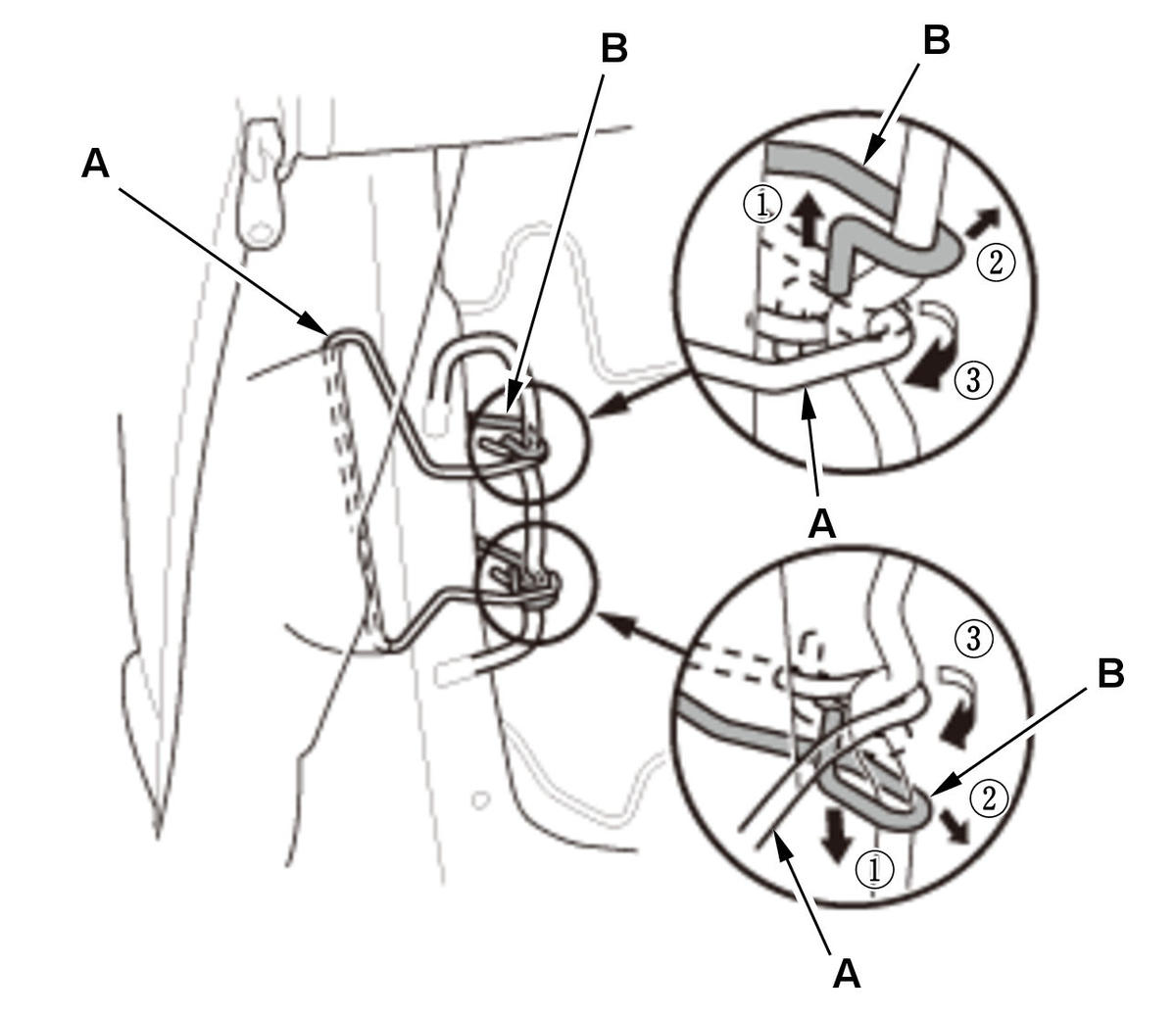

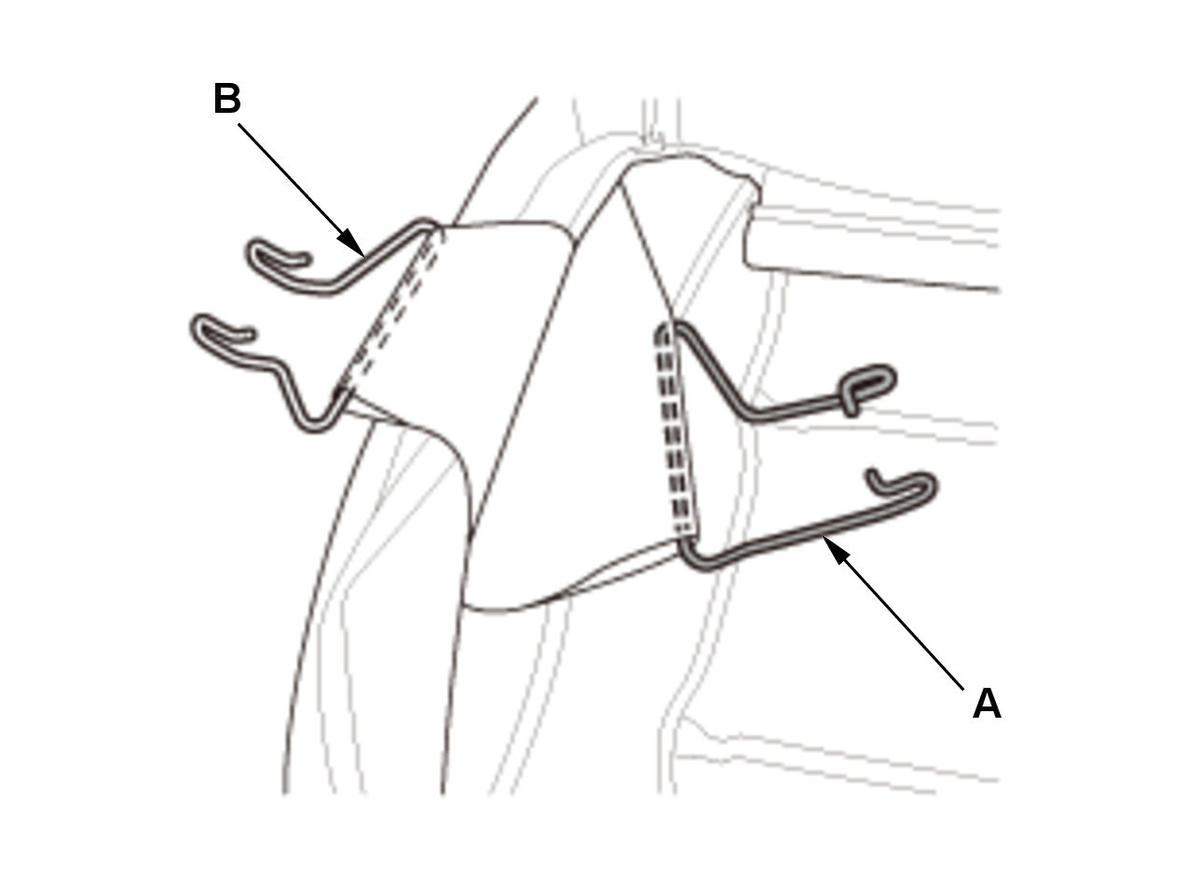

8. Release airbag attachment wire A and airbag attachment wire B.

Courtesy of HONDA, U.S.A., INC.

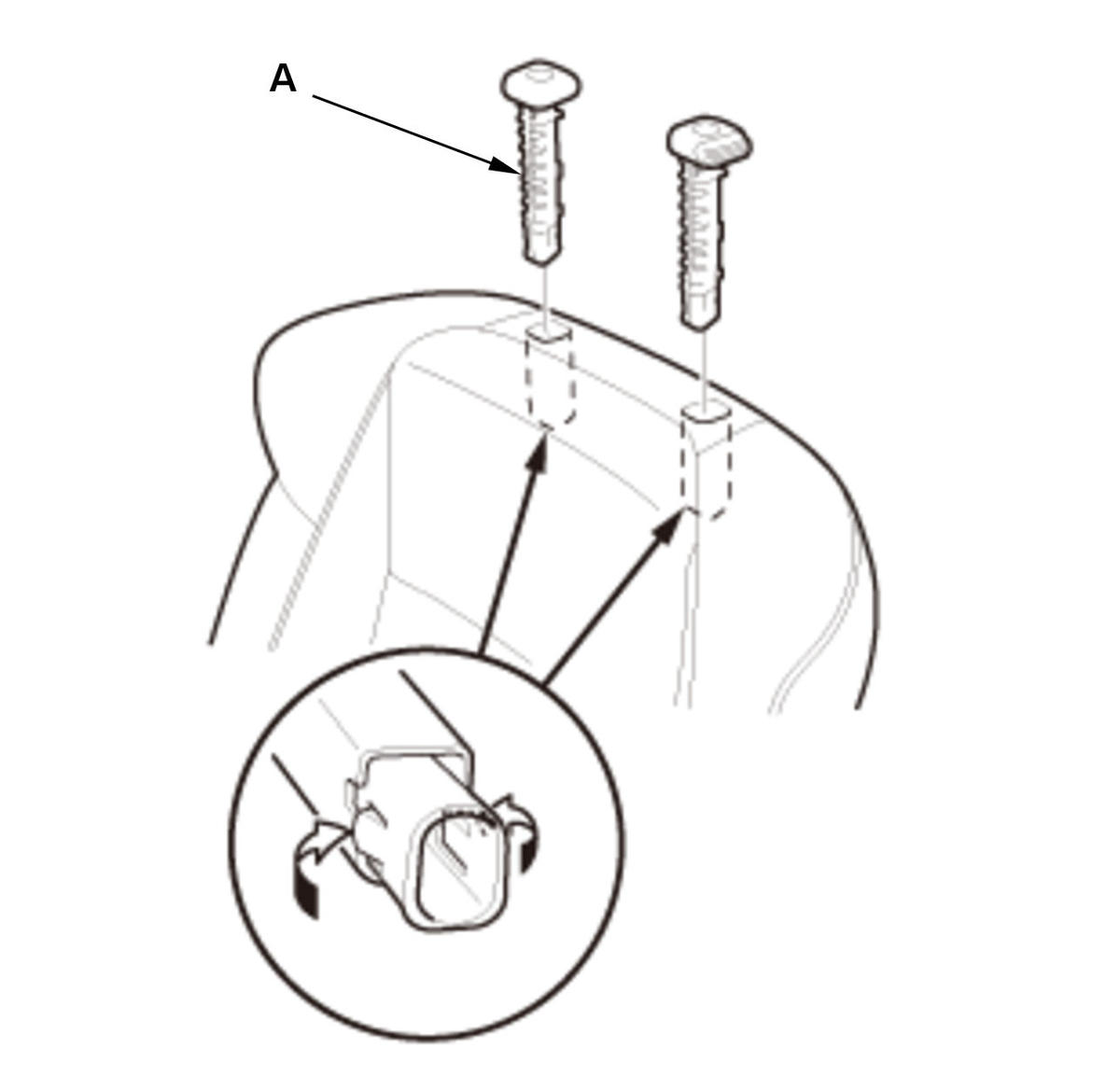

9. Remove the head restraint guides (A).

Courtesy of HONDA, U.S.A., INC.

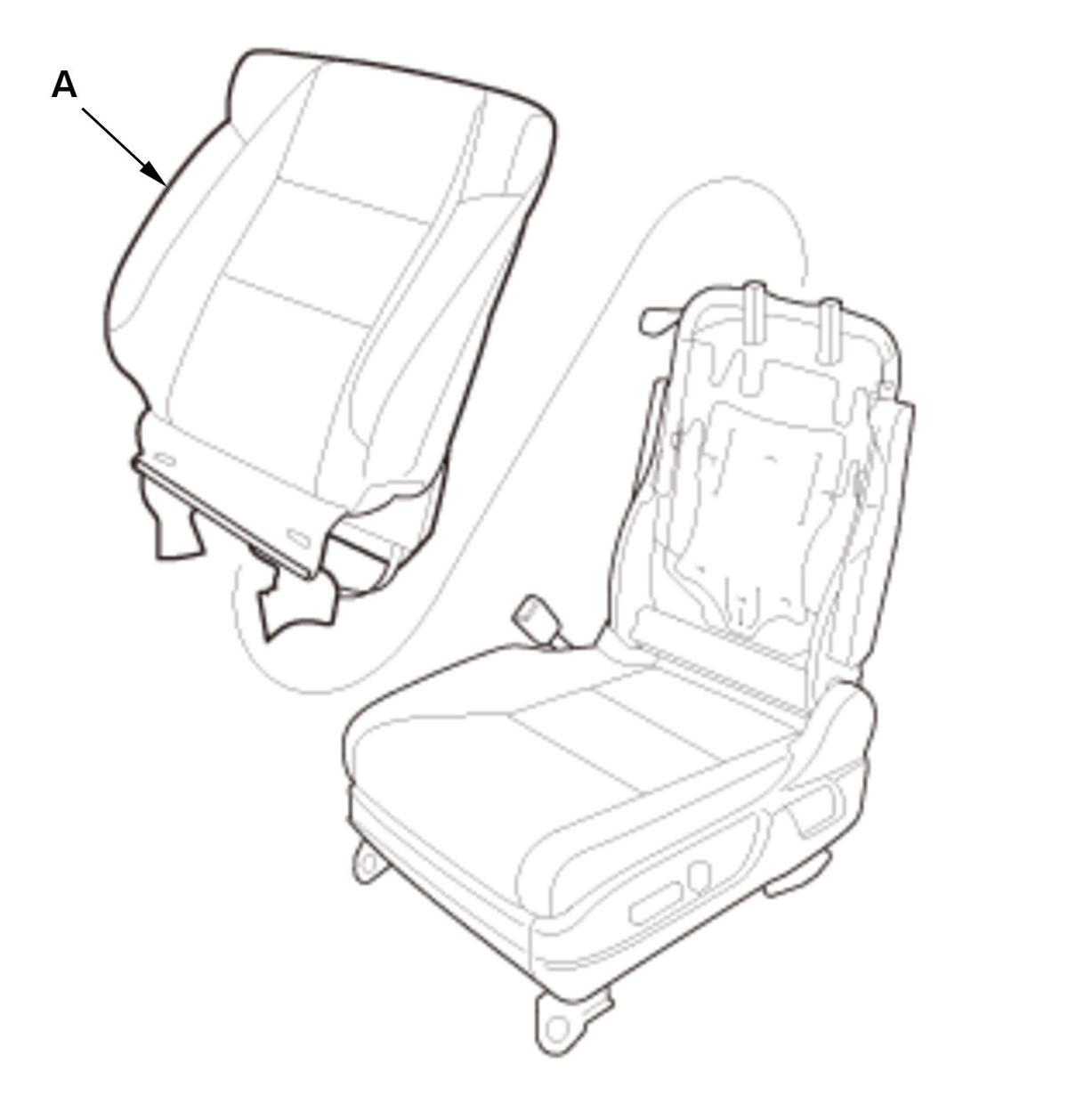

10. Remove the seat-back cover/pad (A).

Front Seat-Back Cover - Remove

Courtesy of HONDA, U.S.A., INC.

1. Pull out airbag attachment wire A, B through the loop of the inside reinforcing cloth.

'16-18

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

'19-21

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

2. Remove the upholstery rings (A) securing the seat-back cover (B).

3. '19-21: Remove the hook and loop fasteners (C).

All Removed Parts - Install

Courtesy of HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.

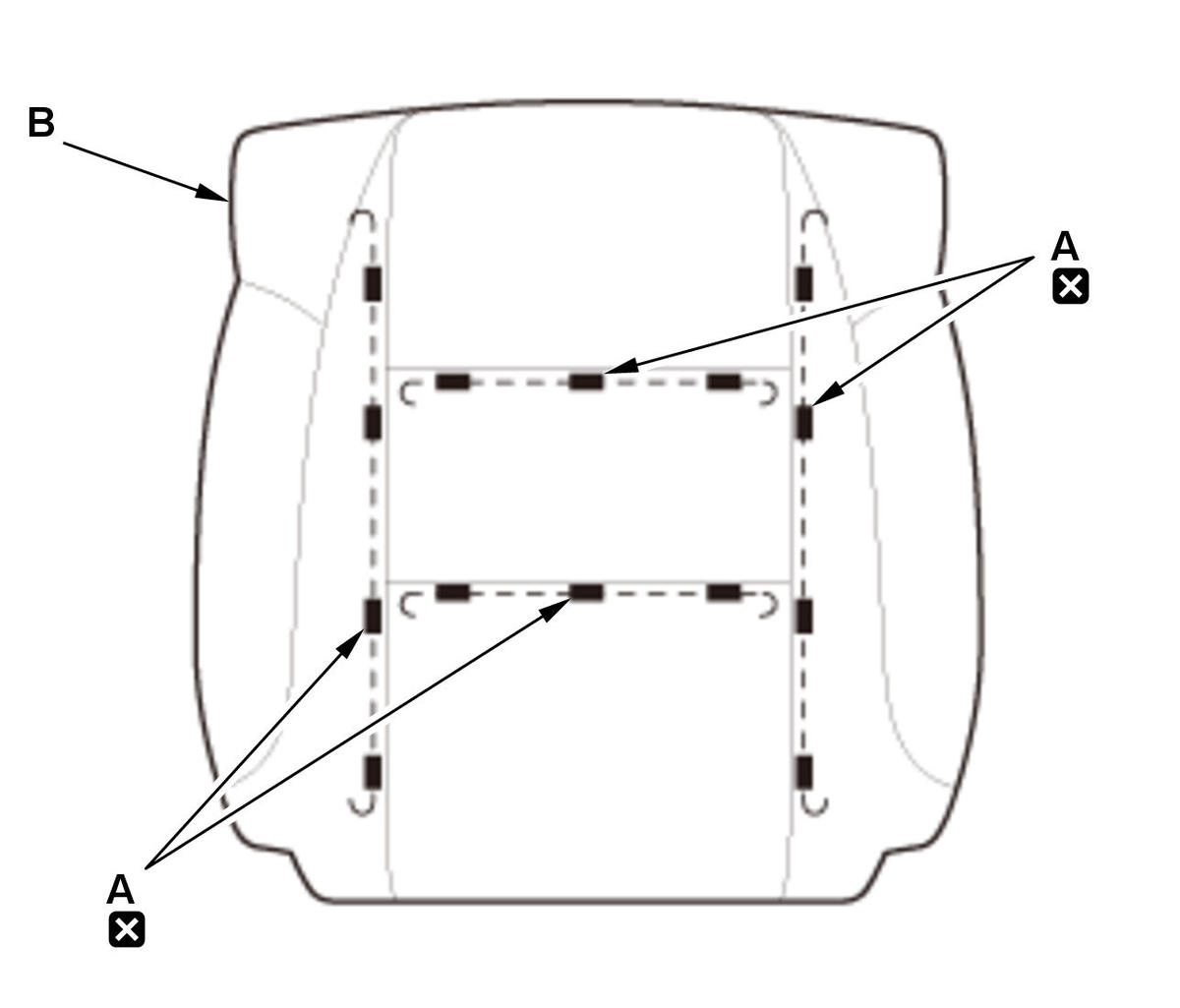

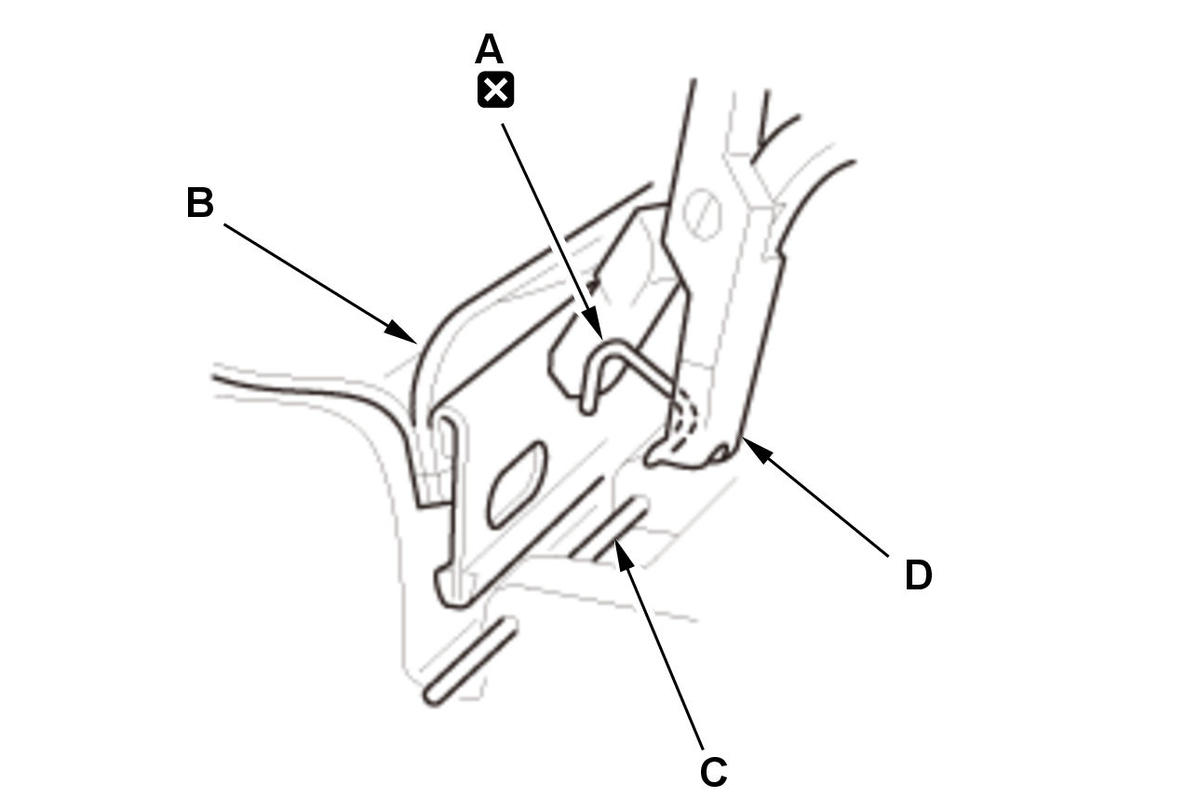

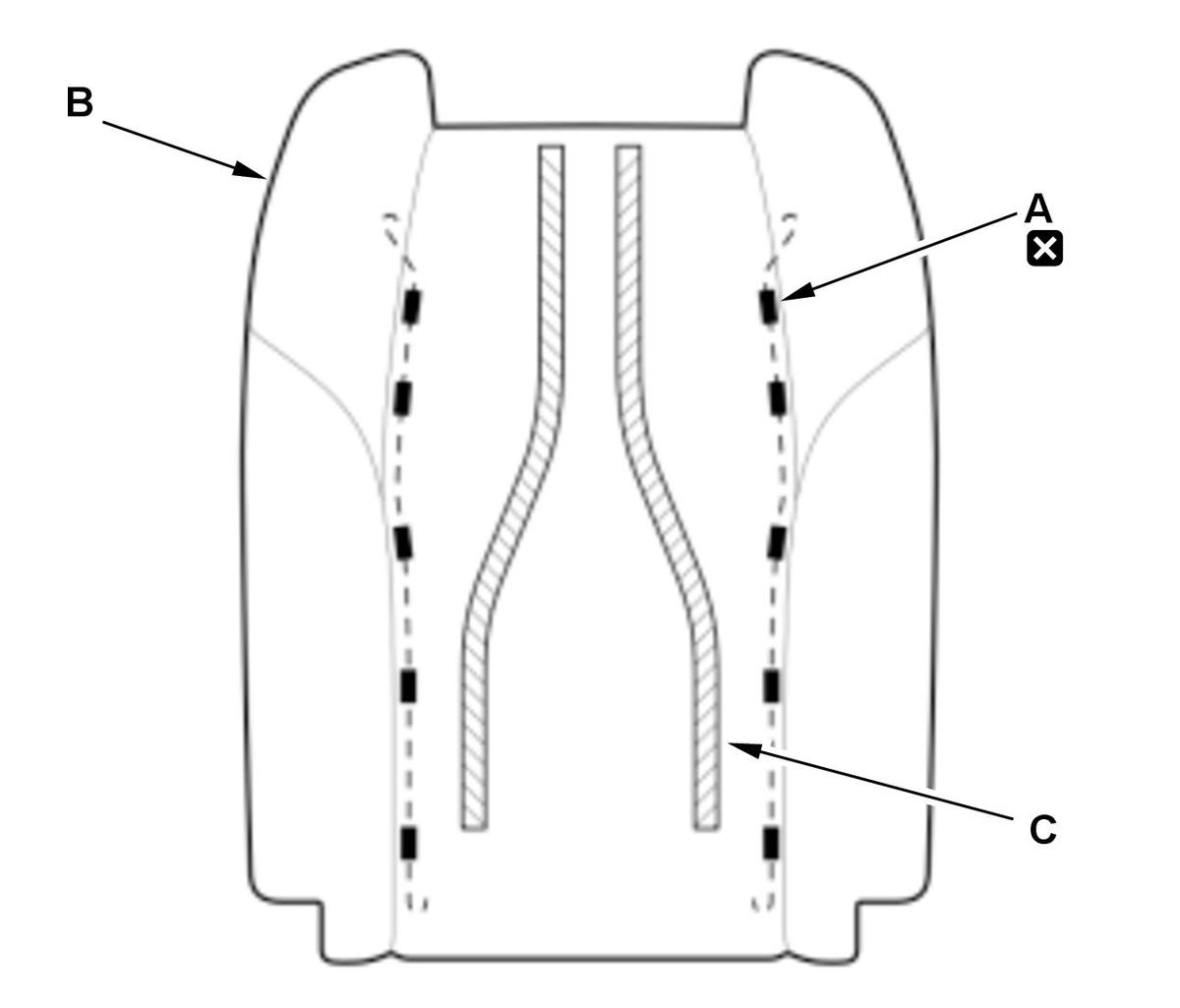

NOTE: Replace all of the upholstery rings (A) fastening the seat-back cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).
