Front Seat-Back Cover (2013 2014 2015): Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

Front Seat-Back Cover - Install

Courtesy of HONDA, U.S.A., INC.

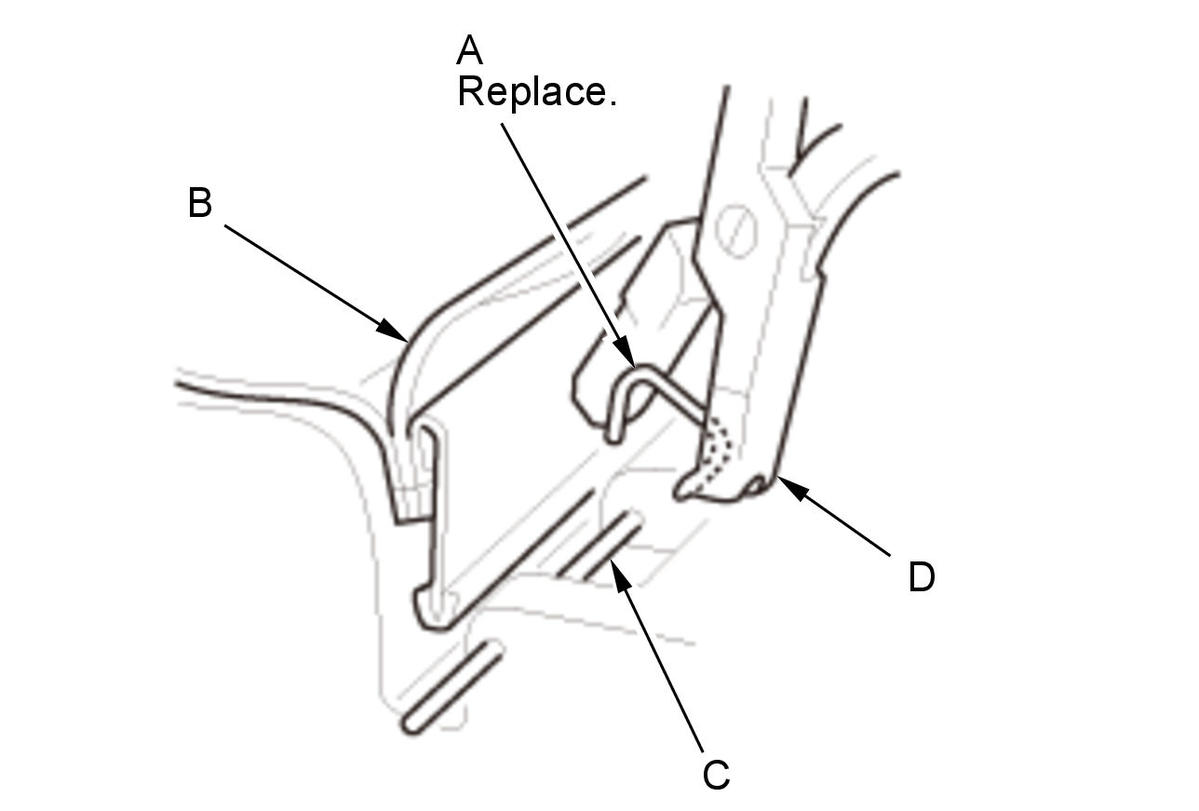

NOTE: Replace all of the upholstery rings (A) fastening the seat-back cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).

Courtesy of HONDA, U.S.A., INC.

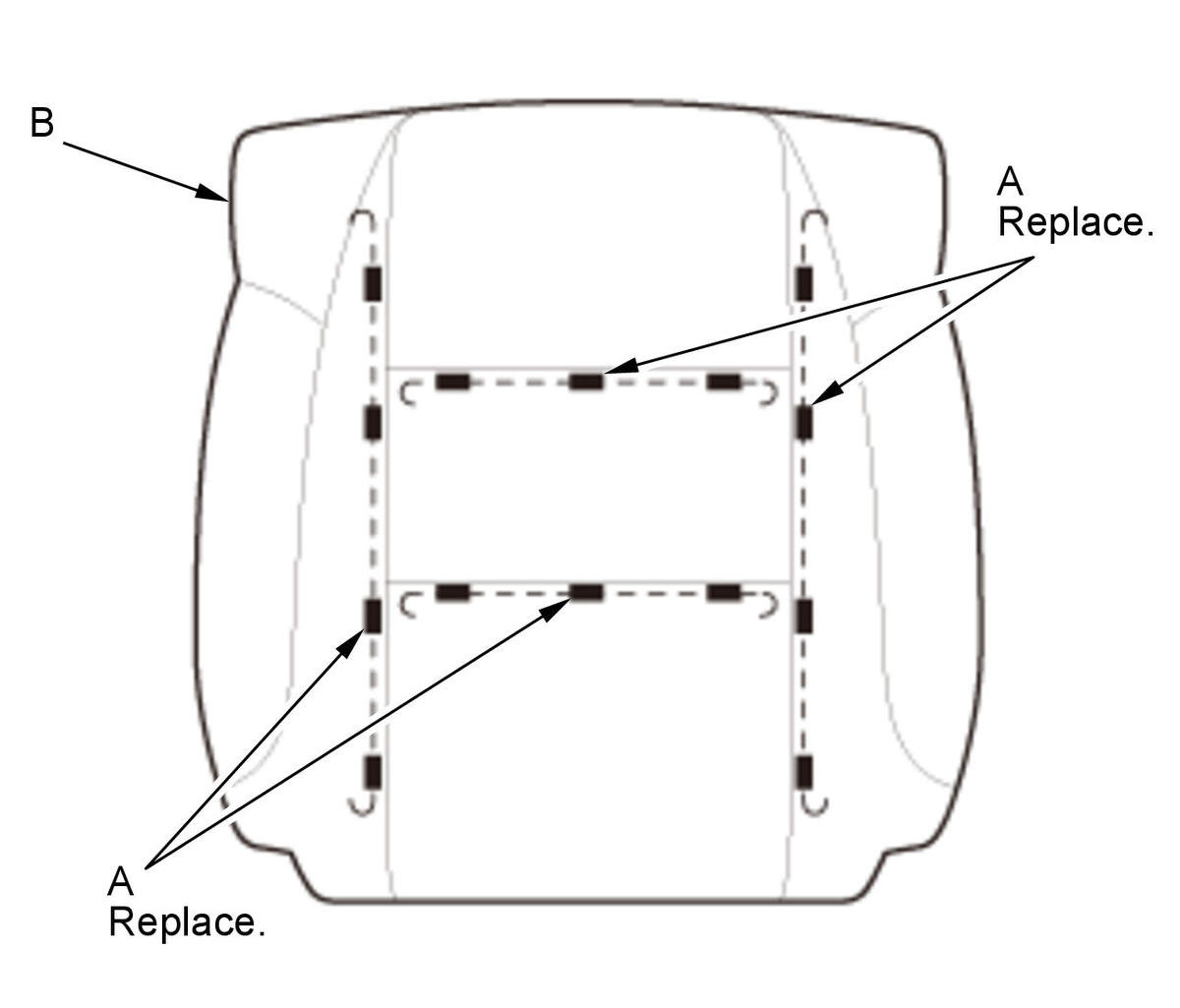

1. Install the new upholstery rings (A) securing the seat-back cover (B).

Courtesy of HONDA, U.S.A., INC.

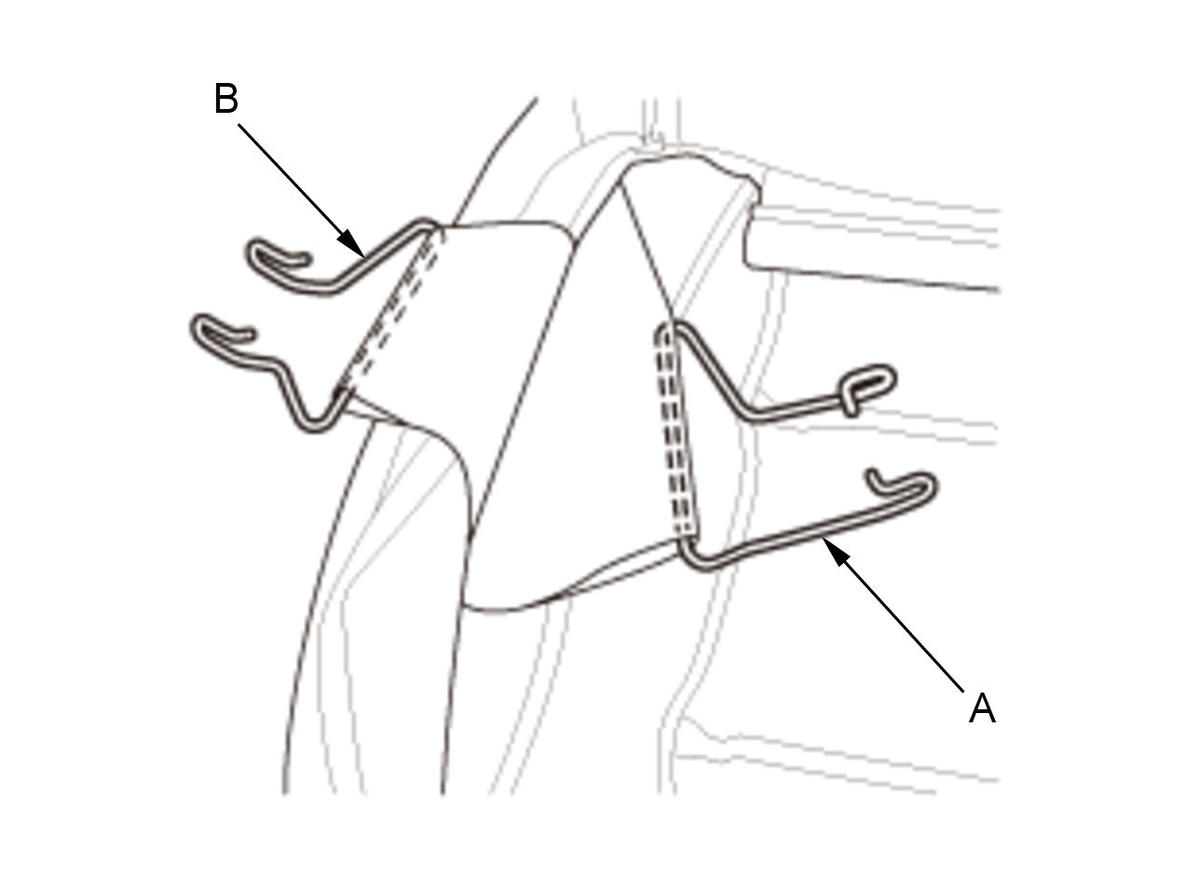

2. Install airbag attachment wires A and B.

Front Seat-Back Cover/Pad - Install

Courtesy of HONDA, U.S.A., INC.

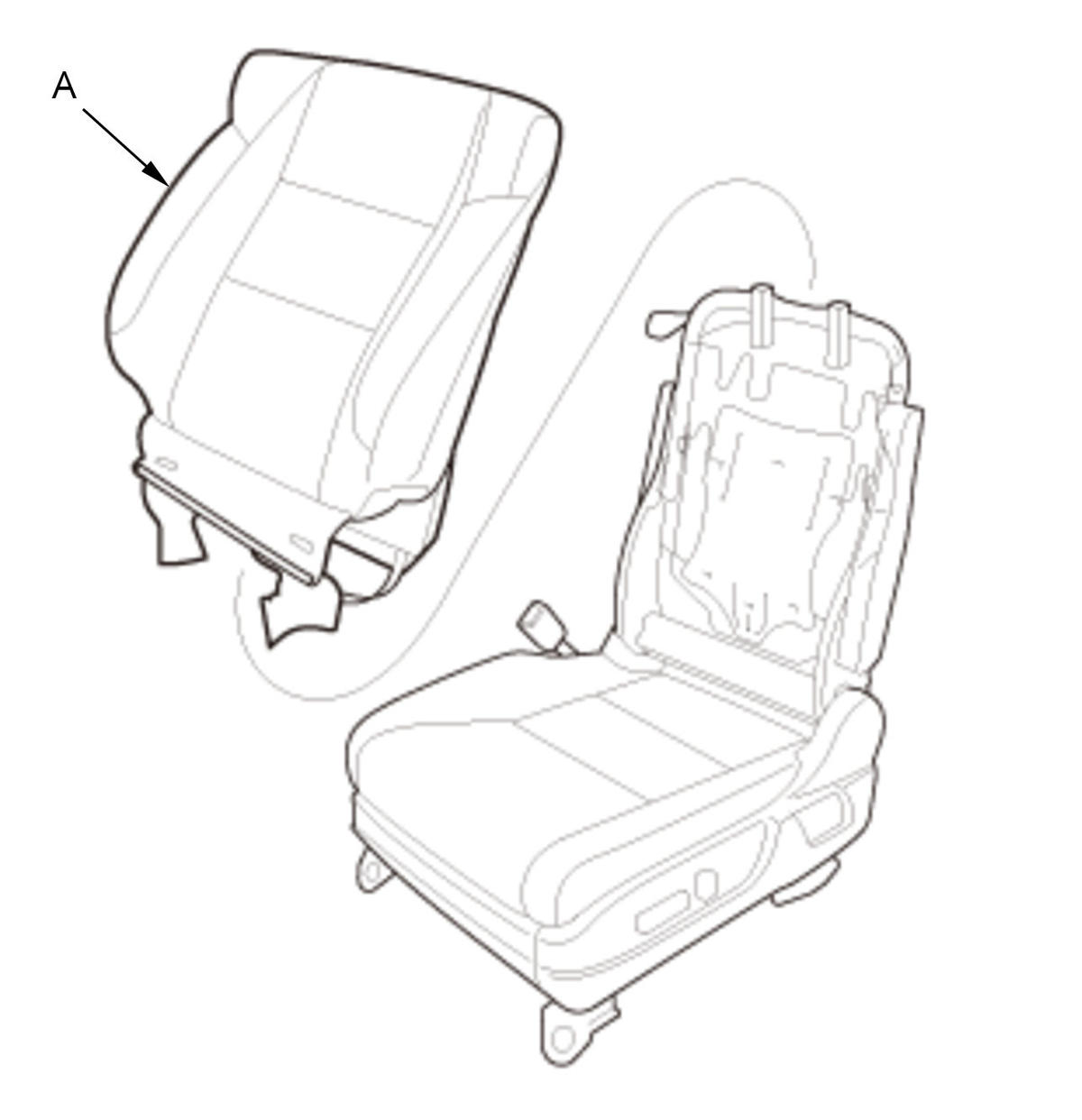

1. Install the seat-back cover/pad (A).

Courtesy of HONDA, U.S.A., INC.

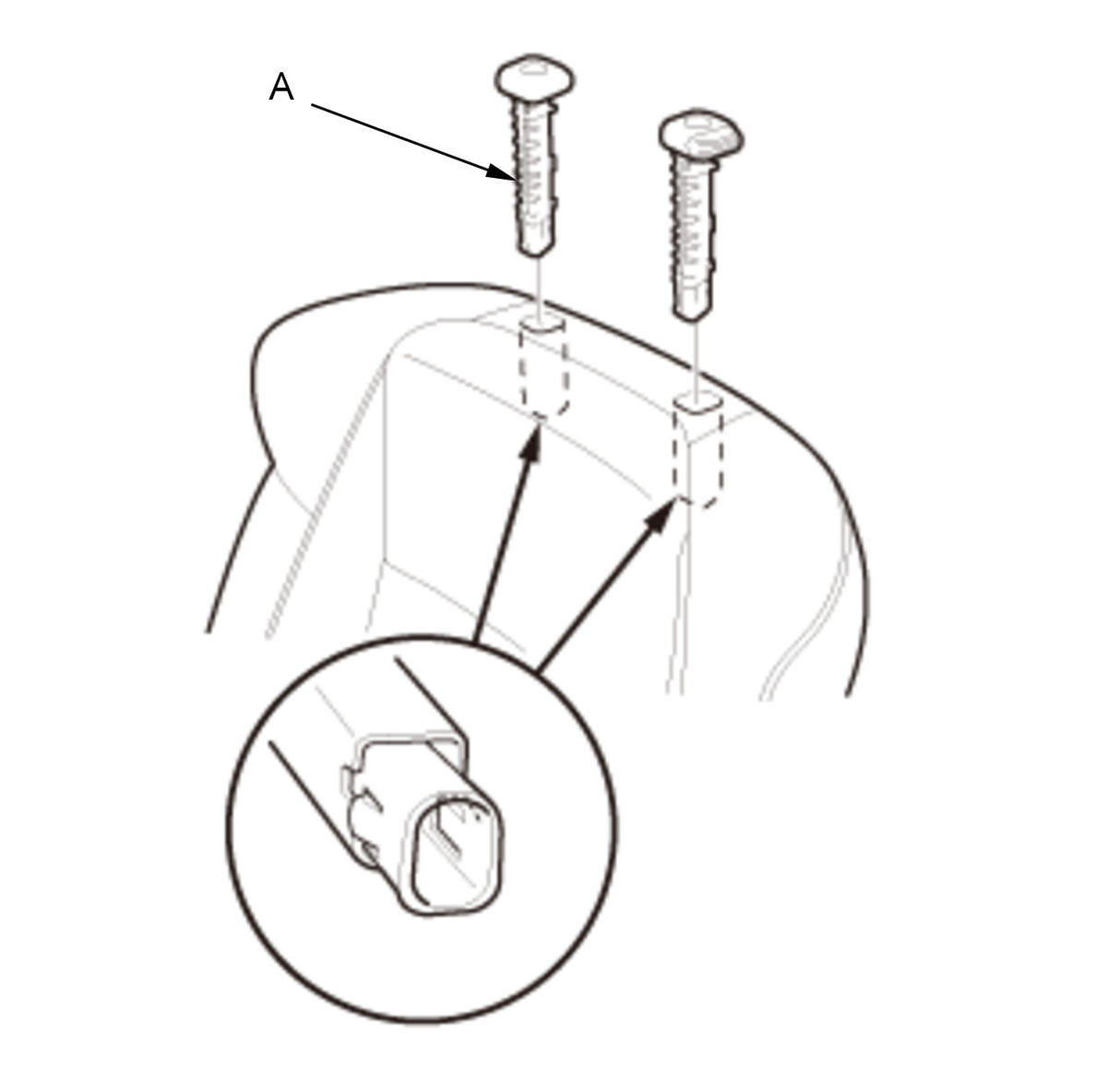

2. Install the head restraint guides (A).

Courtesy of HONDA, U.S.A., INC.

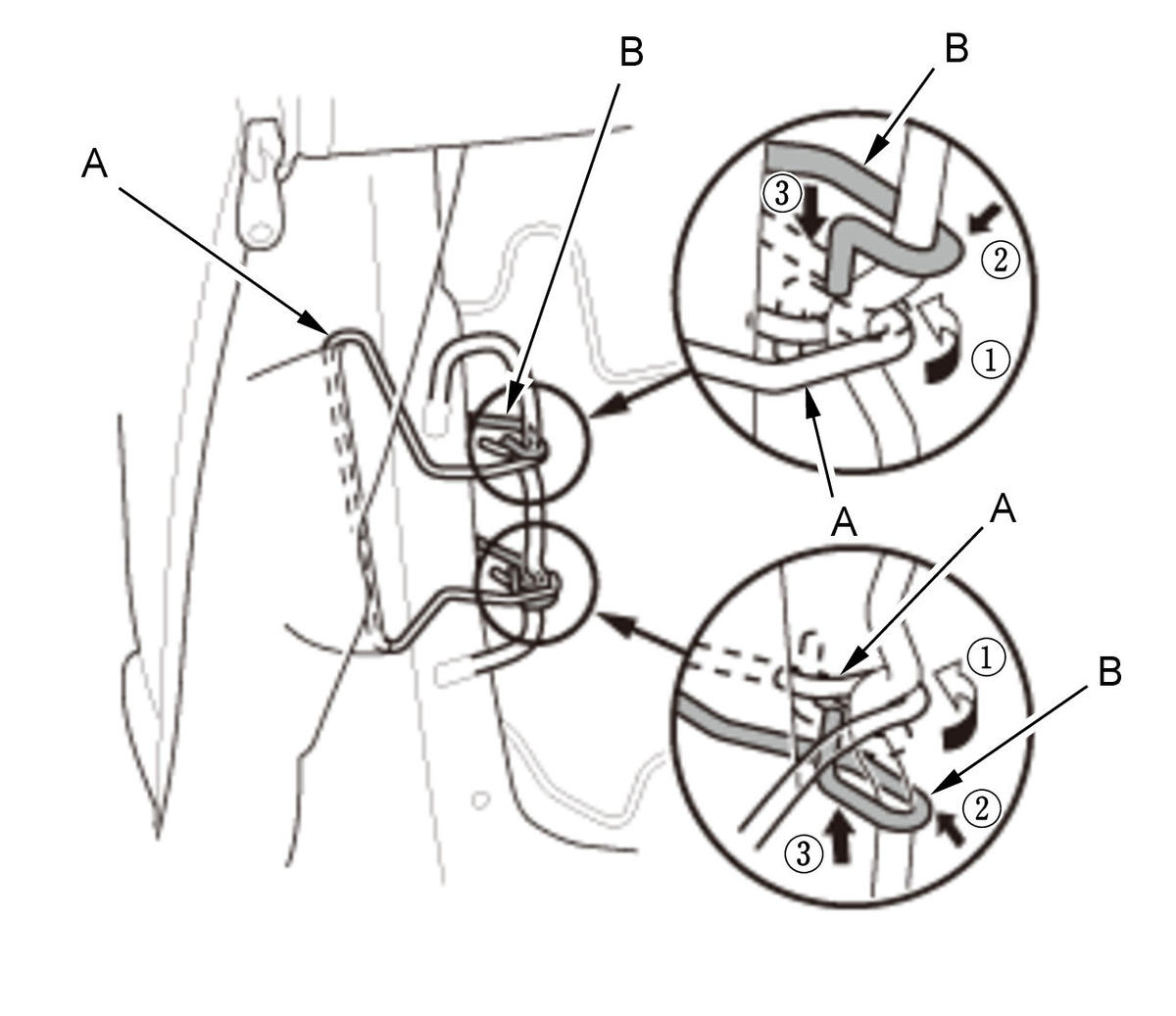

3. Install airbag attachment wire A and airbag attachment wire B.

Driver's seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Passenger's seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

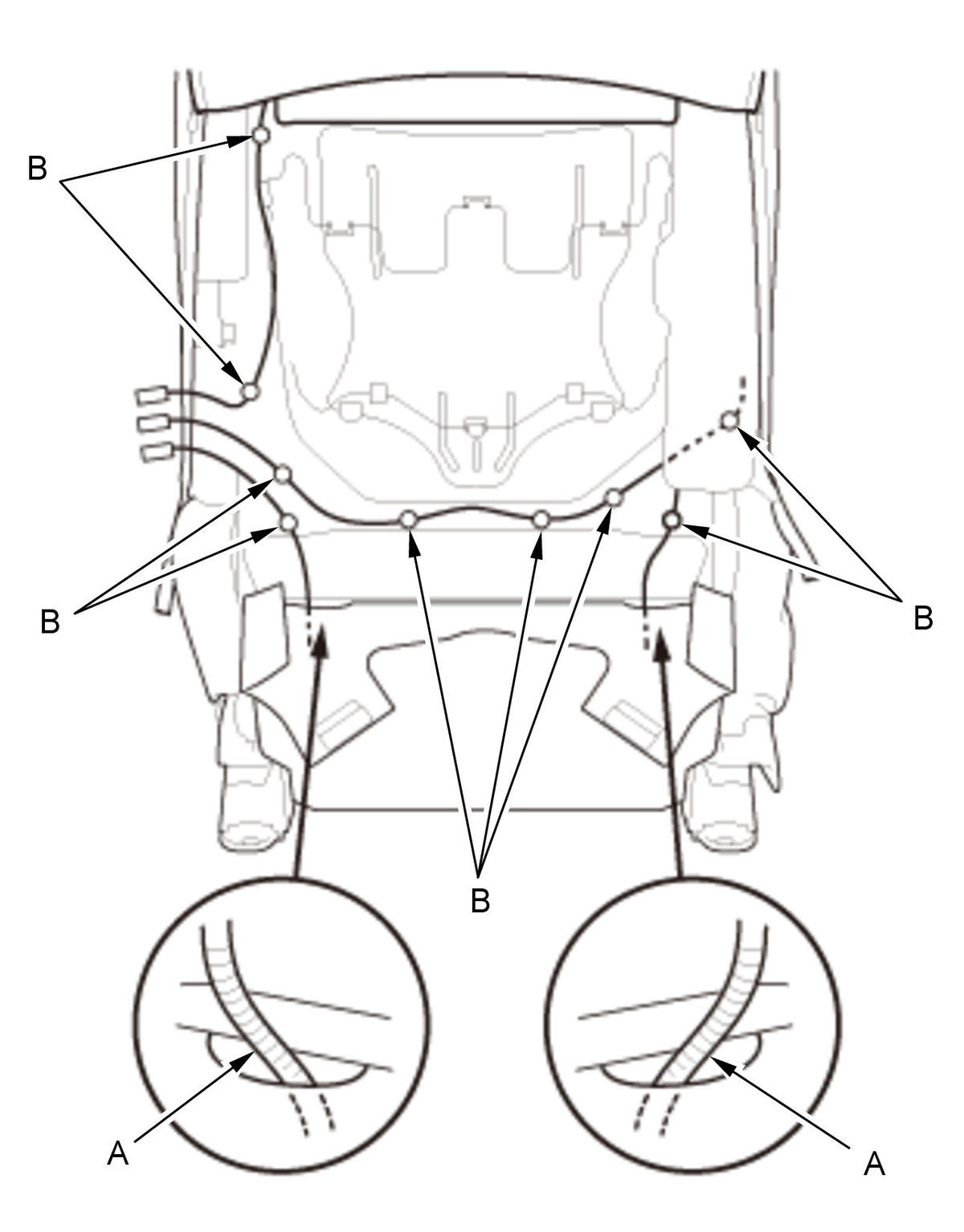

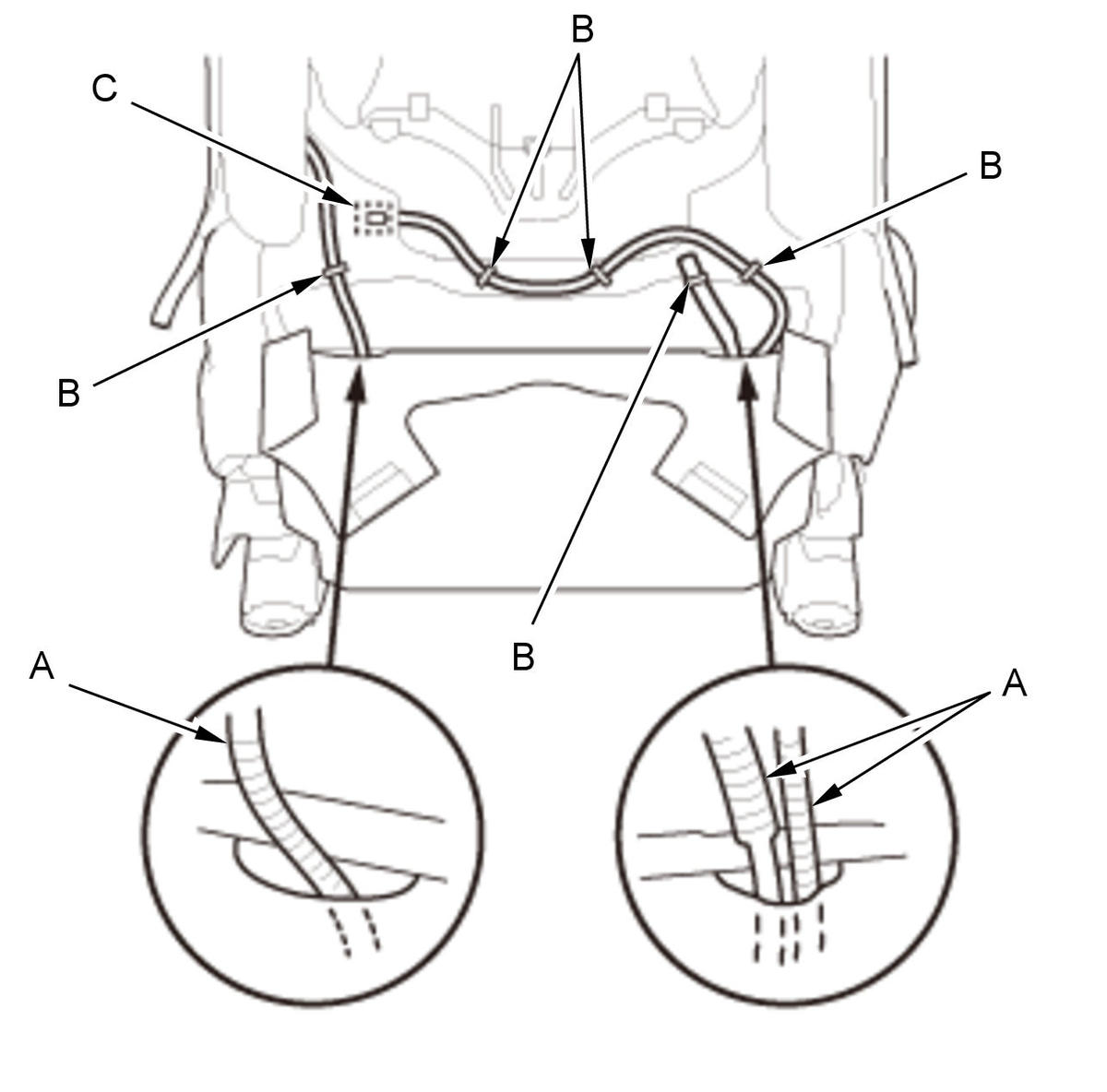

4. Install the harnesses (A) to the seat-back cover.

5. Install the harness clips (B).

6. Driver's 8-way power seat: Connect the recline motor connector (C).

Courtesy of HONDA, U.S.A., INC.

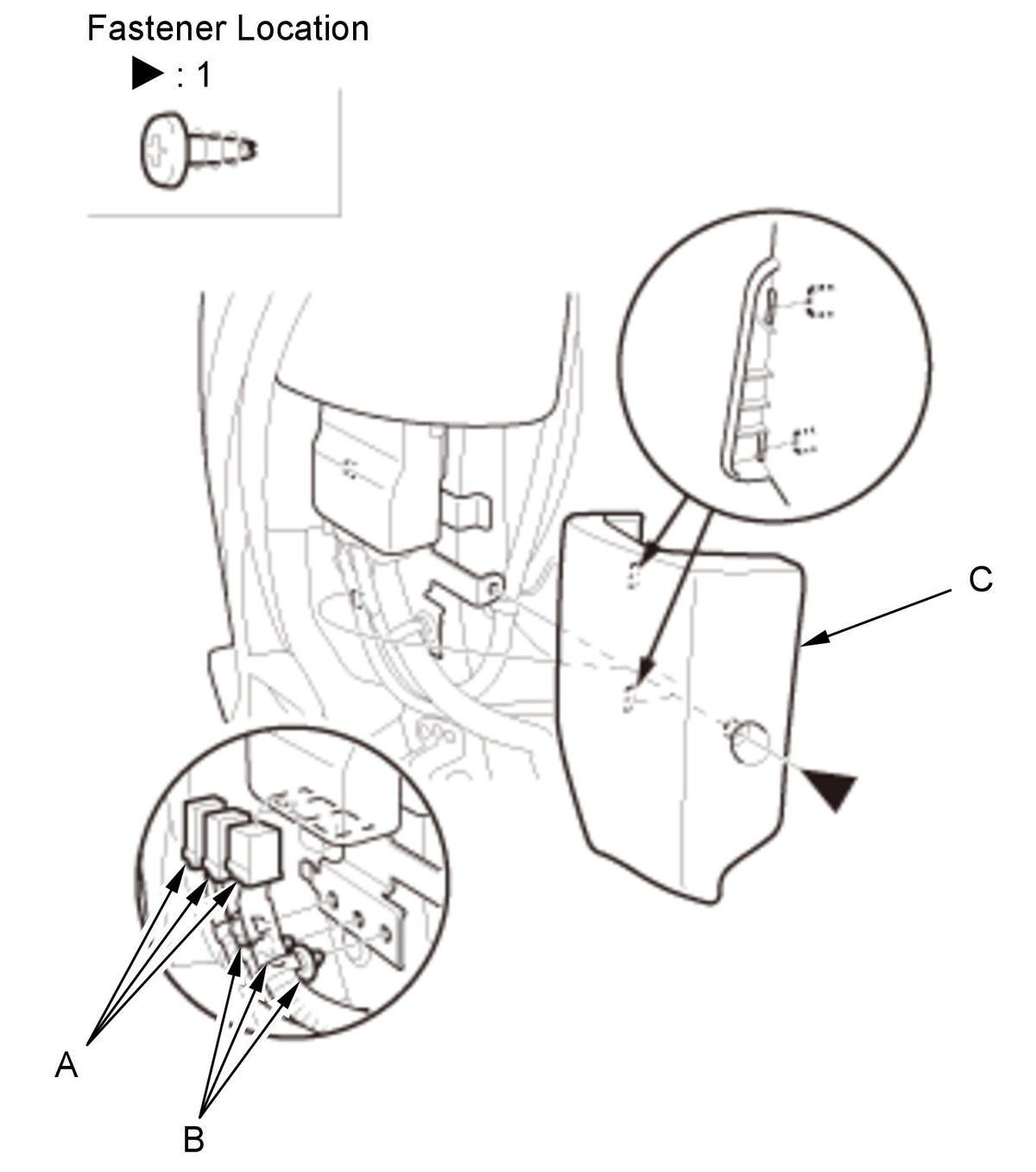

7. Passenger's seat: Connect the OPDS sensor connectors (A), and install the harness clips (B).

8. Passenger's seat: Install the cover (C).

Courtesy of HONDA, U.S.A., INC.

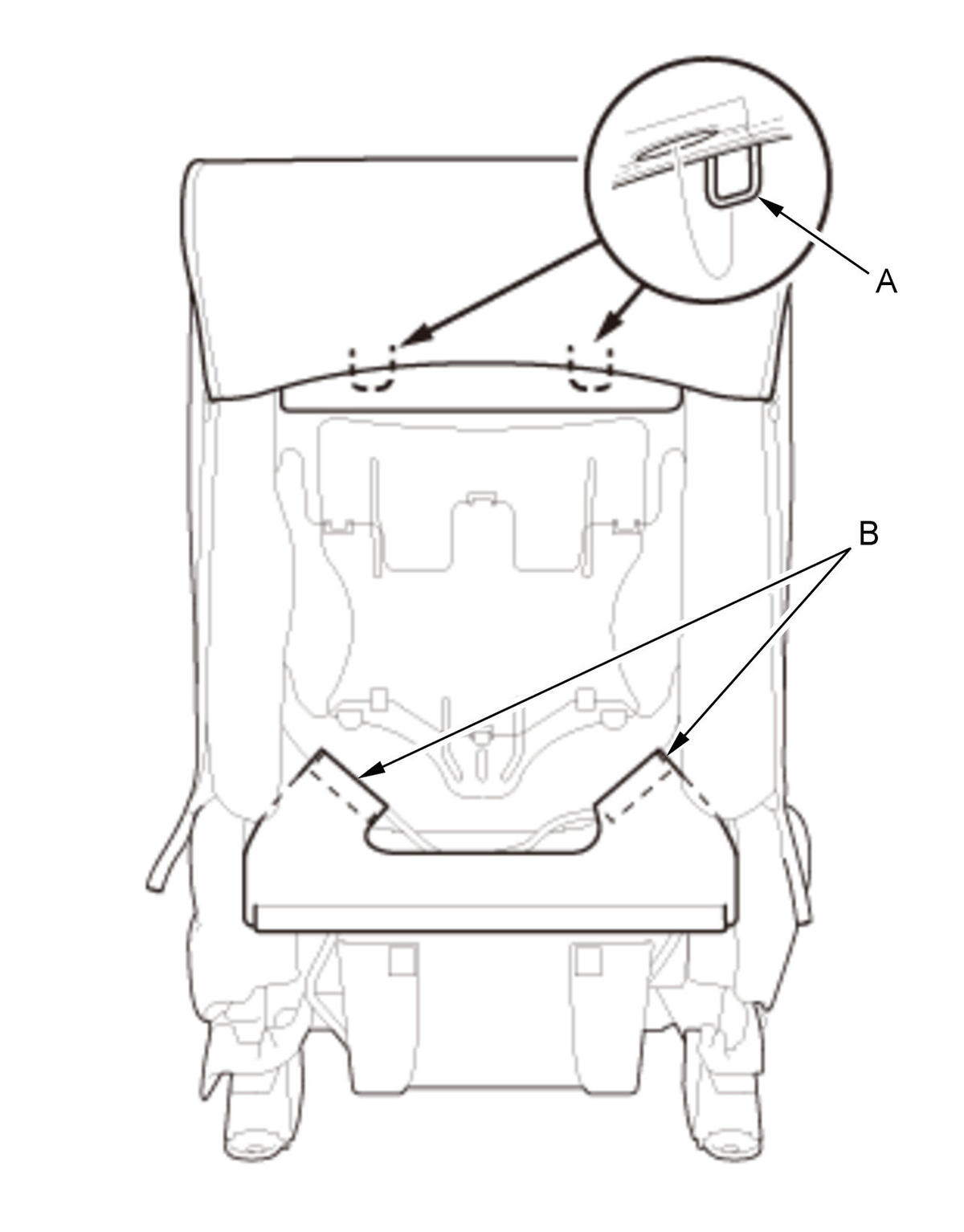

9. Install the hooks (A) inside of the seat-back cover.

10. Install the hook strips (B).

Courtesy of HONDA, U.S.A., INC.

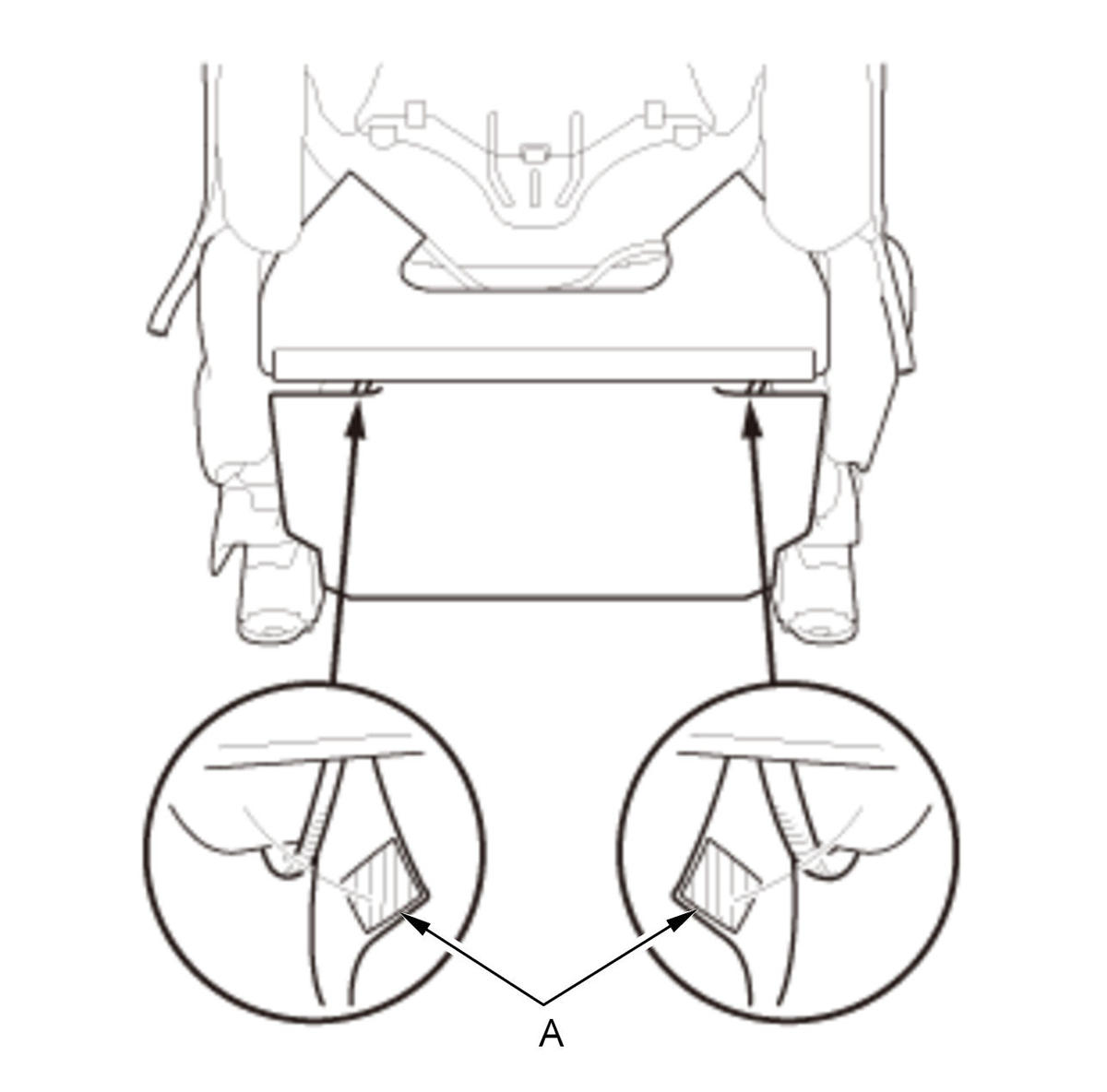

11. Install the hook and loop fasteners (A).

Courtesy of HONDA, U.S.A., INC.

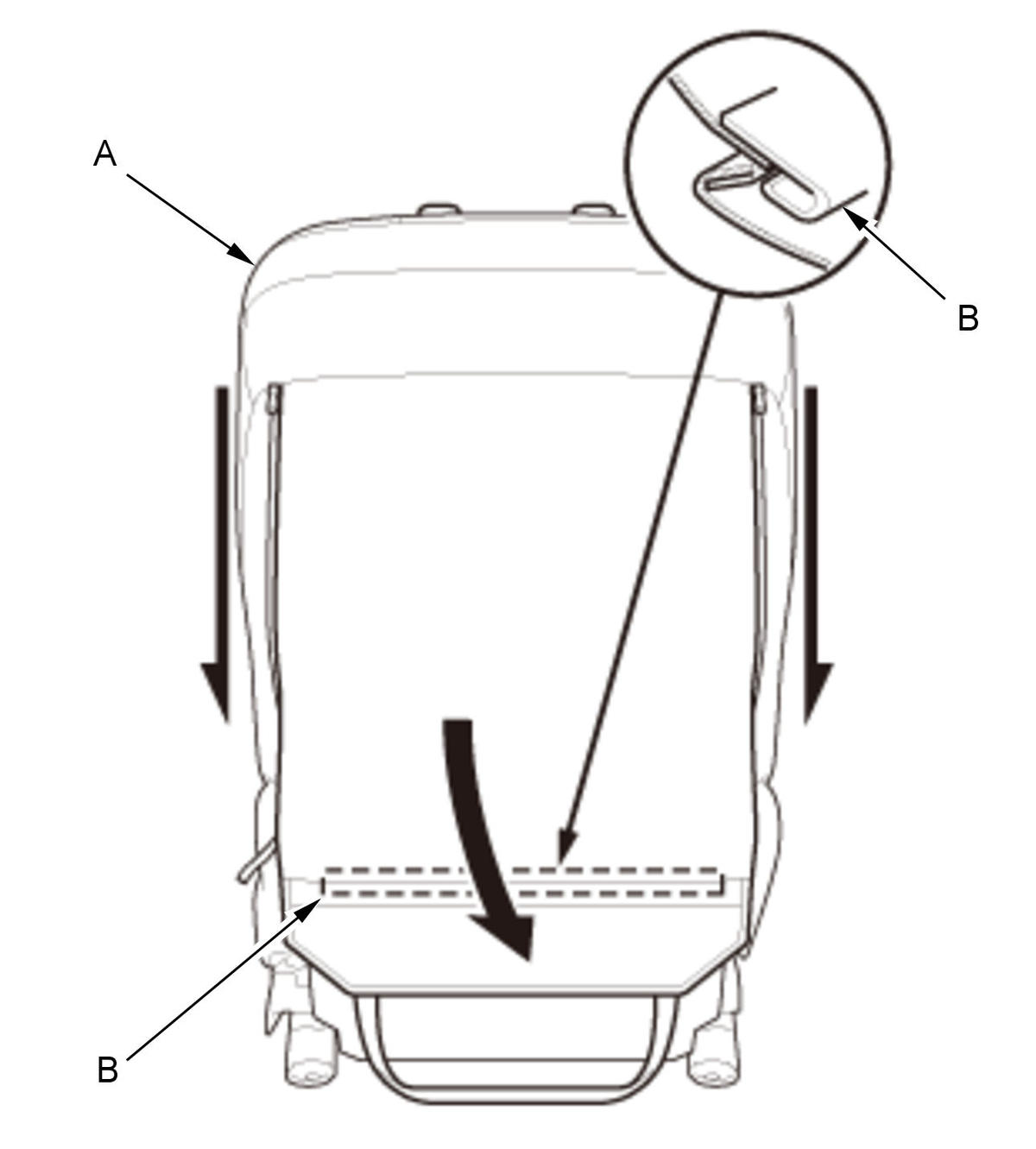

12. Zip the seat-back cover (A), and install the hook strip (B).

Front Seat-Back Harness - Install

Driver's seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Passenger's seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

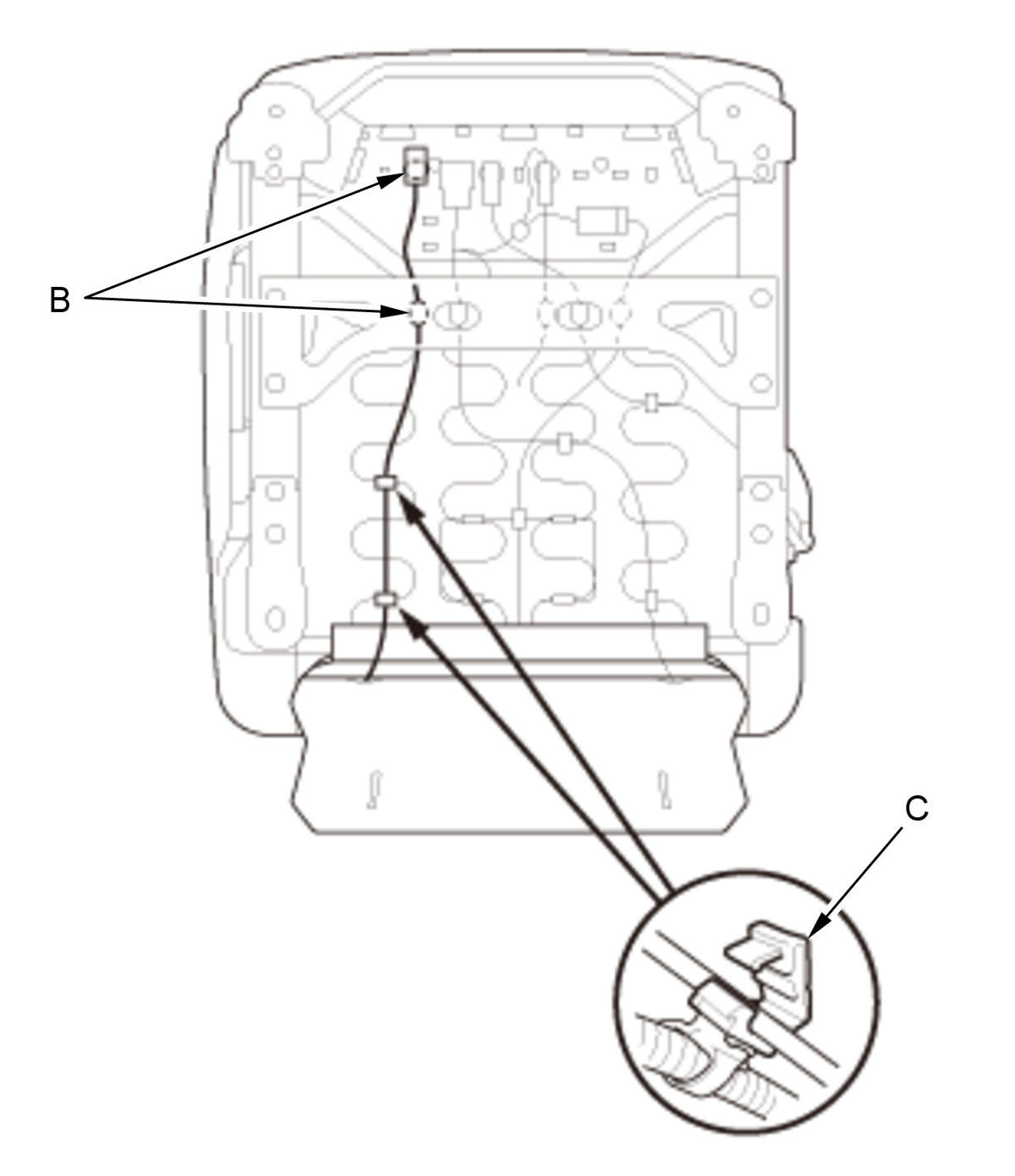

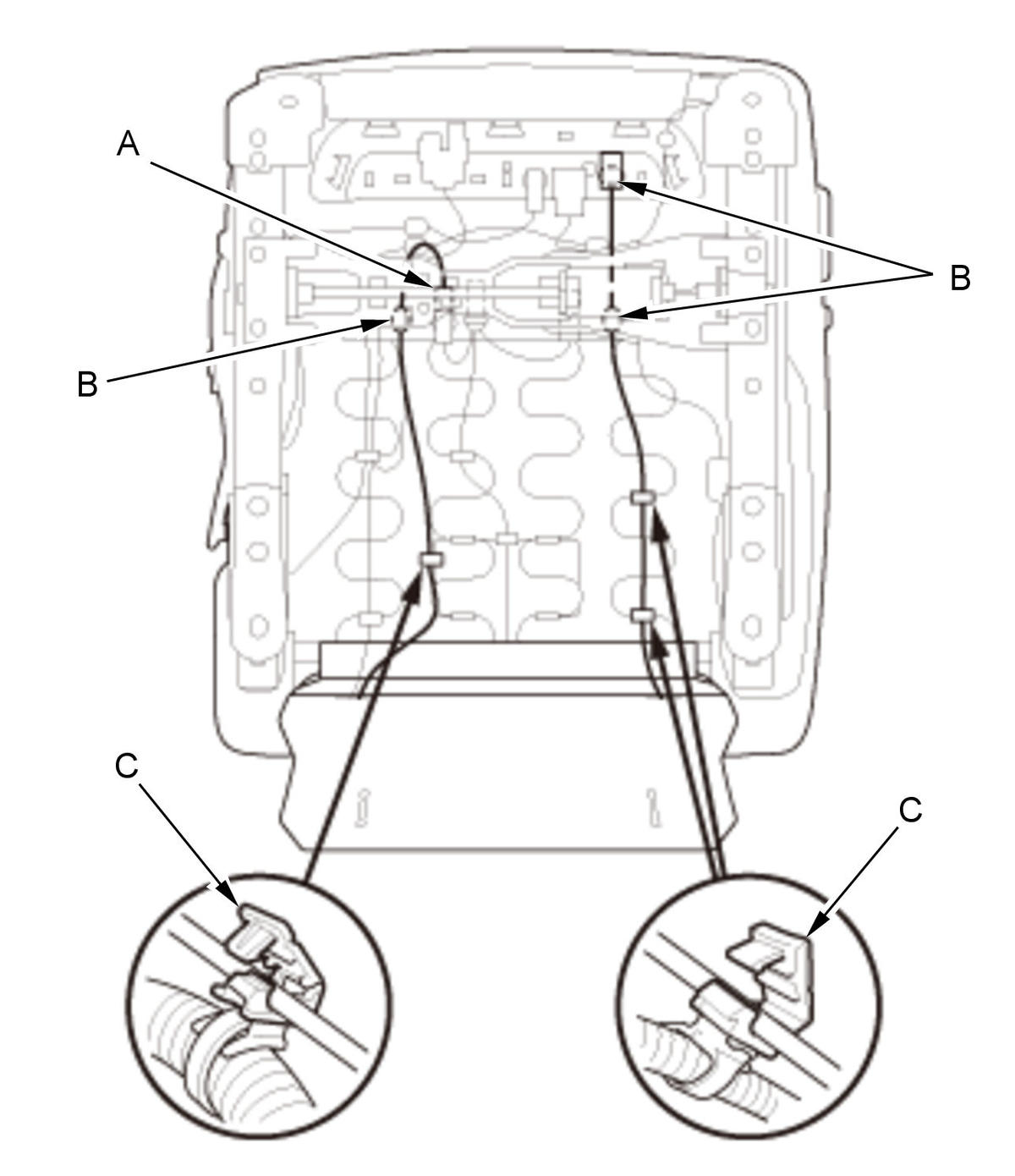

1. With seat heater: From under the seat cushion, connect the seat cushion heater connector (A).

2. Install the harness clips (B).

3. Install the harness holders (C).

Courtesy of HONDA, U.S.A., INC.

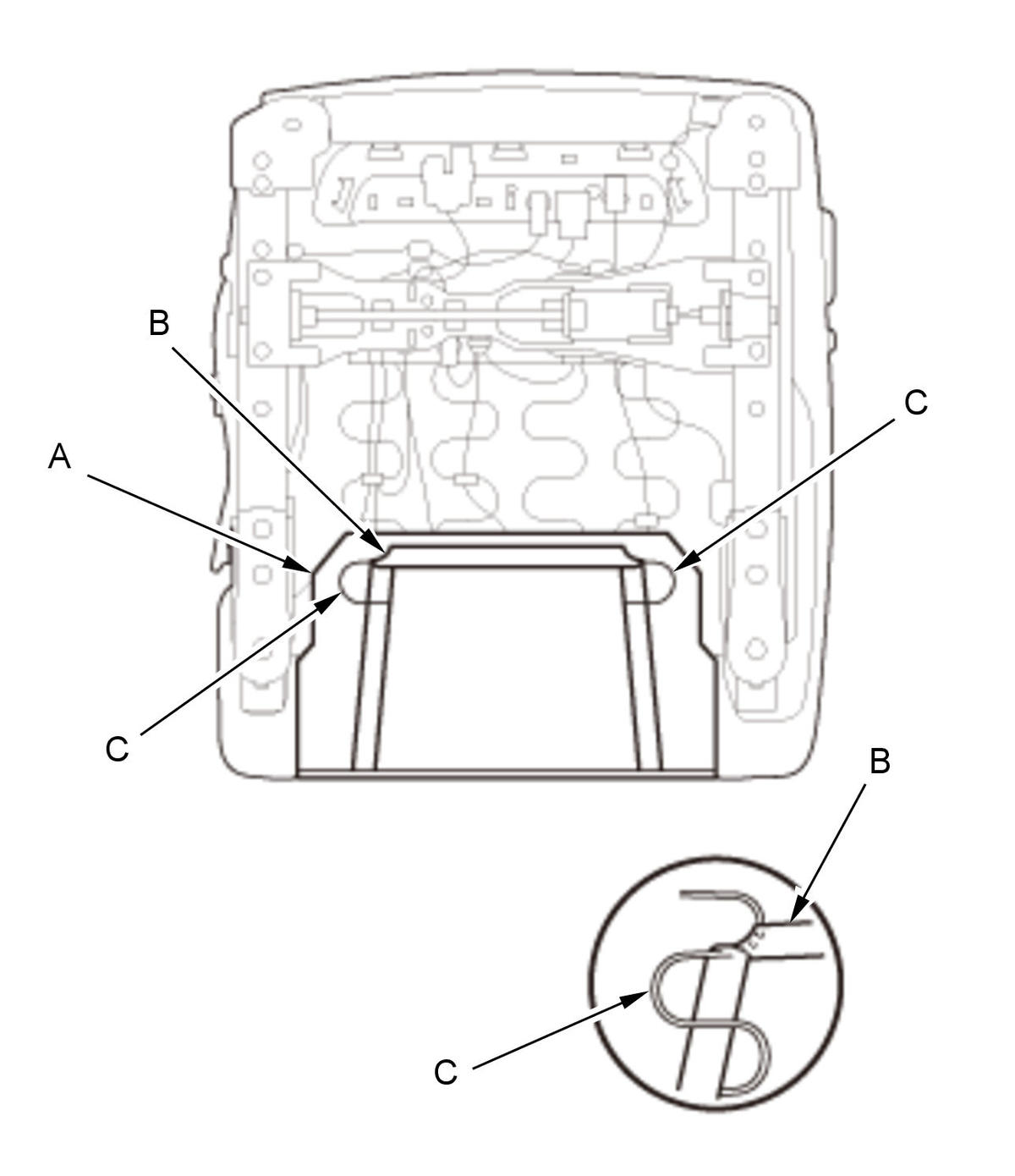

4. From under the seat cushion, install the undercover (A) of the seat-back cover, then install the elastic strap (B) to the seat cushion frame springs (C).

Front Seat - Install

1. Install the front seat .
OPDS Sensor (USA and Canada Models) - Initialize

1. Do the OPDS sensor initialization after front passenger's seat-back cover replacement .
