Front Seat Slide Lever: Removal

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Seat - Remove

   1. Remove the front seat .

2. Front Seat Slide Lever - Remove

   Courtesy of HONDA, U.S.A., INC.

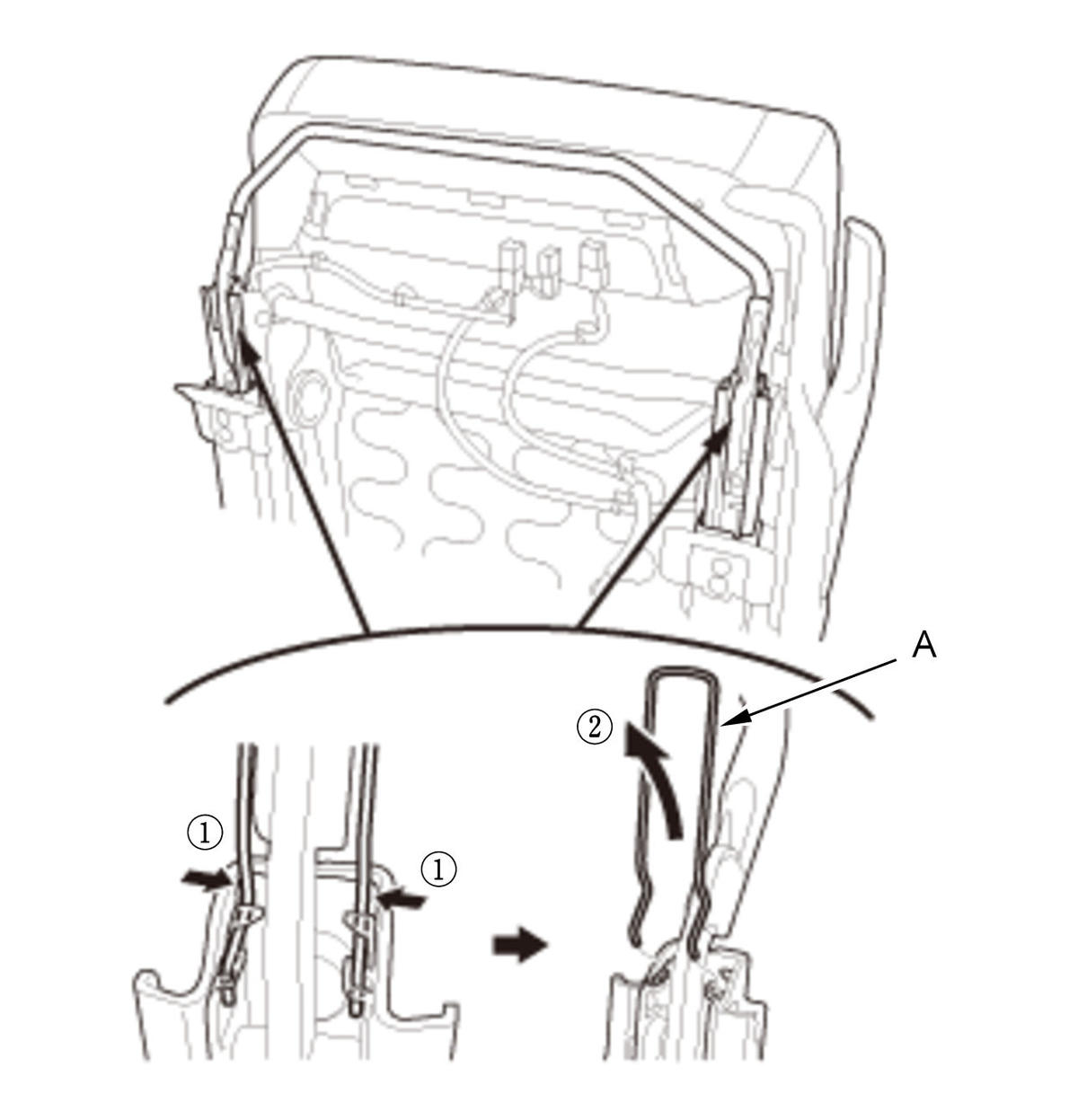

   1. Remove both seat slide lever springs (A).

   Courtesy of HONDA, U.S.A., INC.

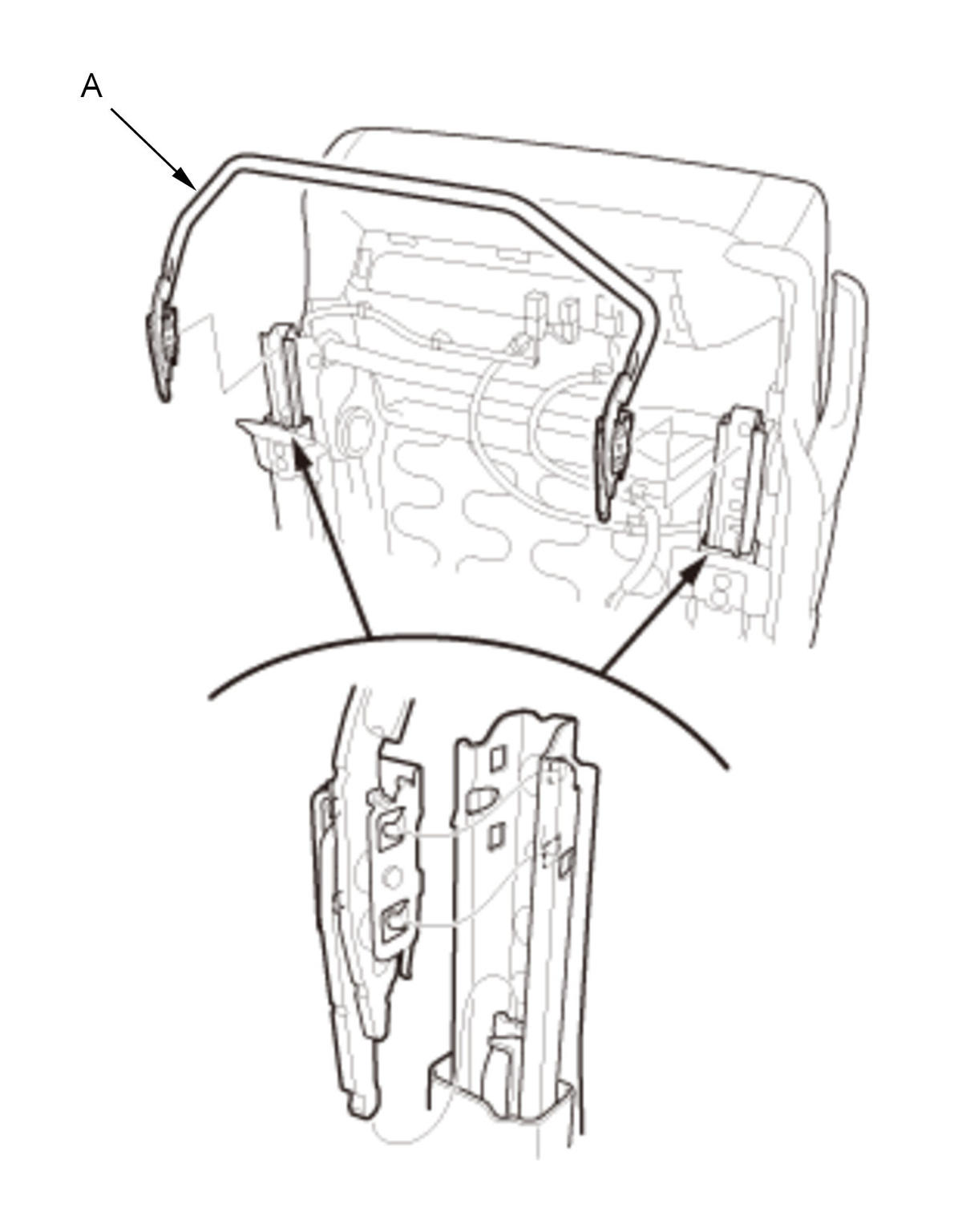

   2. Remove the seat slide lever (A).
