Front Seat Slide Lever: Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Seat Slide Lever - Install

   Courtesy of HONDA, U.S.A., INC.

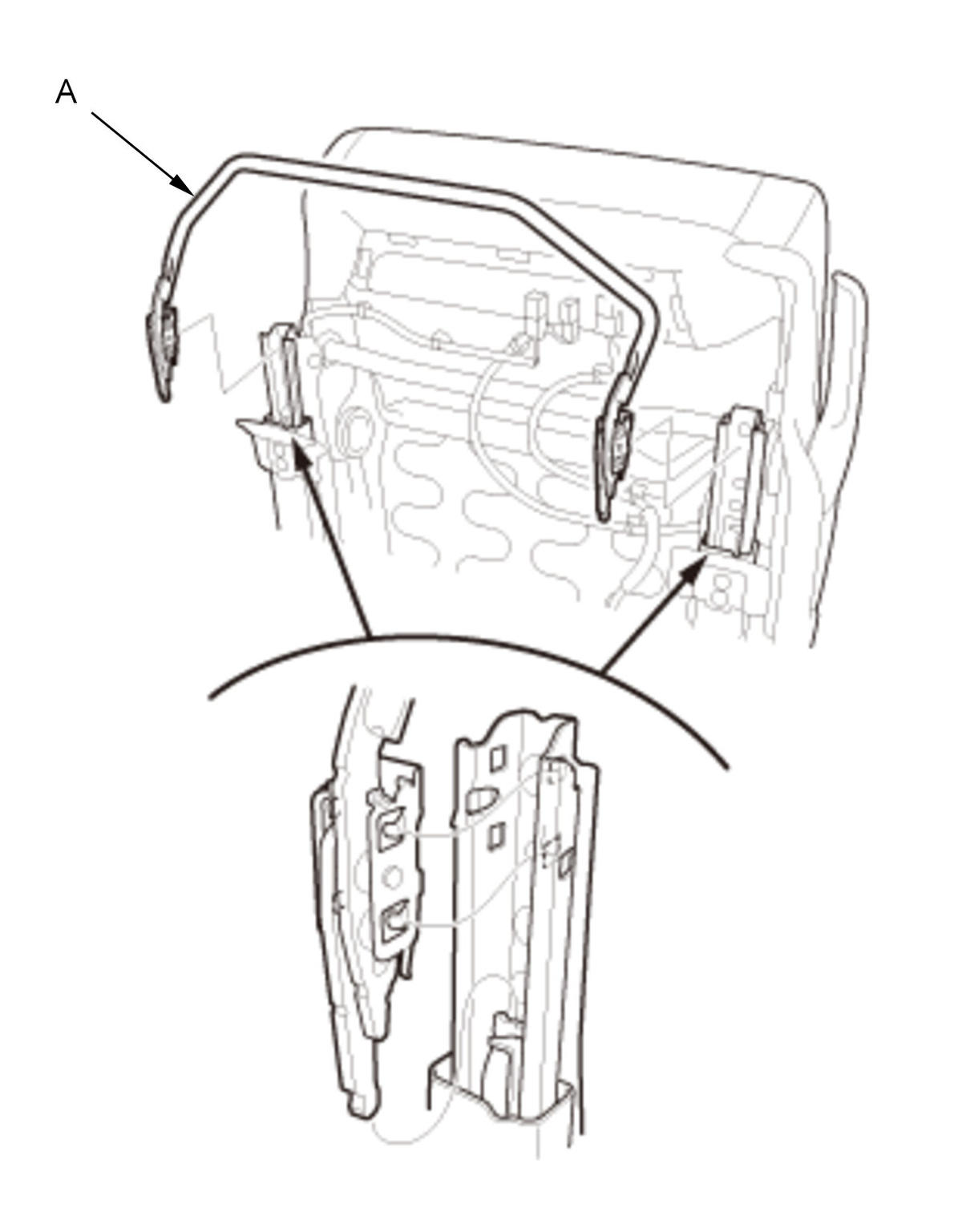

   1. Install the seat slide lever (A).

   Courtesy of HONDA, U.S.A., INC.

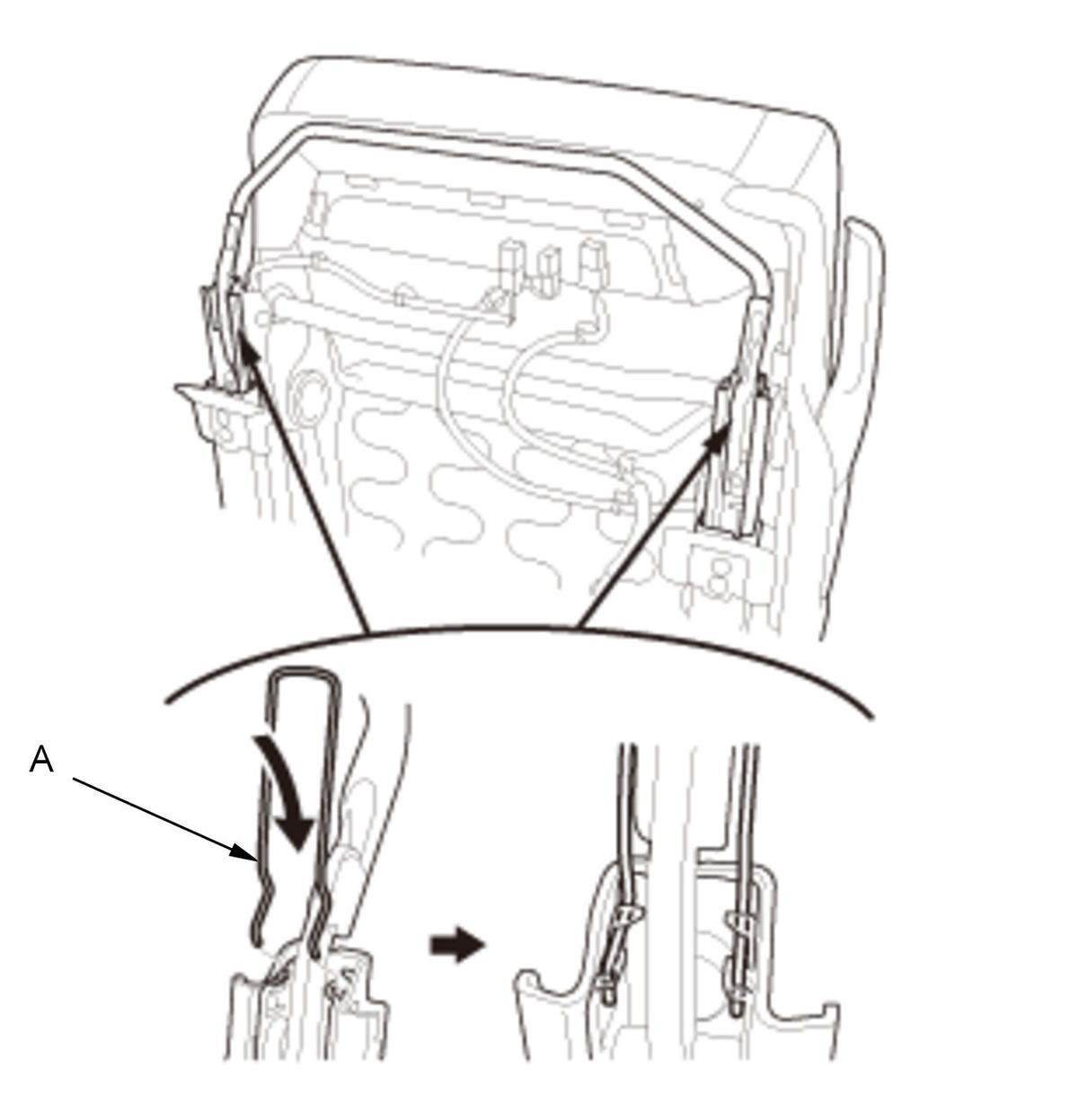

   2. Install both seat slide lever springs (A).

2. Front Seat - Install

   1. Install the front seat .
