Front Seat Rail: Removal

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Seat - Remove

   1. Remove the front seat .

2. Front Seat Recline Cover - Remove

   1. Remove the front seat recline cover .

3. Front Seat Center Cover - Remove

   1. Remove the front seat center cover .

4. Front Seat Belt Buckle - Remove

   1. Remove the front seat belt buckle .

5. Upper Rail Outer Cover - Remove

   Courtesy of HONDA, U.S.A., INC.

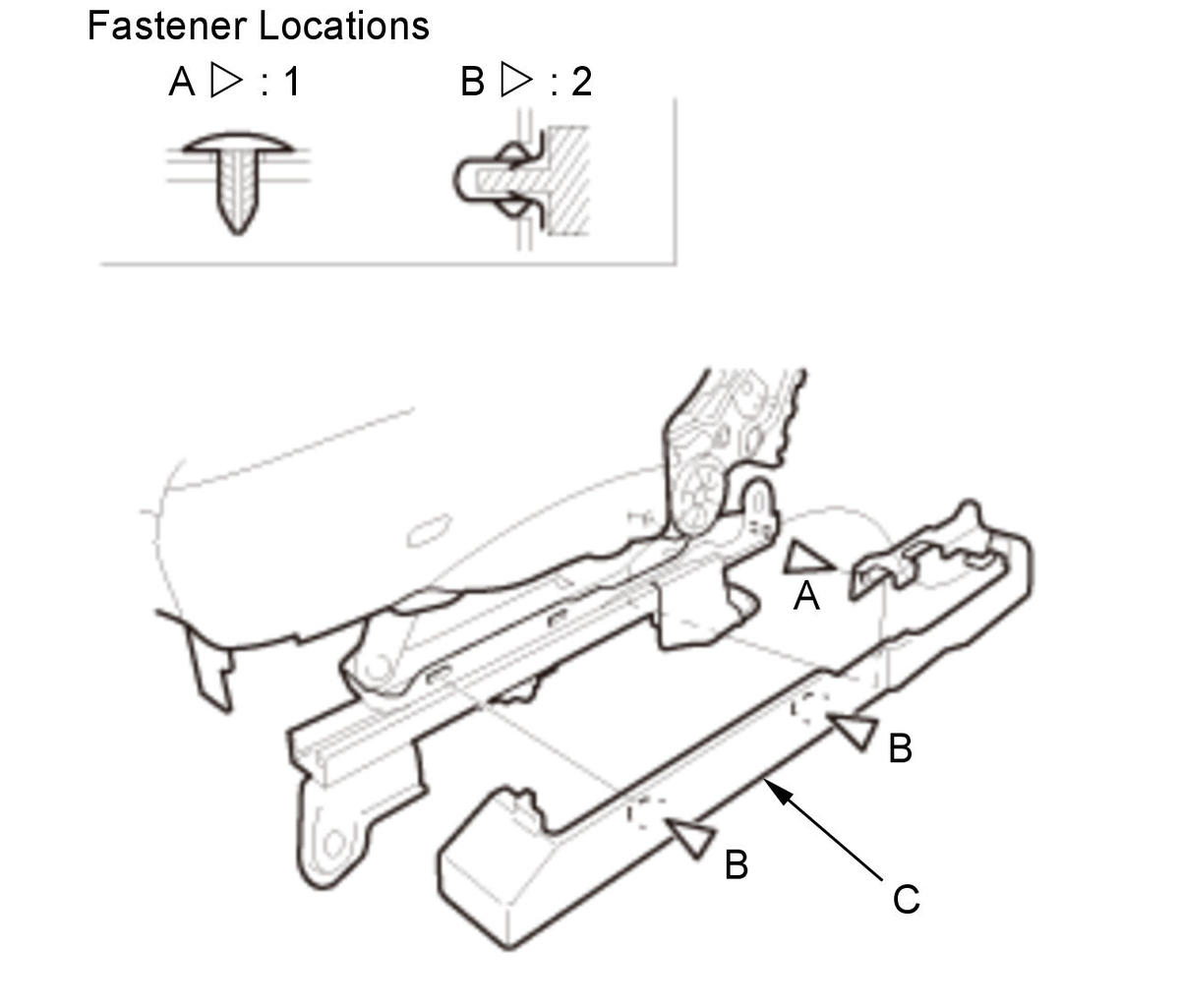

   1. Remove the clips (A, B), then remove the upper rail outer cover (C).

6. Upper Rail Inner Cover - Remove

   Courtesy of HONDA, U.S.A., INC.

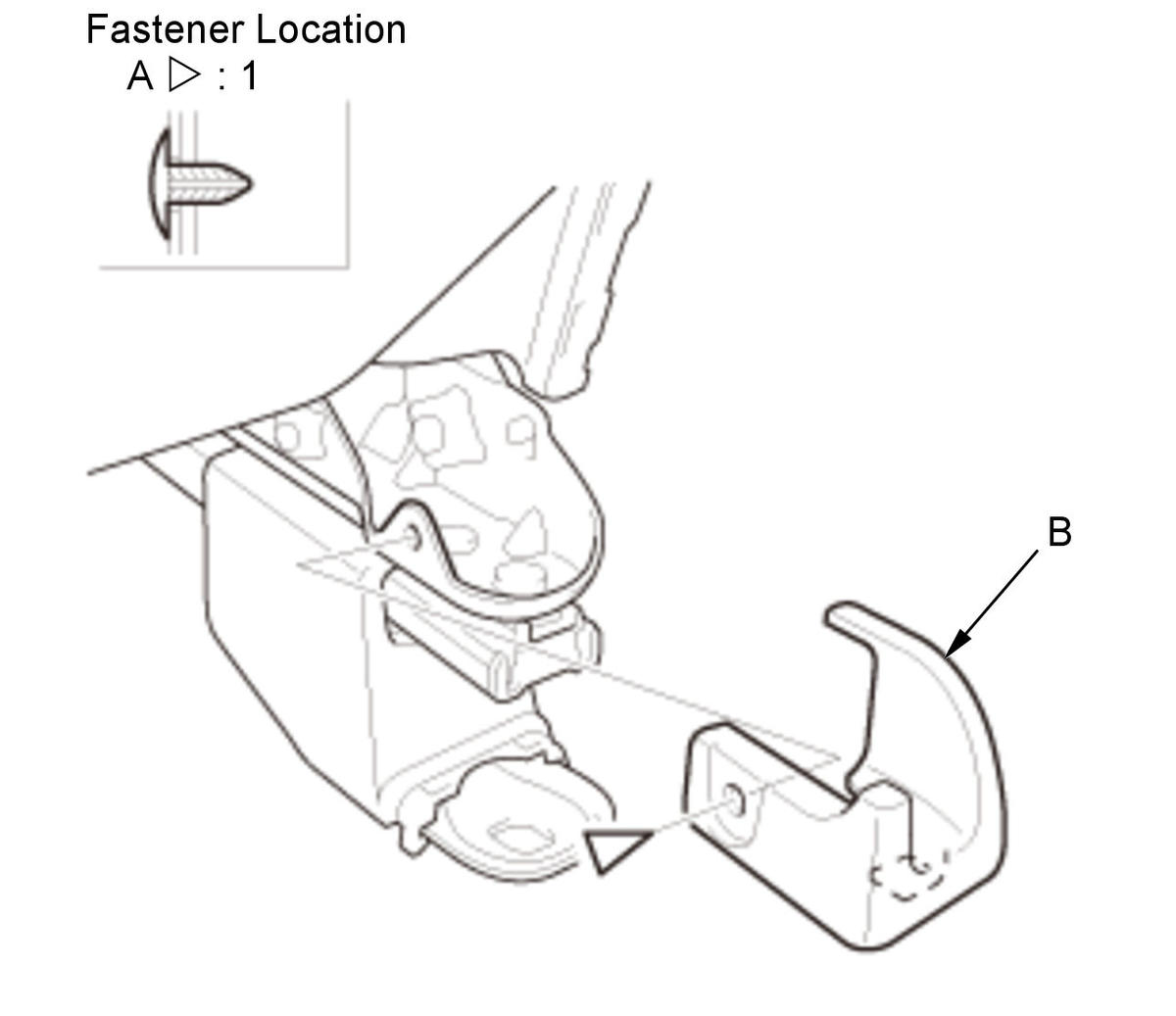

   1. Remove the clip (A), then remove the upper rail inner cover (B).

7. Driver's Seat Position Sensor (USA and Canada Models) - Remove

   1. Remove the driver's seat position sensor .

8. Front Seat Rail - Remove

   Courtesy of HONDA, U.S.A., INC.

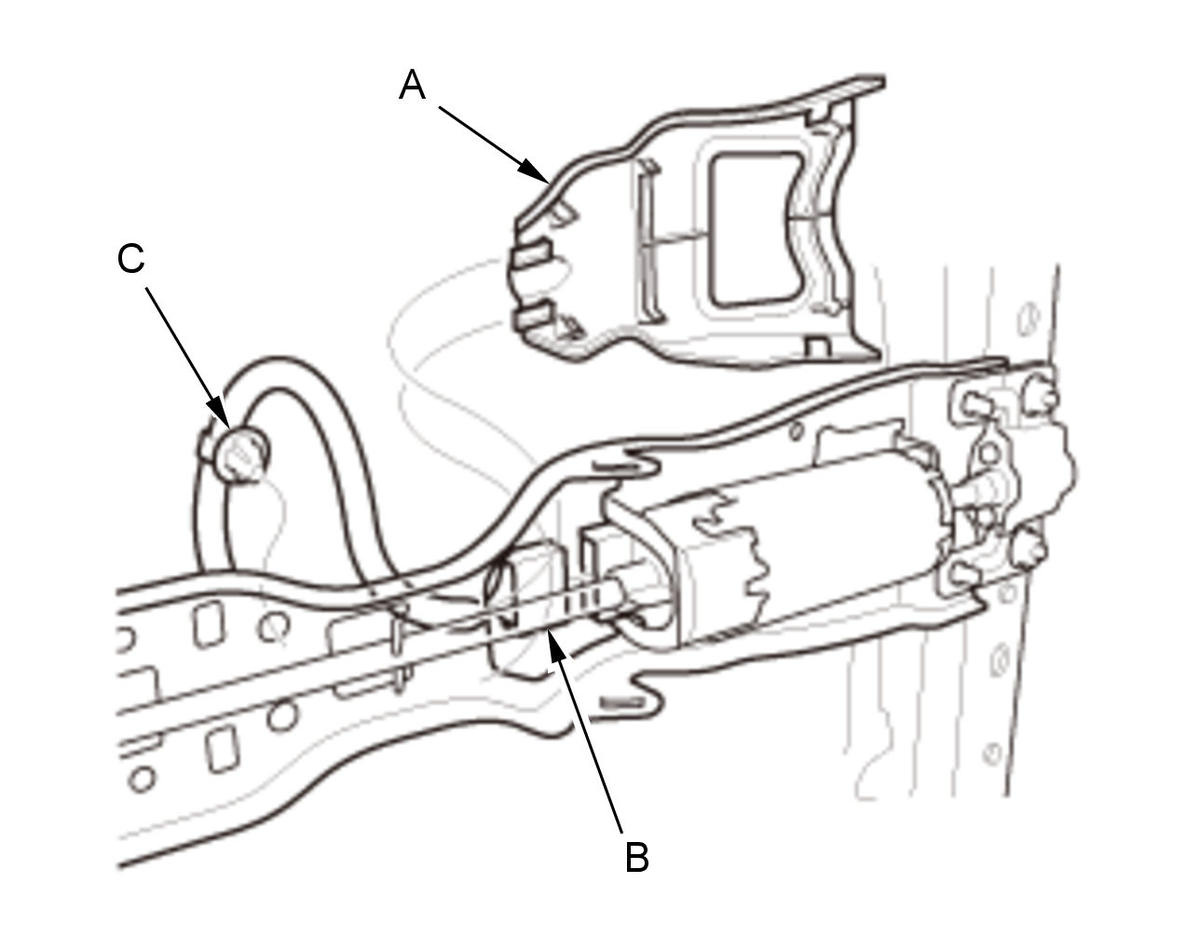

   1. Remove the slide motor cover (A). 2. Disconnect the slide motor connector (B), then remove the harness clip (C).

   Courtesy of HONDA, U.S.A., INC.

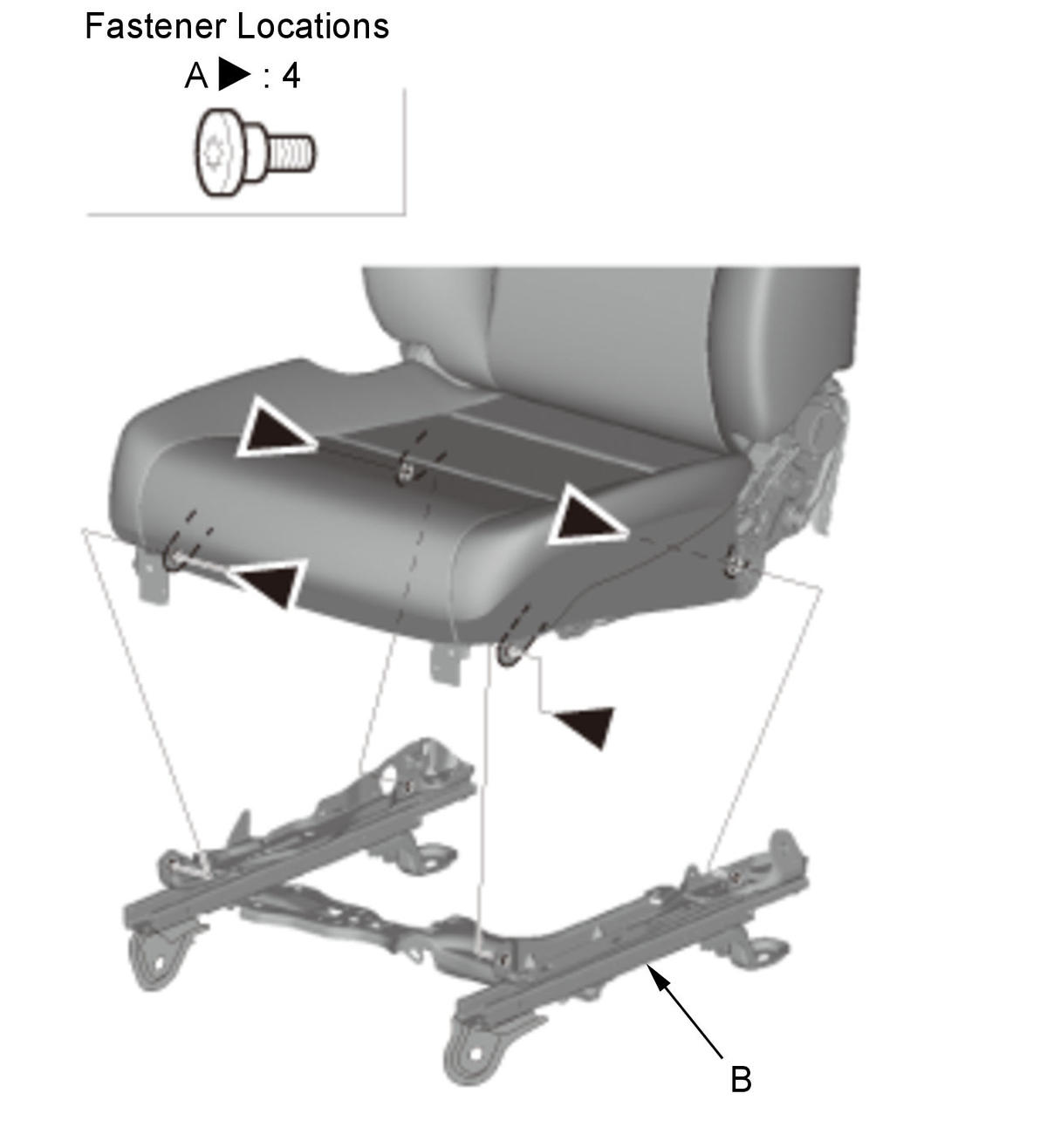

   3. Remove the bolts (A) with a TORX T30 bit, then remove the front seat rail (B).
