Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Seat-Back Cover/Pad - Remove
2. Front Seat Cushion Cover/Pad - Remove
3. Upper Rail Outer Cover - Remove
4. Upper Rail Inner Cover - Remove
5. Front Seat Belt Buckle - Remove
6. ODS Unit - Remove (USA and Canada Models)
7. Side Airbag - Remove
8. Front Seat Lumbar Support - Remove ( '19-21 Driver's Seat)
9. Front Seat Frame - Remove

   Courtesy of HONDA, U.S.A., INC.

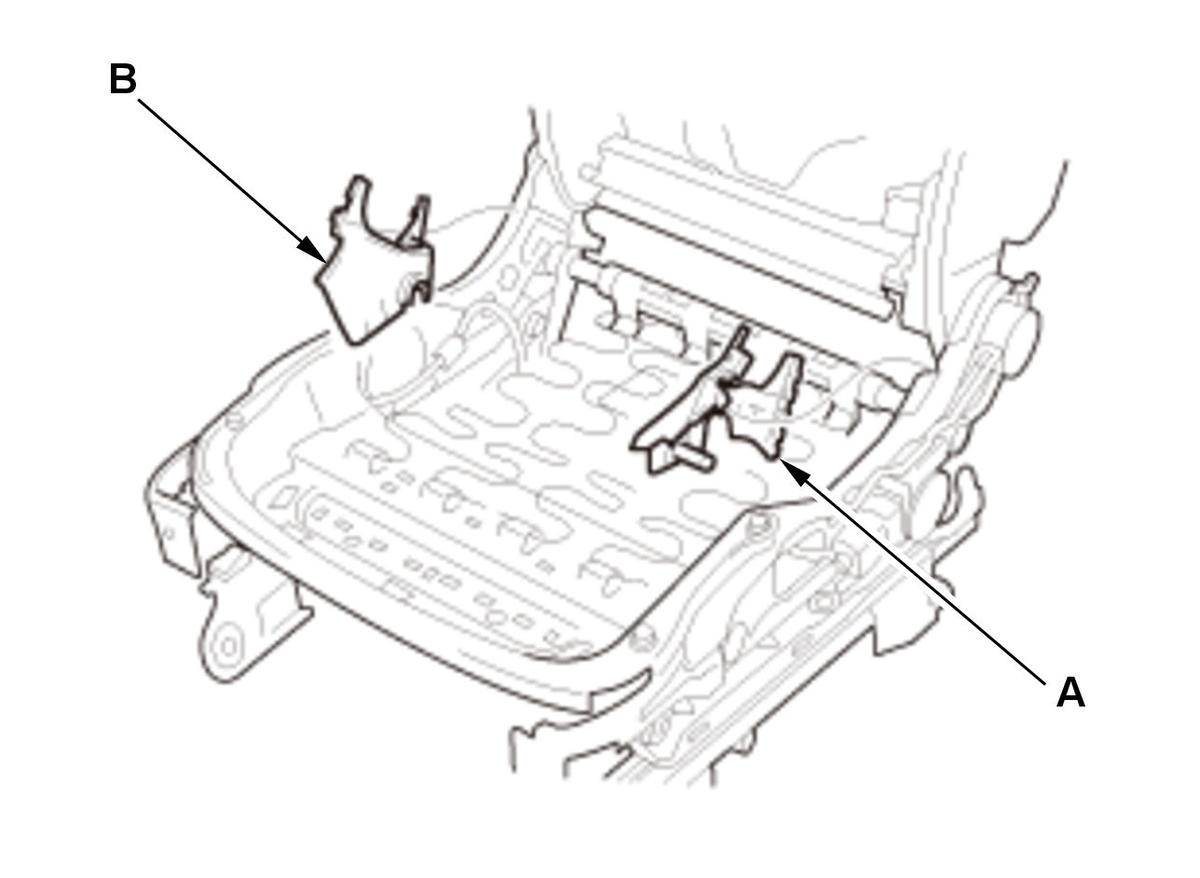

   1. Remove the recline inner cover (A) and the center inner cover (B) from the seat frame.

   Courtesy of HONDA, U.S.A., INC.

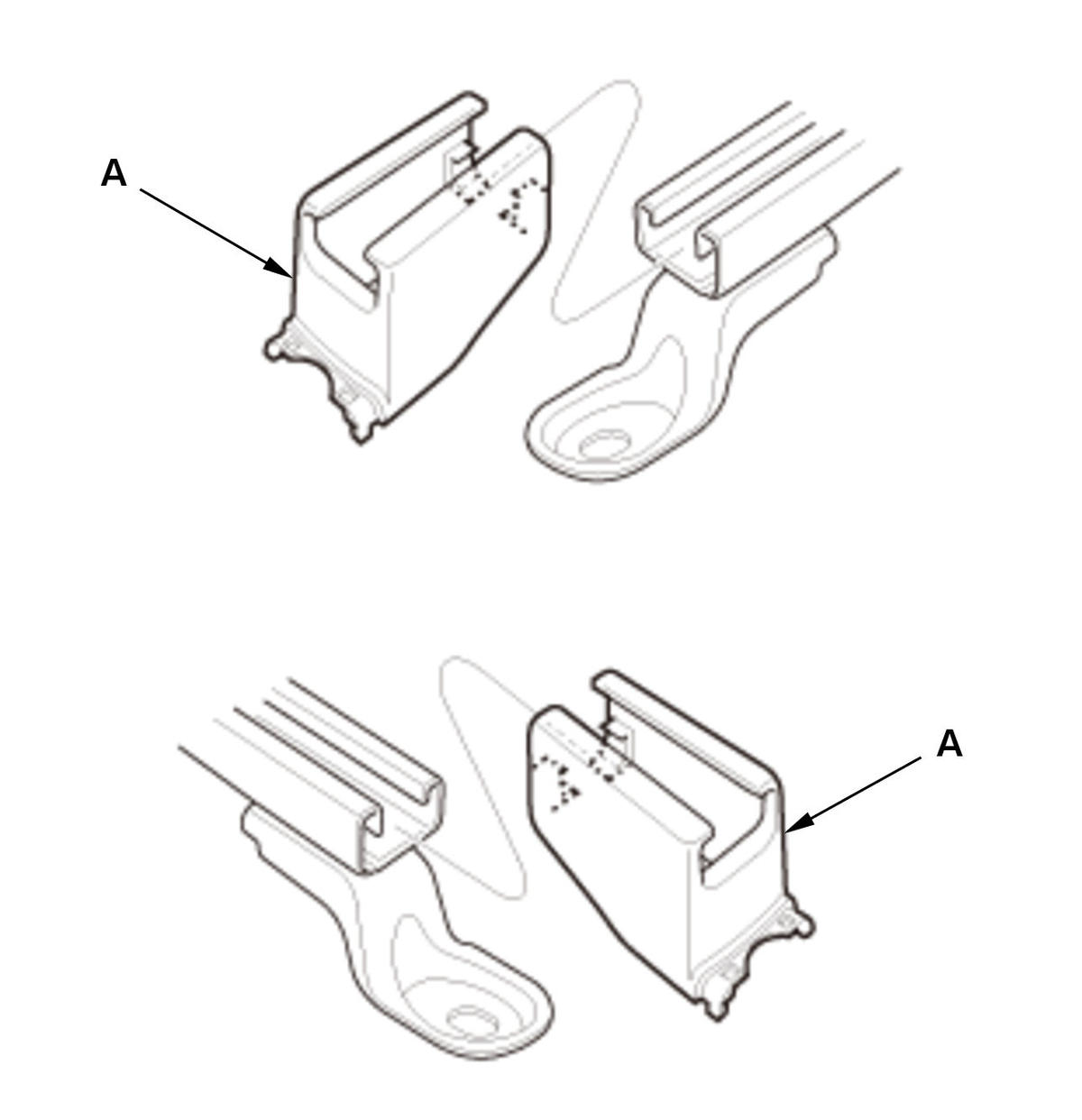

   2. Remove the seat track end covers (A) from the back of both seat tracks.

10. All Removed Parts - Install

    1. Install the parts in the reverse order of removal.

11. Driver's Seat Position Sensor - Operation Check (USA and Canada Models)
12. Front Passenger's Weight Sensor - Initialize (USA and Canada Models)
