Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

Front Seat - Remove
Front Seat Recline Cover - Remove
Front Seat Center Cover - Remove
Power Seat Control Unit - Remove (Driver's Seat)

Front Seat Cushion Harness - Remove

Courtesy of HONDA, U.S.A., INC.

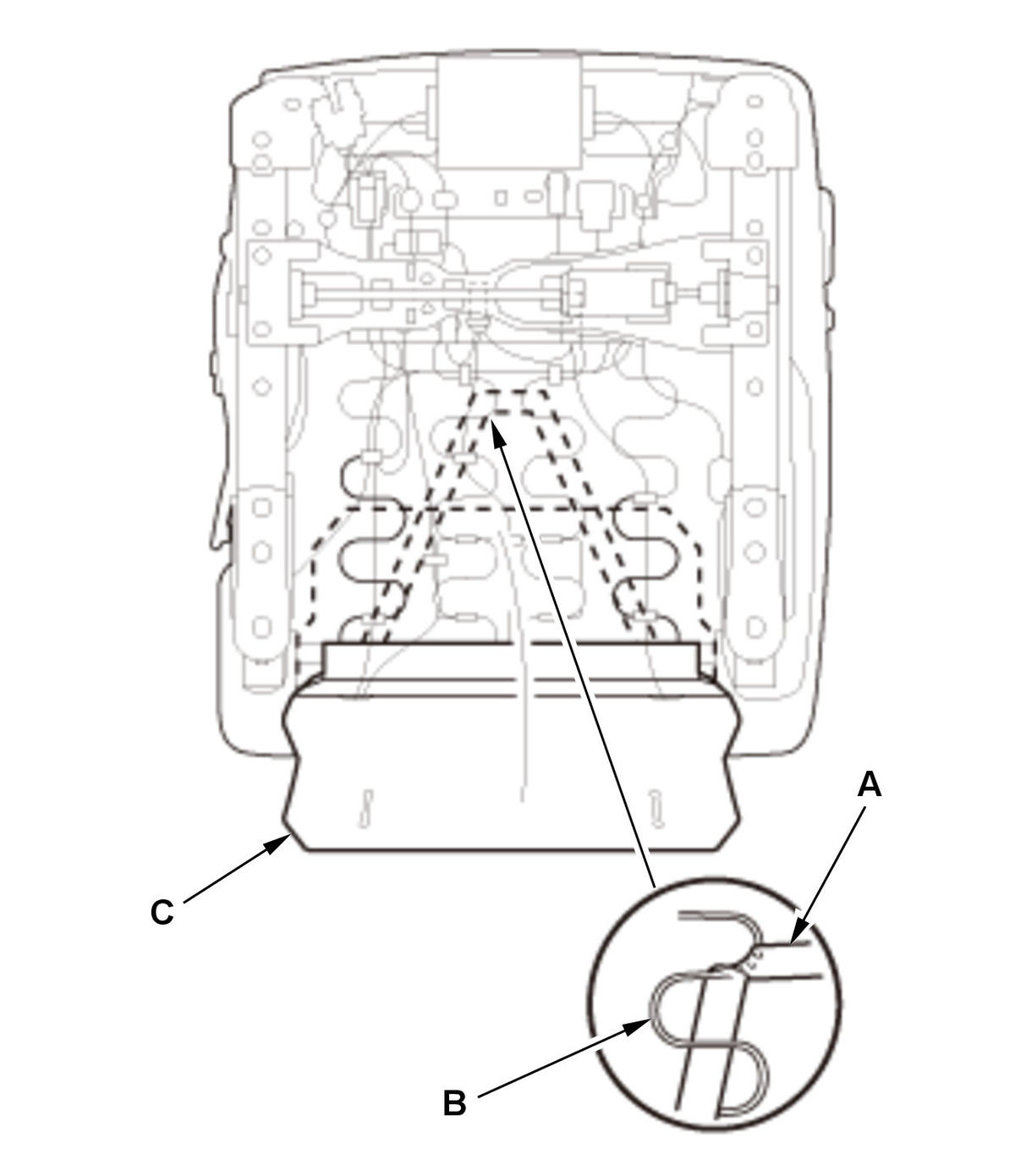

1. From under the seat cushion, release the elastic strap (A) from the seat cushion frame springs (B), then pull back the undercover (C) of the seat-back cover.

Driver's Seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

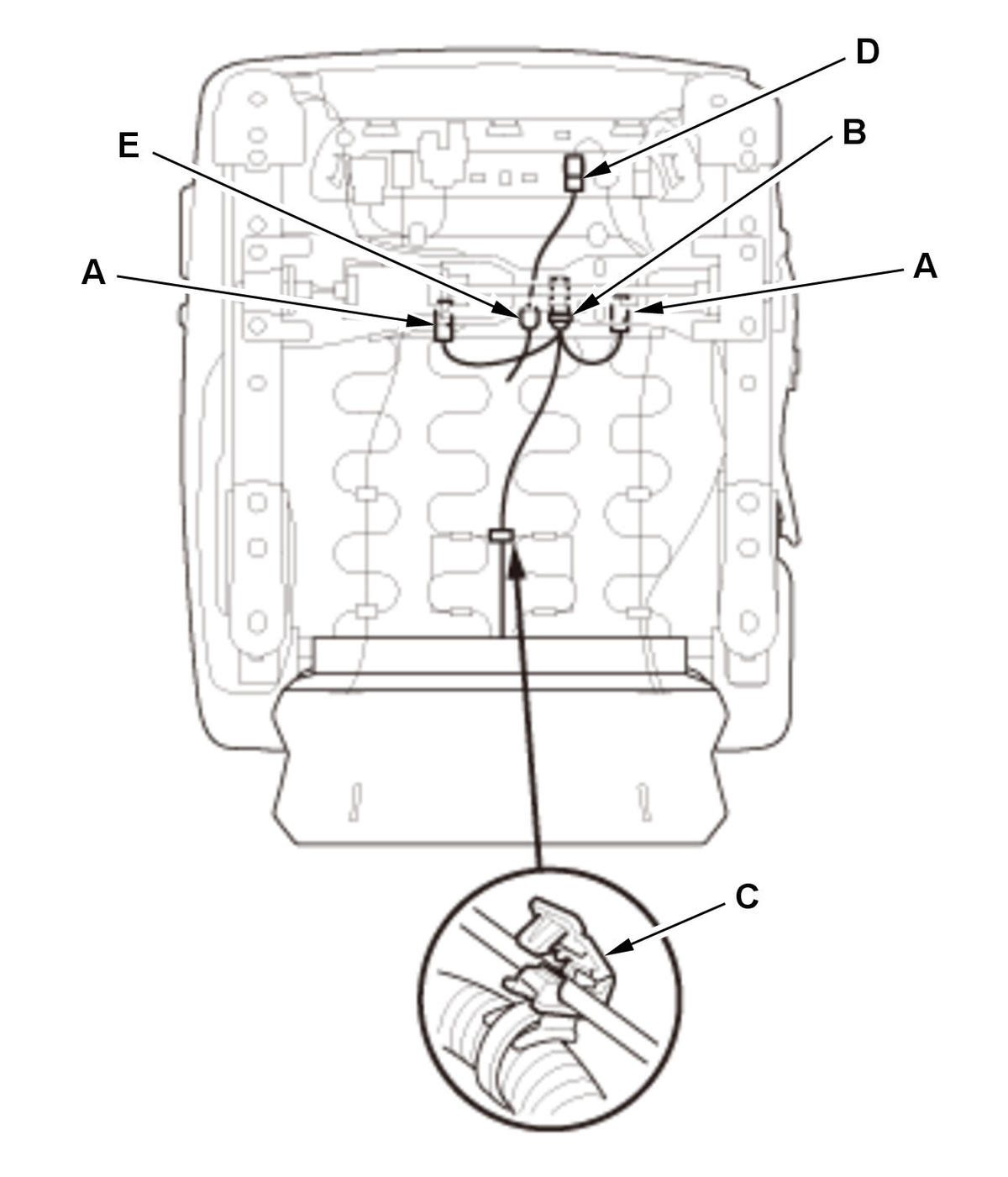

Passenger's Seat

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

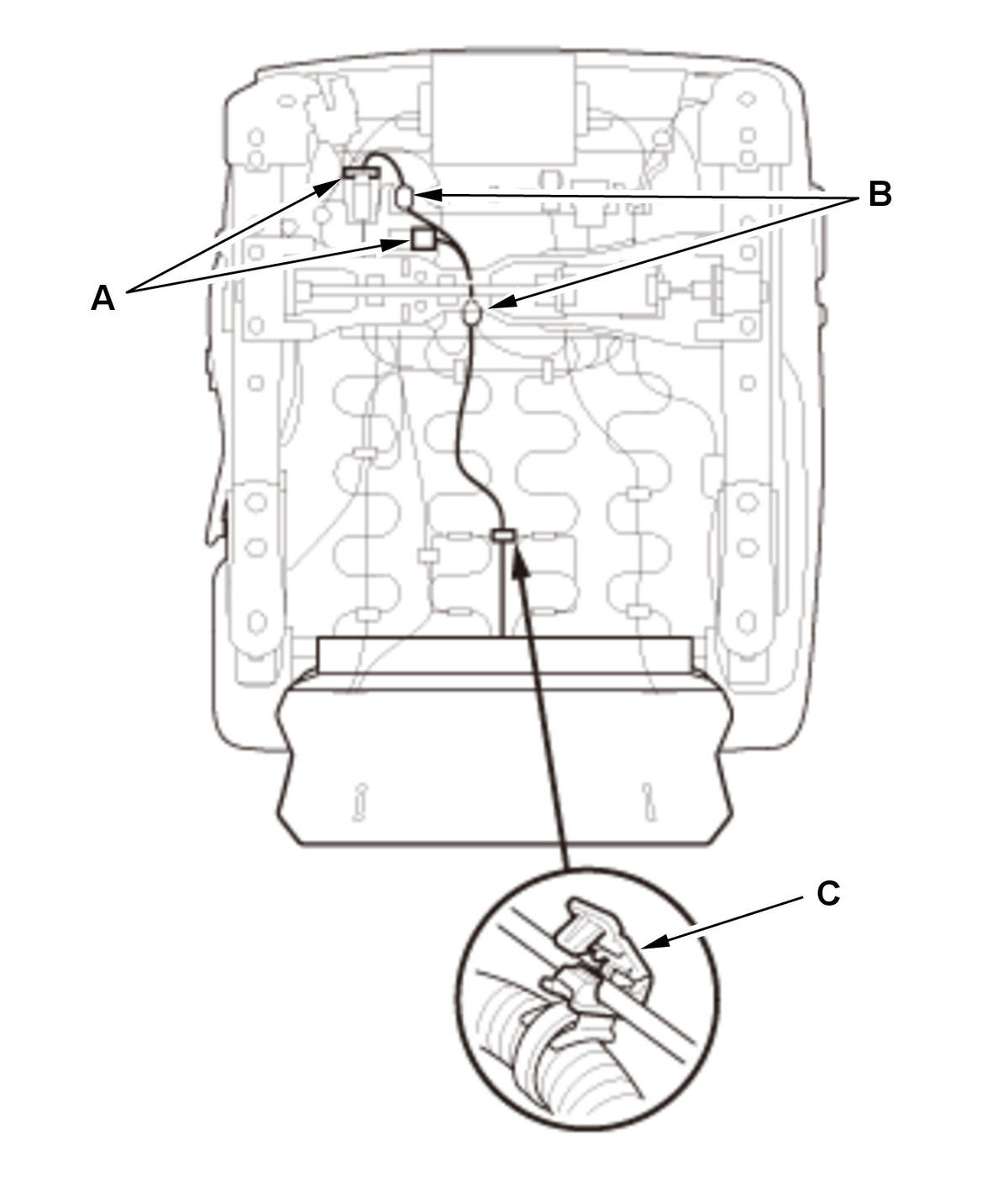

2. With seat heater: Disconnect the connectors (A).

3. Remove the harness clip(s) (B) and the harness holder (C).

4. Passenger's seat (Mexico models): Disconnect the connector (D), and remove the harness clip (E).

Front Seat Cushion Cover/Pad - Remove

Courtesy of HONDA, U.S.A., INC.

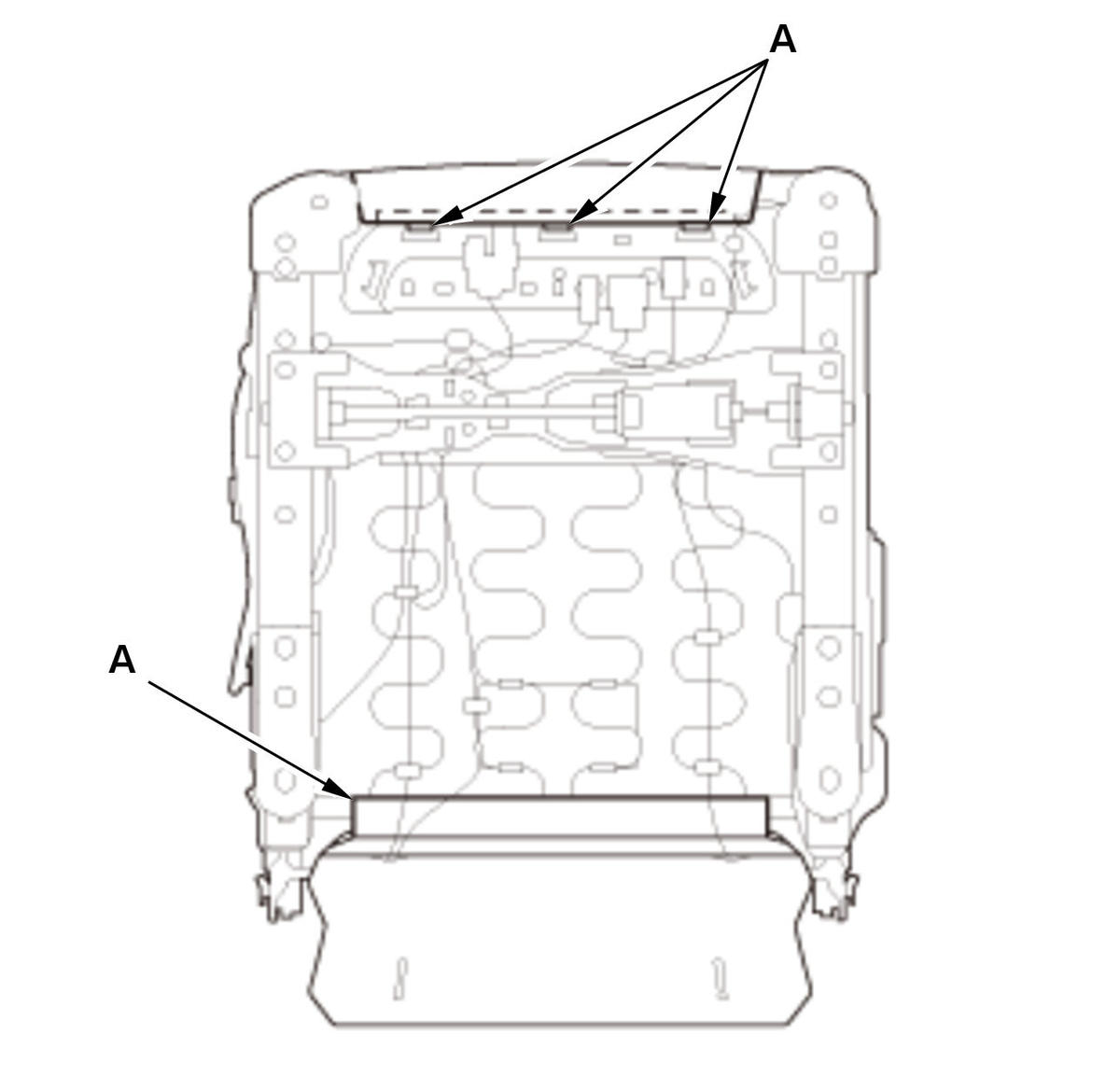

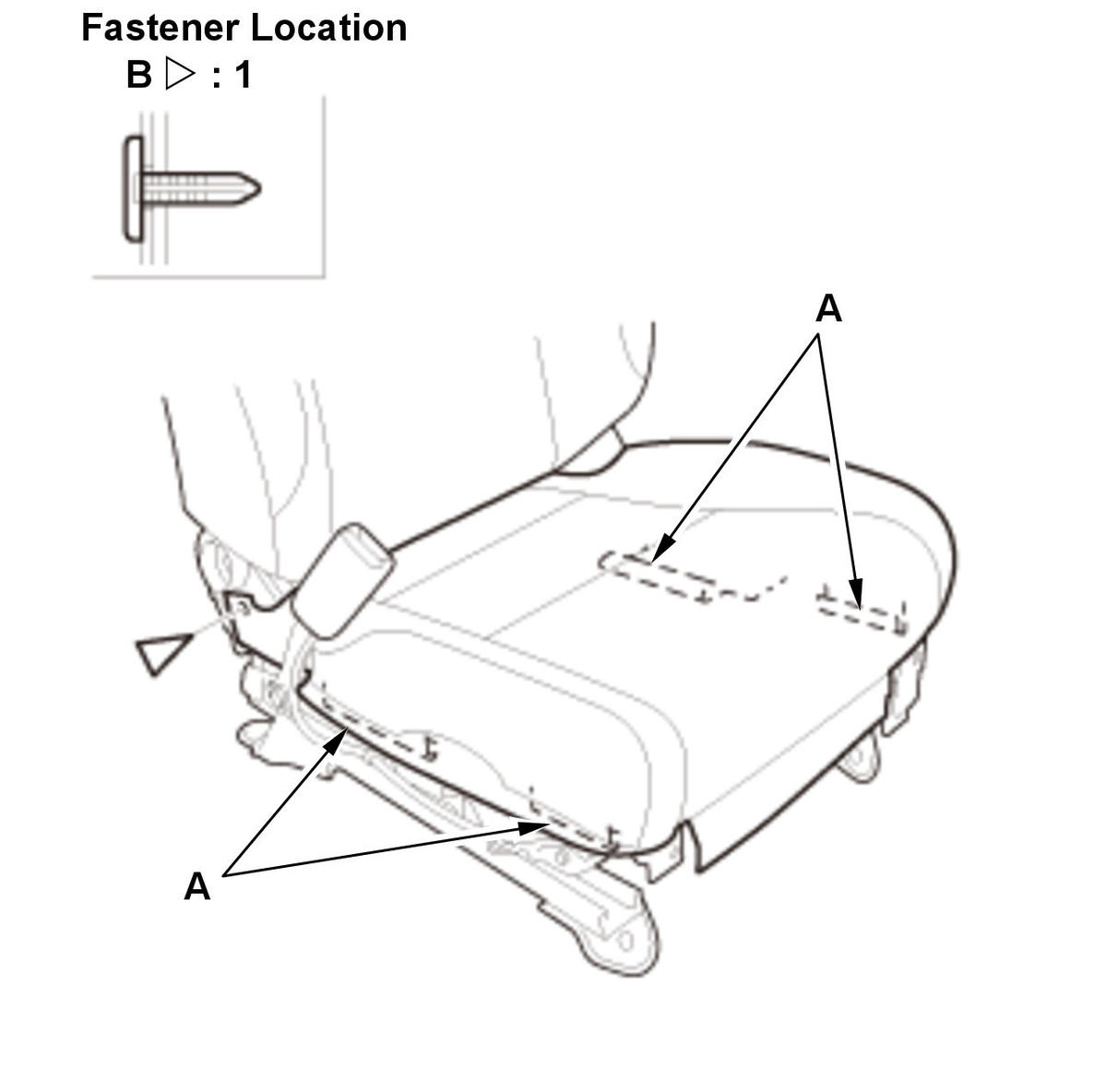

1. Release the hook strips (A).

Courtesy of HONDA, U.S.A., INC.

2. Release the hook strips (A).

3. Remove the clip (B).

Courtesy of HONDA, U.S.A., INC.

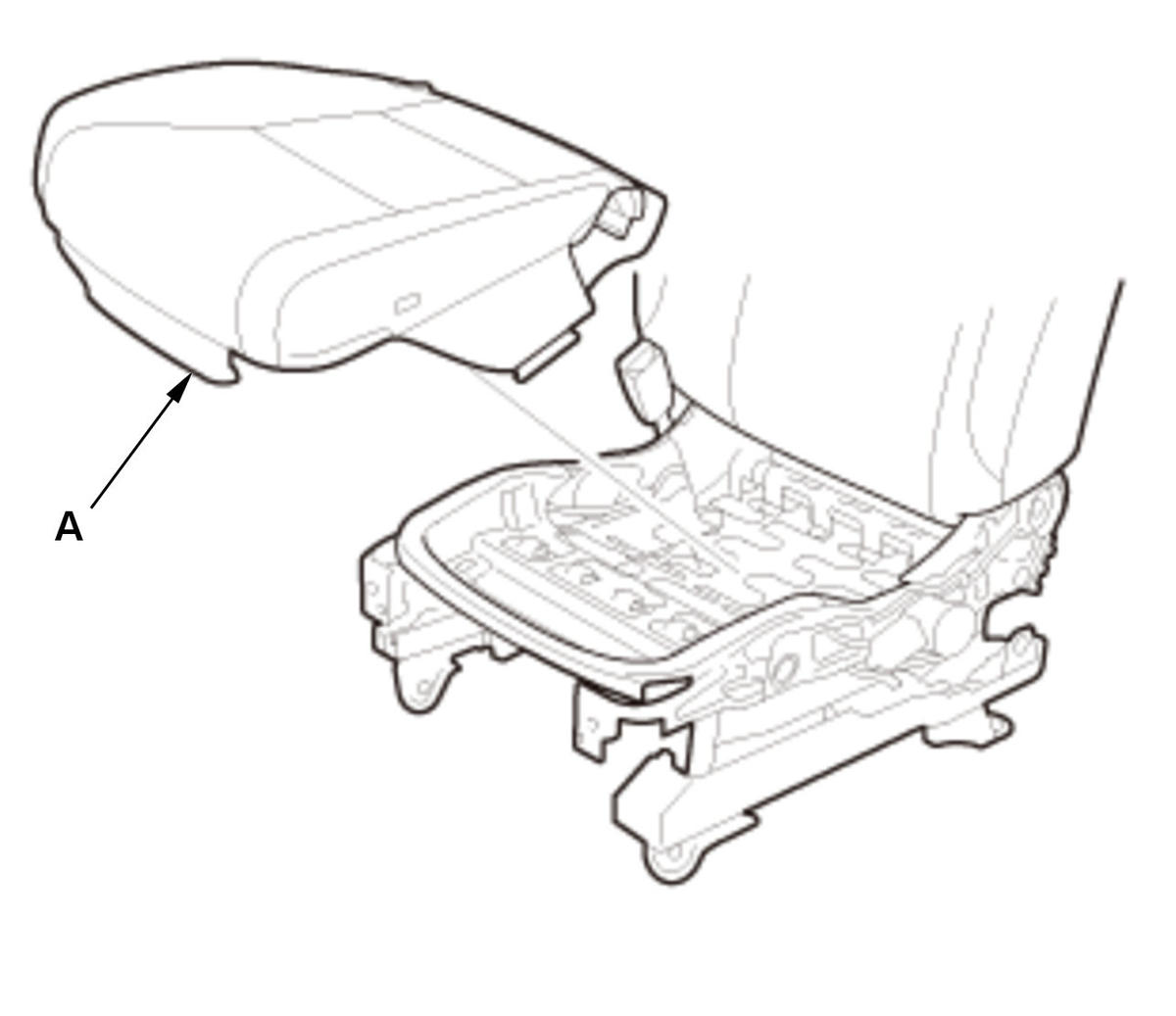

4. Remove the seat cushion cover/pad (A).

Front Seat Cushion Cover - Remove

Courtesy of HONDA, U.S.A., INC.

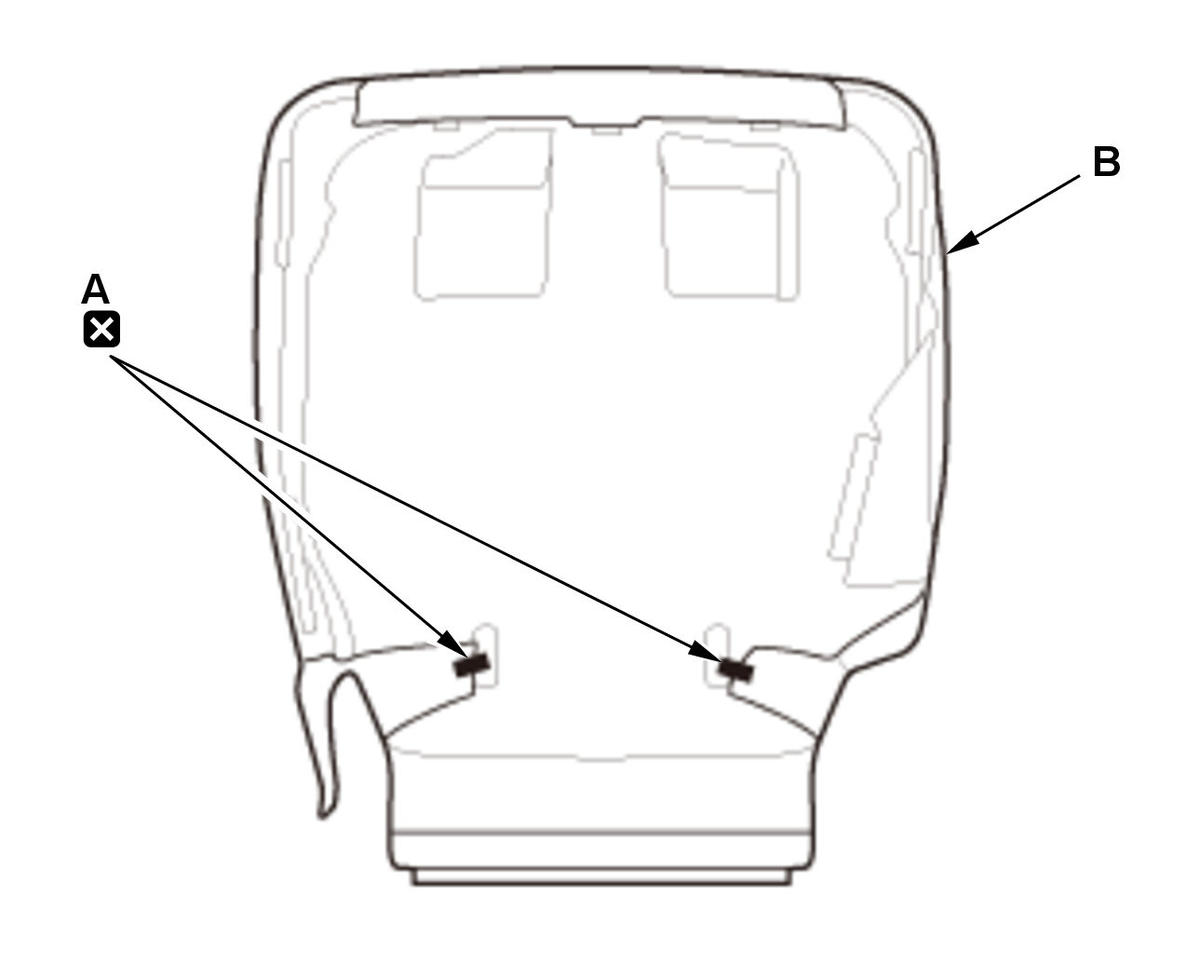

1. Remove the upholstery rings (A) securing the seat cushion cover (B).

'16-18

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

'19-21

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

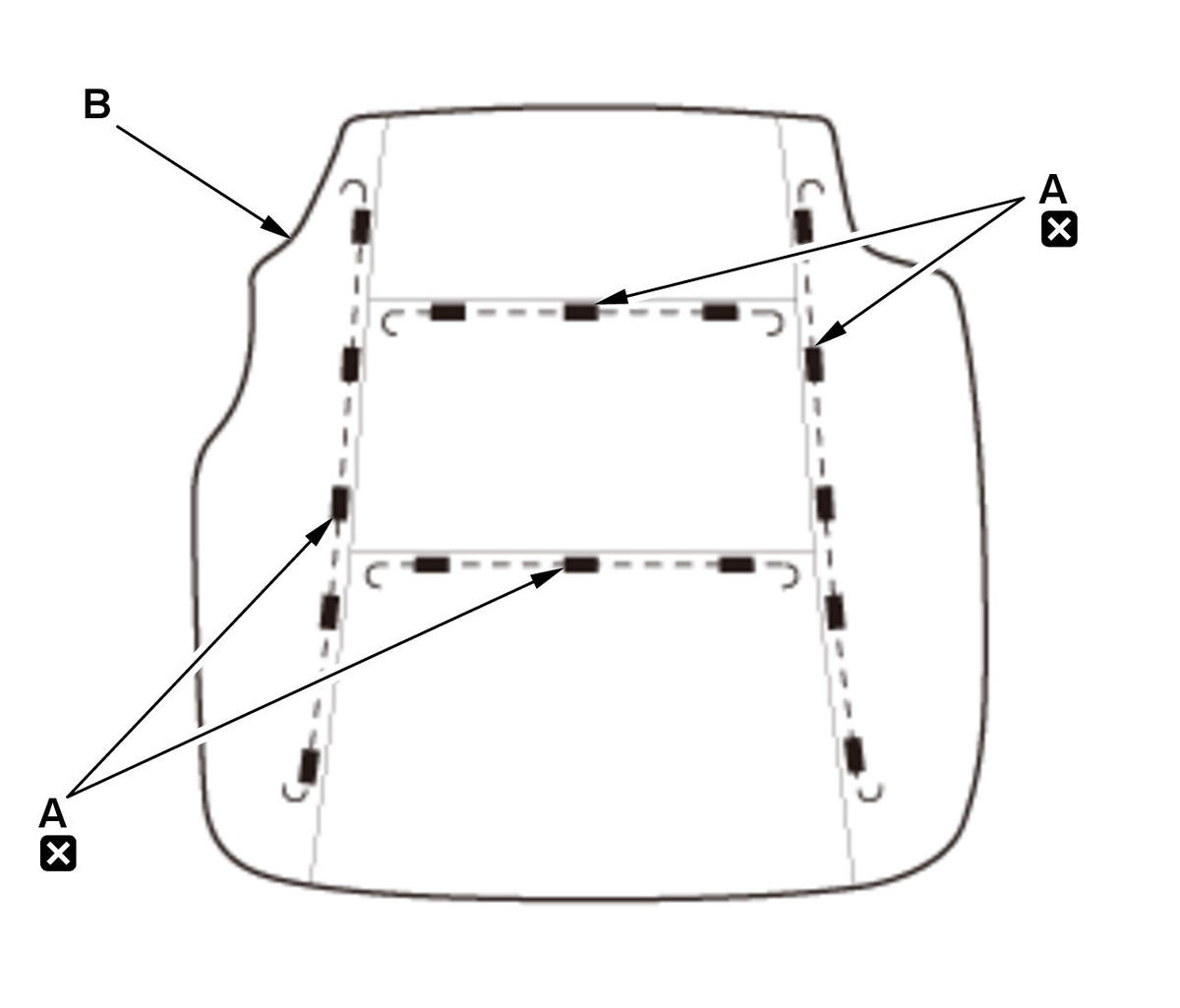

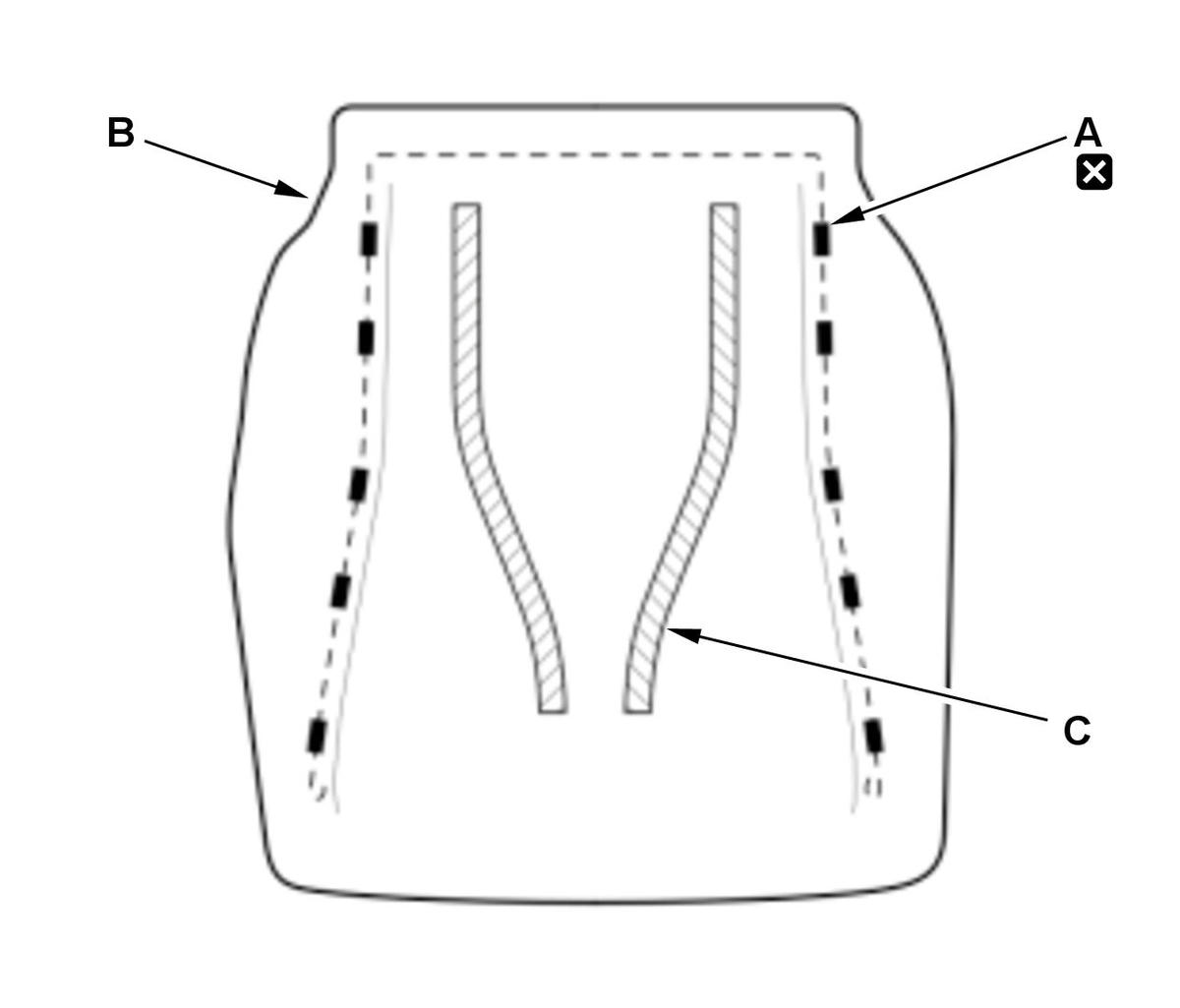

2. Release the upholstery rings (A), then remove the seat cushion cover (B).

3. '19-21: Remove the hook and loop fasteners (C).

All Removed Parts - Install

Courtesy of HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.

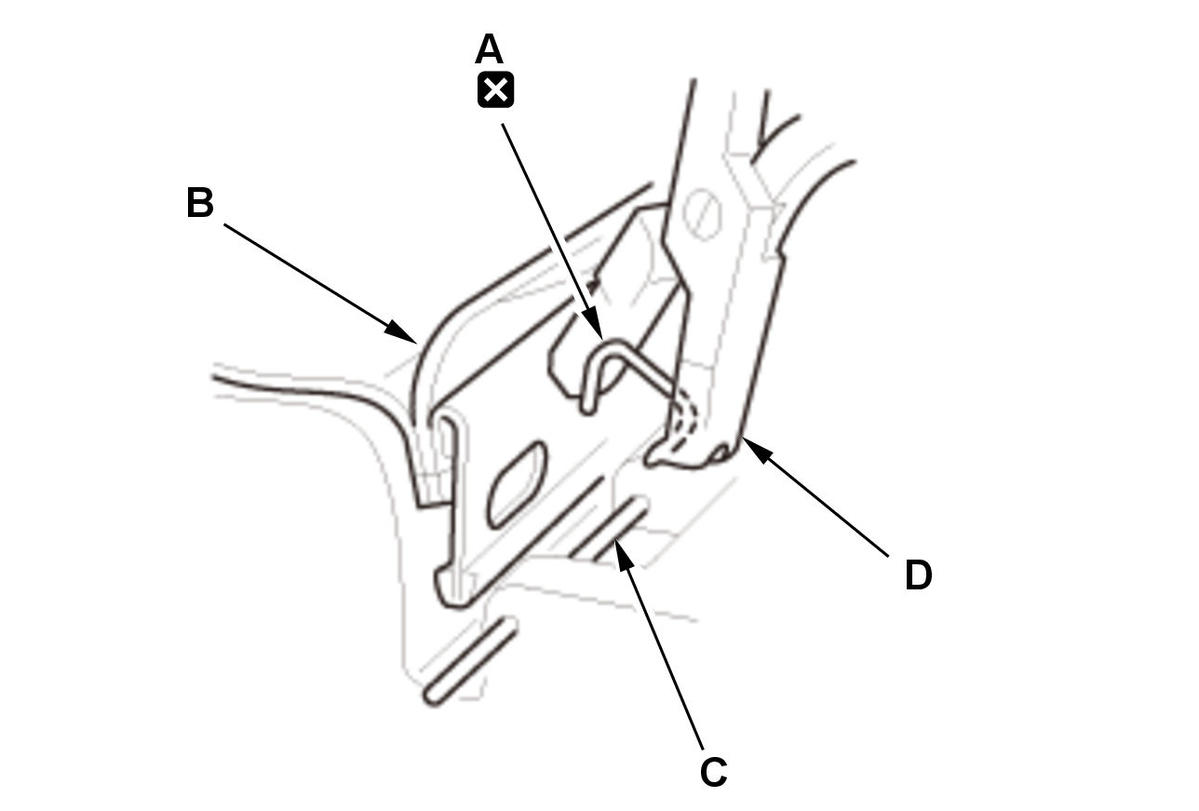

NOTE: Replace all of the upholstery rings (A) fastening the seat cushion cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).
