Front Seat Cushion Cover (2013 2014 2015): Removal

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Seat - Remove

   1. Remove the front seat .

2. Front Seat Recline Cover - Remove

   1. Remove the front seat recline cover .

3. Front Seat Center Cover - Remove

   1. Remove the front seat center cover .

4. Front Seat Cushion Harness - Remove

   Courtesy of HONDA, U.S.A., INC.

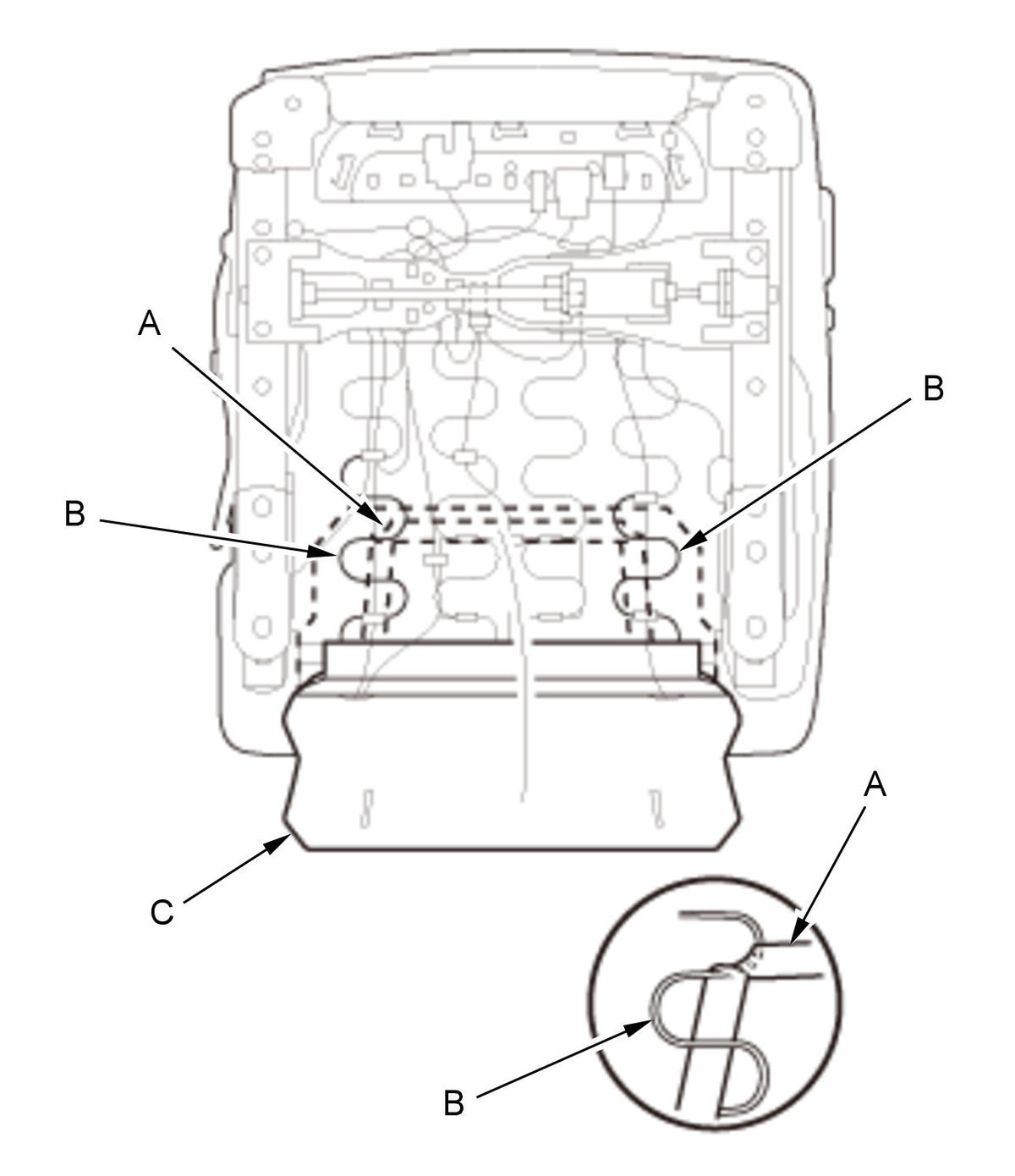

   1. From under the seat cushion, release the elastic strap (A) from the seat cushion frame springs (B), then pull back the undercover (C) of the seat-back cover.

   Driver's seat  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Passenger's seat  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

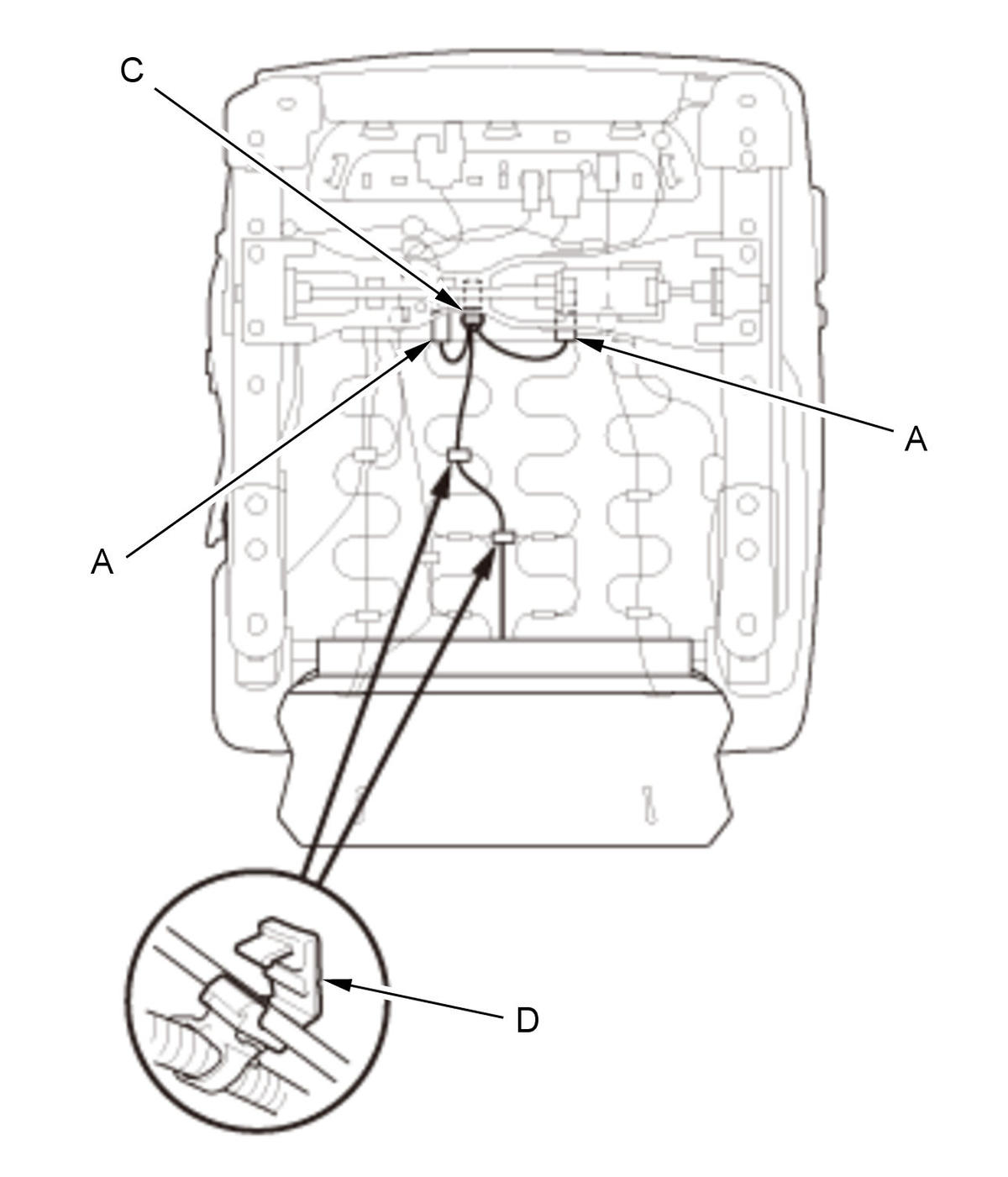

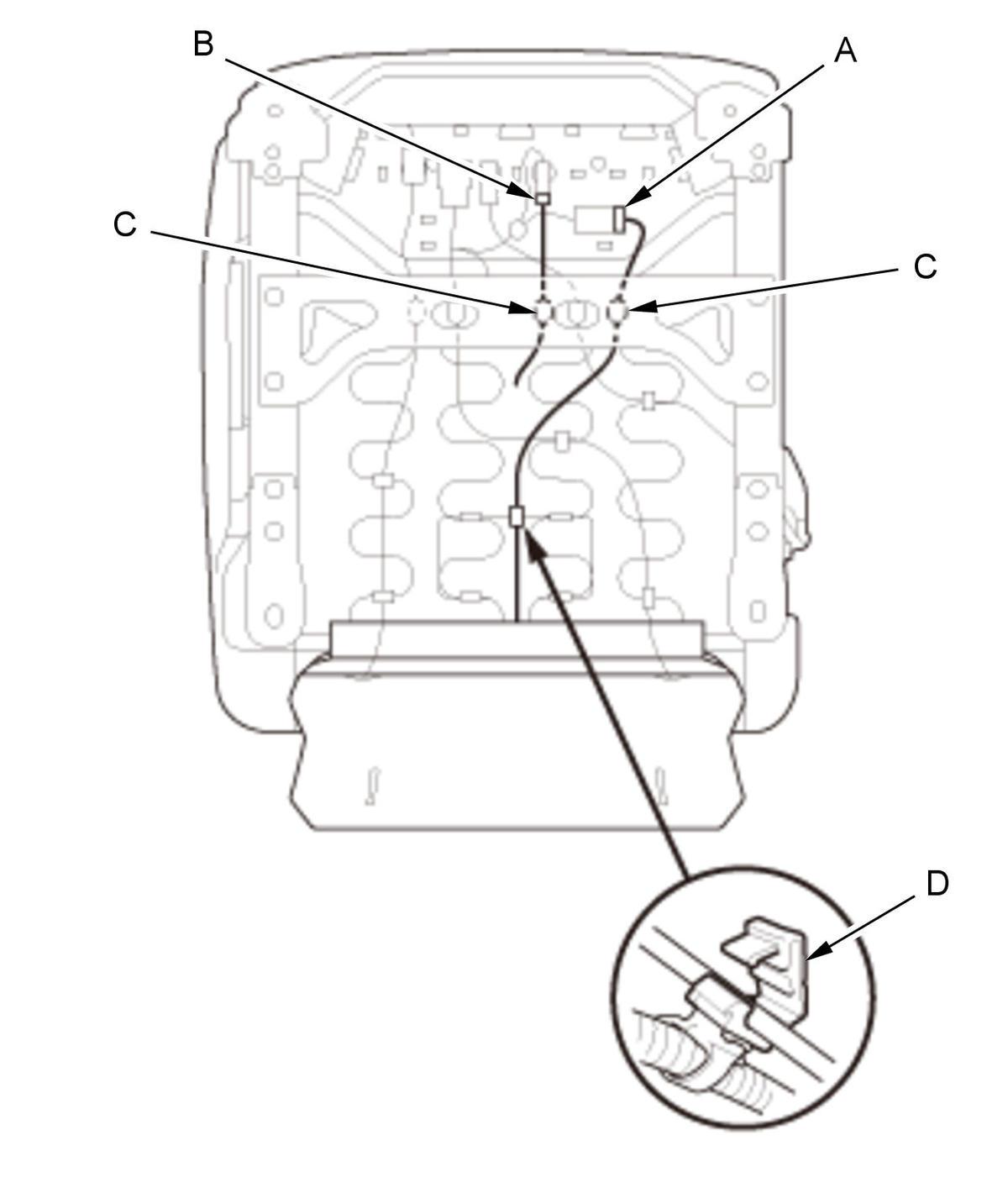

   2. With seat heater: Disconnect the seat cushion heater connector(s) (A). 3. Passenger's seat (Mexico models): Disconnect the seat sitting switch connector (B). 4. Remove the harness clip (C) and the holder(s) (D).

5. Front Seat Cushion Cover/Pad - Remove

   Courtesy of HONDA, U.S.A., INC.

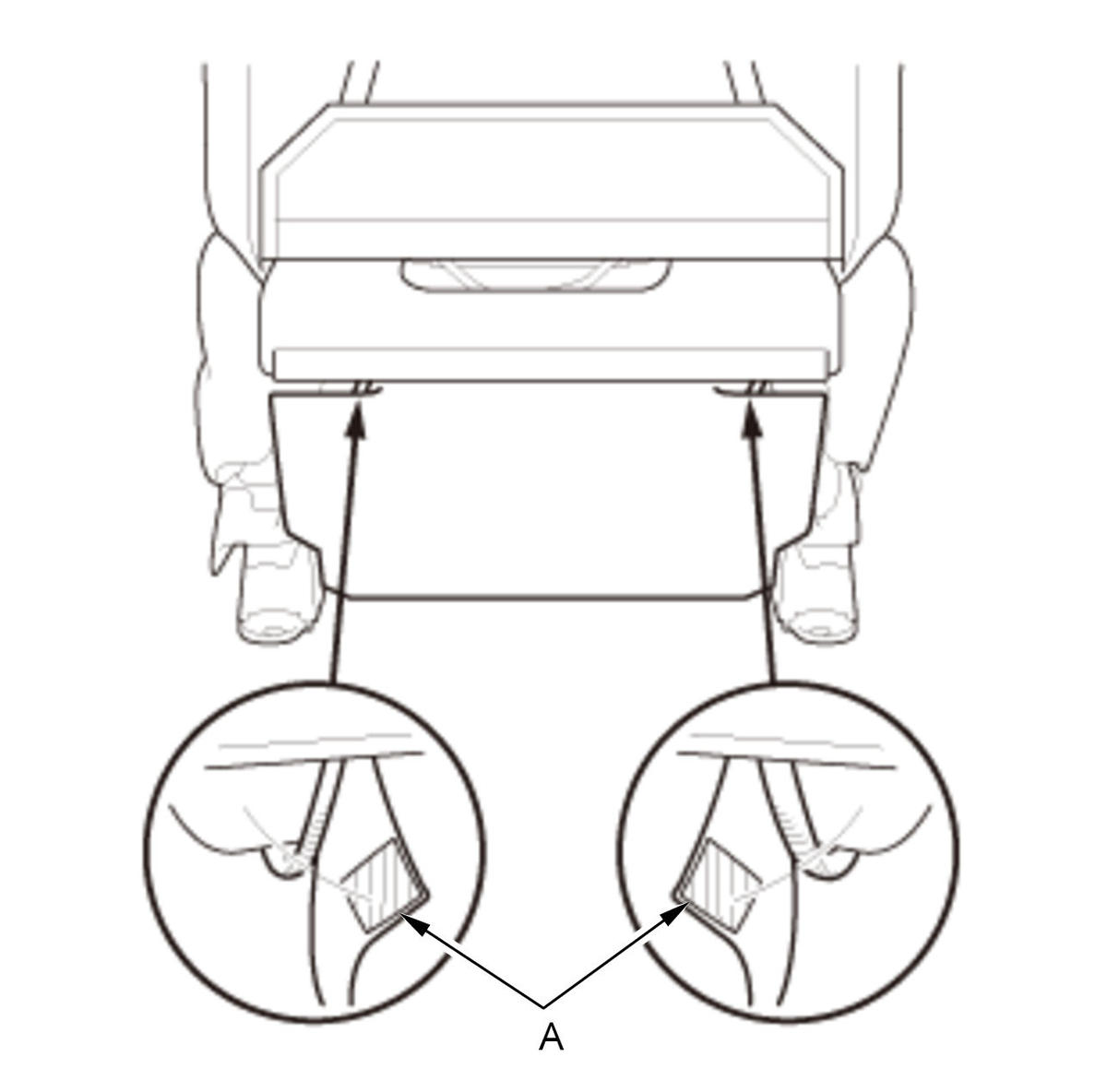

   1. Release the hook and loop fasteners (A).

   Driver's seat  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Passenger's seat  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

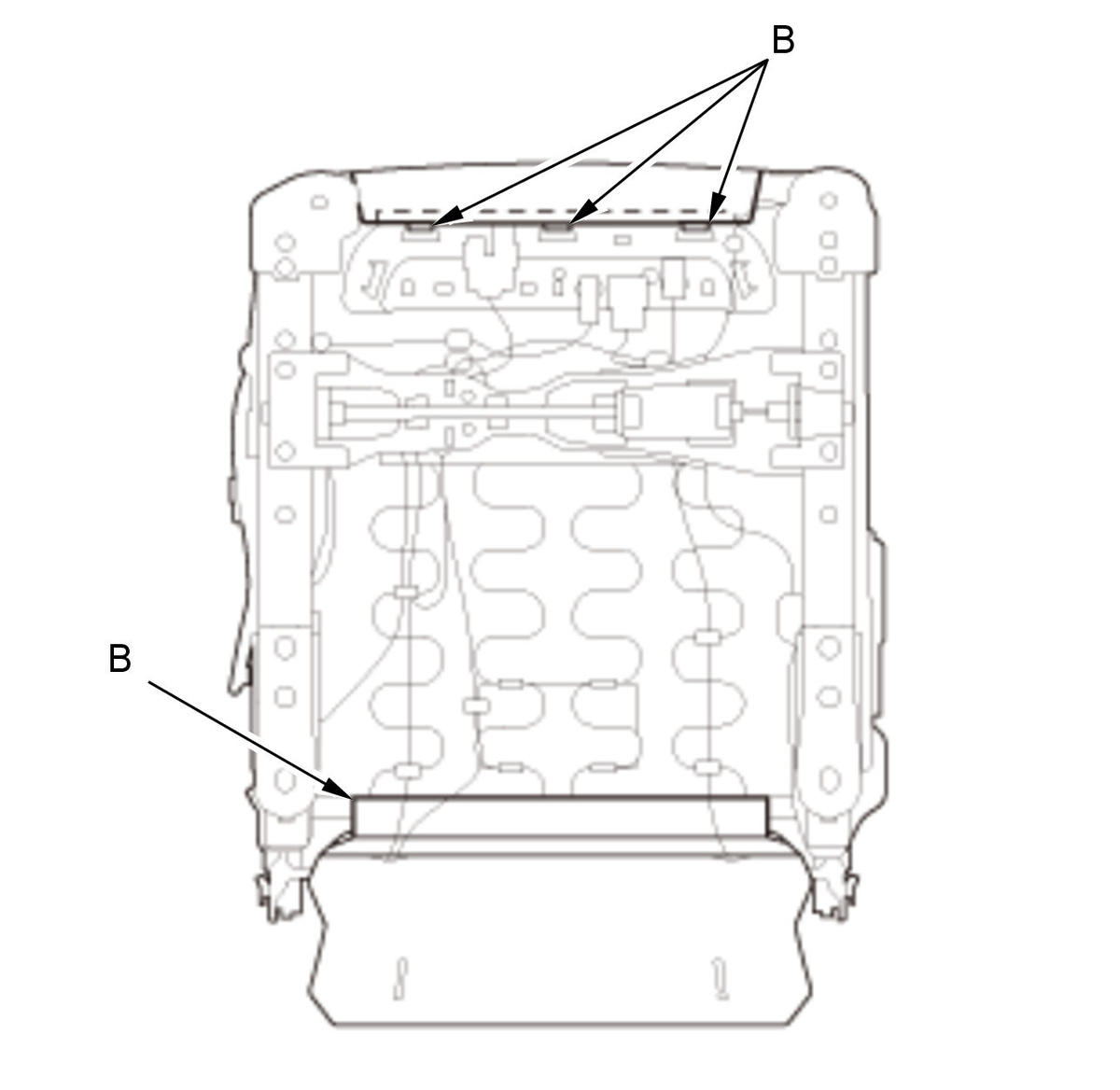

   2. Passenger's seat: Release the hook and loop fastener (A). 3. Release the hook strips (B).

   Driver's seat  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Passenger's seat  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

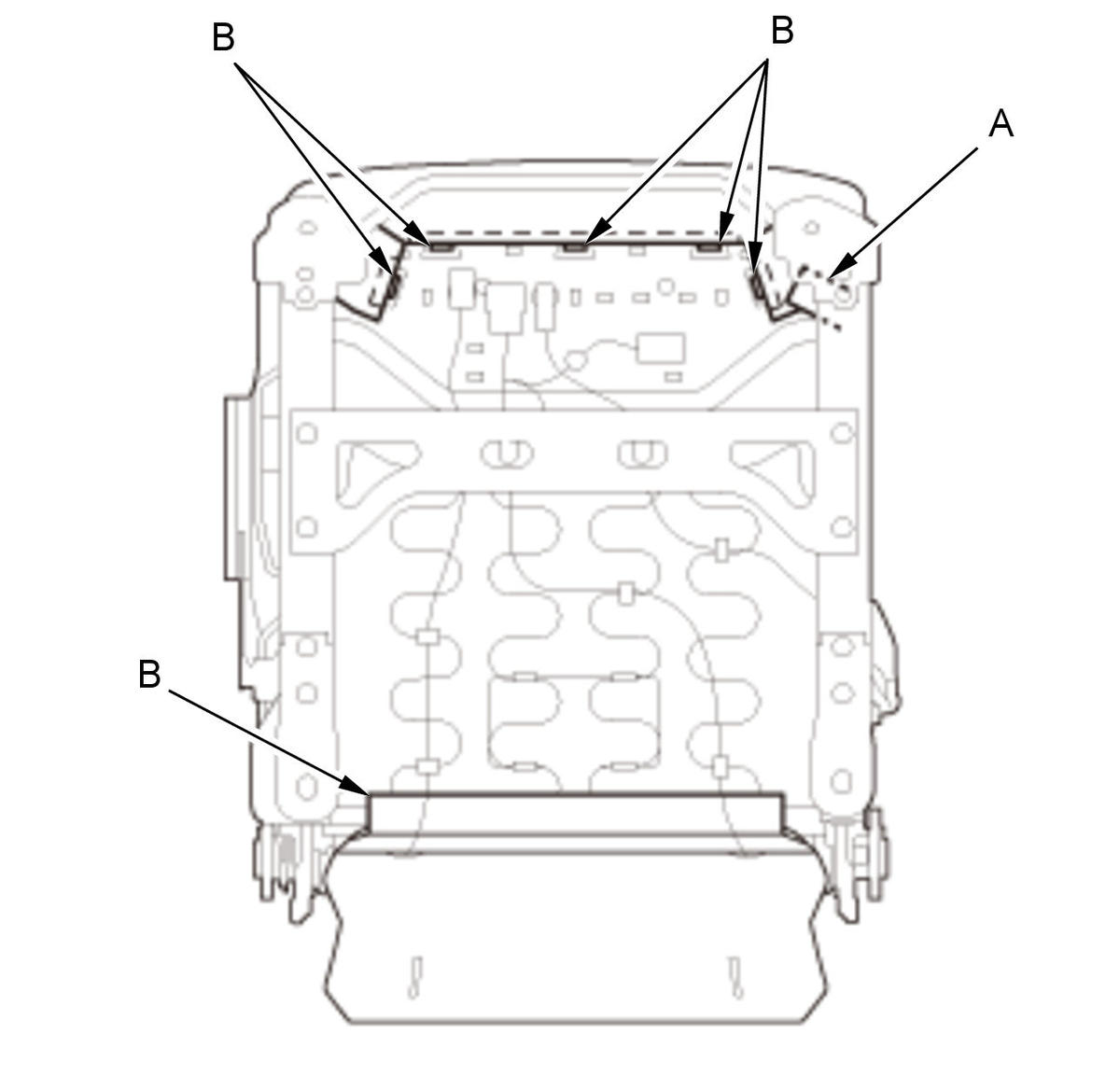

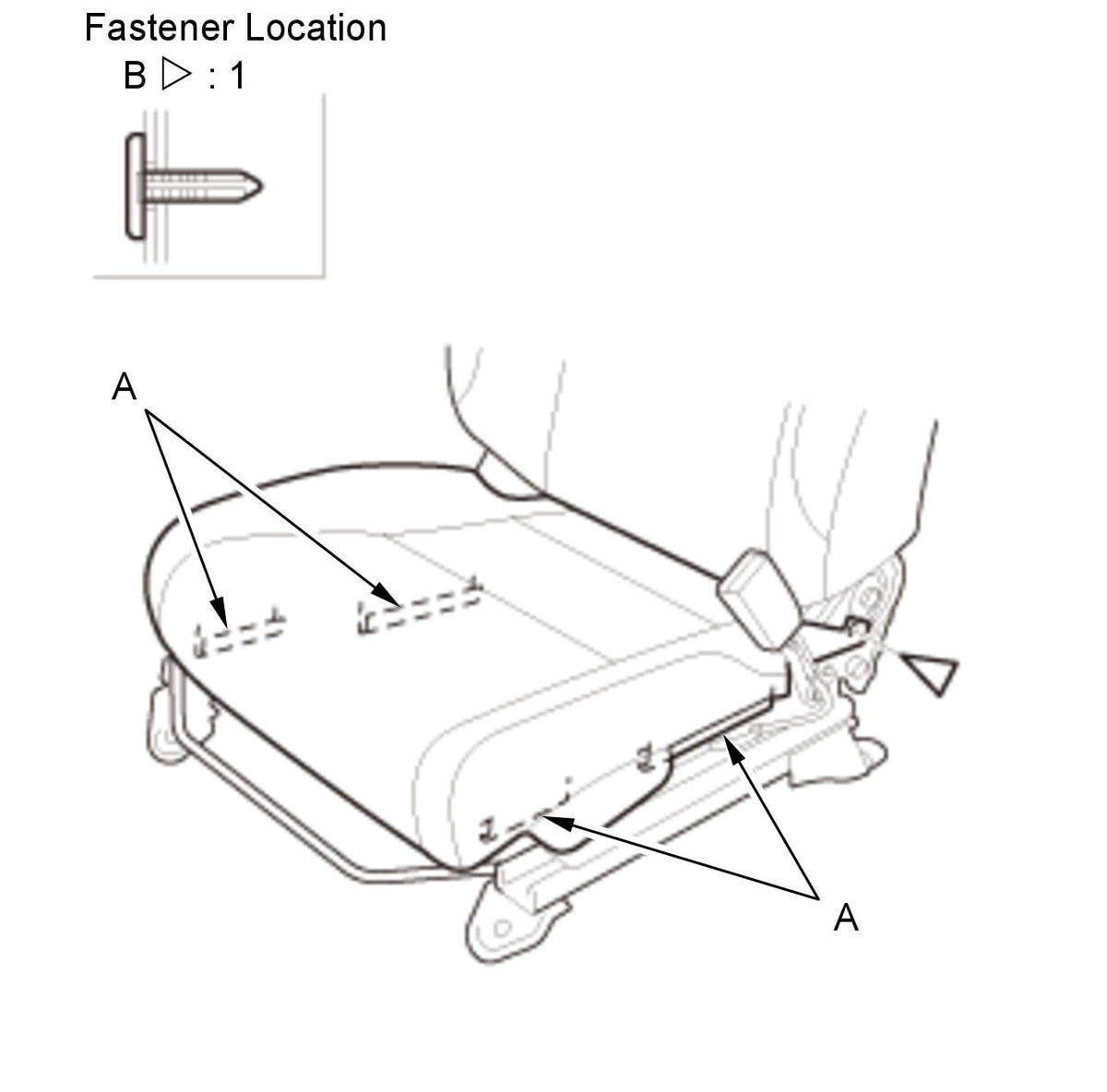

   4. Release the hook strips (A). 5. Remove the clip (B).

   Courtesy of HONDA, U.S.A., INC.

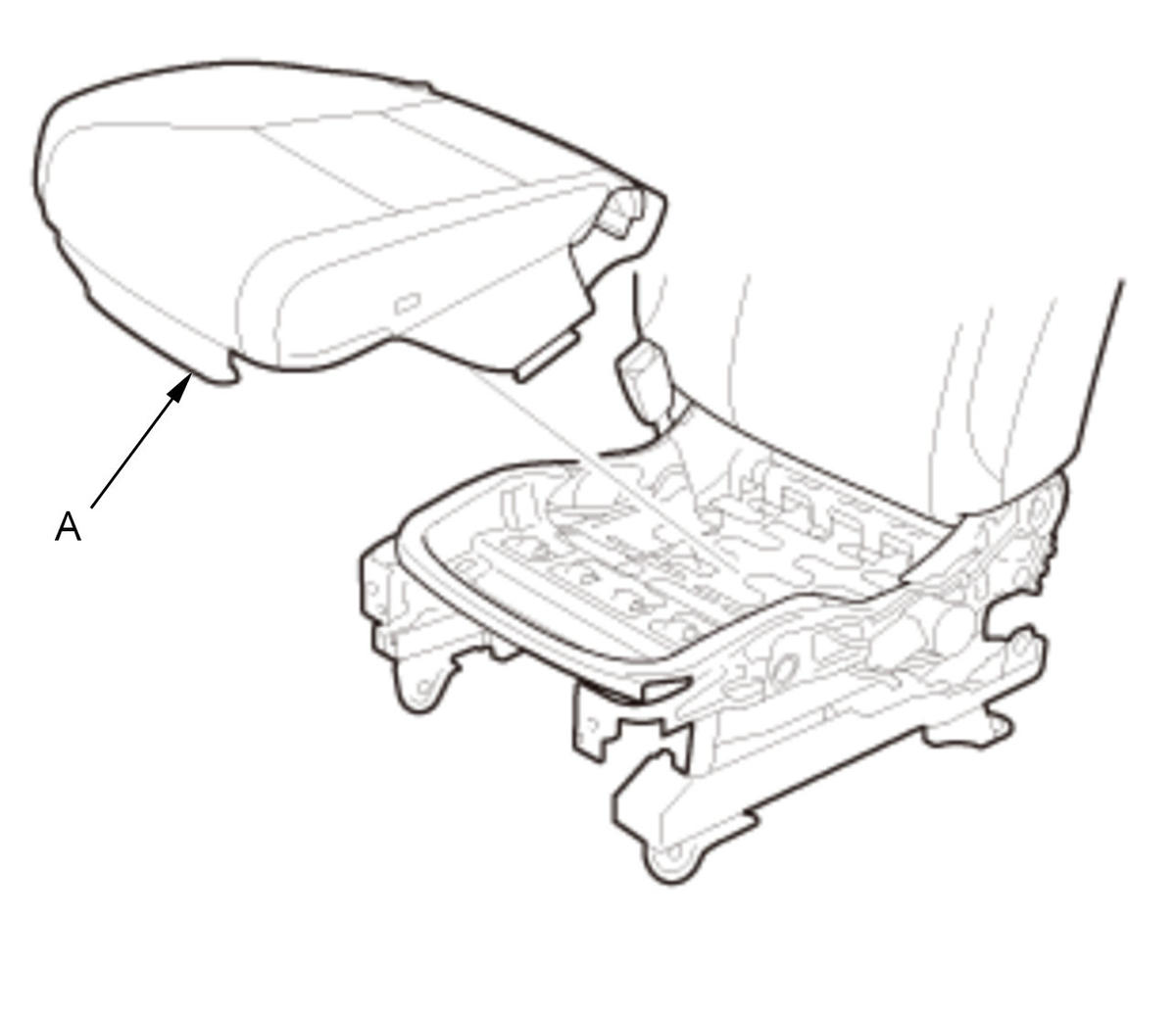

   6. Remove the seat cushion cover/pad (A).

6. Front Seat Cushion Cover - Remove

   Courtesy of HONDA, U.S.A., INC.

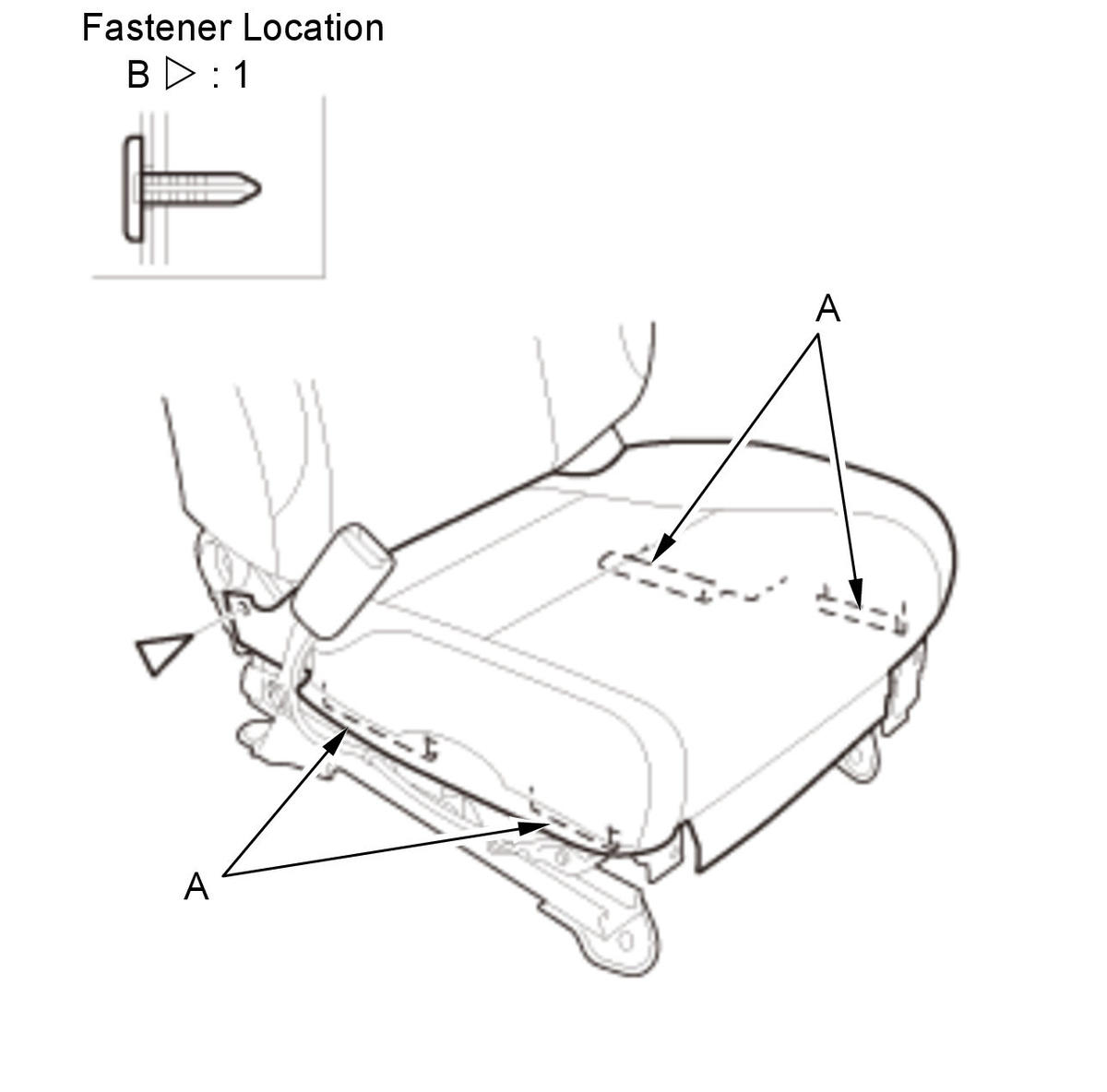

   1. Remove the upholstery rings (A) securing the seat cushion cover (B).

   Courtesy of HONDA, U.S.A., INC.

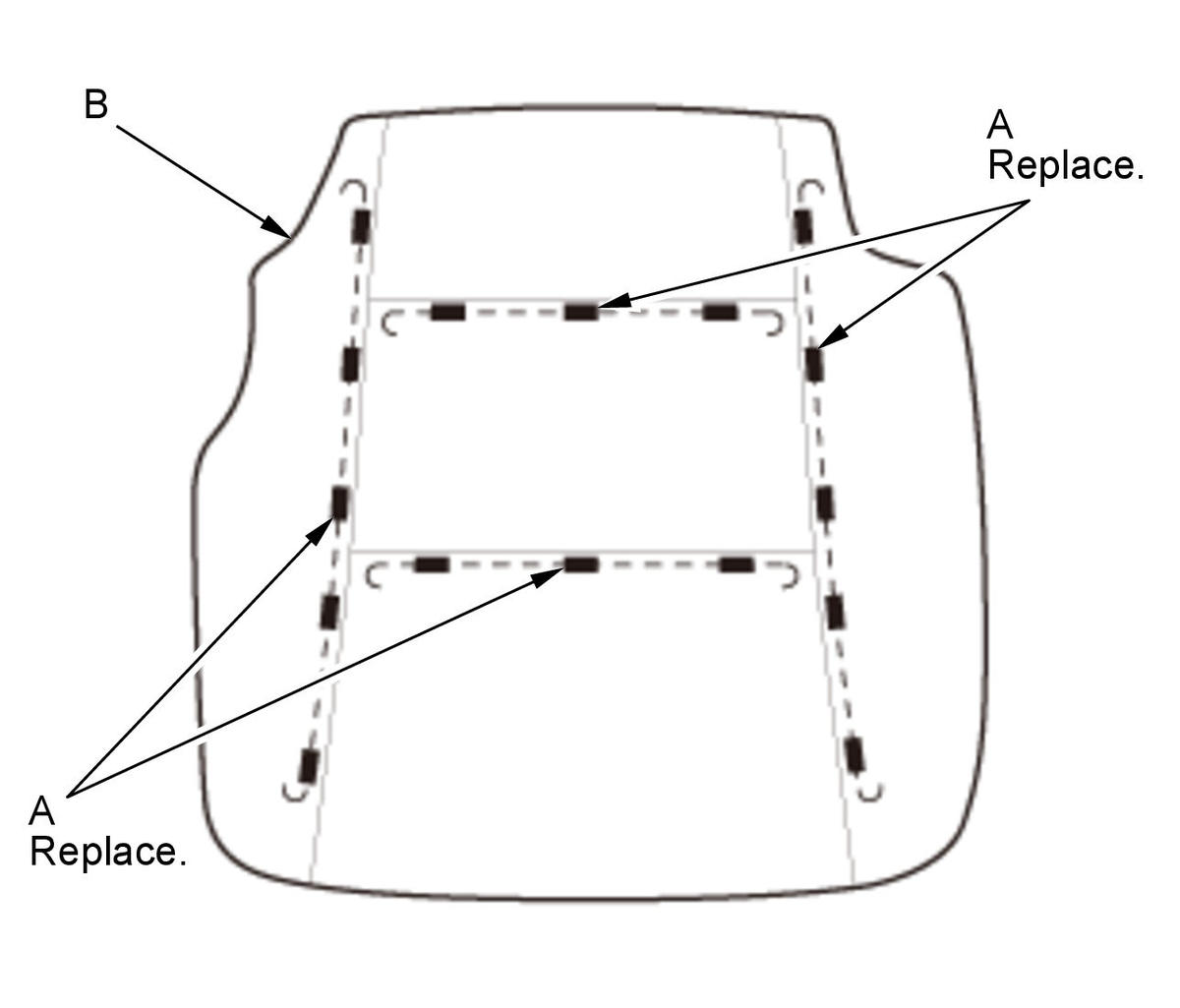

   2. Release the upholstery rings (A), then remove the seat cushion cover (B).
