Front Seat Cushion Cover (2013 2014 2015): Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

  1. Front Seat Cushion Cover - Install

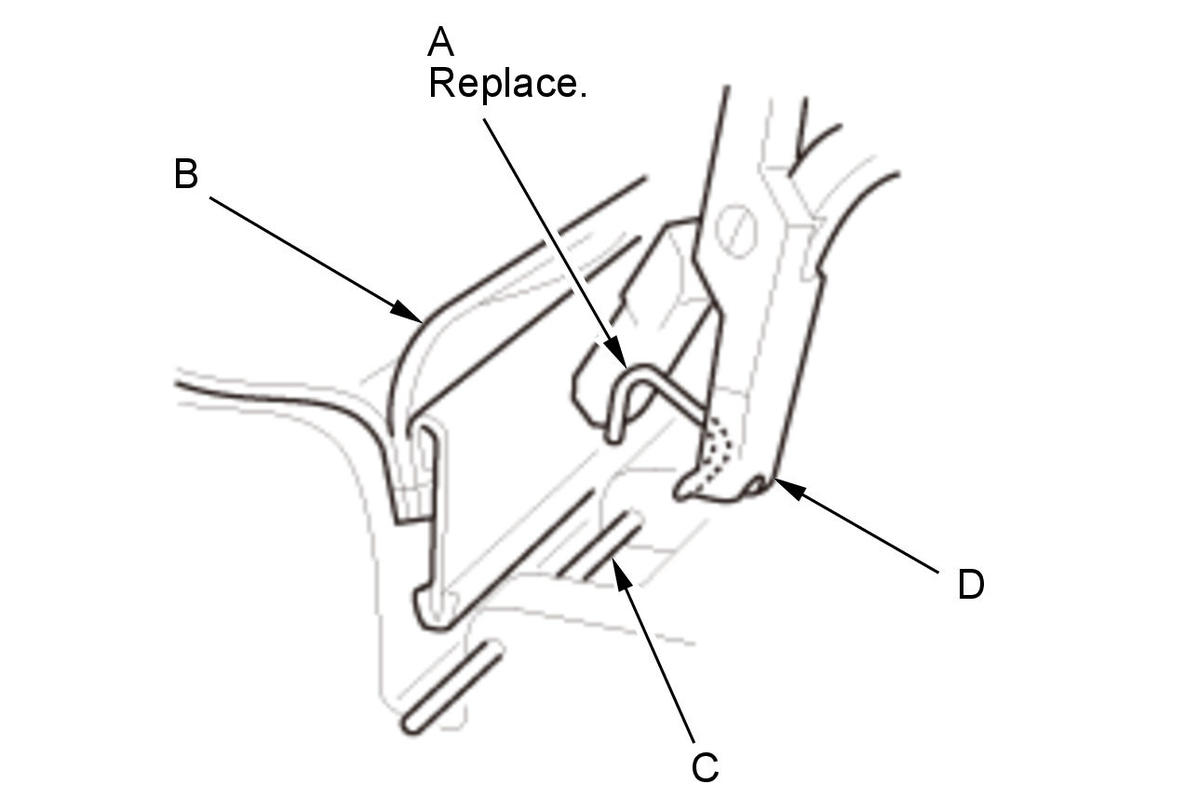

    GHH473872Courtesy of HONDA, U.S.A., INC.

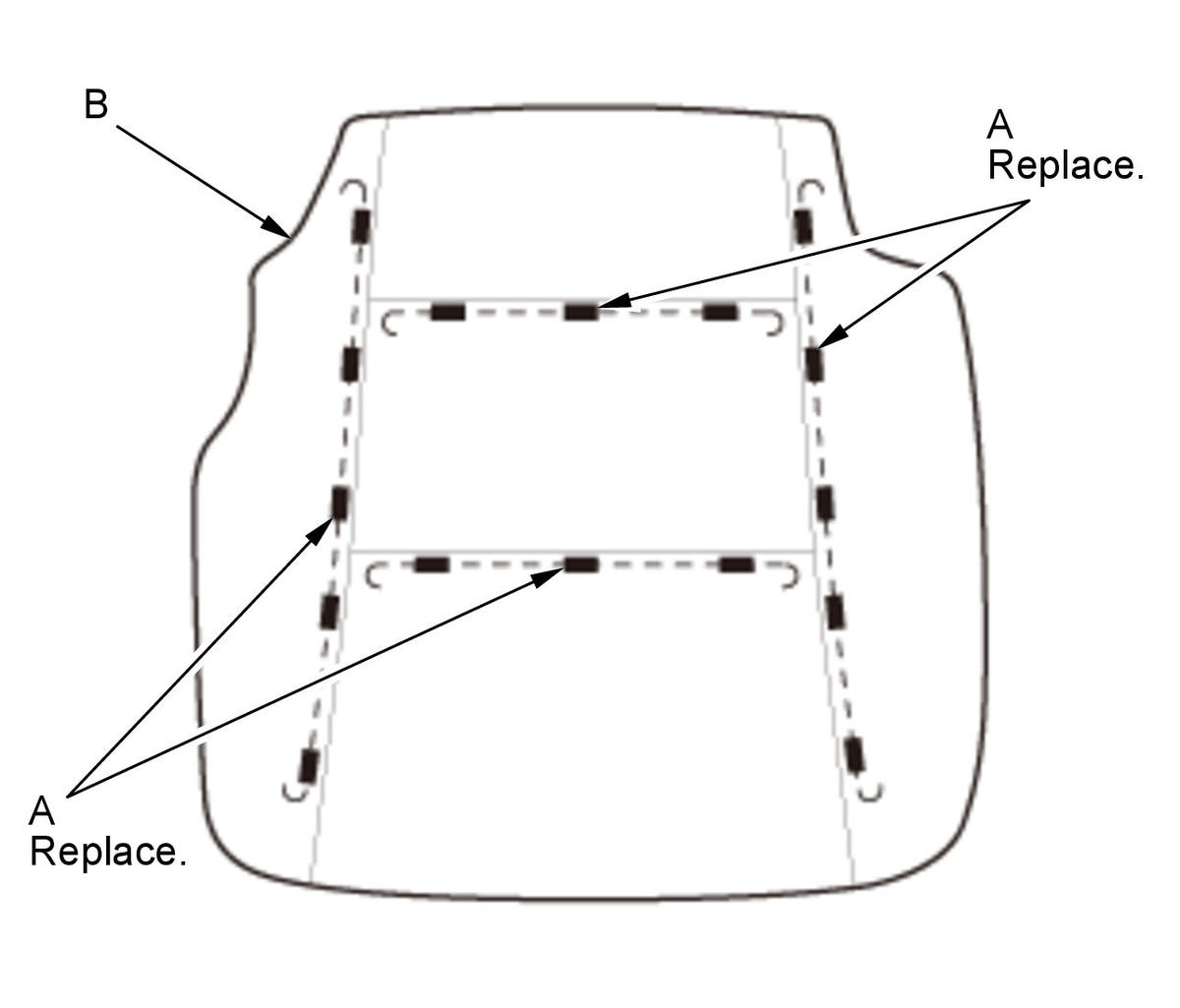

    NOTE: Replace all of the upholstery rings (A) fastening the seat cushion cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).
    GHH473873Courtesy of HONDA, U.S.A., INC.
    		 1. Install the new upholstery rings (A) securing the seat cushion cover (B).

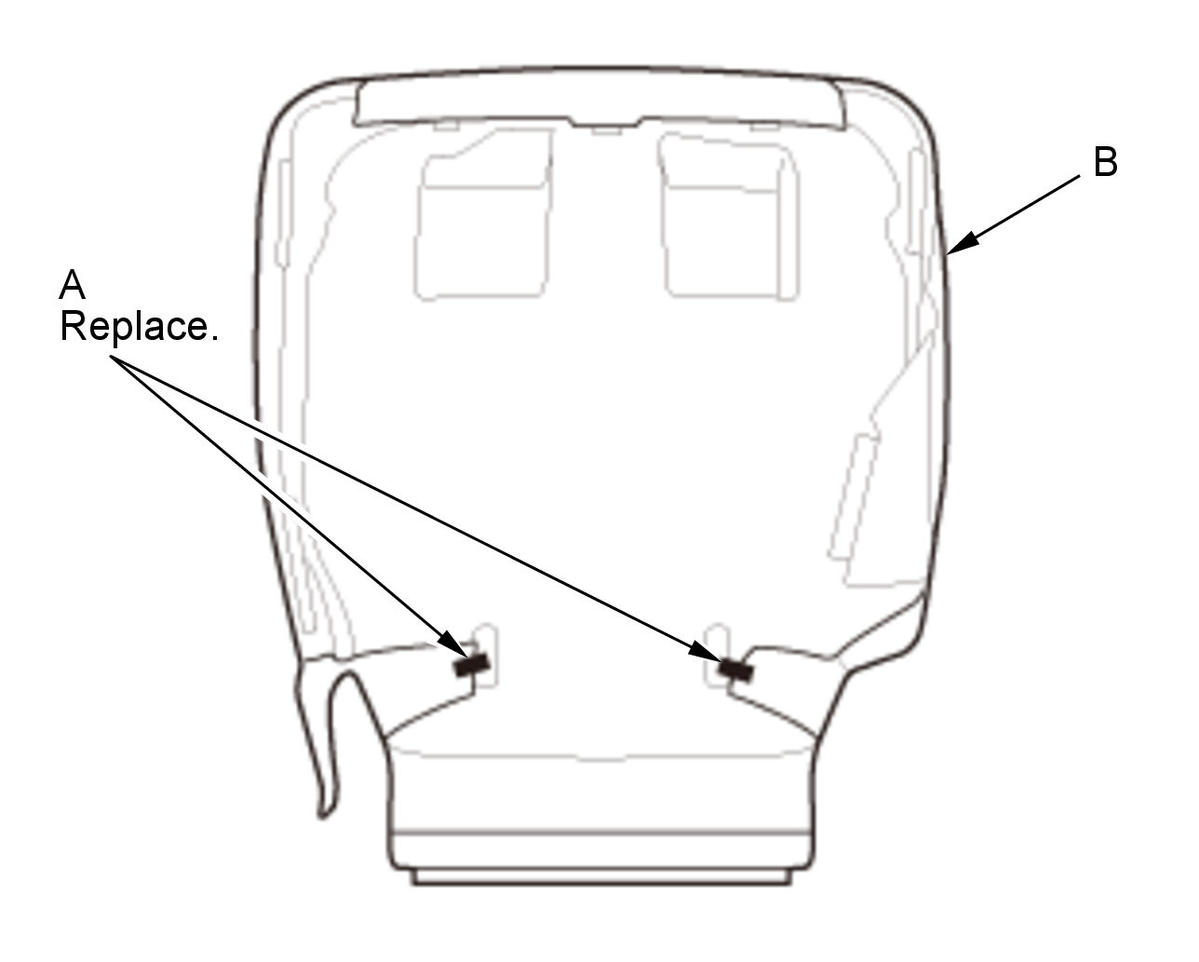

    GHH473874Courtesy of HONDA, U.S.A., INC.
    		 2. Install the new upholstery rings (A) securing the seat cushion cover (B).
  2. Front Seat Cushion Cover/Pad - Install

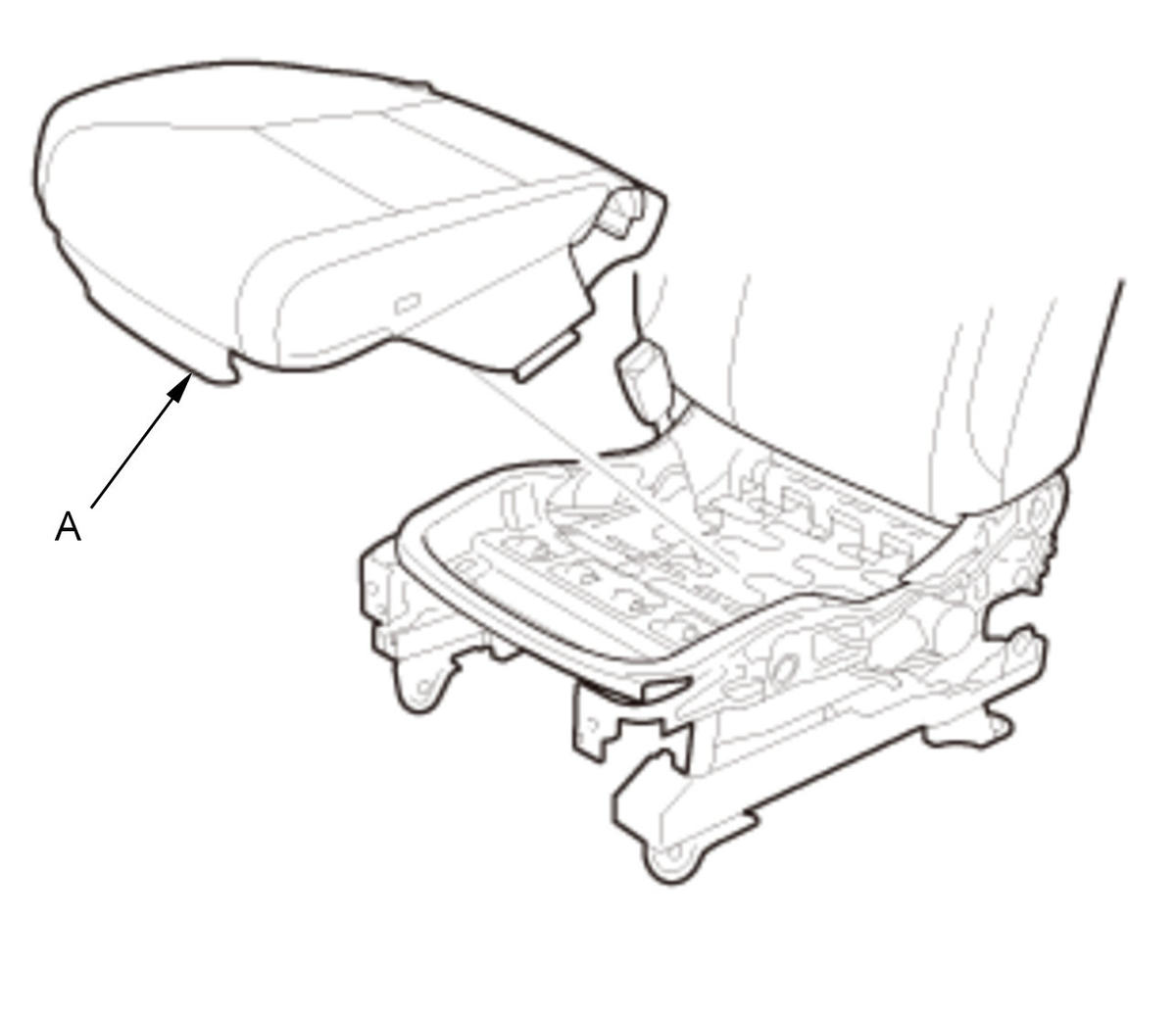

    GHH473875Courtesy of HONDA, U.S.A., INC.
    		 1. Install the seat cushion cover/pad (A).
    Driver's seat

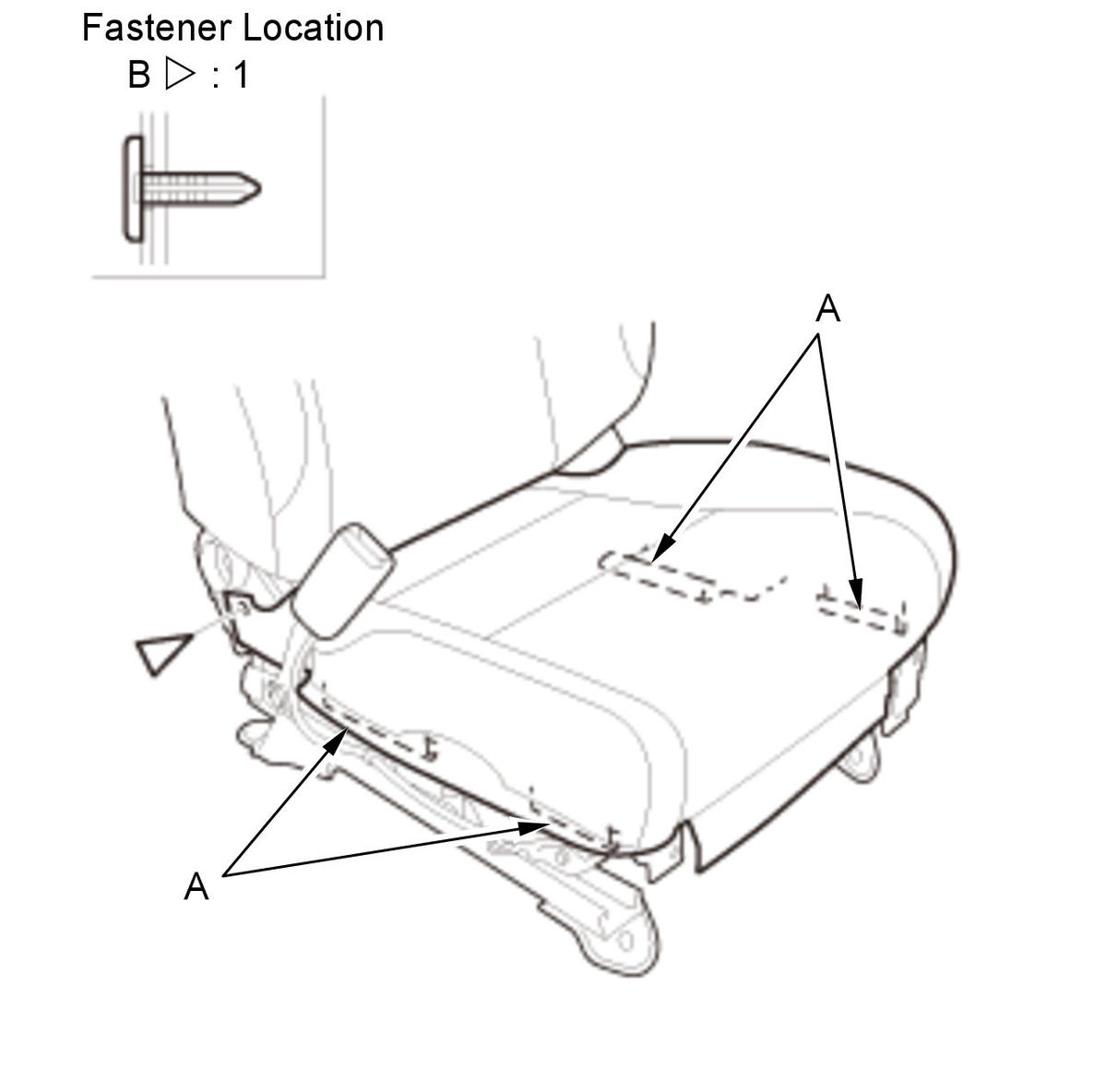

    GHH473876GHH473877Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

    Passenger's seat

    GHH473876GHH473877Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

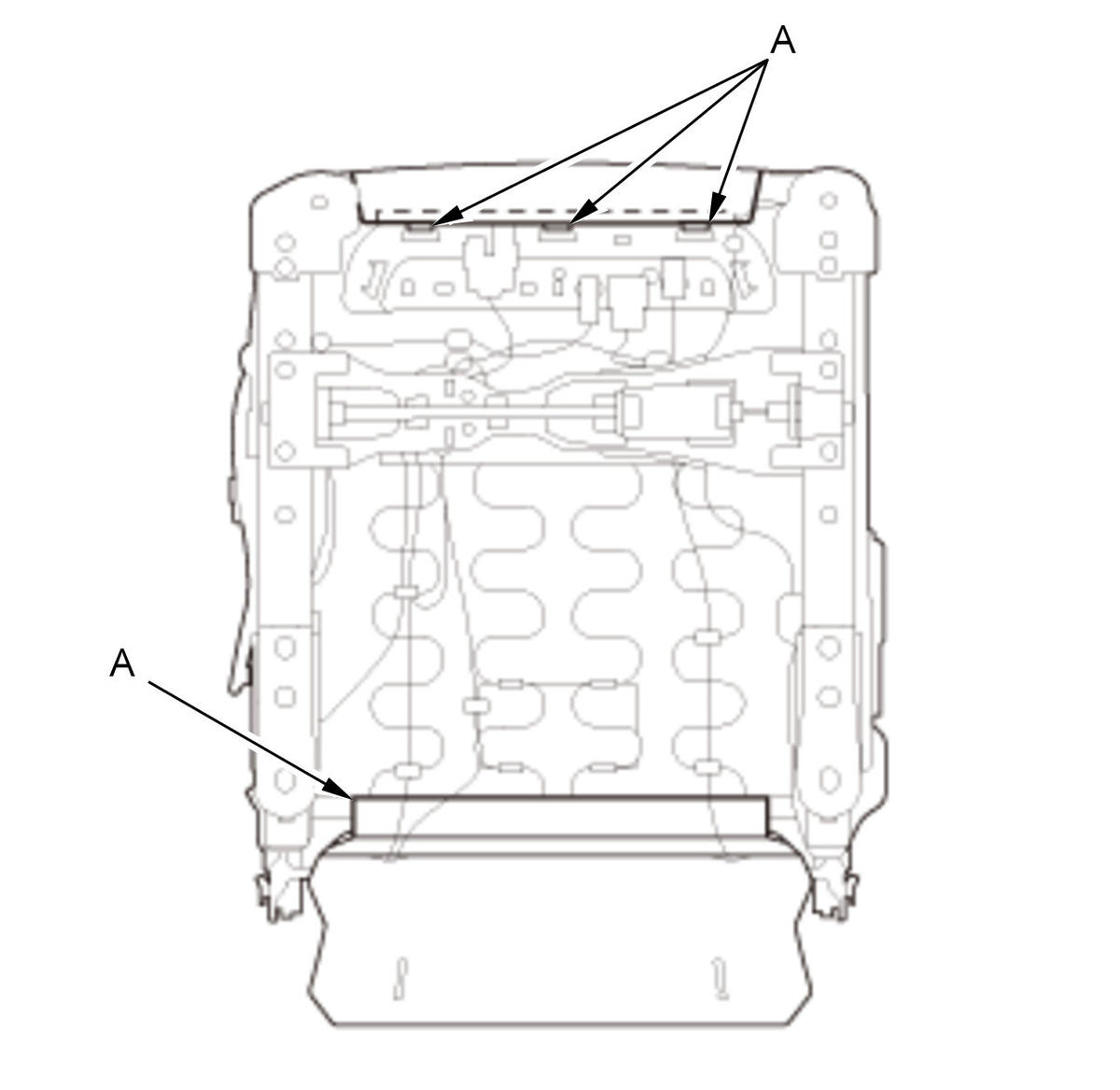

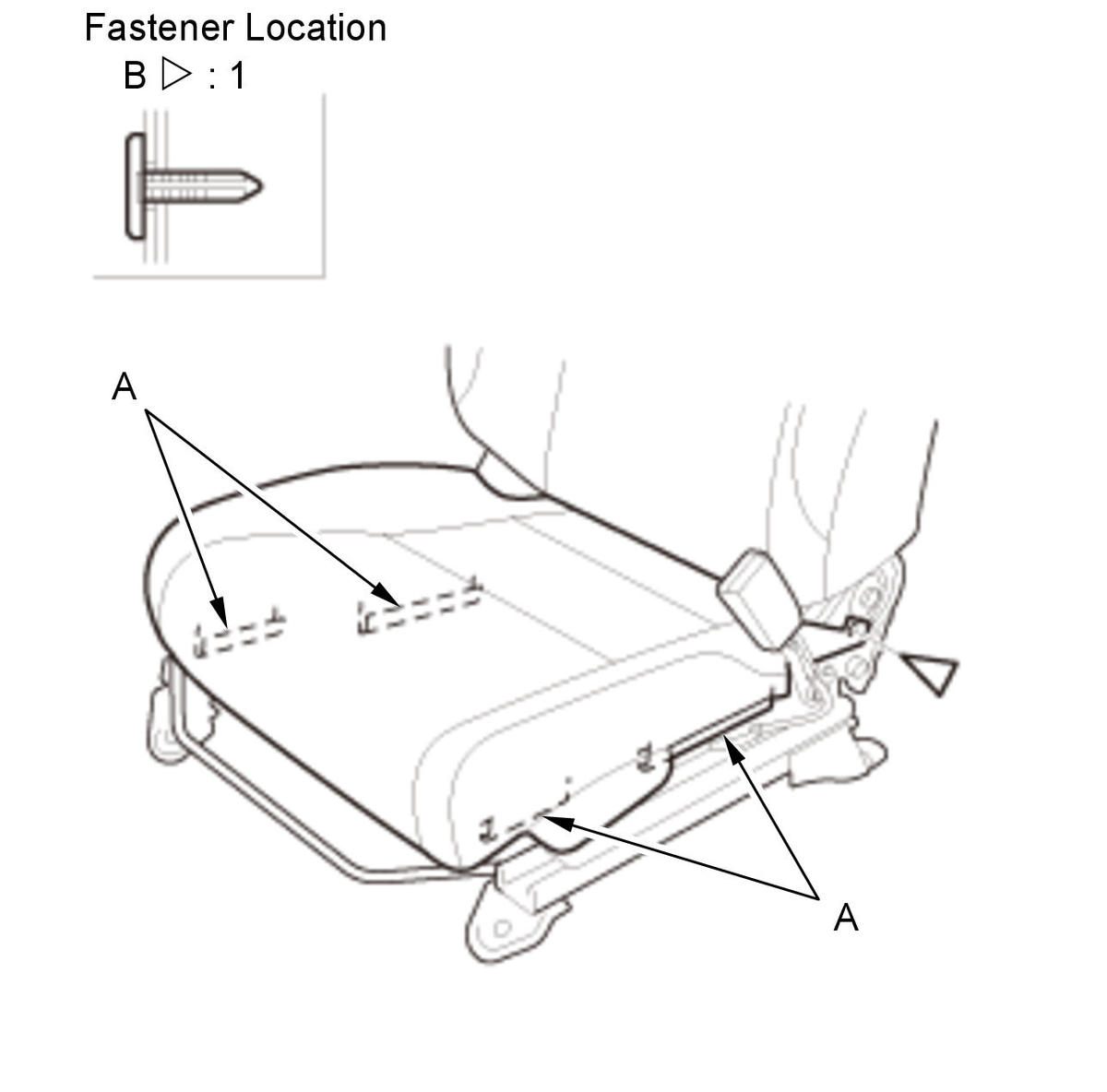

    		 2. Install the hook strips (A).

    3. Install the clip (B).
    Driver's seat
    GHH473878GHH473879Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

    Passenger's seat

    GHH473878GHH473879Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

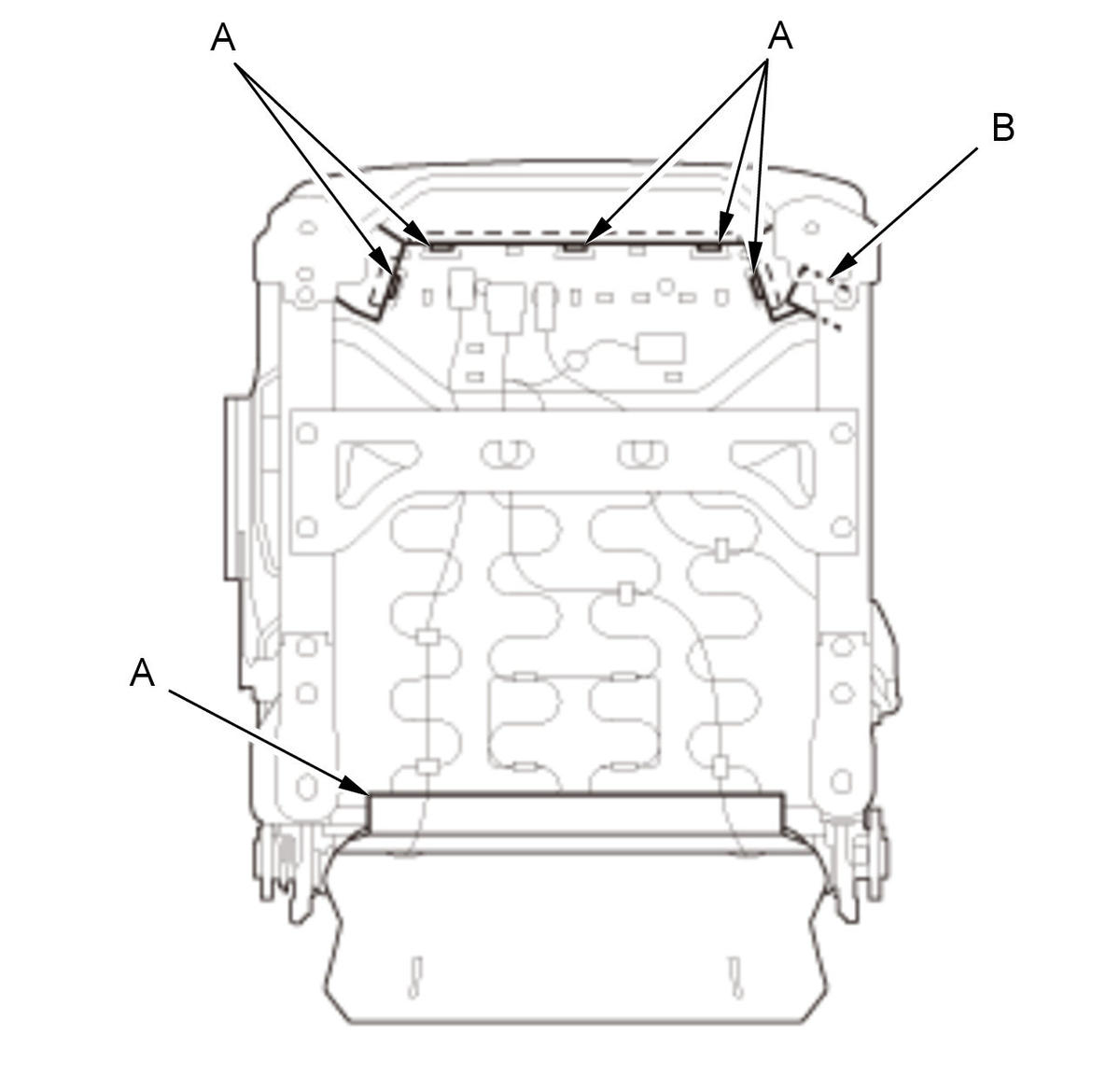

    		 4. Install the hook strips (A).

    5. Passenger's seat: Install the hook and loop fastener (B).

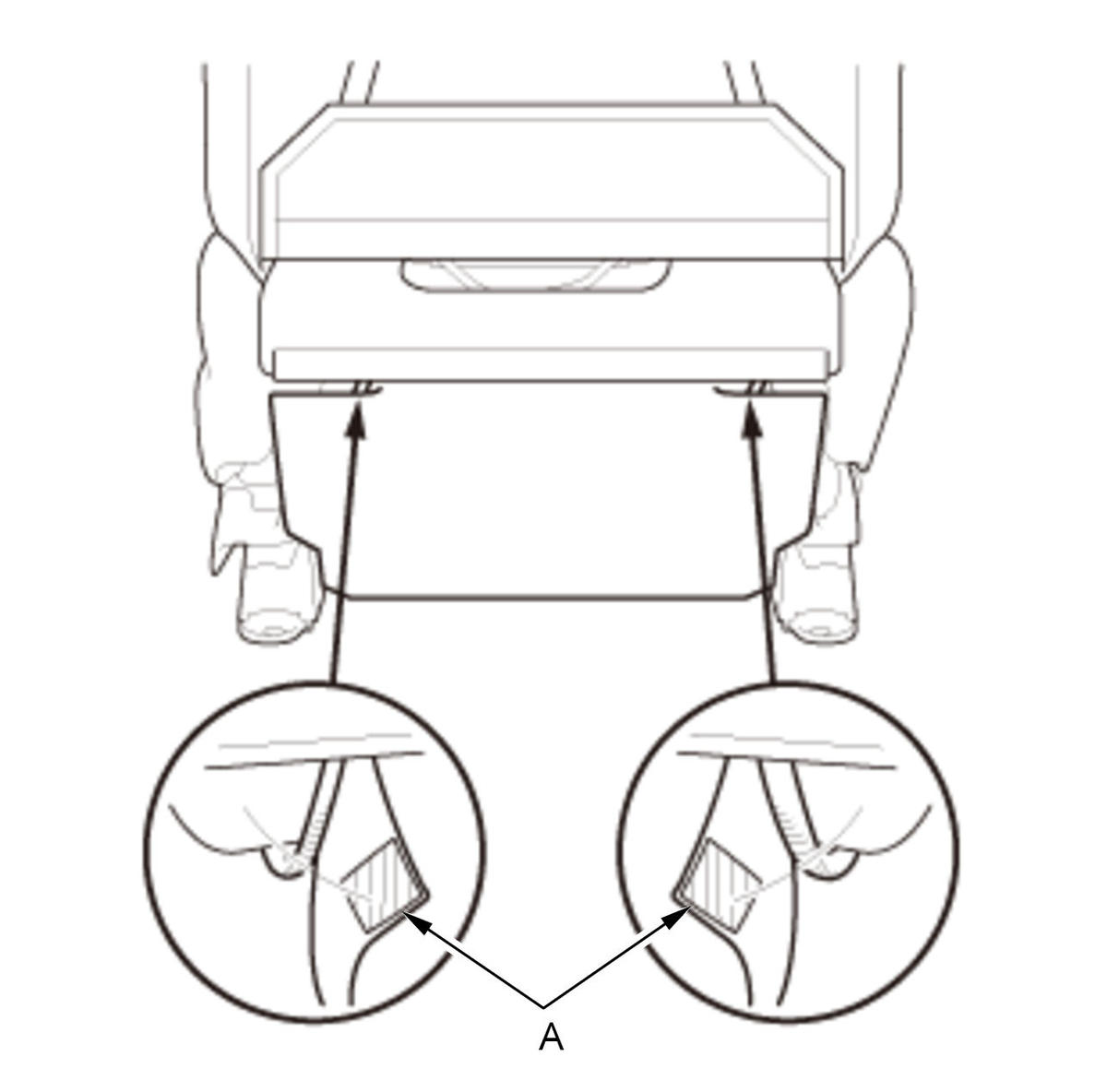

    GHH473880Courtesy of HONDA, U.S.A., INC.
    		 6. Install the hook and loop fasteners (A).

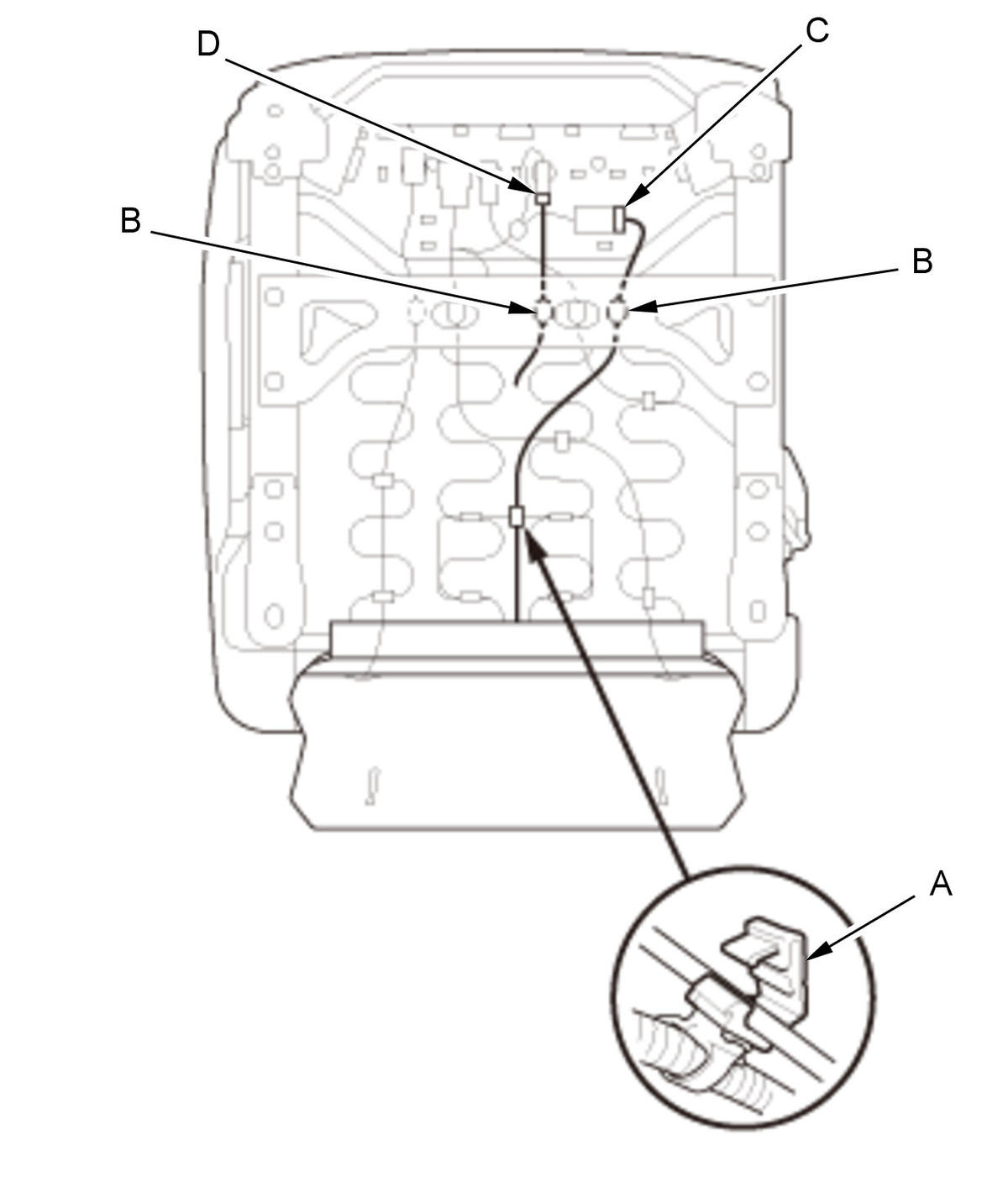

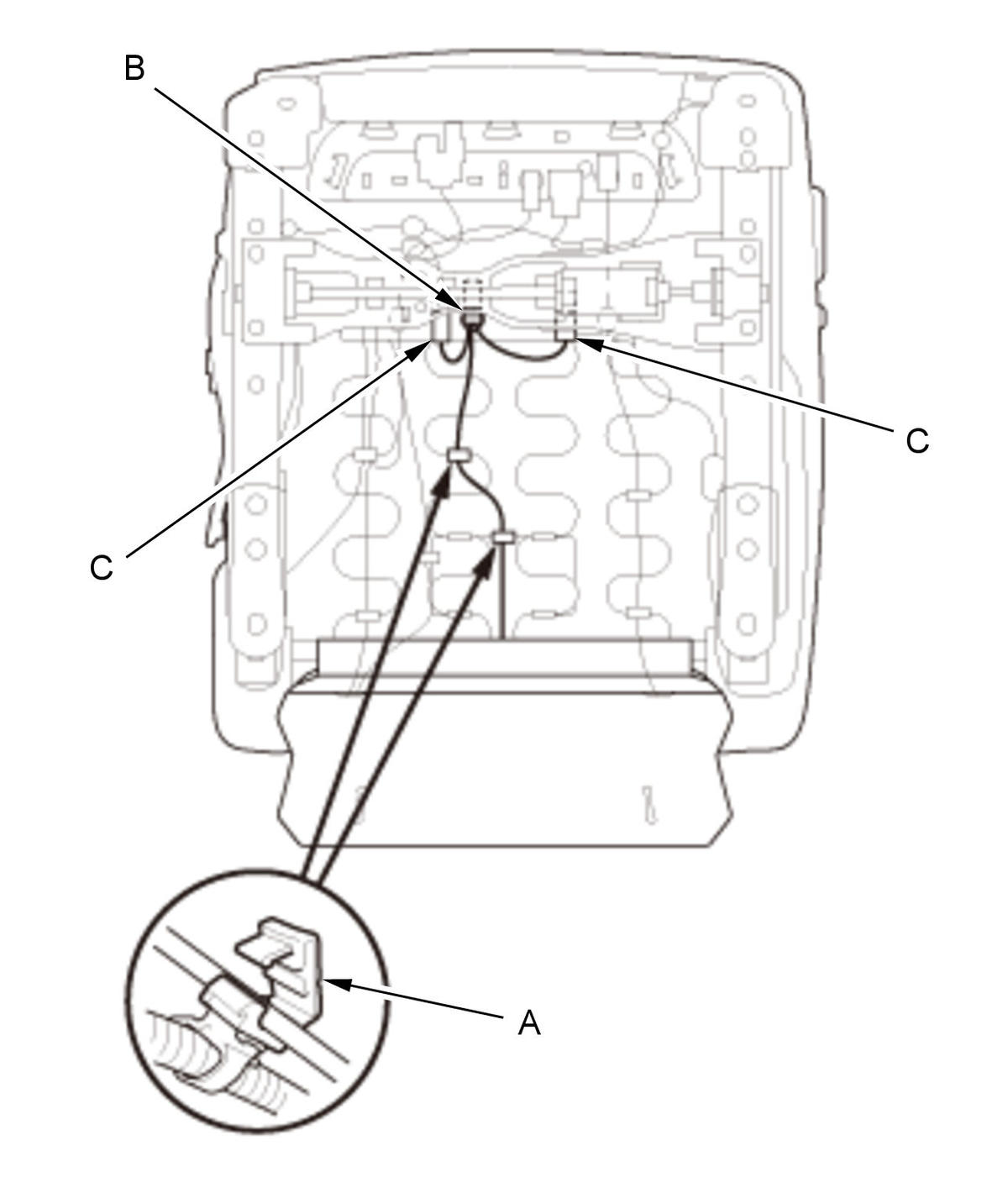

  3. Front Seat Cushion Harness - Install
    Driver's seat
    GHH473881GHH473882Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

    Passenger's seat

    GHH473881GHH473882Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 1. Install the holder(s) (A).

    2. Install the harness clip(s) (B).

    3. Connect the seat cushion heater connectors (C).

    4. Passenger's seat (Mexico models): Connect the seat sitting switch connector (D).
    GHH473883Courtesy of HONDA, U.S.A., INC.

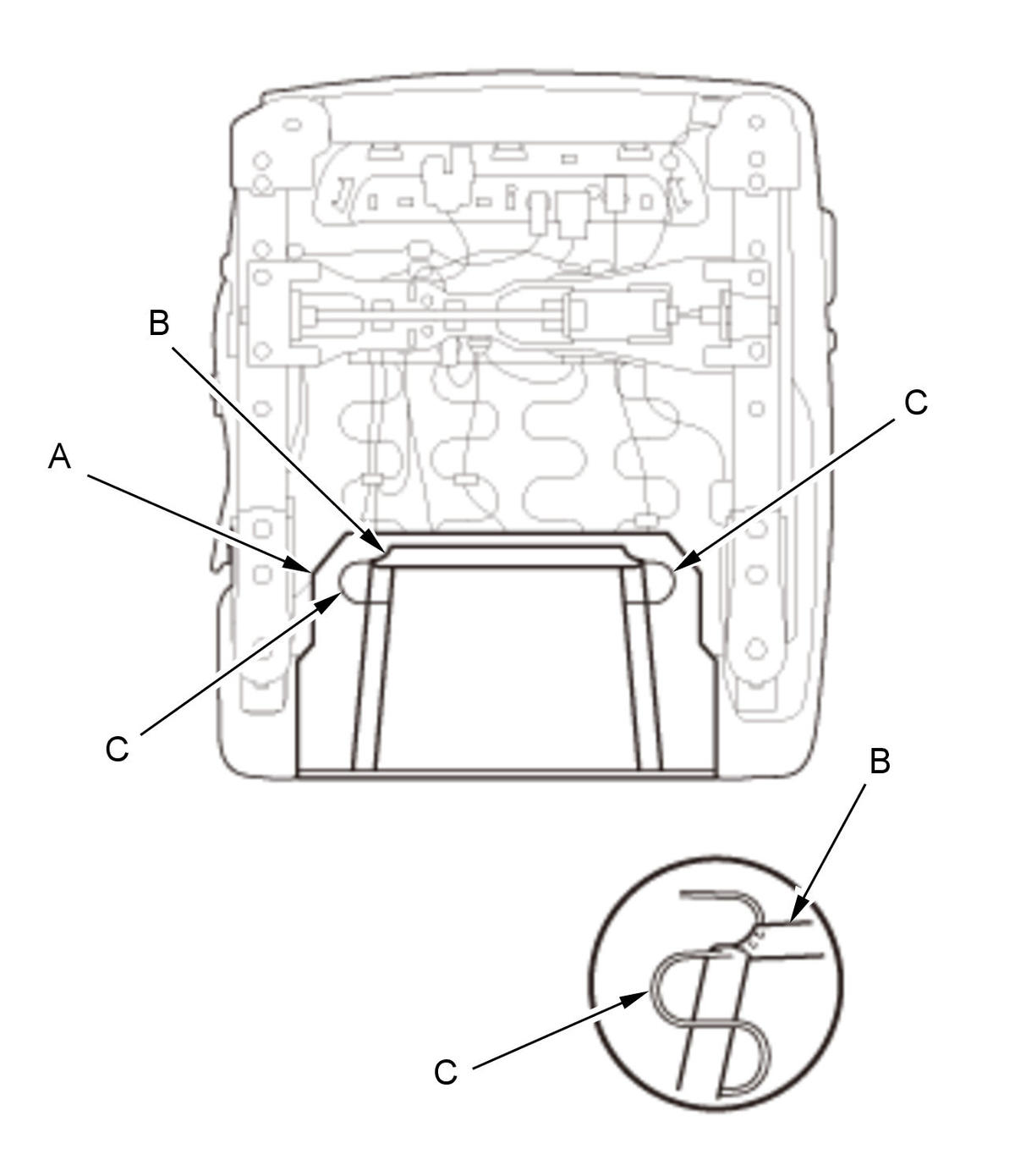

    		 5. From under the seat cushion, install the undercover (A) of the seat-back cover, then install the elastic strap (B) to the seat cushion frame springs (C).
  4. Front Seat Recline Cover - Install
    1. Install the front seat recline cover .
  5. Front Seat Center Cover - Install
    1. Install the front seat center cover .
  6. Front Seat - Install
    1. Install the front seat .
